Plan 710110BTZ 4-Bed Old World English-Style House Plan

3,306 4 3.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4-Bed Old World English-Style House Plan

Plan 710110BTZ

  • 3,306

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

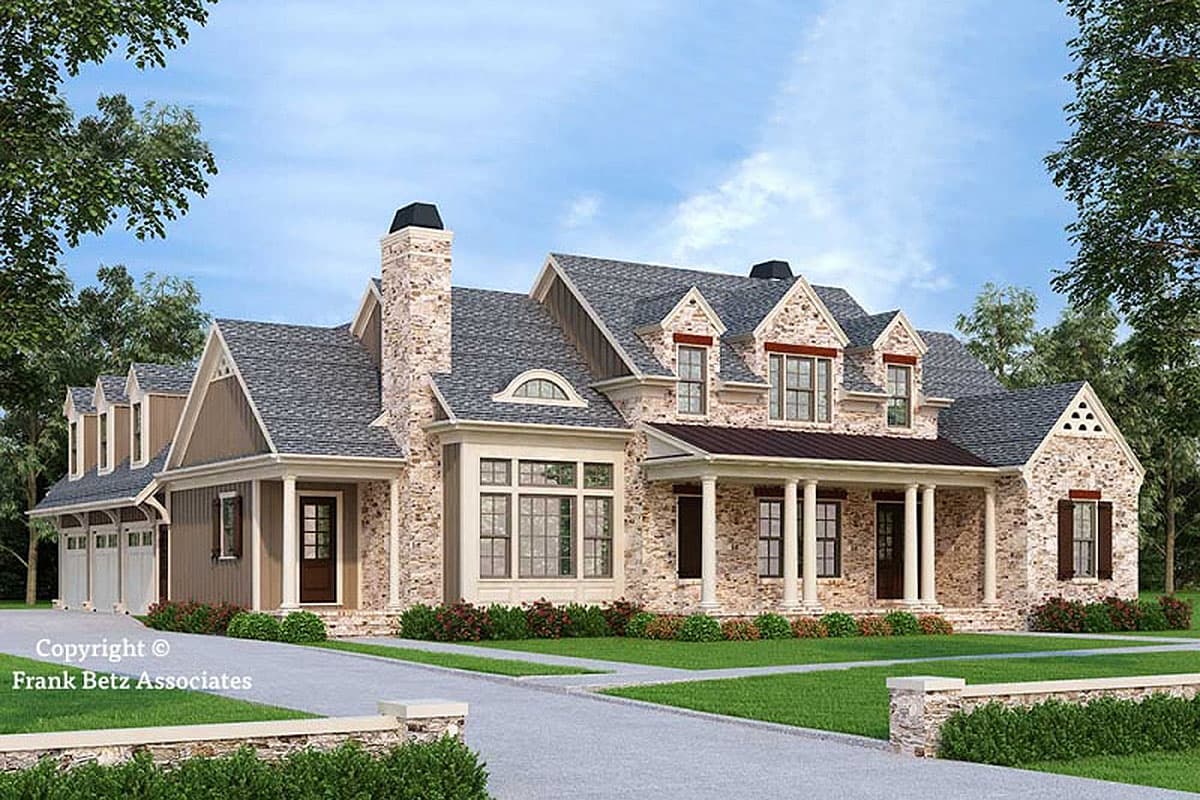

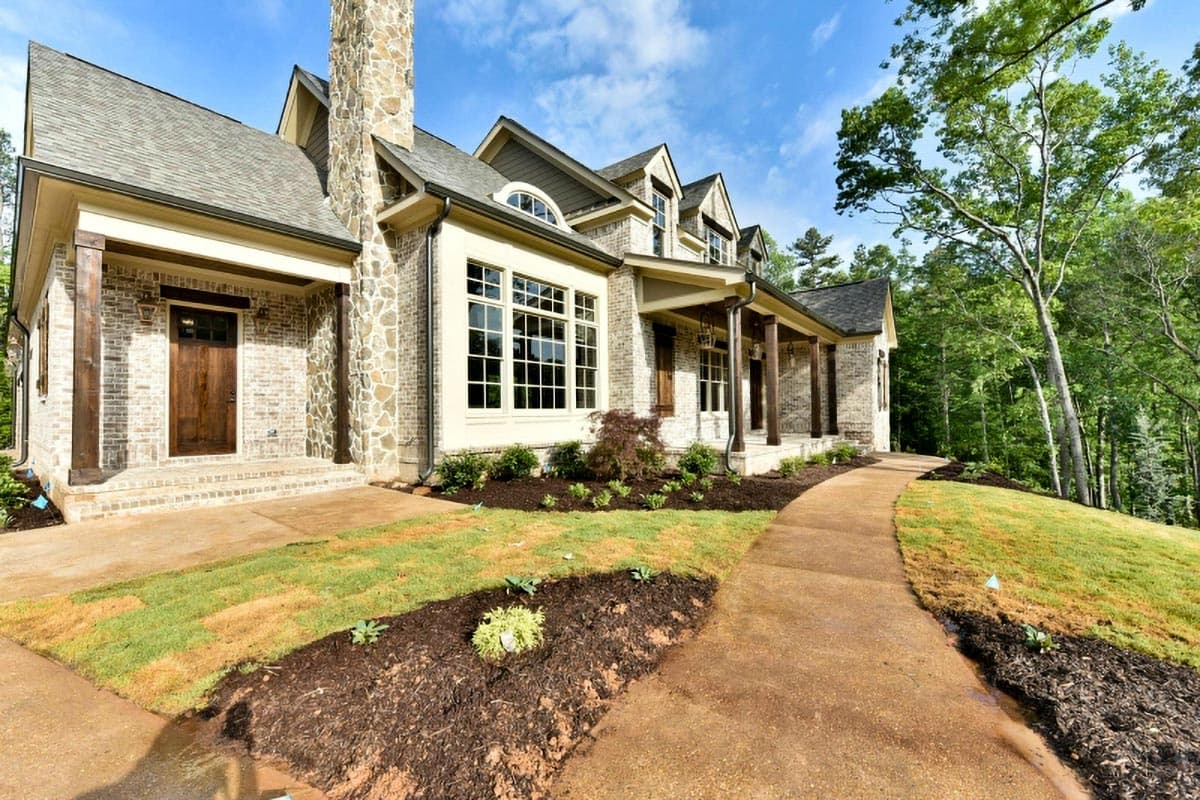

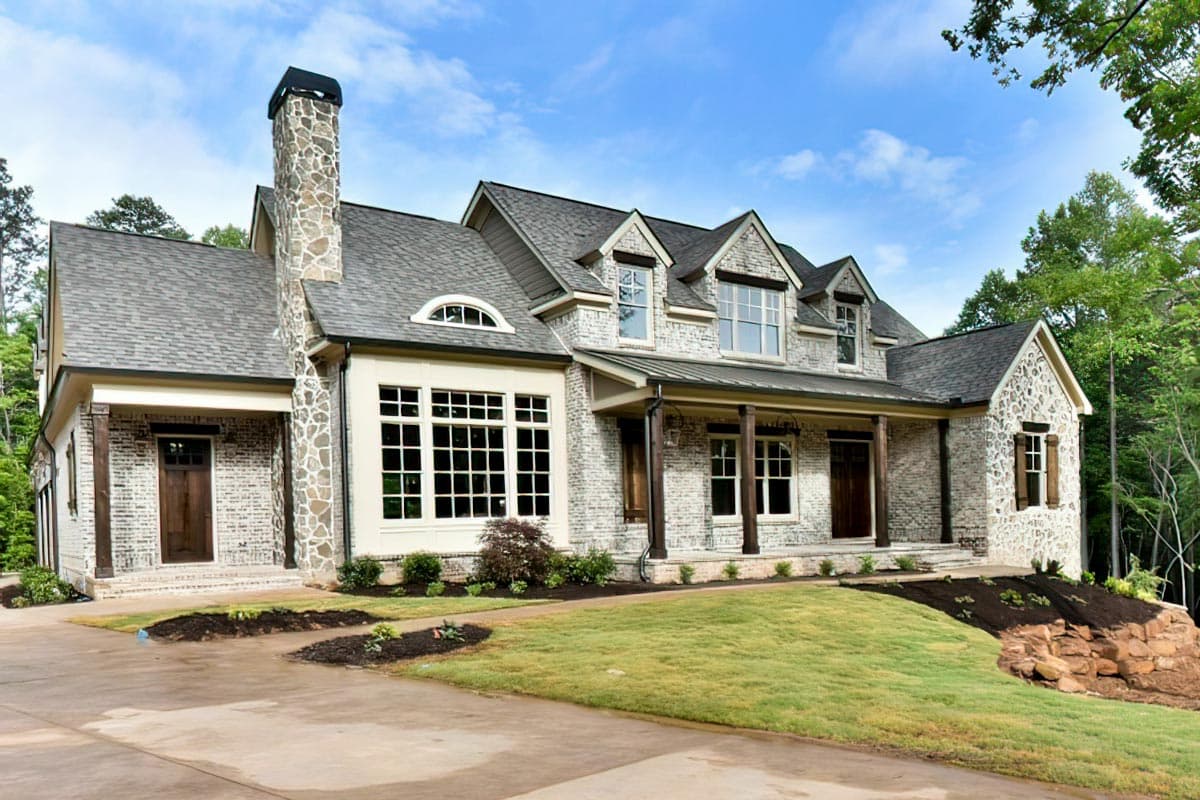

  • This Old World English-style house plan gives you a blend of the old and new with a fieldstone exterior with board-and-batten accents. A prominent front porch and classic dormers break the cornice line.

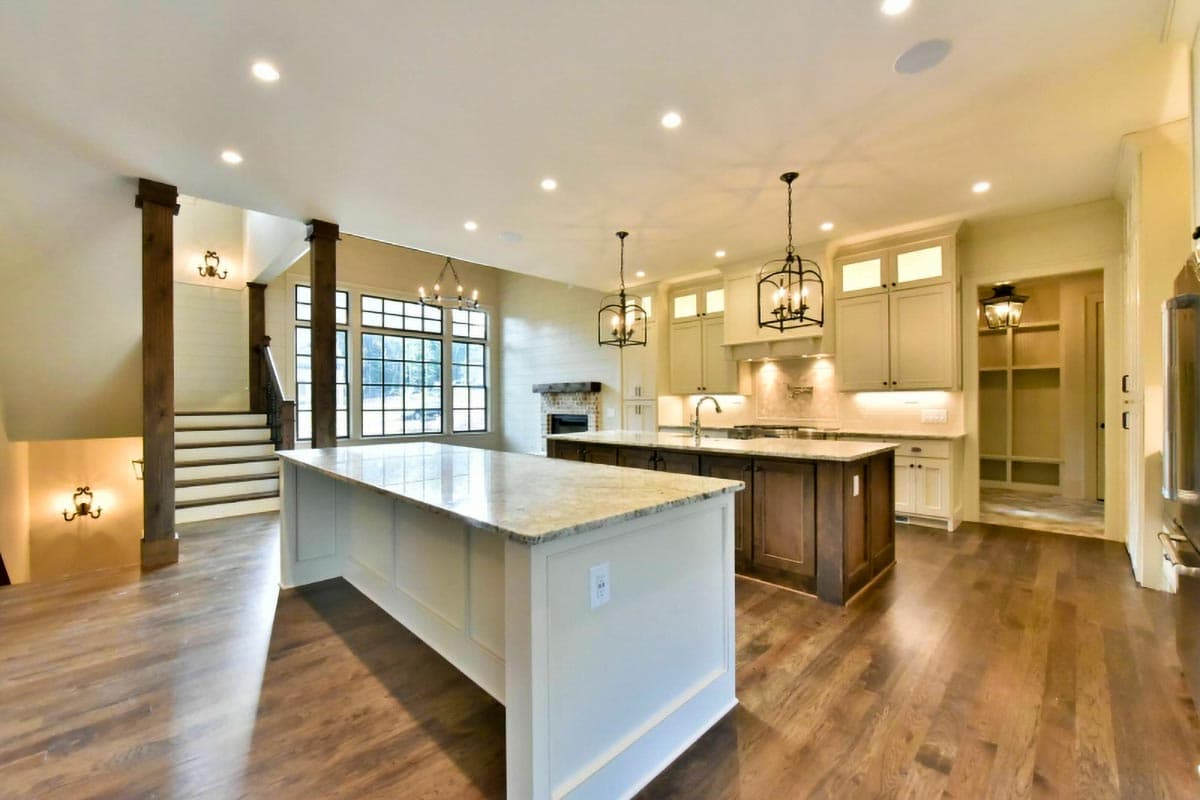

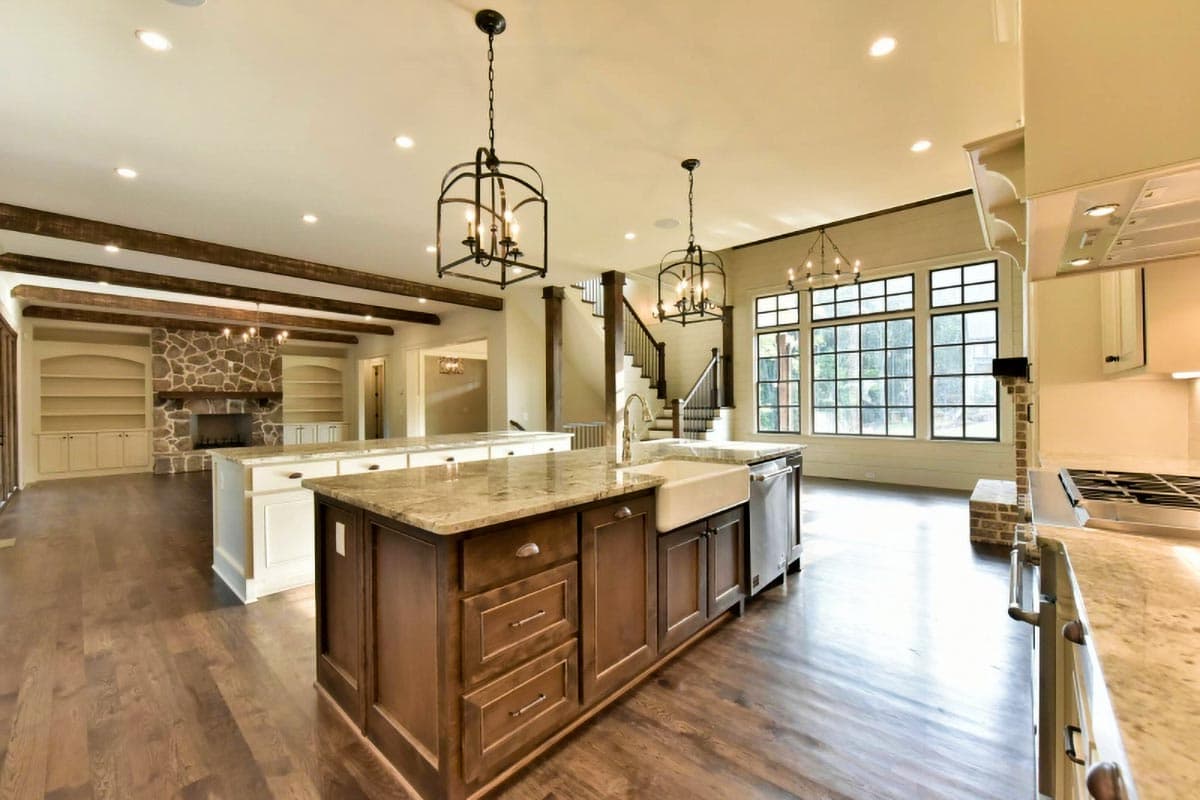

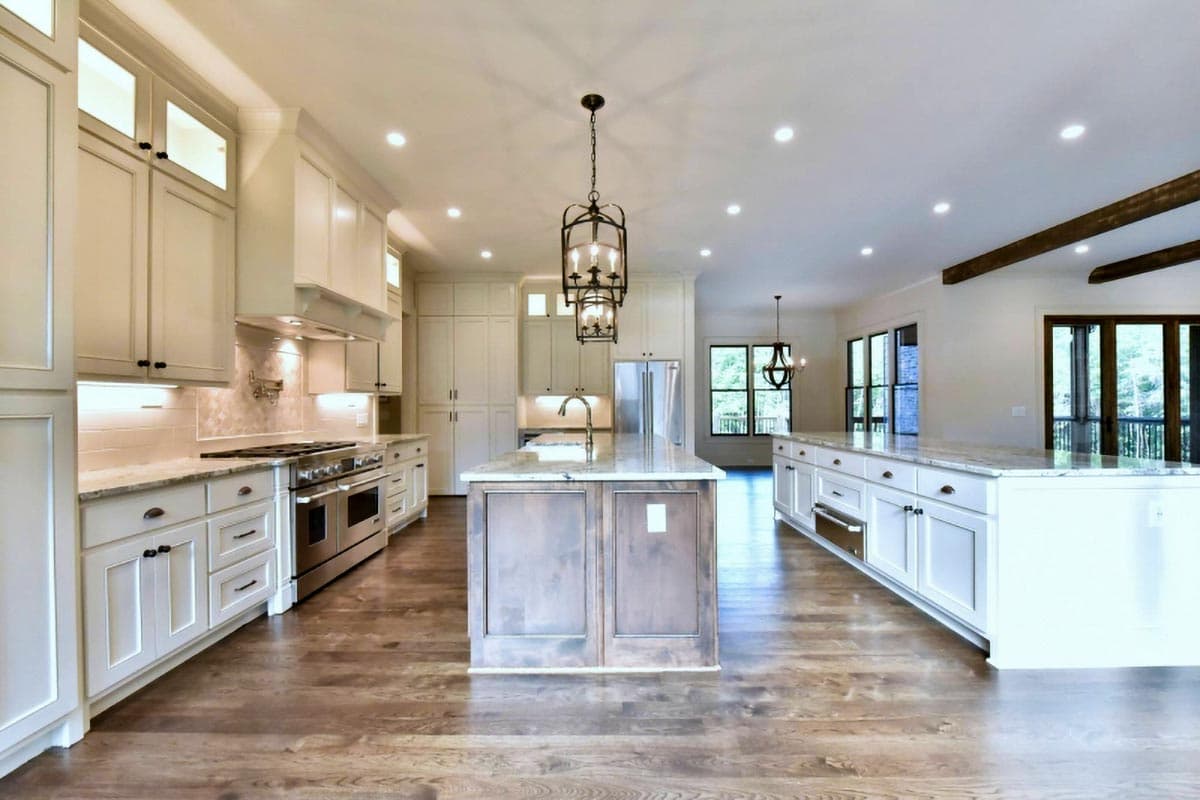

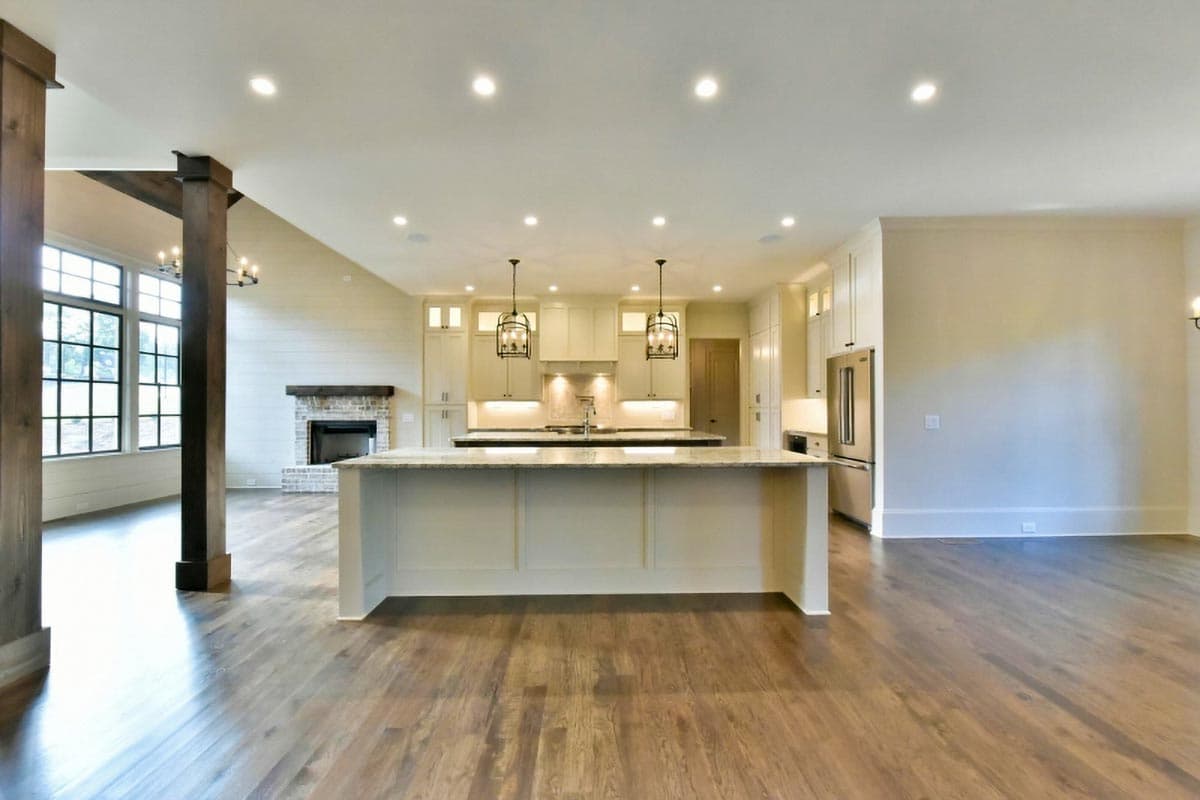

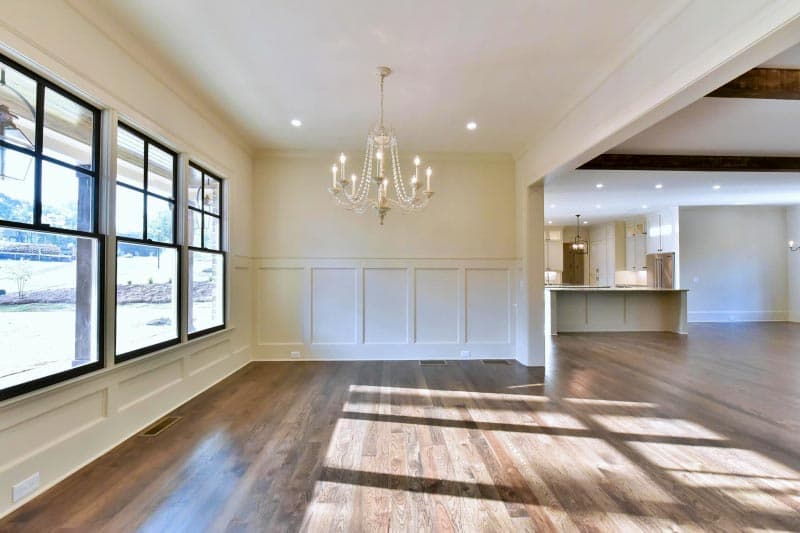

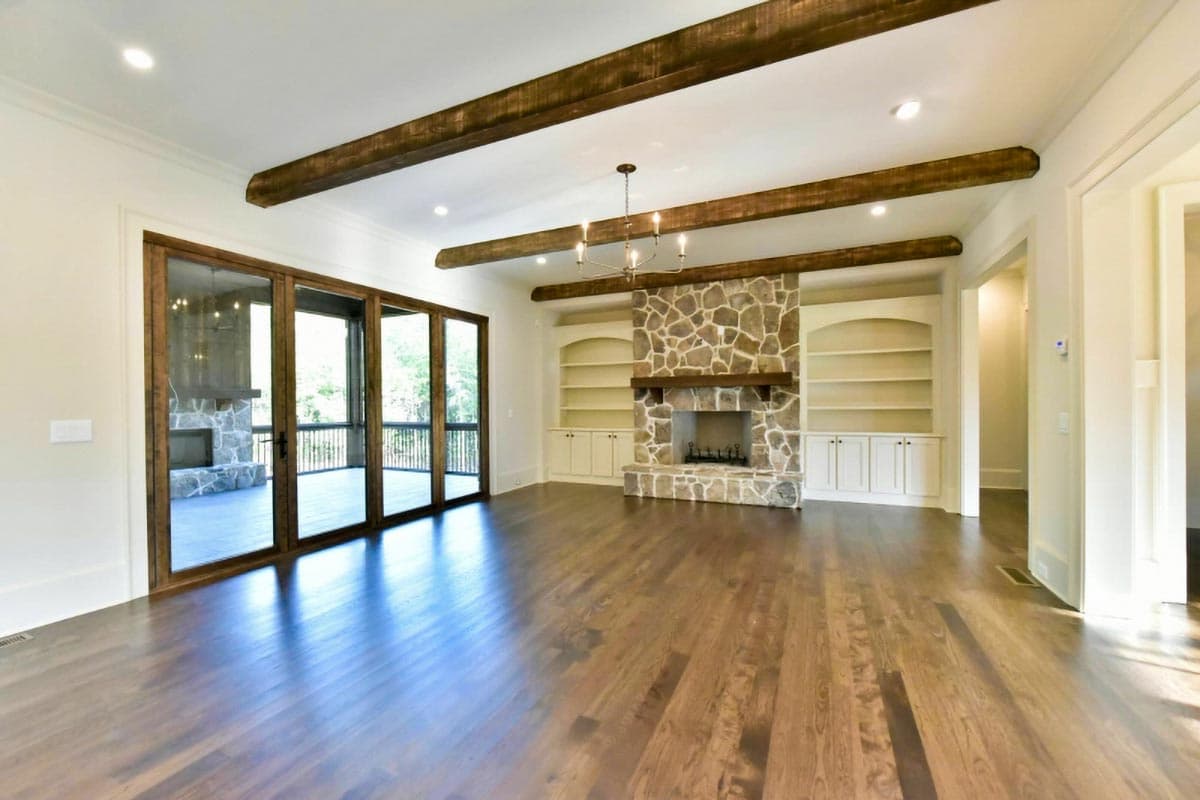

  • The main feature of the first floor is the large open-concept kitchen, dining and living area. The family room has a beamed ceiling and warming fireplace adjacent to a dining area that will hold a farmhouse dining table. The kitchen is fully appointed with a large island with double sink and room for casual seating.
  • The mudroom serves as the perfect transition space between the garage and kitchen and the corner pantry makes unloading groceries a breeze.
  • A first floor master suite has a beamed ceiling and offers you privacy and convenience. Upstairs, each of the three bedrooms features a walk-in-closet as well as convenient bathroom access.
  • The loft space can be an entertainment area or a quiet place for studies or reading. The large bonus room can be finished for additional space and configured in many, many ways.
  • Related Plans: Get an alternate exterior with house plans 710095BTZ and 710083BTZ.

The plans include the following:

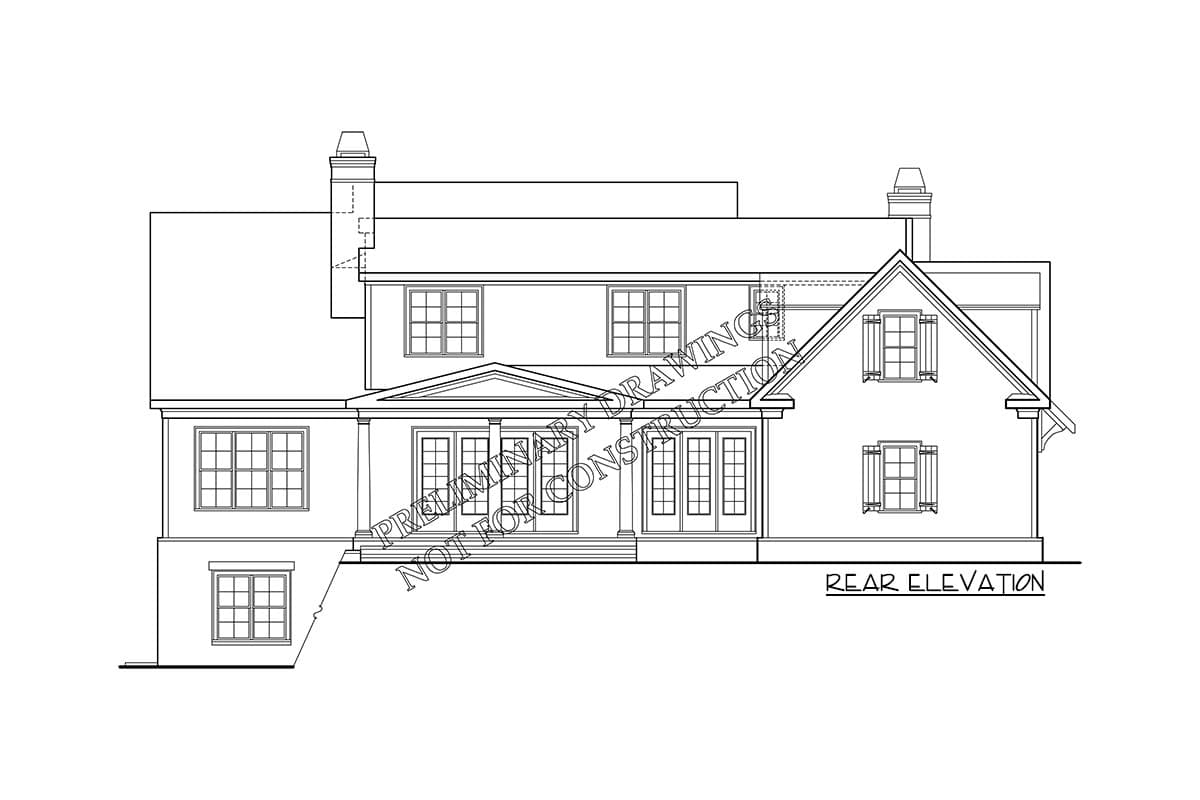

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

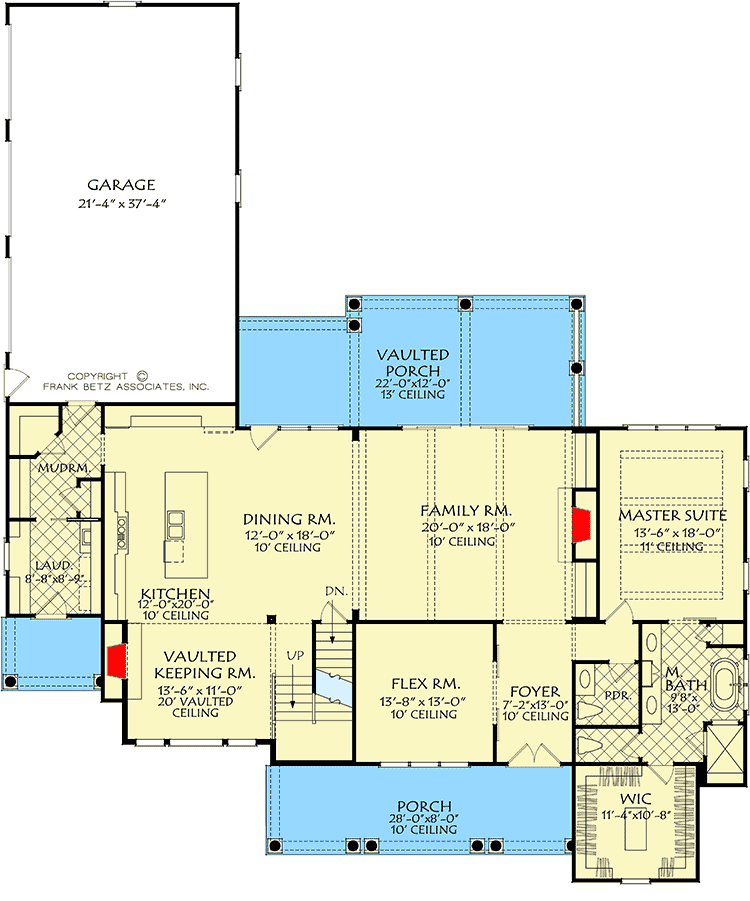

4-Bed Old World English-Style House Plan - 710110BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

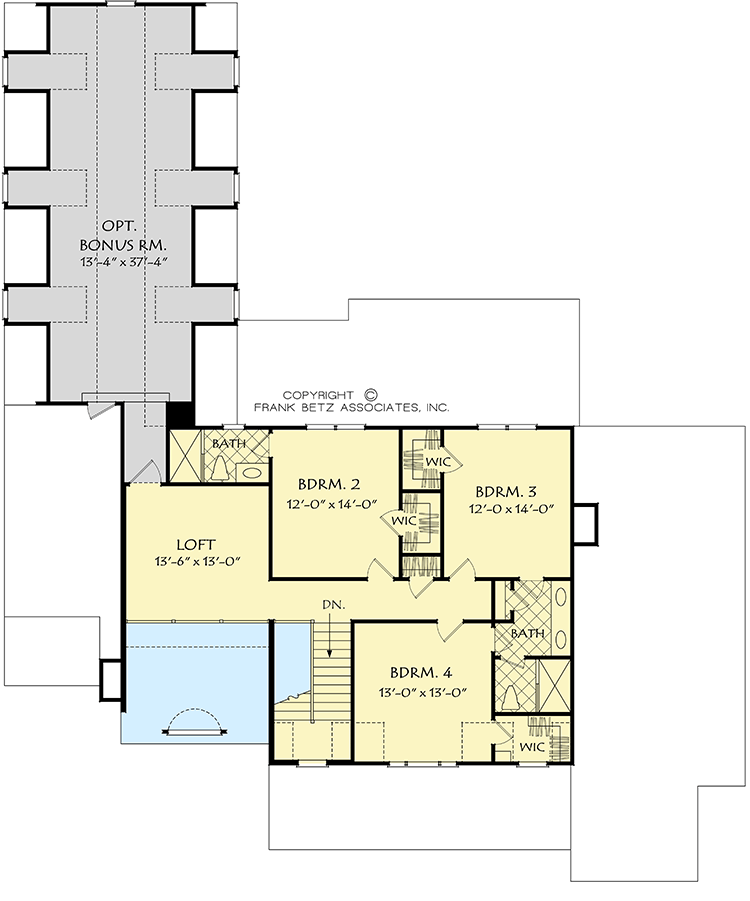

4-Bed Old World English-Style House Plan - 710110BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,306 sq. ft.
  • 1st Floor: 2,251 sq. ft.
  • 2nd Floor: 1,055 sq. ft.
  • Bonus: 660 sq. ft.
  • Basement Unfinished: 2,251 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 0"
  • Depth: 83' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 836 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

4-Bed Old World English-Style House Plan

  • 3,306

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • PDF - Unlimited Build $2,295
  • 5 Sets + PDF $2,375
  • PDF - Unlimited Build + 5-sets $2,575
  • CAD - Unlimited Build $4,145
  • View all purchase option online

About This Plan

  • This Old World English-style house plan gives you a blend of the old and new with a fieldstone exterior with board-and-batten accents. A prominent front porch and classic dormers break the cornice line.
  • The main feature of the first floor is the large open-concept kitchen, dining and living area. The family room has a beamed ceiling and warming fireplace adjacent to a dining area that will hold a farmhouse dining table. The kitchen is fully appointed with a large island with double sink and room for casual seating.
  • The mudroom serves as the perfect transition space between the garage and kitchen and the corner pantry makes unloading groceries a breeze.
  • A first floor master suite has a beamed ceiling and offers you privacy and convenience. Upstairs, each of the three bedrooms features a walk-in-closet as well as convenient bathroom access.
  • The loft space can be an entertainment area or a quiet place for studies or reading. The large bonus room can be finished for additional space and configured in many, many ways.
  • Related Plans: Get an alternate exterior with house plans 710095BTZ and 710083BTZ.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,306 sq. ft.
  • 1st Floor: 2,251 sq. ft.
  • 2nd Floor: 1,055 sq. ft.
  • Bonus: 660 sq. ft.
  • Basement Unfinished: 2,251 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 0"
  • Depth: 83' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 836 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
Plan 710110BTZ
View this and more for this plan by visiting www.architechtecturaldesigns.com/710110BTZ
|
