Plan 777049MTL

4-Bed Rustic Ranch with Playroom and Large 2-Car Rear-Facing Garage

Heated S.F.
2,817
Beds
4
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 777049MTL

Main Level
Main Level
Wall Framing Section
Wall Framing Section

Plan 777049MTL

M-F 9am-5pm EST |

1-203-761-8500

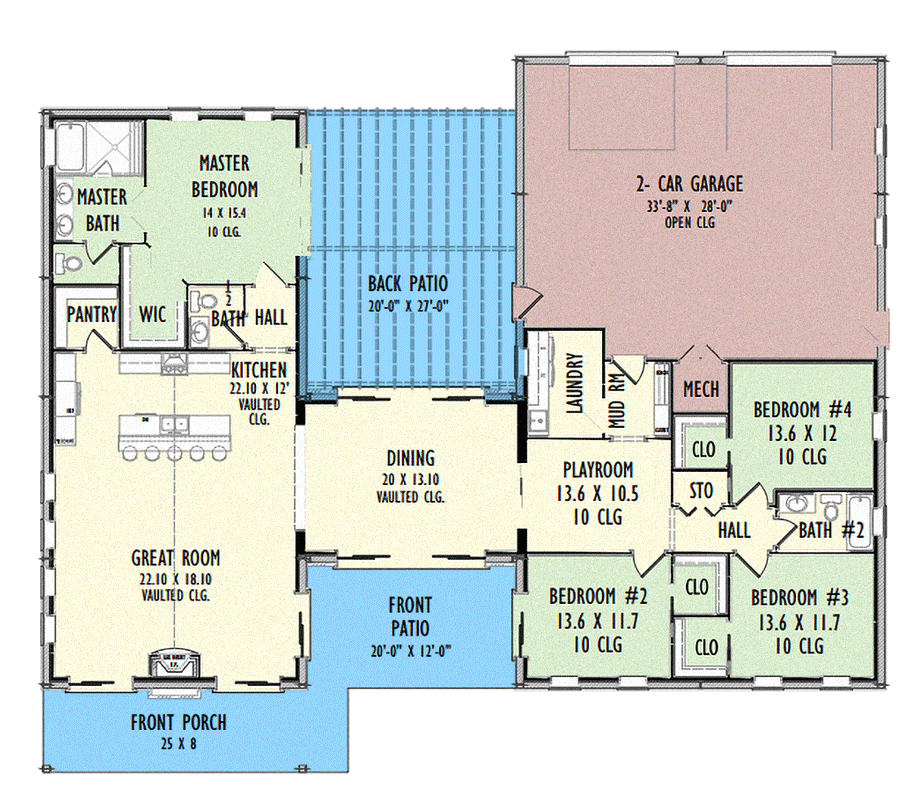

Main Level

Plan 777049MTL: 4-Bed Rustic Ranch with Playroom and Large 2-Car Rear-Facing Garage - Floor Plan - Main Level - Barndominium, Ranch, Rustic

Wall Framing Section

Plan 777049MTL: 4-Bed Rustic Ranch with Playroom and Large 2-Car Rear-Facing Garage - Floor Plan - Wall Framing Section - Barndominium, Ranch, Rustic

Plan Details

  • This 4-bed, 2.5 bath rustic ranch-style house plan gives you 2,817 square feet of single level living.
  • Two sets of sliding doors open to the vaulted great room which is open to the kitchen. To the right, the dining room has sliding doors on both walls giving you indoor-outdoor living.
  • The master bedroom enjoys outdoor access and privacy. Across the home, three bedrooms with walk-in closet share a bath and a playroom.
  • The rear-facing 2-car garage gives you 978 square feet of space.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind. A PEMB is the most commonly used structure when building a barndominium. A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it from the Options menu.
