4-Bed Southern Home Plan with Cabana Porch

Plan 510130WDY

  • 3,470

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This Southern beauty boasts a fresh exterior look with traditional-style windows and modern metal awnings. Enjoy outdoor living on the cabana porch, complete with an outdoor kitchen.
  • Inside, a formal dining room neighbors the foyer, while the living room is straight ahead. A grand fireplace anchors the left wall, and a breakfast nook and wet bar connect to you to the kitchen.
  • The keeping room attached to the kitchen provides a comfortable space for friends and family to keep the cook company, and the massive, prep island lends plenty of workspace when entertaining.
  • The master bedroom resides on the main level, and boasts a spa-like, master bath with a freestanding tub and two vanities. A second bedroom on this level includes a full bath.
  • Barn doors in the mudroom reveal a spacious laundry room, which features a work island and utility sink.
  • Bedrooms 3 and 4 are located on the second level, each with its own full bath.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

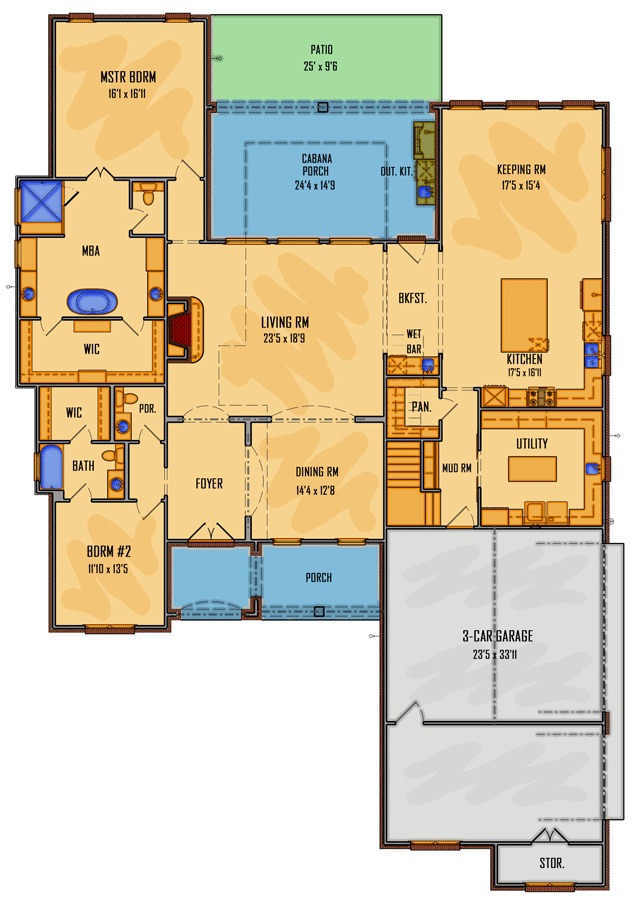

4-Bed Southern Home Plan with Cabana Porch - 510130WDY floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

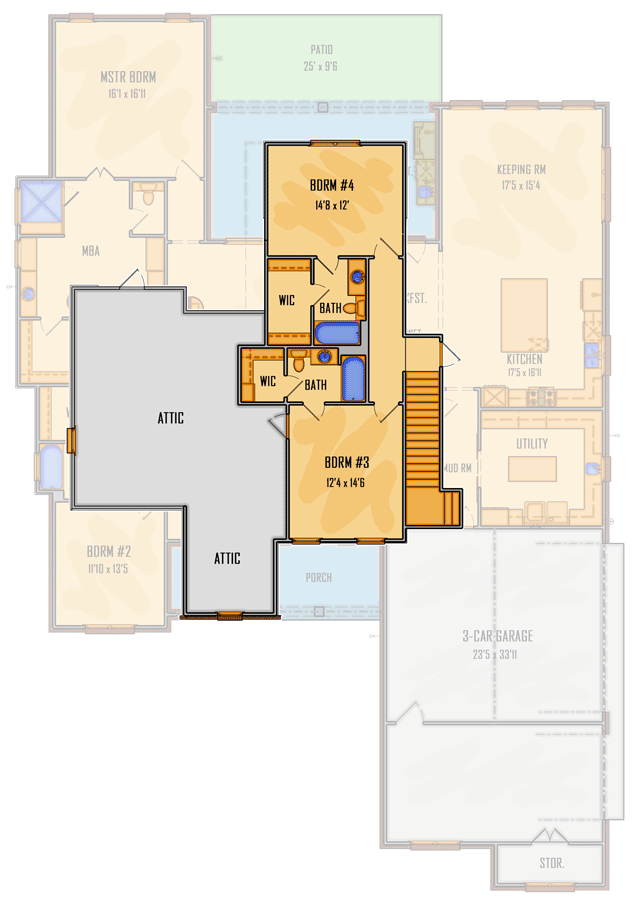

4-Bed Southern Home Plan with Cabana Porch - 510130WDY floor plan - 2nd Floor
