Plan 510227WDY
4-Bed Southern Transitional House Plan with Screened Porch
Heated S.F.
3,794
Beds
4
Baths
4.5
Stories
1
Cars
3
What's Included
Plan Details
  • Arched dormer windows accentuate the steep hip and valley roof on the exterior of this Southern Transitional house plan, which delivers 4 bedrooms, 4.5 bathrooms, and a 3-car garage.
  • The island kitchen is flanked by a sizable great room and keeping room, each with a grand fireplace and exposed beams overhead.
  • The living space expands outdoors onto a screened porch and courtyard with a third fireplace, and a formal dining room is located just off the foyer.
  • Retreat to the serene master bedroom and find a deluxe 5-fixture ensuite with a roomy closet. Two additional bedroom suites are also located on the main level, while bedroom 4 shares the second level with a media room.
  • Other notable features include an office, workout room, walk-in pantry, and dedicated storage space off the 3-car garage.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

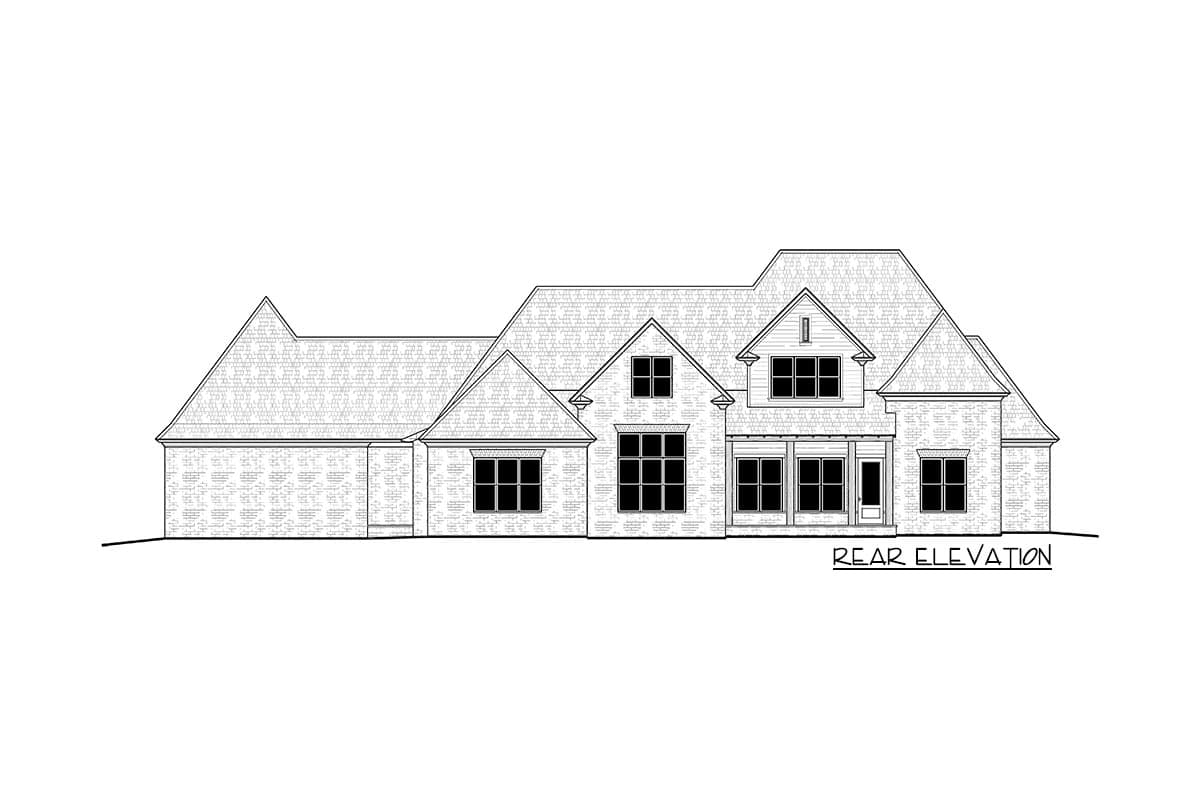

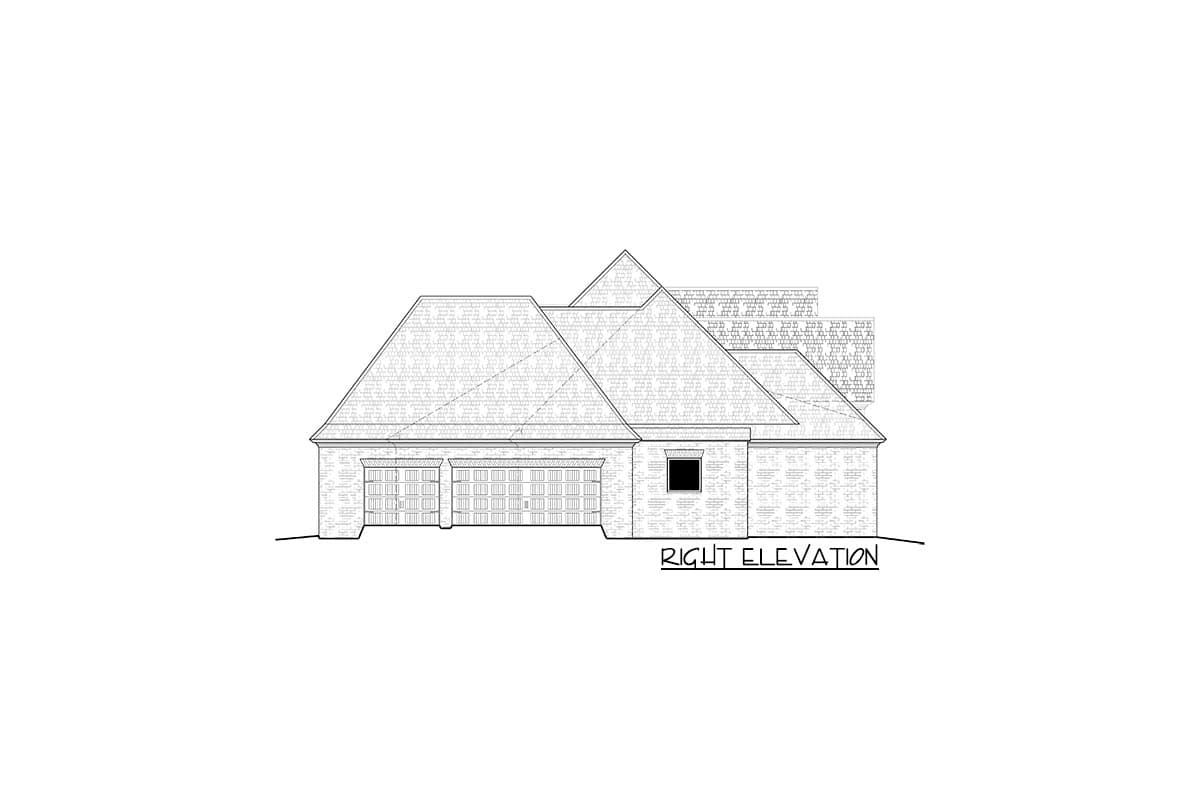

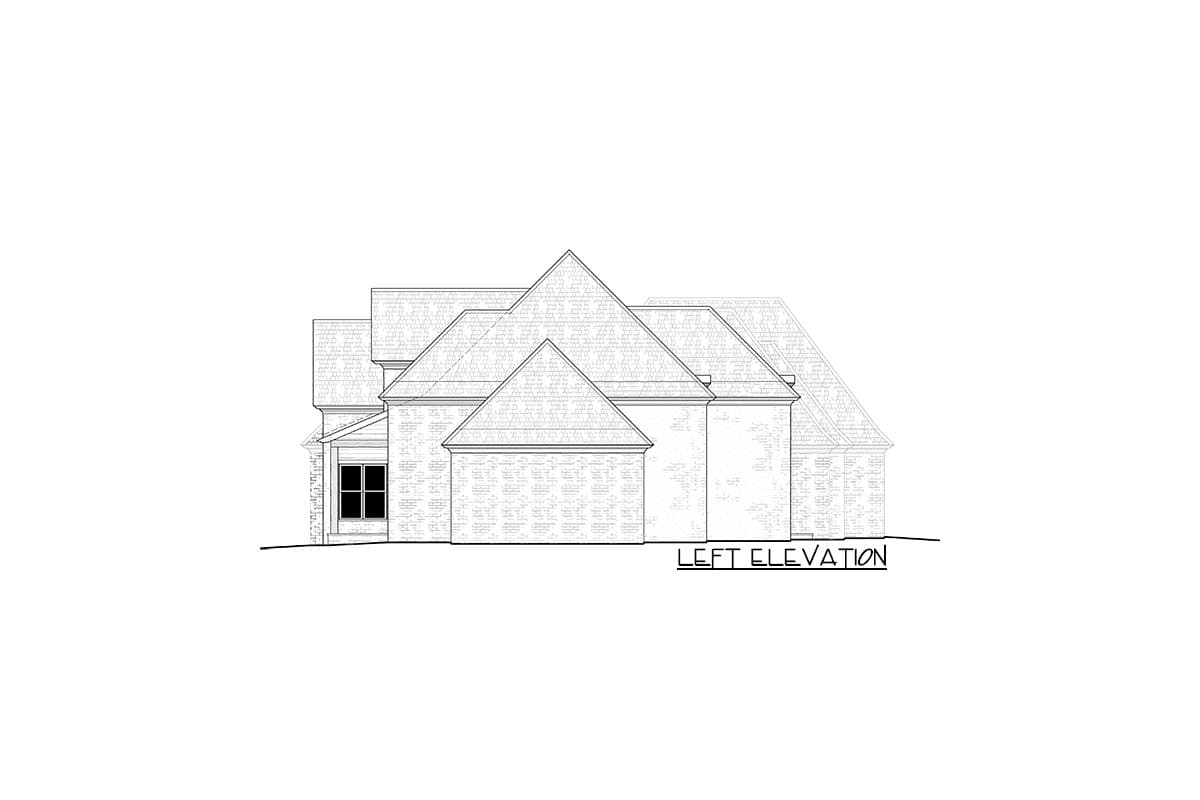

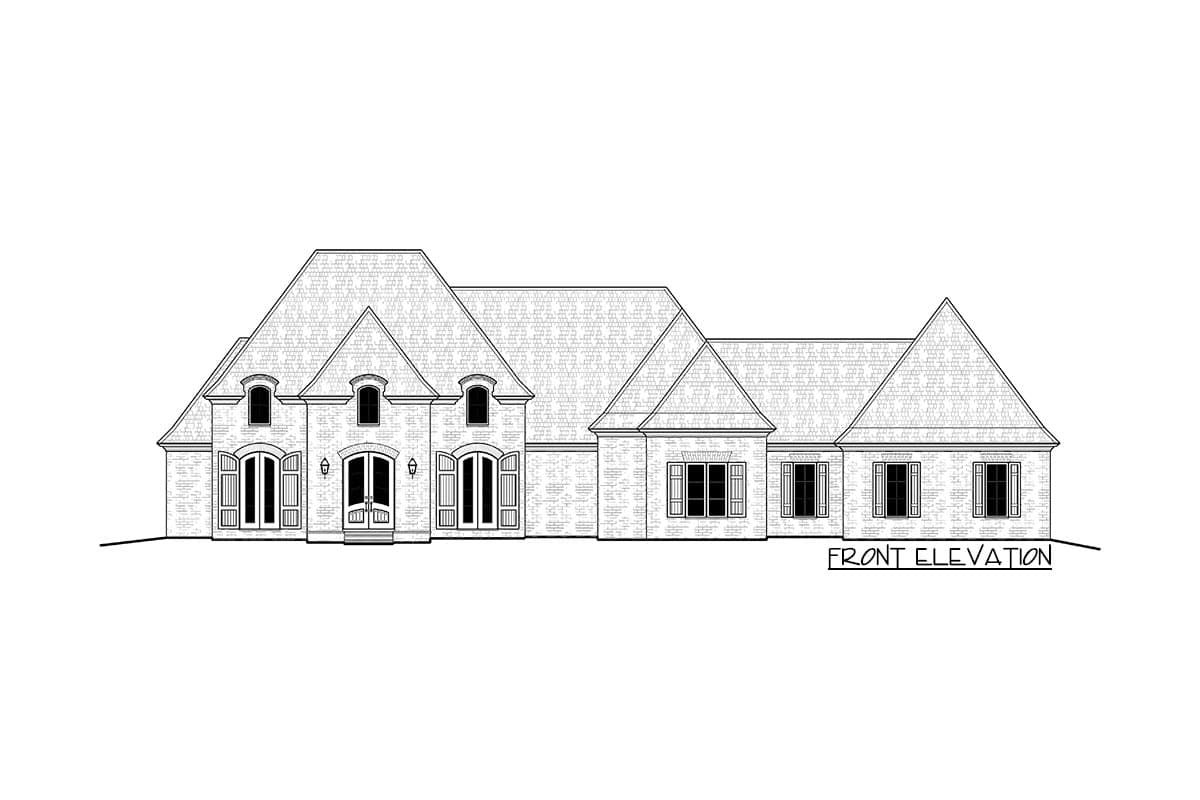

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

4-Bed Southern Transitional House Plan with Screened Porch

  • 3,794

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

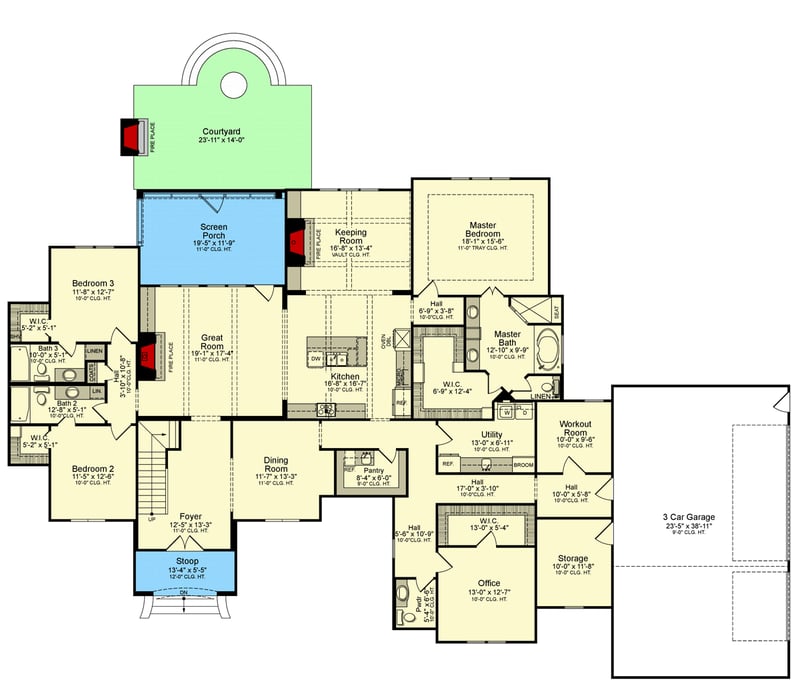

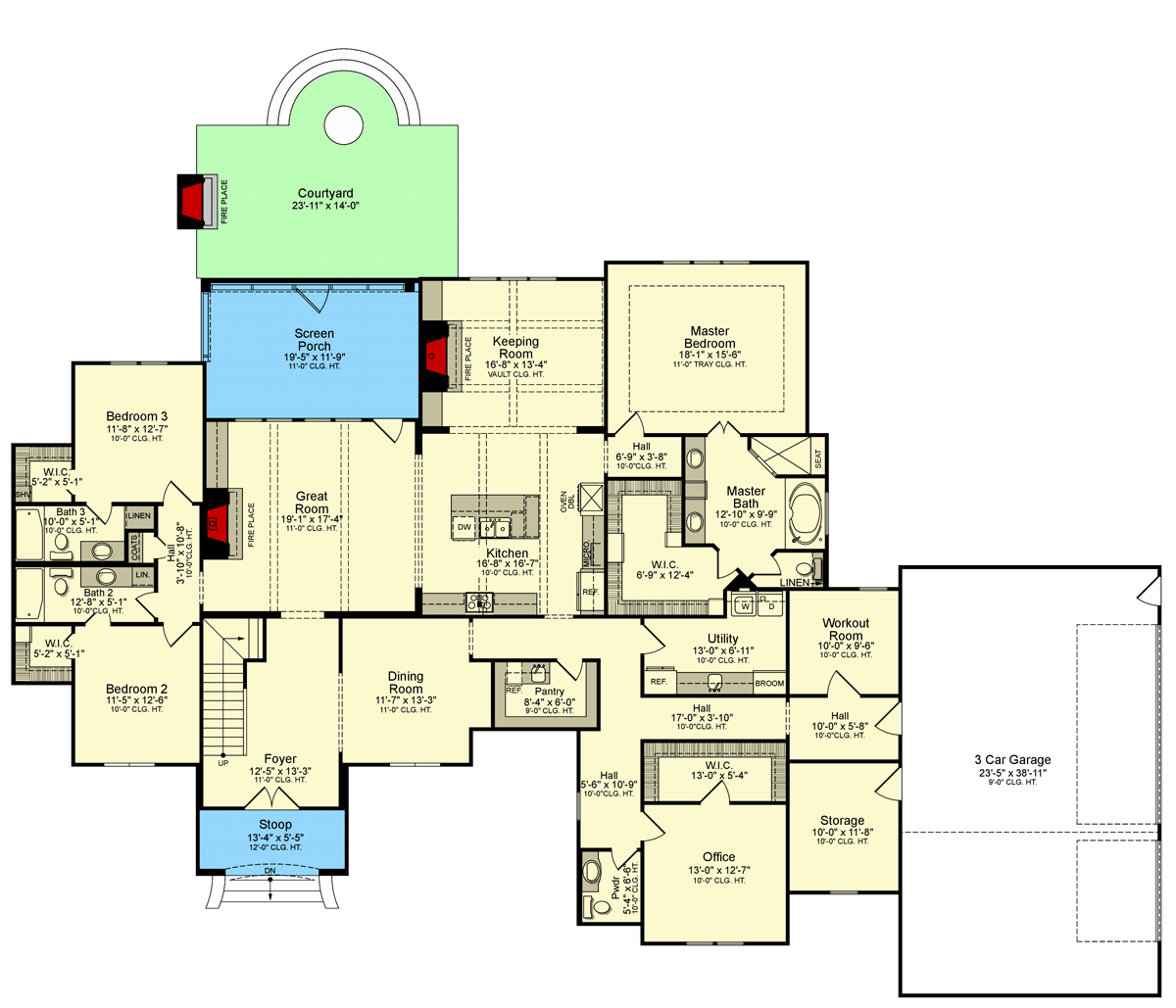

  • Main Level

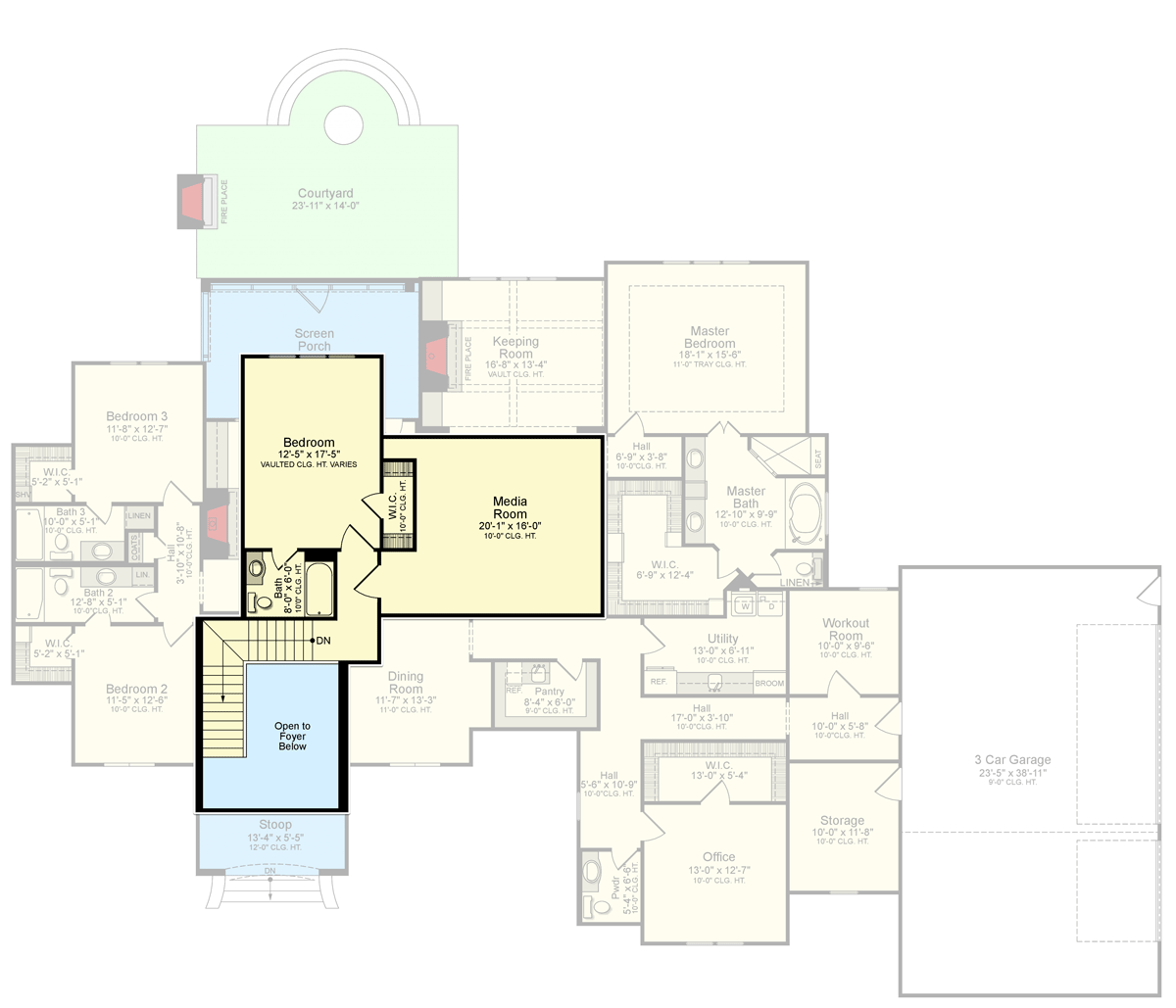

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,794 sq. ft.
  • 1st Floor: 3,314 sq. ft.
  • 2nd Floor: 365 sq. ft.

Dimensions

  • Width: 106' 0"
  • Depth: 68' 3"
  • Max ridge height: 33' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1063 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
