Plan 82069KA 4 Bed Spanish Beauty

2,987 4 3.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4 Bed Spanish Beauty

Plan 82069KA

  • 2,987

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 4 bed house plan has Spanish influences and an open floor plan with high ceilings and two master bedrooms.
  • The flex room can be used as an office or library or just as an enlarged open alcove.
  • The kitchen is open to the dining and gathering rooms and has an island with casual seating.
  • The main floor master has access to the porch through a pair of French doors. The walk-in closet is spacious for a home this size.
  • On the second floor, the activity room acts as a game room or hobby area and hels make this house plan flexible for your family needs.
  • The porch in back is covered and spans the entire width of the home.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.

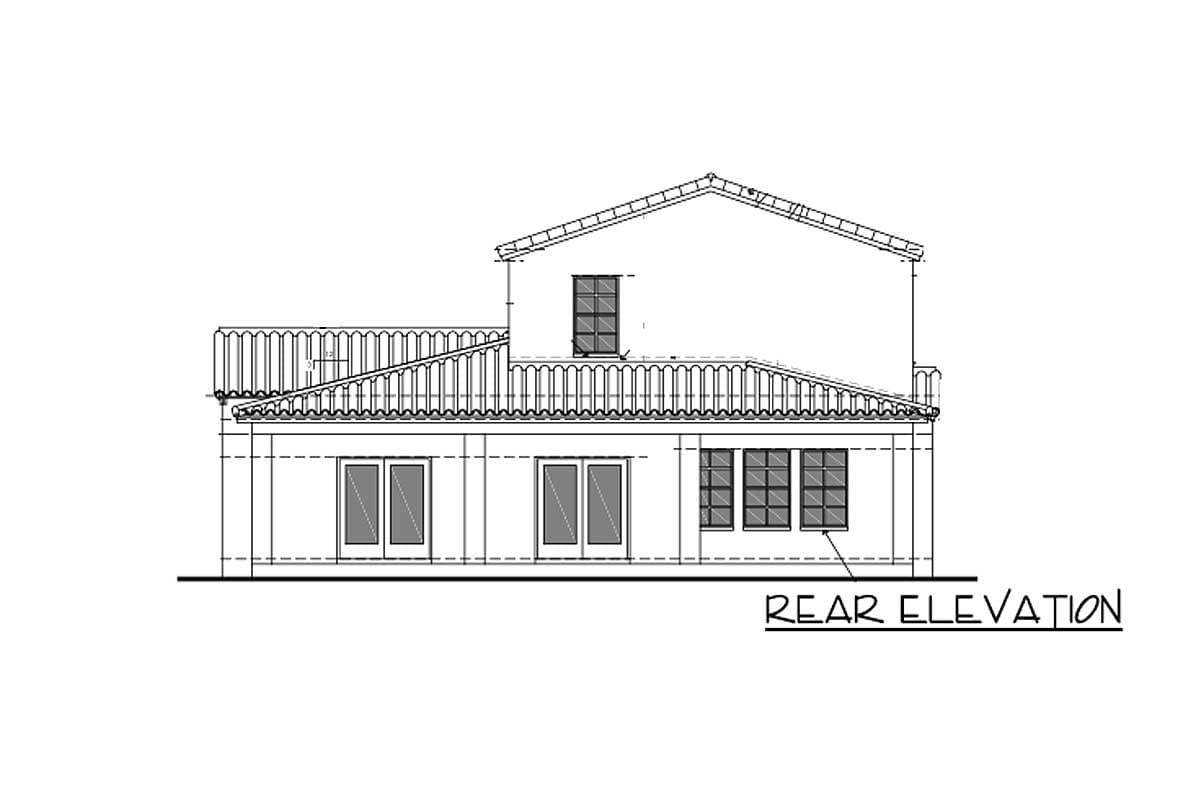

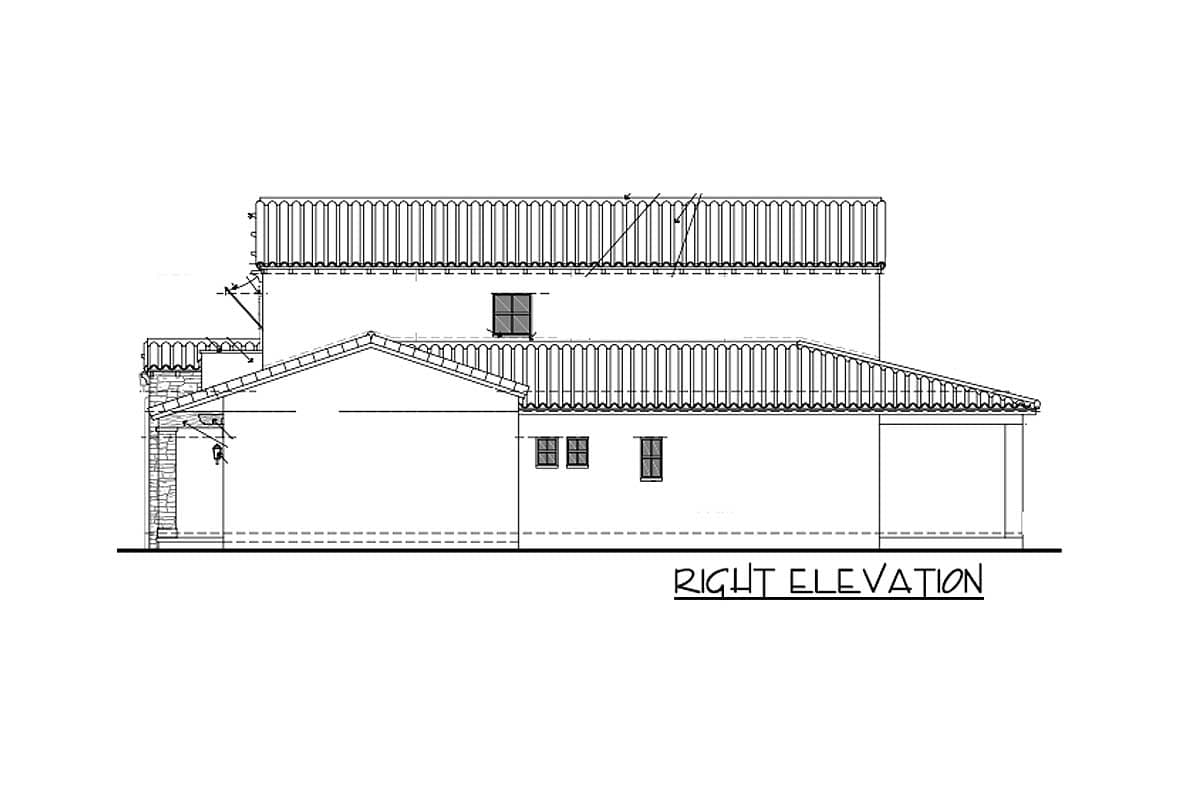

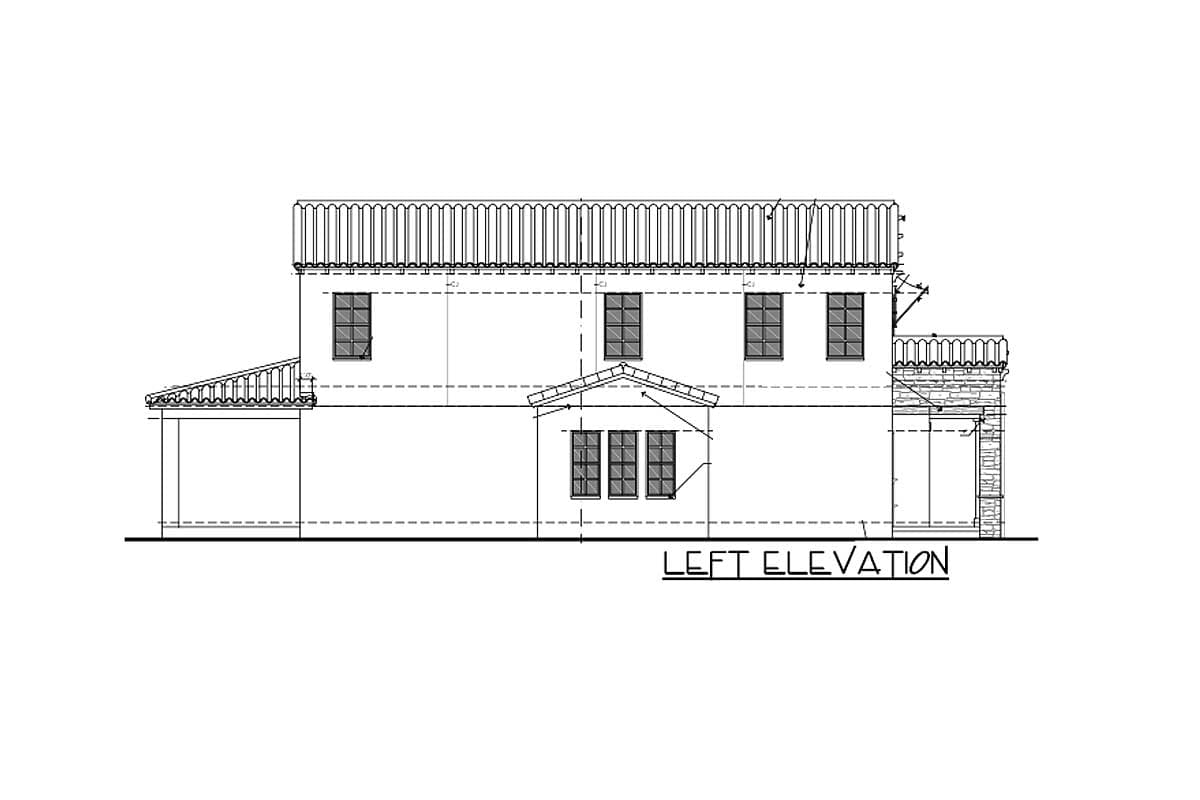

  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

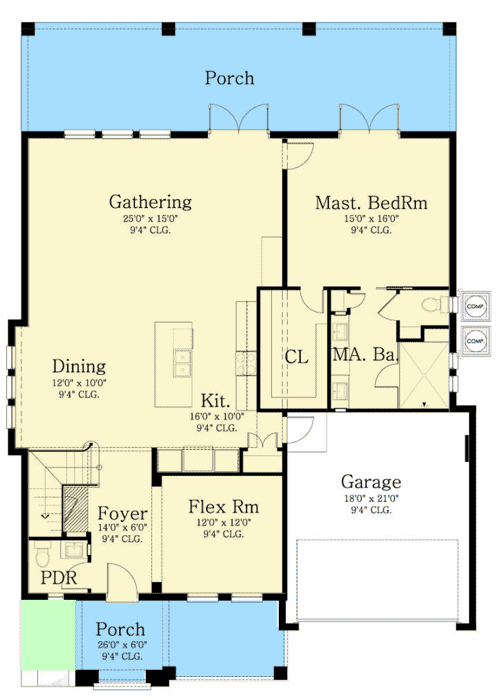

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4 Bed Spanish Beauty - 82069KA floor plan - Main Level

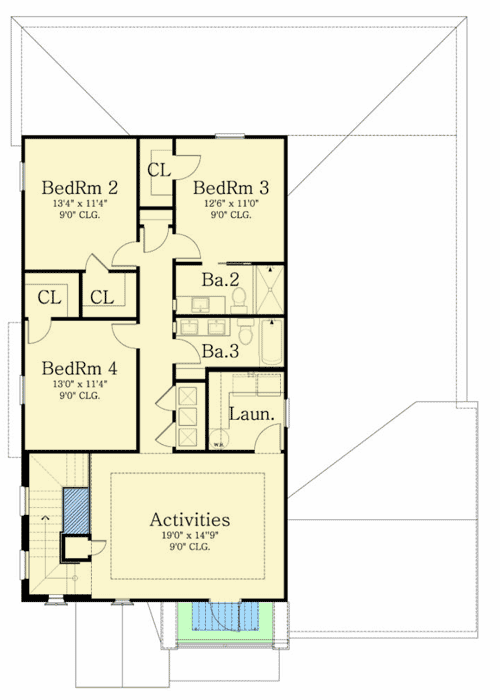

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4 Bed Spanish Beauty - 82069KA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,987 sq. ft.
  • 1st Floor: 1,783 sq. ft.
  • 2nd Floor: 1,204 sq. ft.
  • Porch, Front: 224 sq. ft.
  • Porch, Rear: 486 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 47' 6"
  • Depth: 67' 0"
  • Max ridge height: 25' 6"

Garage

  • Type: Attached
  • Area: 426 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 4" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 3.5 on 12
  • Framing Type: Truss

Architectural Style

Special features

4 Bed Spanish Beauty

  • 2,987

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $2,260
  • PDF - Single-Build $2,580
  • CAD - Single-Build $2,580
  • View all purchase option online

About This Plan

  • This 4 bed house plan has Spanish influences and an open floor plan with high ceilings and two master bedrooms.
  • The flex room can be used as an office or library or just as an enlarged open alcove.
  • The kitchen is open to the dining and gathering rooms and has an island with casual seating.
  • The main floor master has access to the porch through a pair of French doors. The walk-in closet is spacious for a home this size.
  • On the second floor, the activity room acts as a game room or hobby area and hels make this house plan flexible for your family needs.
  • The porch in back is covered and spans the entire width of the home.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,987 sq. ft.
  • 1st Floor: 1,783 sq. ft.
  • 2nd Floor: 1,204 sq. ft.
  • Porch, Front: 224 sq. ft.
  • Porch, Rear: 486 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 47' 6"
  • Depth: 67' 0"
  • Max ridge height: 25' 6"

Garage

  • Type: Attached
  • Area: 426 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 4" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 3.5 on 12
  • Framing Type: Truss
Plan 82069KA
View this and more for this plan by visiting www.architechtecturaldesigns.com/82069KA
|
Need Help? 800-854-7852
|
Plan 82069KA
