4-Bed Traditional Home Plan with Main-Level Owner's Suite

Plan 42634DB

  • 1,554

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A blend of horizontal siding, shakes, and stone wrap this 4-bedroom, traditional home plan, while tapered columns help support the inviting front porch.
  • The family room greets you upon entering, with the option to add a fireplace. The kitchen and eating area are combined, and a central island offers additional workspace in the kitchen.
  • The owner's suite completes the main level, and includes a full bath and walk-in closet.
  • The double garage opens into a mudroom with a drop zone and coat closet, adjacent the laundry closet.
  • Upstairs, discover three bedrooms, a linen closet, and a full bath.
  • Related Plan: Get a slightly smaller version with house plan 42517DB (1,480 sq. ft.).

This house plan set has the following details:

  • General Notes

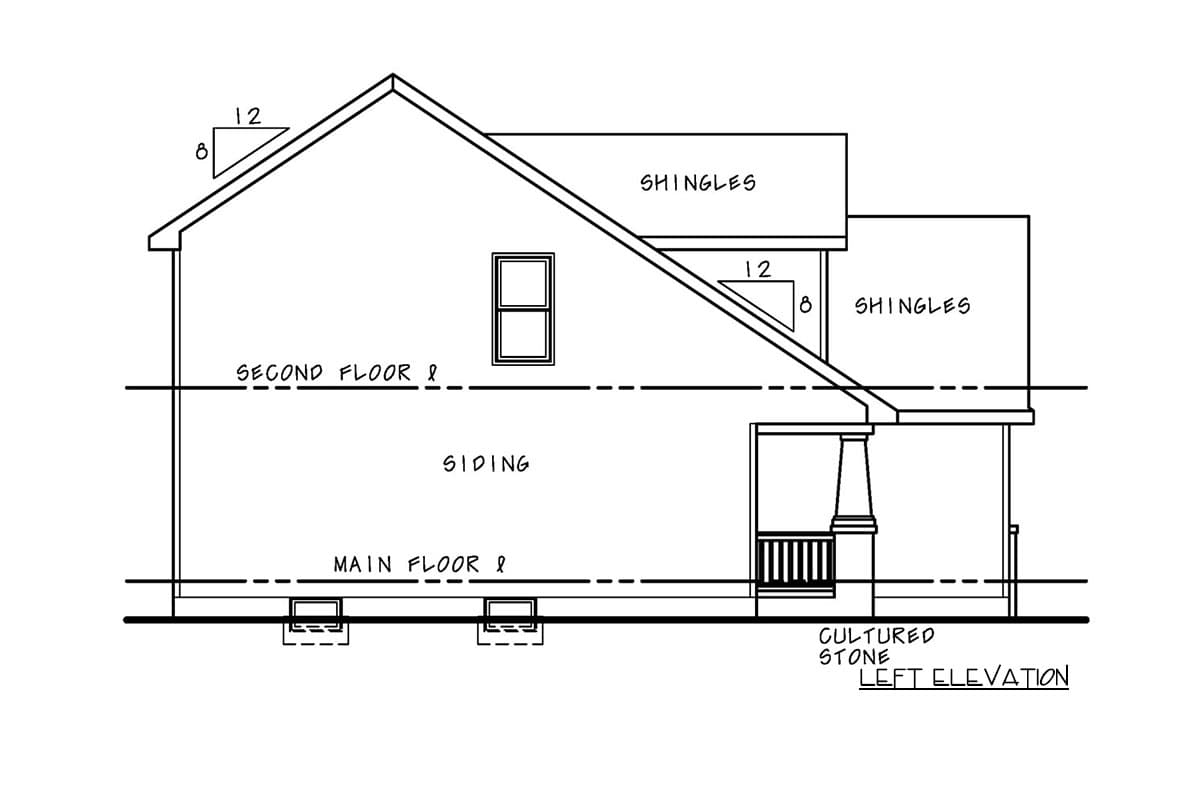

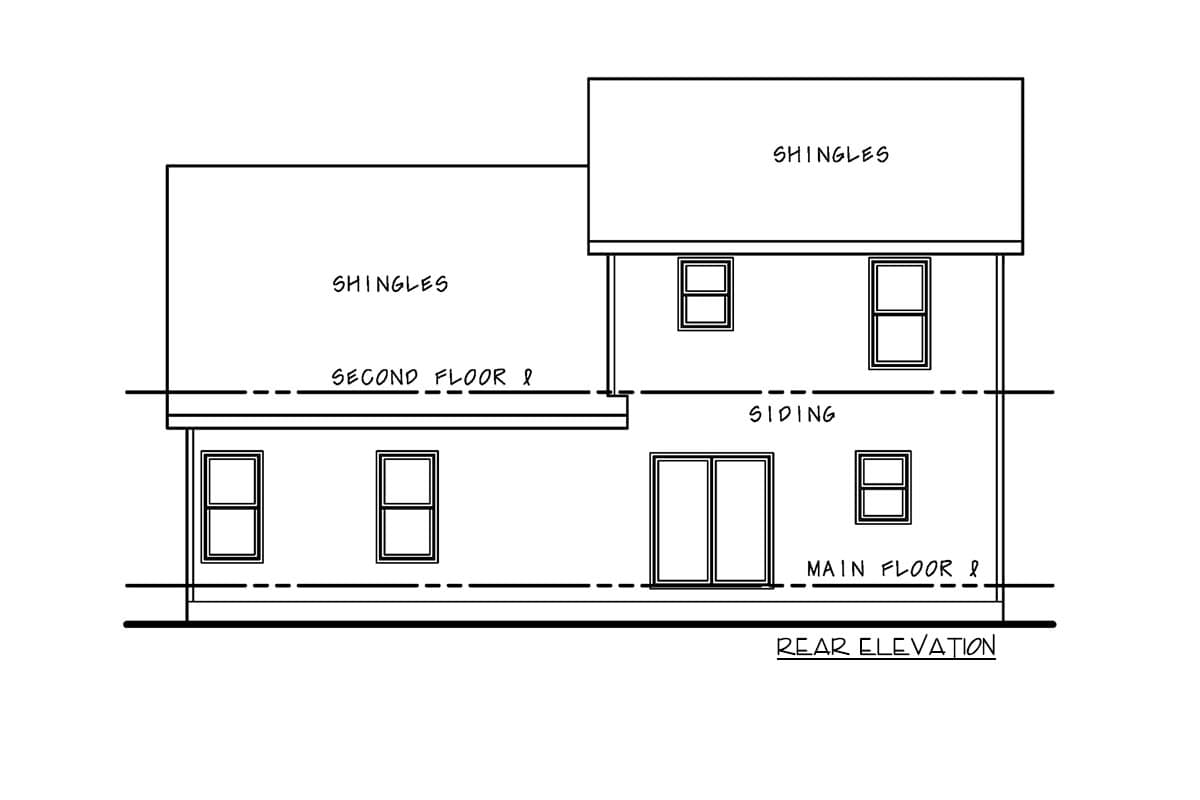

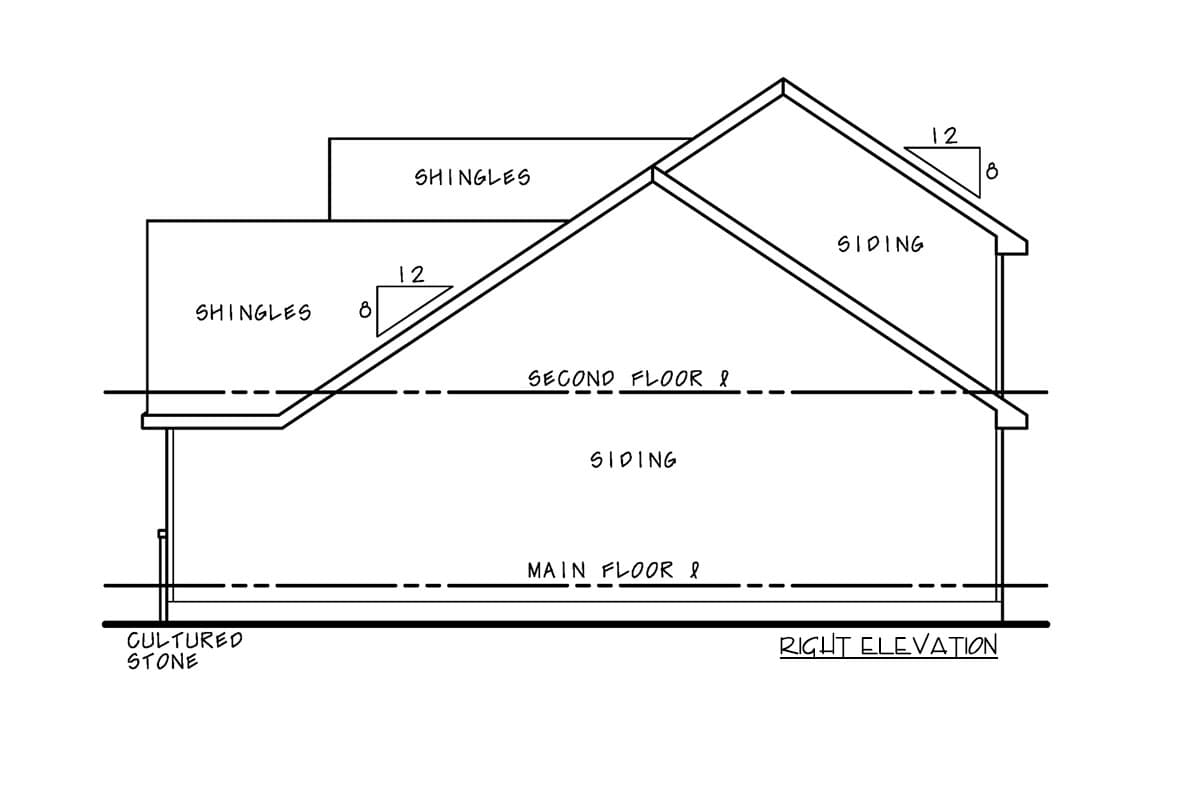

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

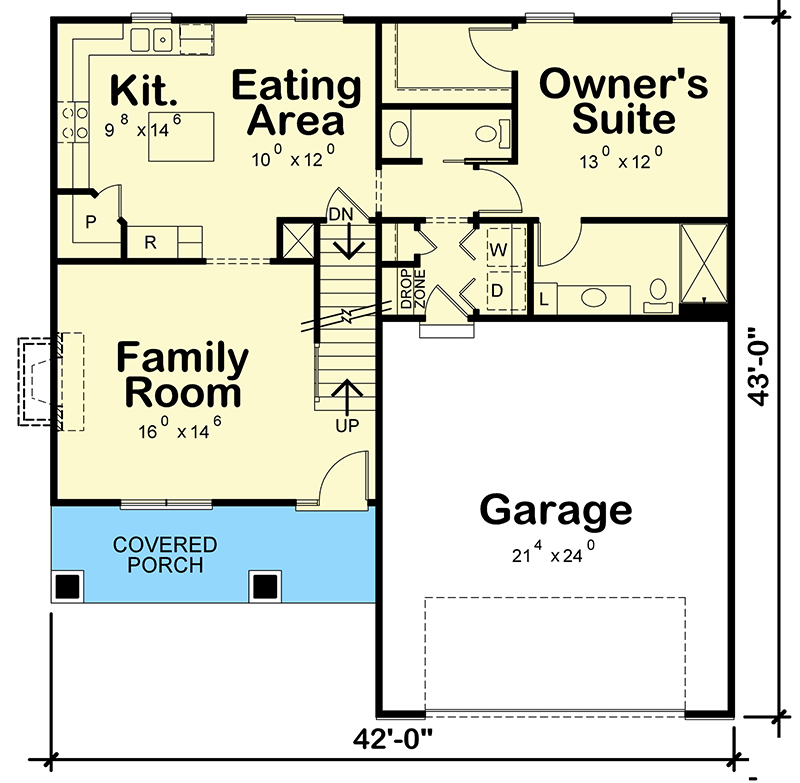

4-Bed Traditional Home Plan with Main-Level Owner's Suite - 42634DB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

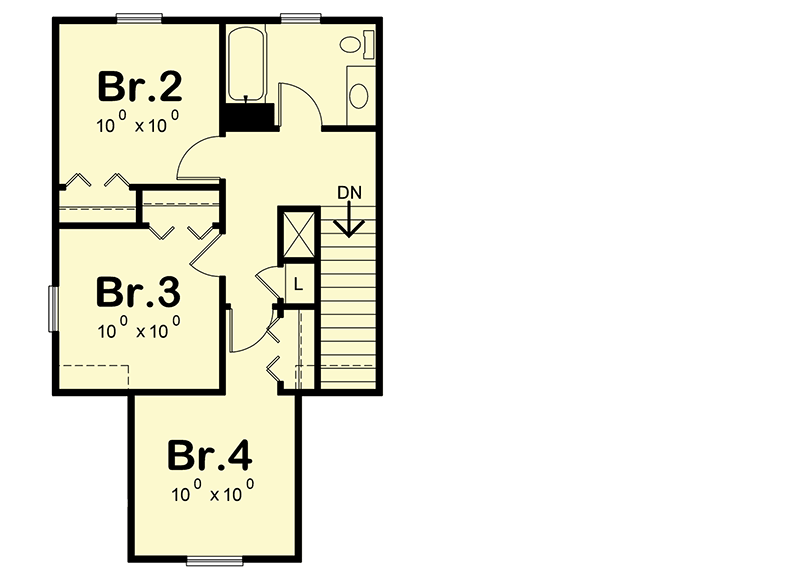

4-Bed Traditional Home Plan with Main-Level Owner's Suite - 42634DB floor plan - 2nd Floor

Architectural Style

4-Bed Traditional Home Plan with Main-Level Owner's Suite

  • 1,554

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,554 sq. ft.
  • 1st Floor: 1,014 sq. ft.
  • 2nd Floor: 540 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 43' 0"
  • Max ridge height: 28' 1"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 532 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

4-Bed Traditional Home Plan with Main-Level Owner's Suite

  • 1,554

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

4-Bed Traditional Home Plan with Main-Level Owner's Suite

  • 1,554

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,554 sq. ft.
  • 1st Floor: 1,014 sq. ft.
  • 2nd Floor: 540 sq. ft.

Dimensions

  • Width: 42' 0"
  • Depth: 43' 0"
  • Max ridge height: 28' 1"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 532 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
