Plan 865004SHW
4-Bed Transitional Country Home Plan with Main Floor Primary Bedroom
Heated S.F.
2,906
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 865004SHW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 865004SHW

1-800-854-7852

1-262-521-4596

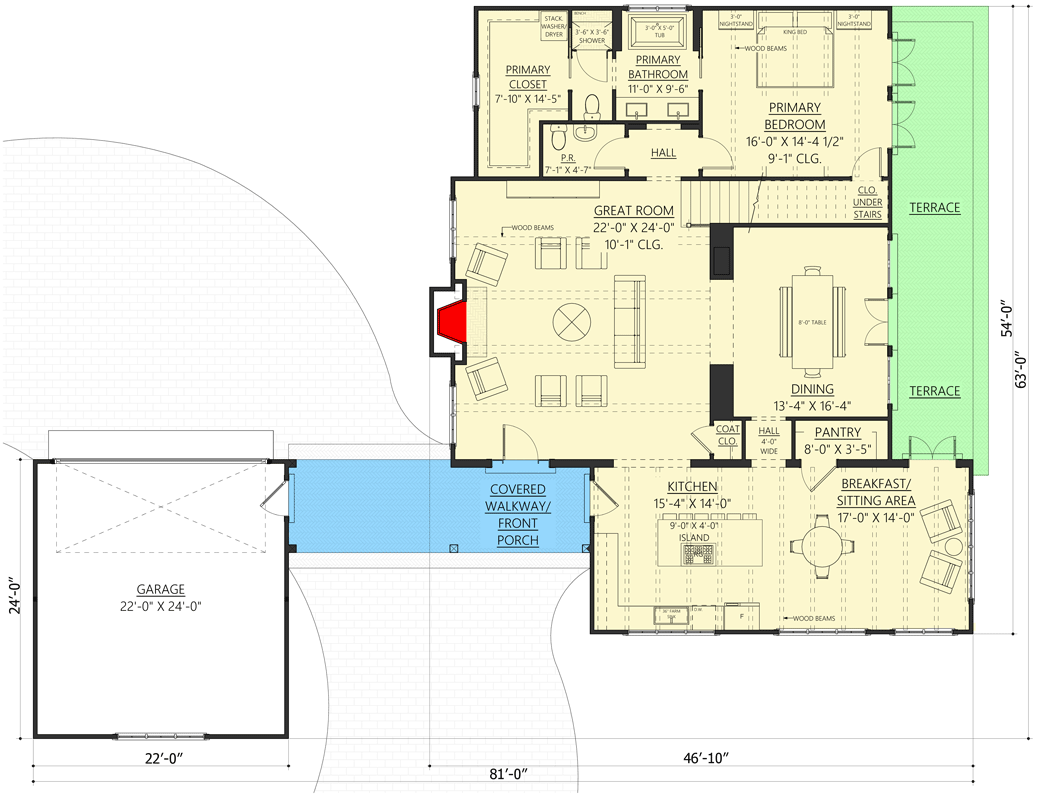

Main Level
floor plan image Main Level

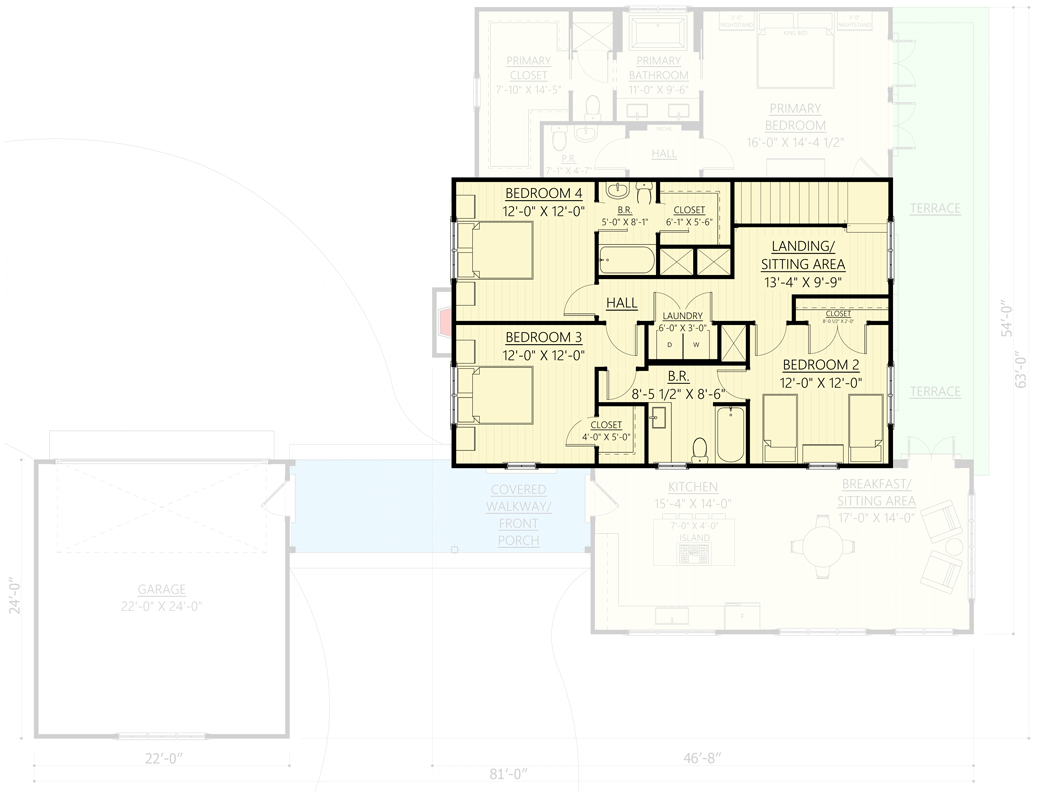

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 4-bedroom, Transitional Country home plan features oodles of curb appeal with its metal roof accents, shake-adorned double garage, and shed dormers.
  • A grand fireplace anchors the left wall of the great room and is framed by large windows. The adjacent kitchen features a cooktop island and opens to a breakfast sitting area.
  • Enjoy the views from the terrace, which is accessible from the dining room, breakfast nook, and primary bedroom.
  • The main level location of the primary bedroom considers your future needs and offers additional privacy from the secondary bedrooms, and the 5-fixture master bath provides a space to relax at the end of the day.
  • Upstairs, the landing provides a sitting area and leads to three bedrooms; two share a Jack-and-Jill bath, and one includes a full bath. The laundry closet is centrally located for ease of use.
What's Included
  • Cover sheet
  • Renderings
  • Foundation plan
  • Main floor plan
  • Second floor plan
  • Roof plan
  • Exterior elevations (2 pages)
  • Cabinet elevations
  • Main floor lighting plan
  • Second floor lighting plan
  • General notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,906 sq. ft.

1st Floor

1,956 sq. ft.

2nd Floor

950 sq. ft.

Porch, Front

200 sq. ft.

Deck

273 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

81' 0"

Depth

63' 0"

Max Ridge Height

28' 6"

Garage

Type

Detached

Area

528 sq. ft.

Count

2 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10' 1"

Second Floor

8' 6"

Room

Ceiling Type

Height

Owner's Bedroom

9' 1''

Special Features

Breakfast Nook

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor
