4-Bed Transitional European House Plan Under 2800 Square Feet with Elaborate Outdoor Kitchen

Plan 125000LEW

  • 2,769

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

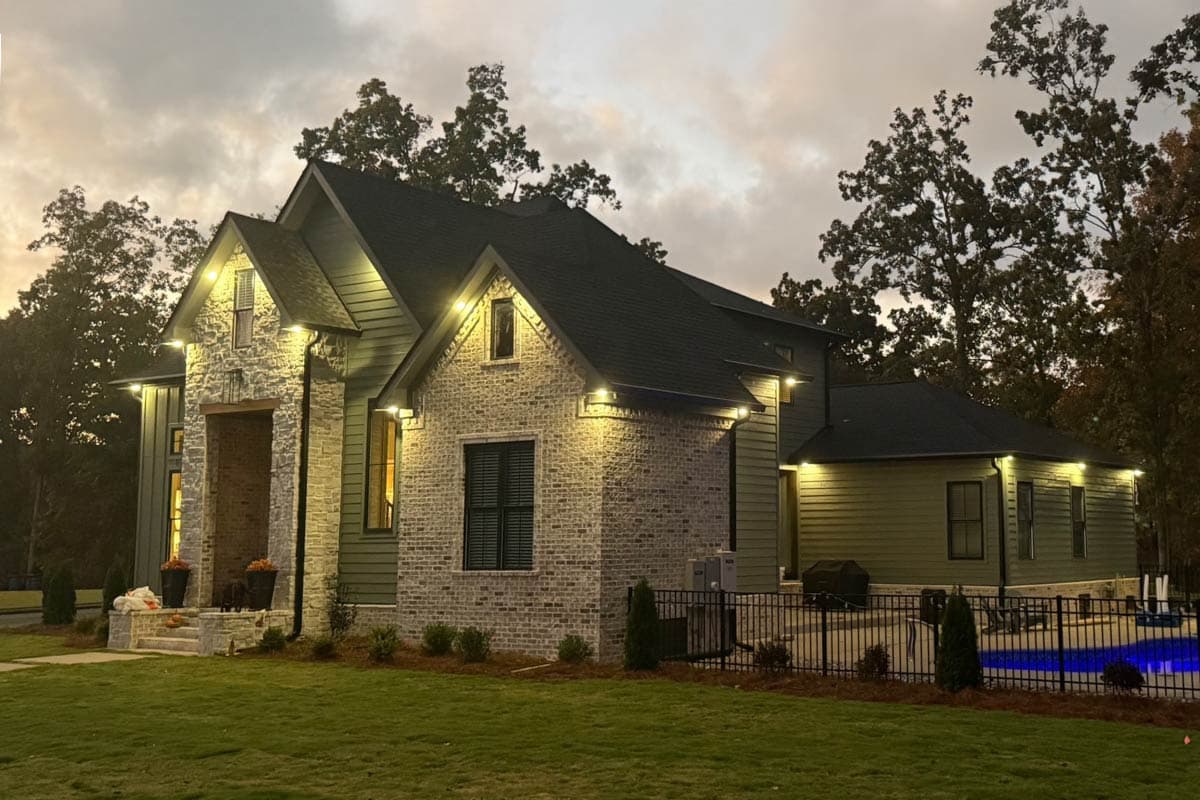

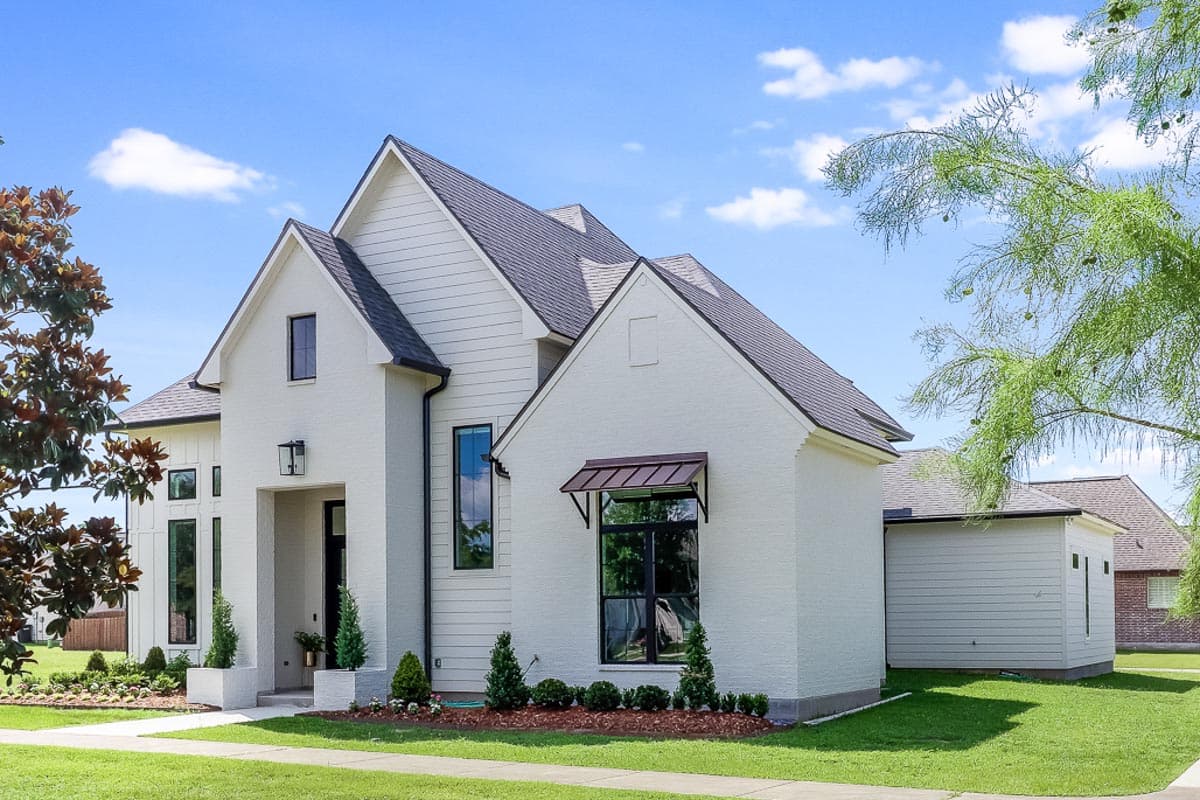

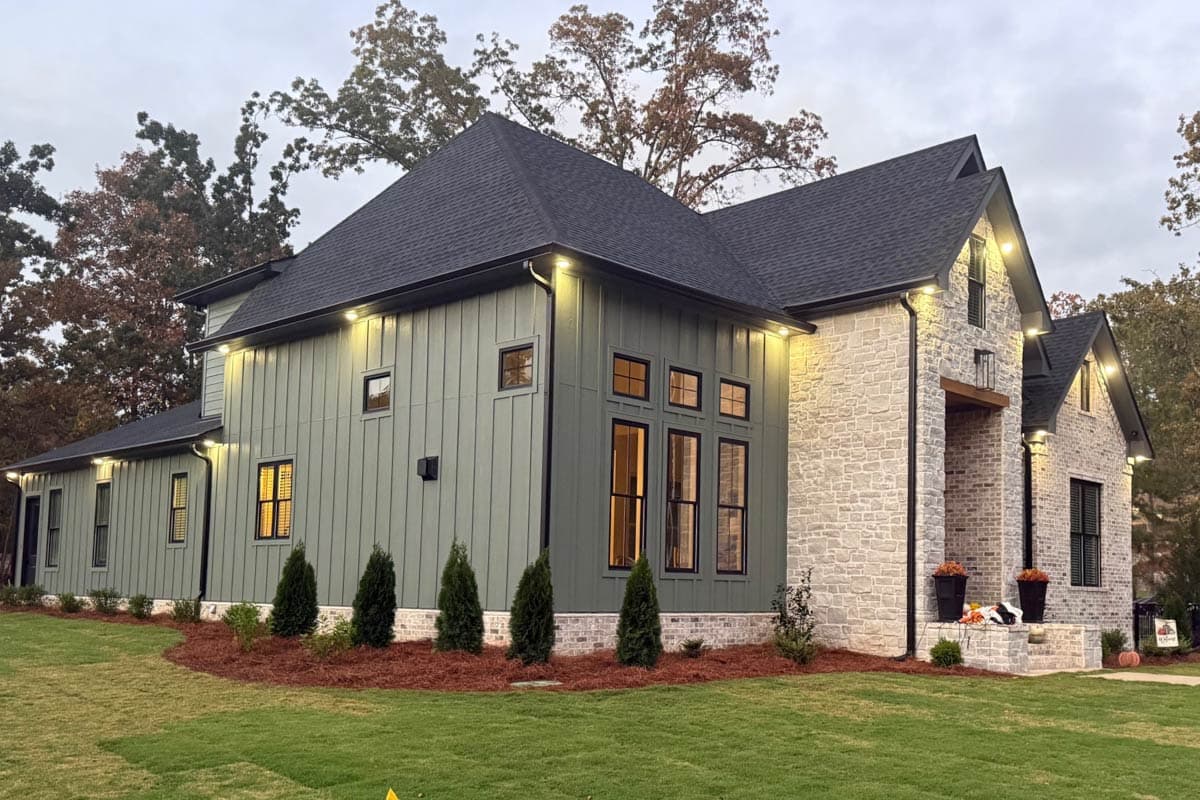

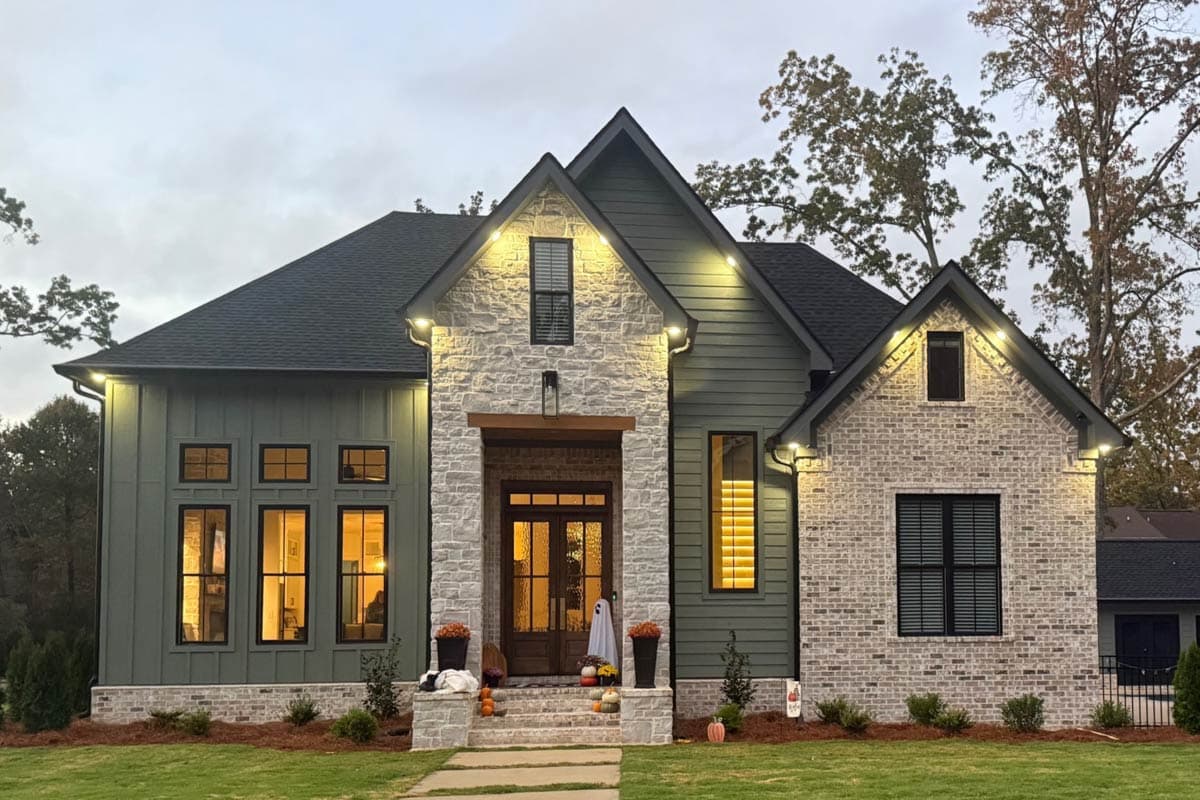

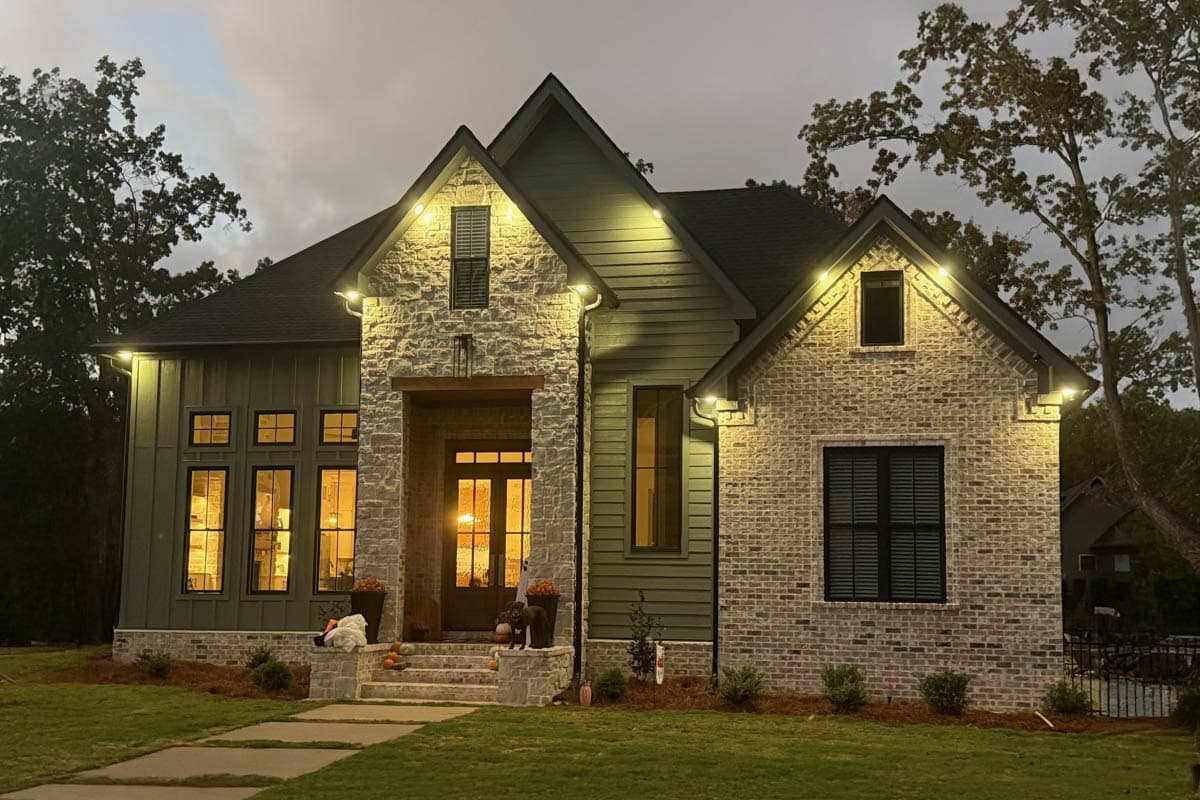

  • Three tall windows with transoms above to the right of the covered entry add drama and class to this 2,769 square foot house plan with painted brick, board and batten and clapboard siding.

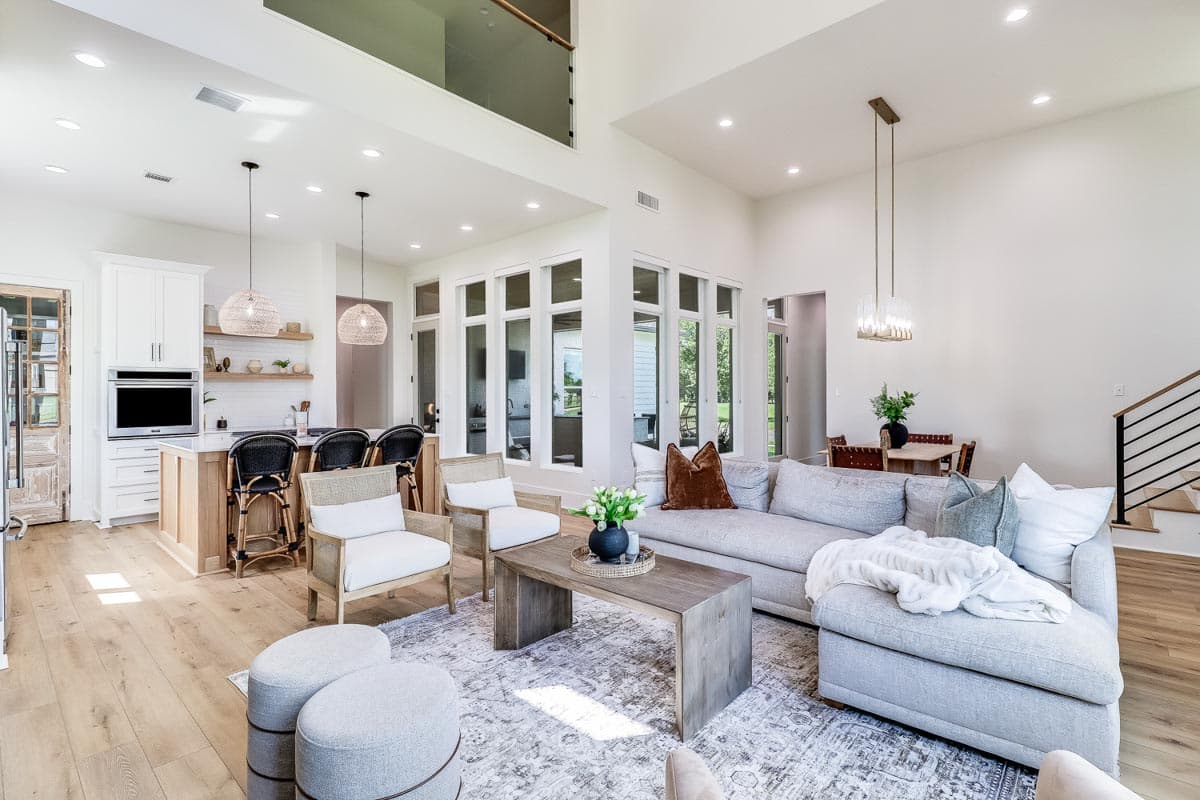

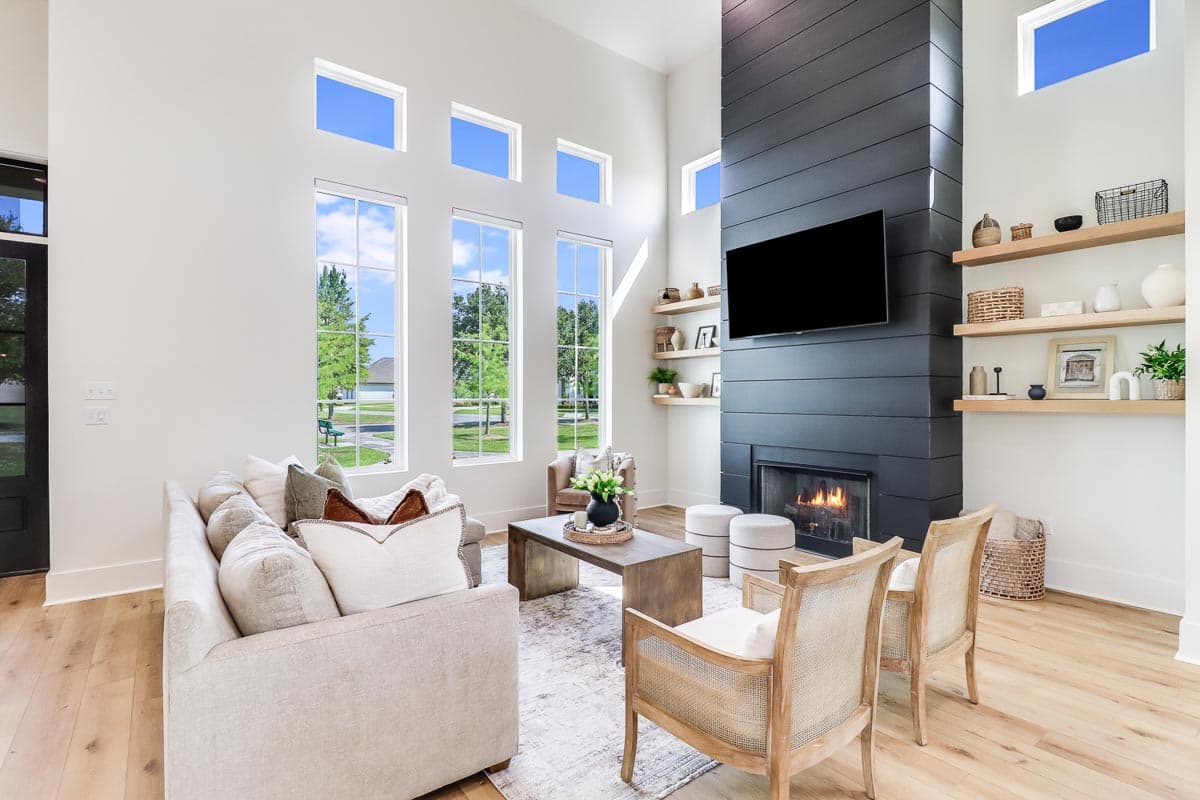

  • French doors open to the foyer with 19' ceilings which leads into the dining room with views to the outdoor space beyond. The living room to the left has 22'5" vaulted ceilings and a fireplace.

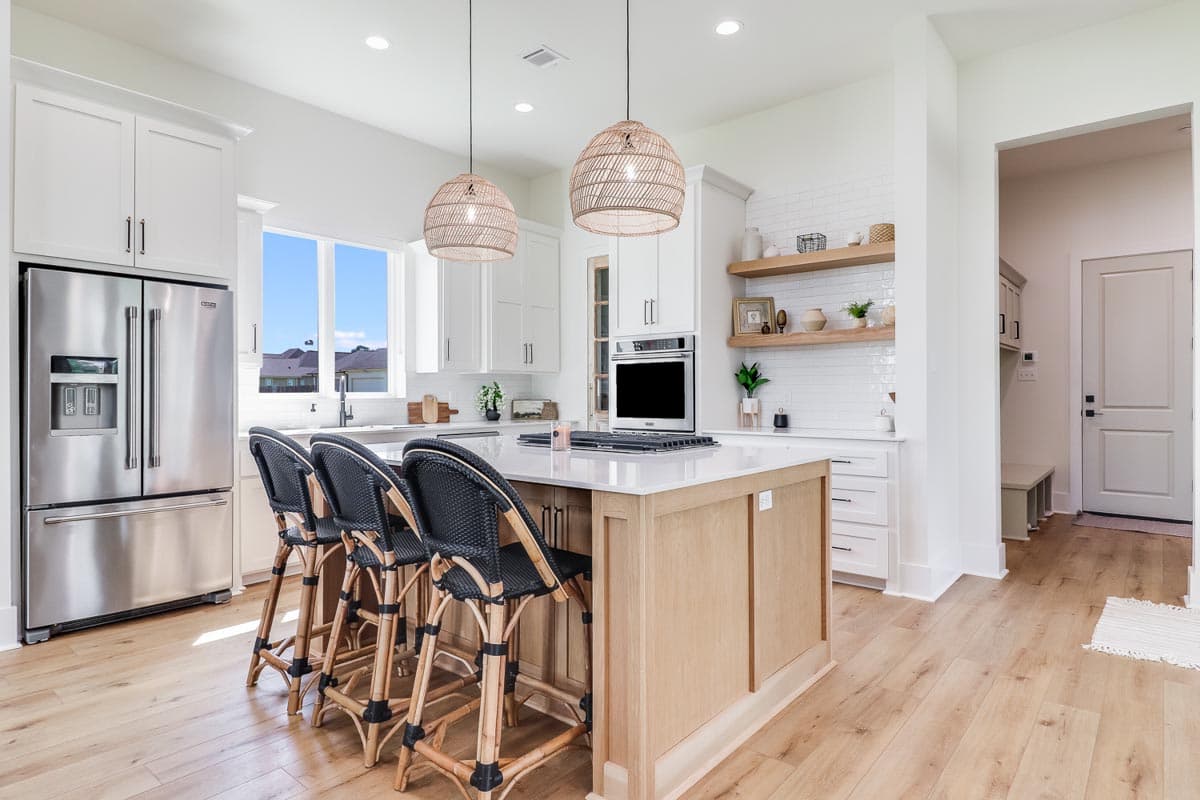

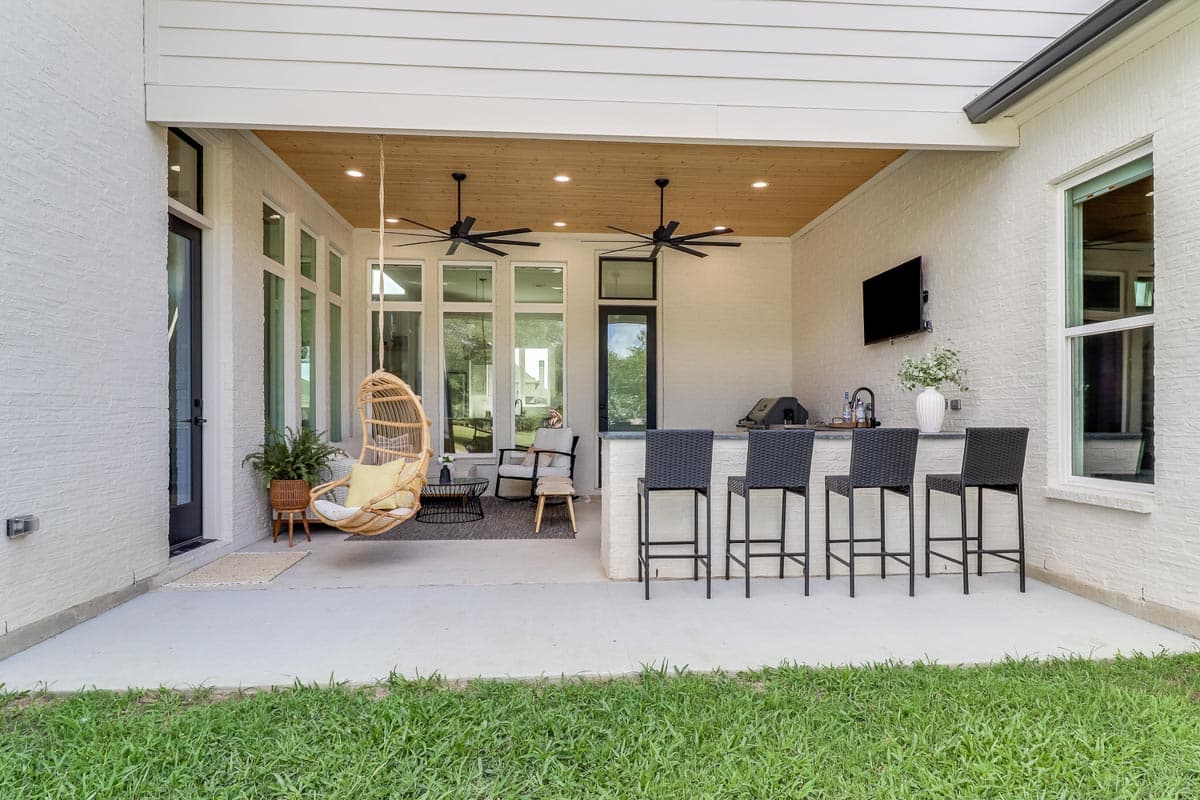

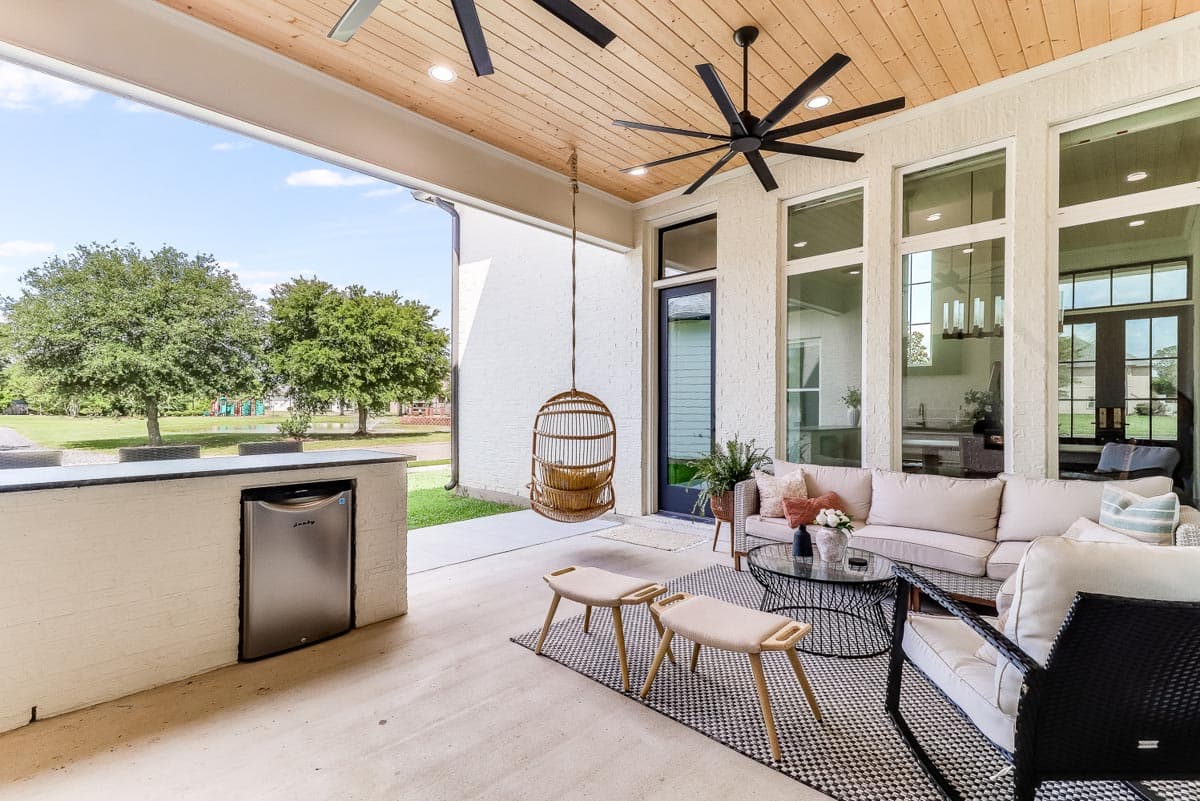

  • The kitchen with island has views to the outdoor living area and a door opens to that space as well. Entertain outside - or cook your meals - with an elaborate fresh air kitchen with peninsula.

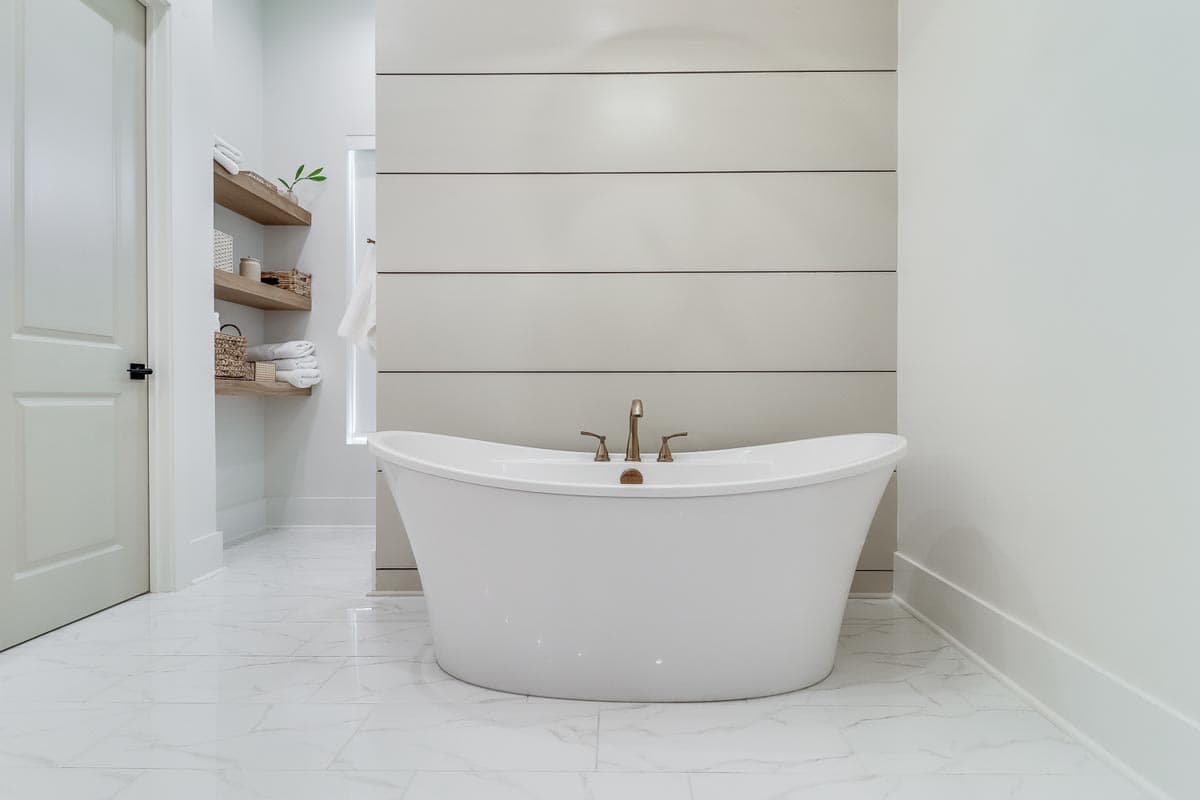

  • The master suite is located in back and has a divided master closet and a large five-fixture bath. A second main floor bedroom is located to the right of the foyer. Upstairs, you'll find two more bedrooms with a shared bath as well as a den and a landing area with access to an outdoor balcony.
  • The rear load garage has a single overhead door for two cars and a smaller opening for a golf cart or other smaller wheeled vehicles.

This house plan includes the following details:
  • Cover page with schedules and site index

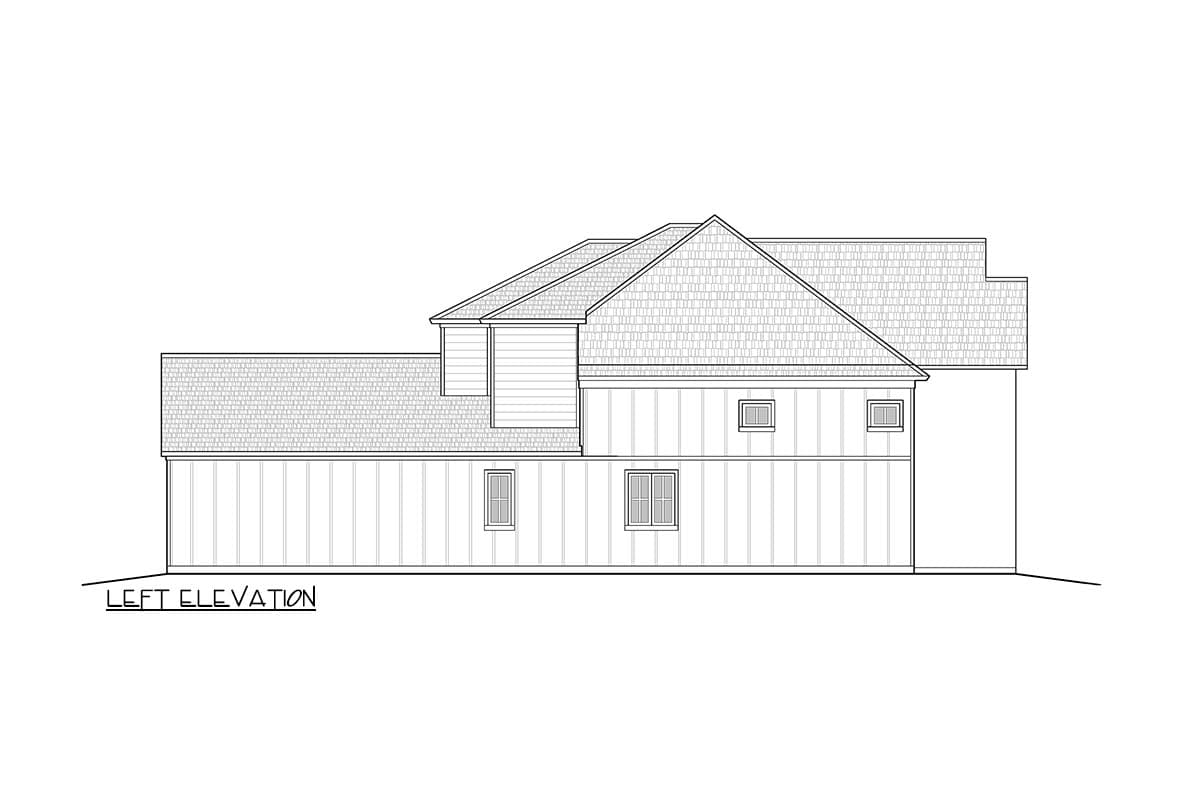

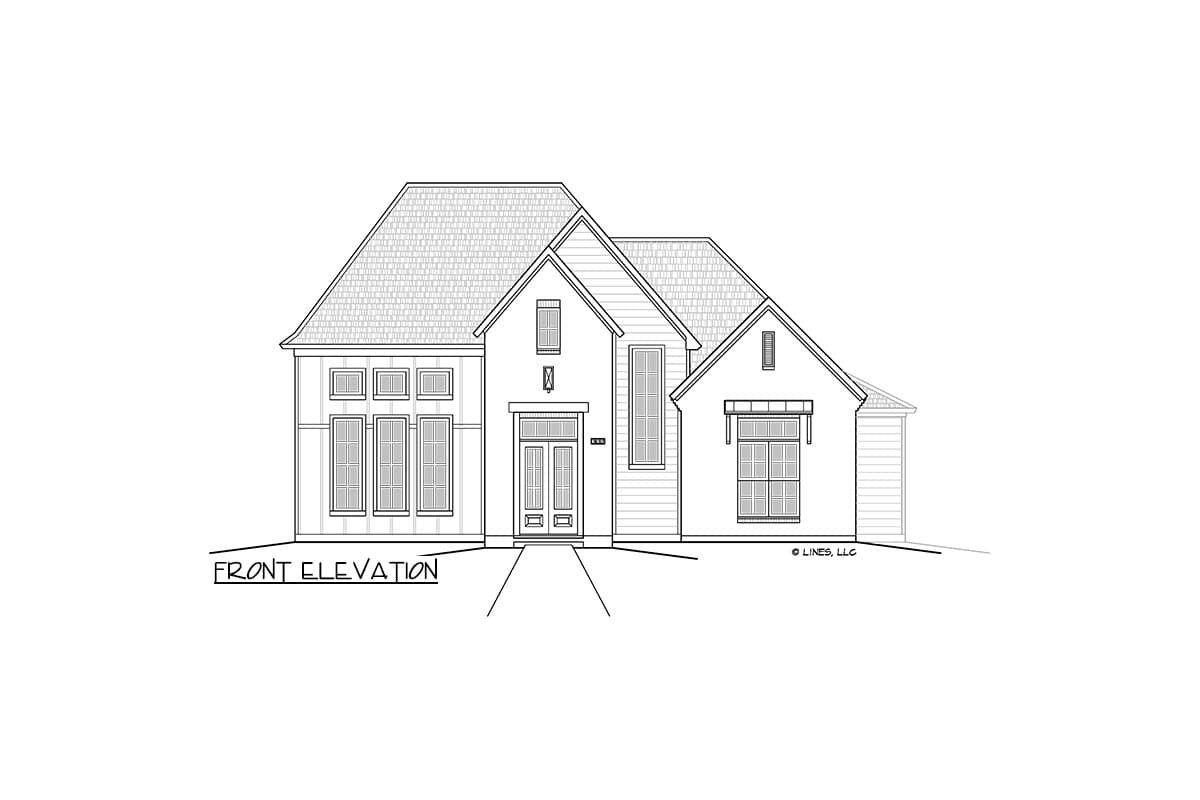

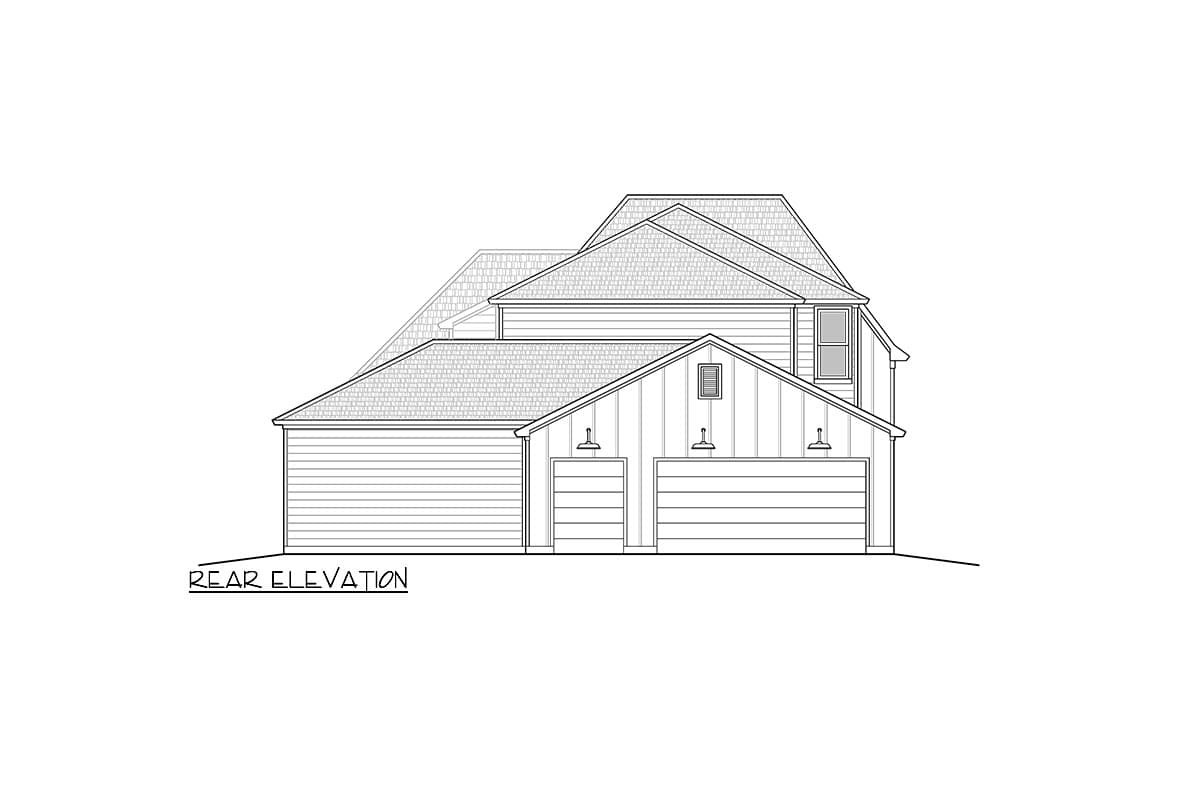

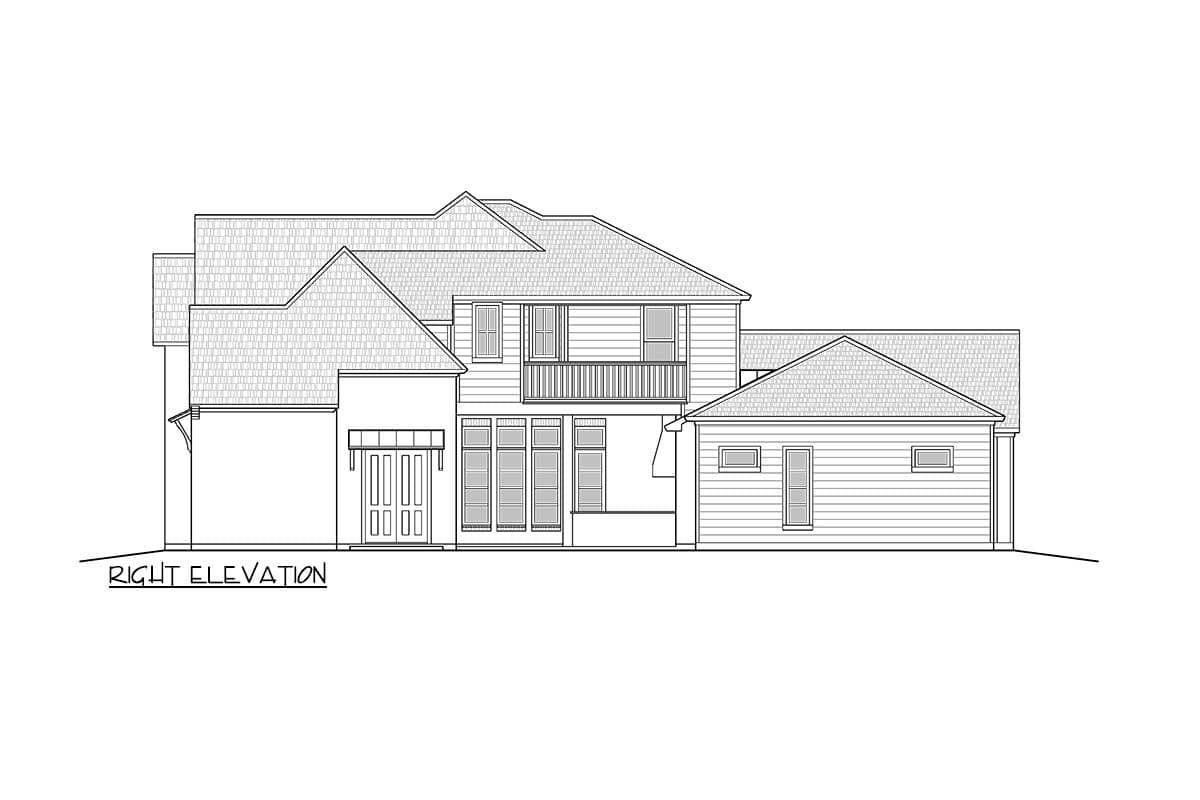

  • Exterior elevations
  • Roof plan
  • Floor plans
  • Foundation plan and details
  • Building sections
  • Wall sections
  • Electrical plans
  • Cabinet details
  • General notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

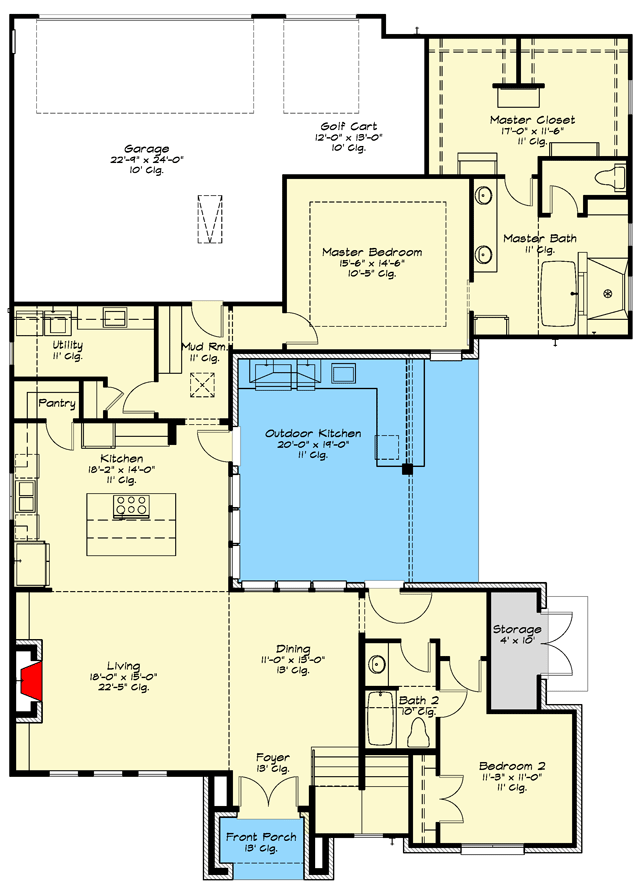

4-Bed Transitional European House Plan Under 2800 Square Feet with Elaborate Outdoor Kitchen - 125000LEW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

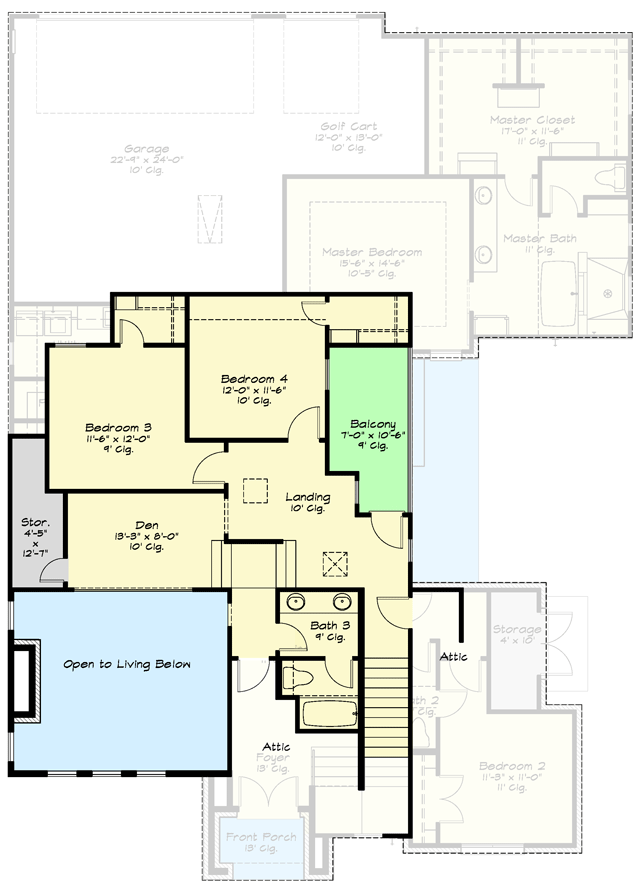

4-Bed Transitional European House Plan Under 2800 Square Feet with Elaborate Outdoor Kitchen - 125000LEW floor plan - 2nd Floor

4-Bed Transitional European House Plan Under 2800 Square Feet with Elaborate Outdoor Kitchen

  • 2,769

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,769 sq. ft.
  • 1st Floor: 1,988 sq. ft.
  • 2nd Floor: 781 sq. ft.

Dimensions

  • Width: 52' 7"
  • Depth: 73' 1"
  • Max ridge height: 30' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 767 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0" First Floor 13' 0" First Floor 23' 0" Second Floor 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
