4-Bed Transitional Home Plan with Loft Under 3300 Sq Ft

Heated S.F.
3,266
Beds
4
Baths
3.5
Stories
2
Cars
2
Tour

Floor Plan

Plan 83663CRW

Main Level
Main Level
2nd Floor
2nd Floor
Optional Basement Stairs Location
Optional Basement Stairs Location
Optional Lower Level
Optional Lower Level
Alternate Fireplace Location
Alternate Fireplace Location

Plan 83663CRW

M-F 9am-5pm EST |

1-203-761-8500

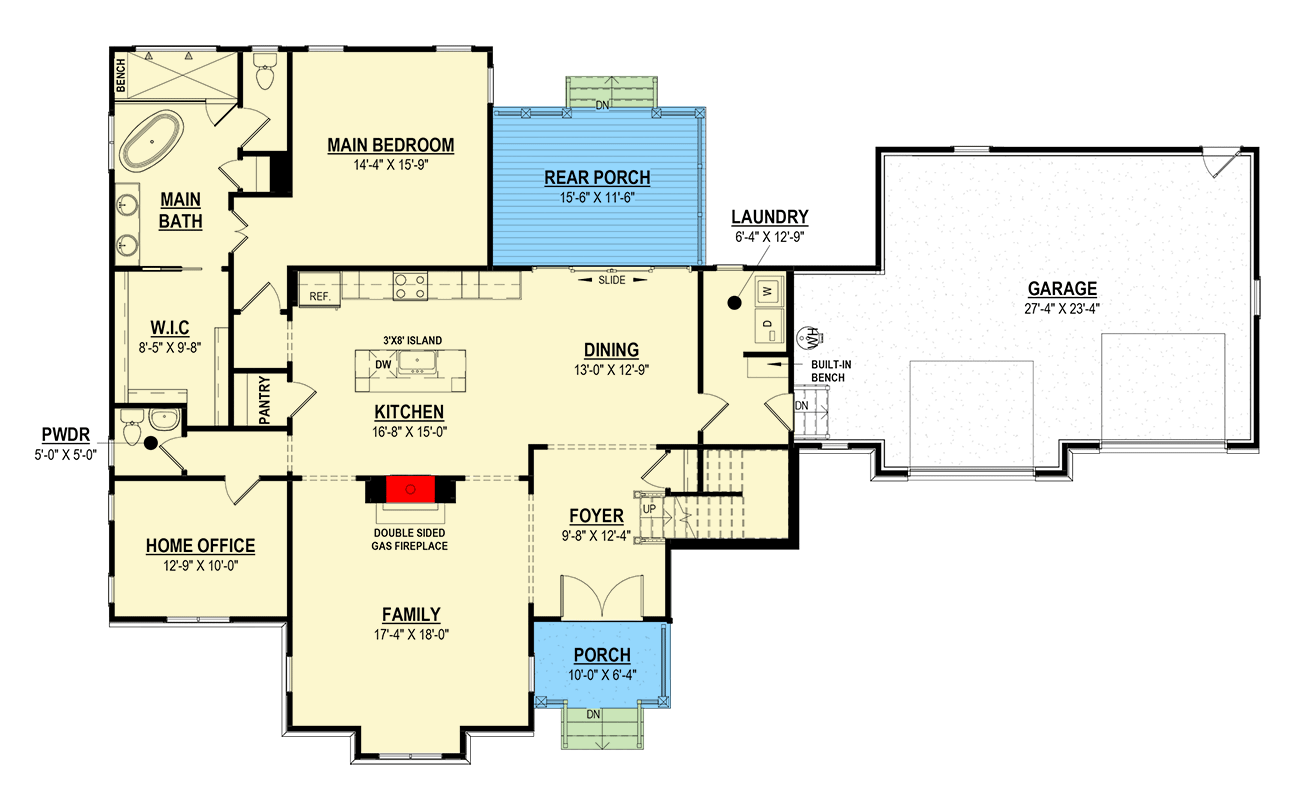

Main Level

Plan 83663CRW: 4-Bed Transitional Home Plan with Loft Under 3300 Sq Ft - Floor Plan - Main Level - Transitional

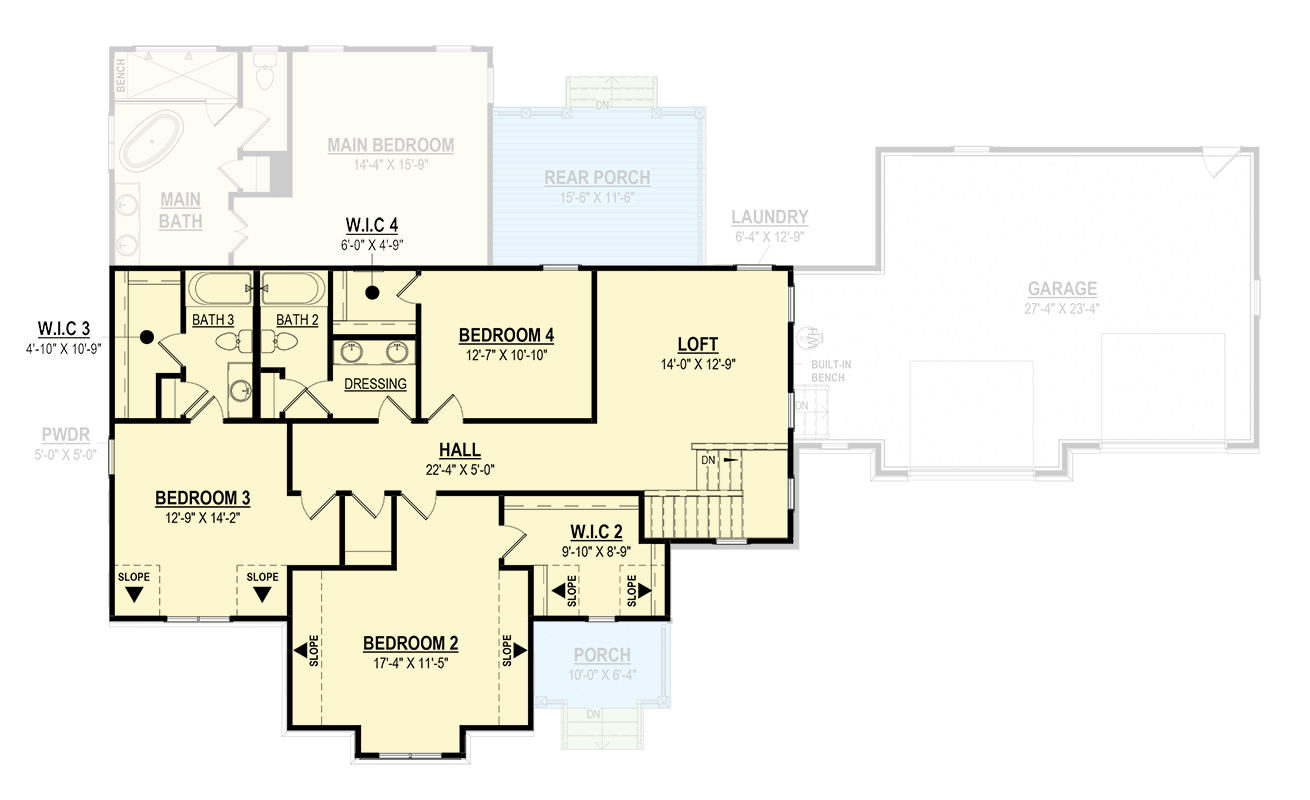

2nd Floor

Plan 83663CRW: 4-Bed Transitional Home Plan with Loft Under 3300 Sq Ft - Floor Plan - 2nd Floor - Transitional

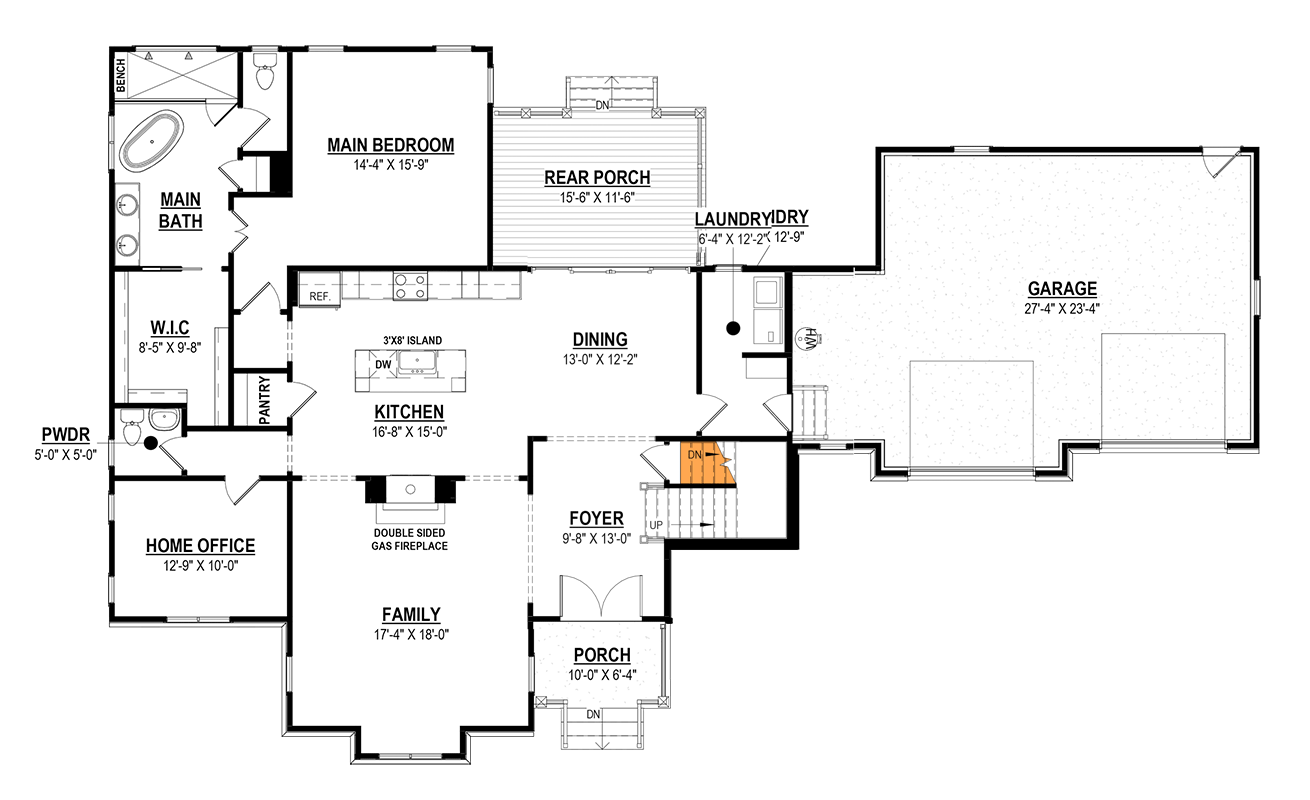

Optional Basement Stairs Location

Plan 83663CRW: 4-Bed Transitional Home Plan with Loft Under 3300 Sq Ft - Floor Plan - Optional Basement Stairs Location - Transitional

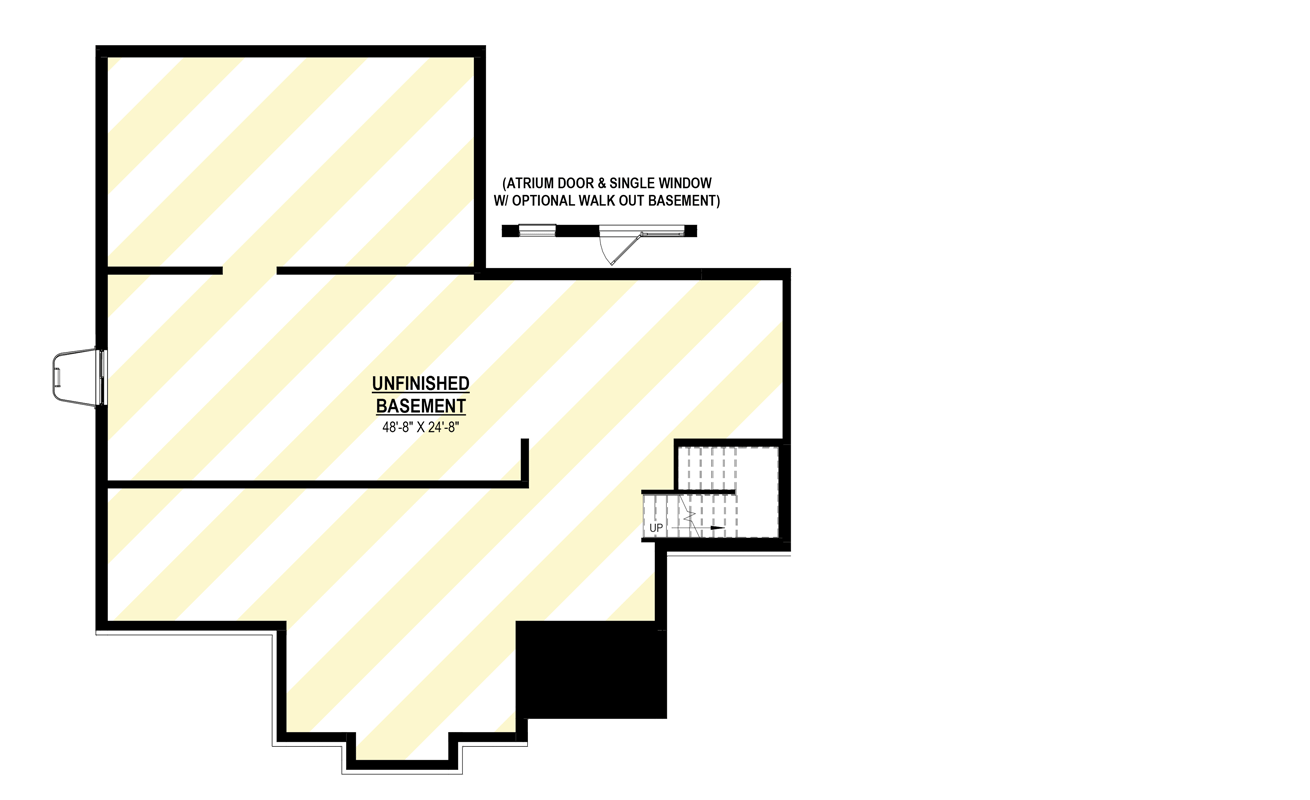

Optional Lower Level

Plan 83663CRW: 4-Bed Transitional Home Plan with Loft Under 3300 Sq Ft - Floor Plan - Optional Lower Level - Transitional

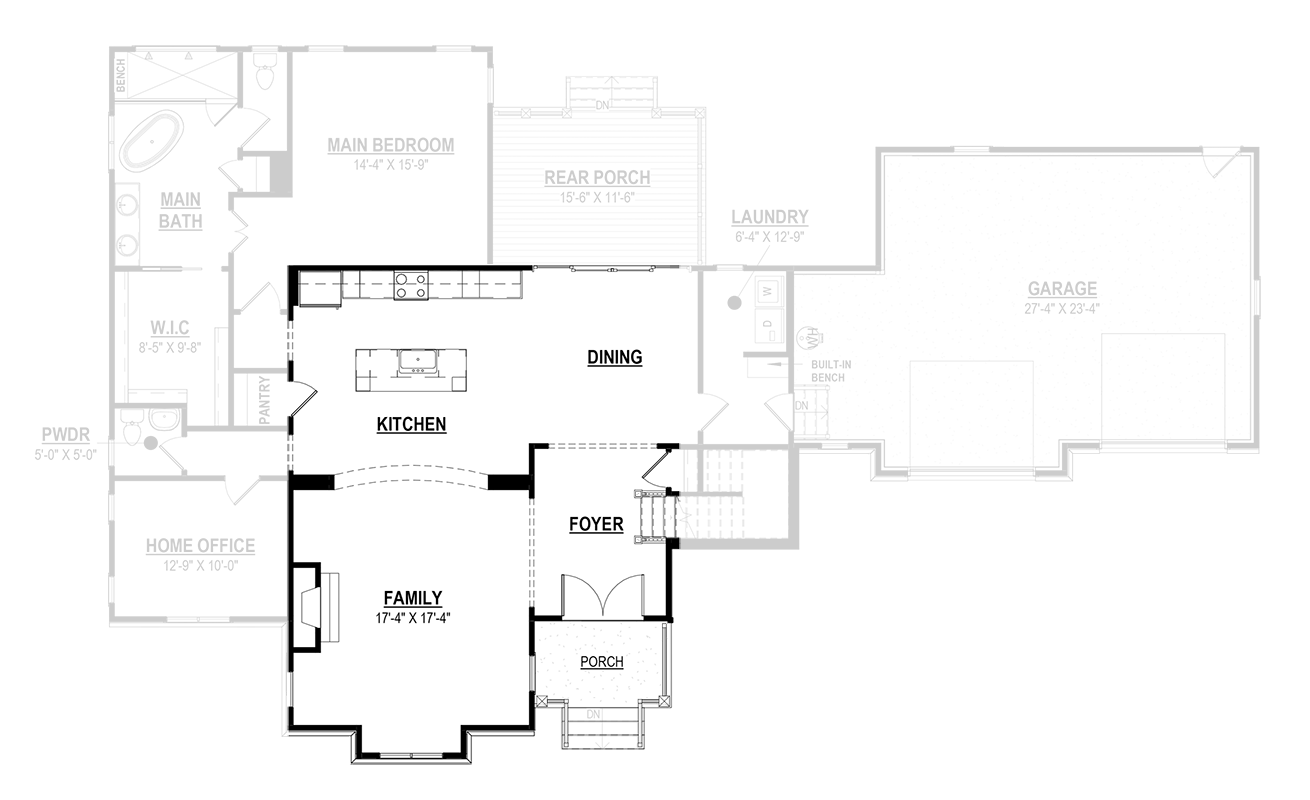

Alternate Fireplace Location

Plan 83663CRW: 4-Bed Transitional Home Plan with Loft Under 3300 Sq Ft - Floor Plan - Alternate Fireplace Location - Transitional

Plan Details

  • This 4 bed, 3.5 bath transitional house plan gives you 3,266 square feet of heated living and 2-car front garage (724 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)
  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,266 sq. ft.

1st Floor

1,857 sq. ft.

2nd Floor

1,409 sq. ft.

Optional Lower Level

1,857 sq. ft.

Porch, Front

63 sq. ft.

Porch, Rear

178 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

84' 0"

Depth

52' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

724 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Transitional

Special Features

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

3,266 sq. ft.

1st Floor

1,857 sq. ft.

2nd Floor

1,409 sq. ft.

Optional Lower Level

1,857 sq. ft.

Porch, Front

63 sq. ft.

Porch, Rear

178 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

84' 0"

Depth

52' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached

Area

724 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Transitional

Special Features

Home Office

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping!Let's go back to the top.
