Plan 444331GDN 4-Bed Twin-Gabled Farmhouse with 50'-Wide Porches Front and Back

3,163 4 3.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4-Bed Twin-Gabled Farmhouse with 50'-Wide Porches Front and Back

Plan 444331GDN

  • 3,163

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

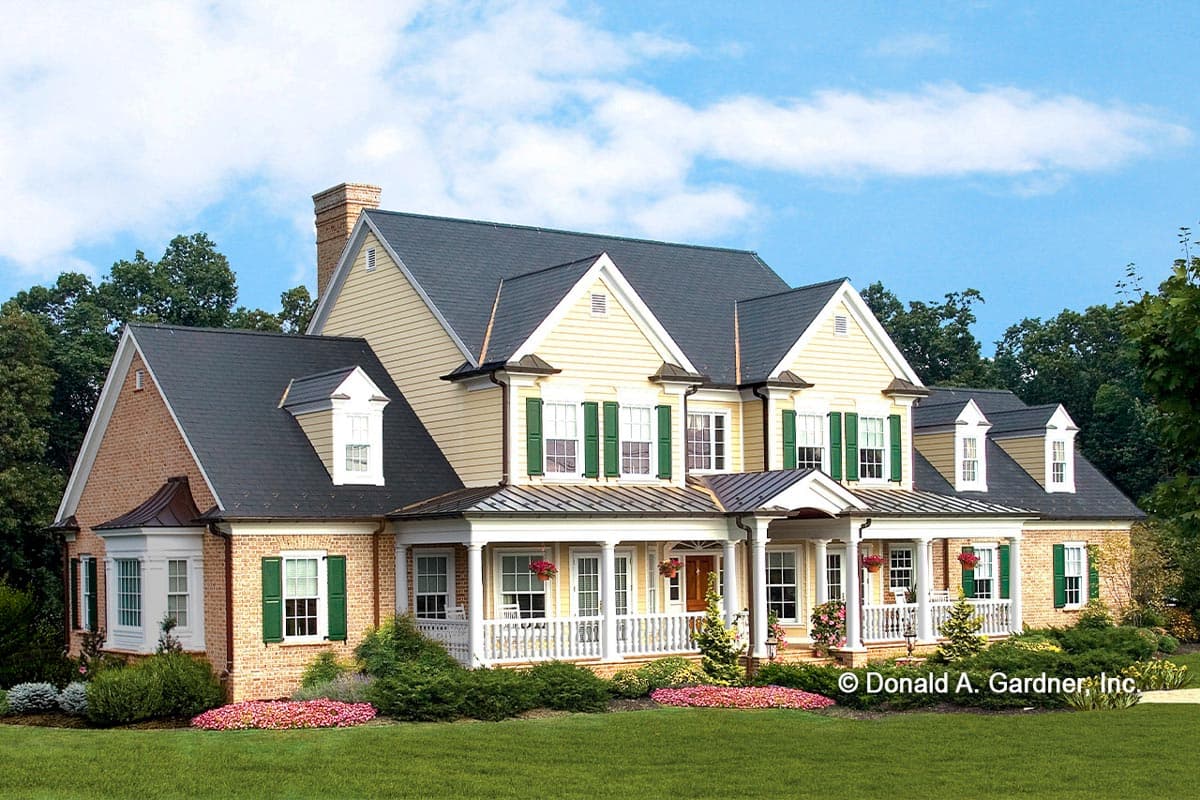

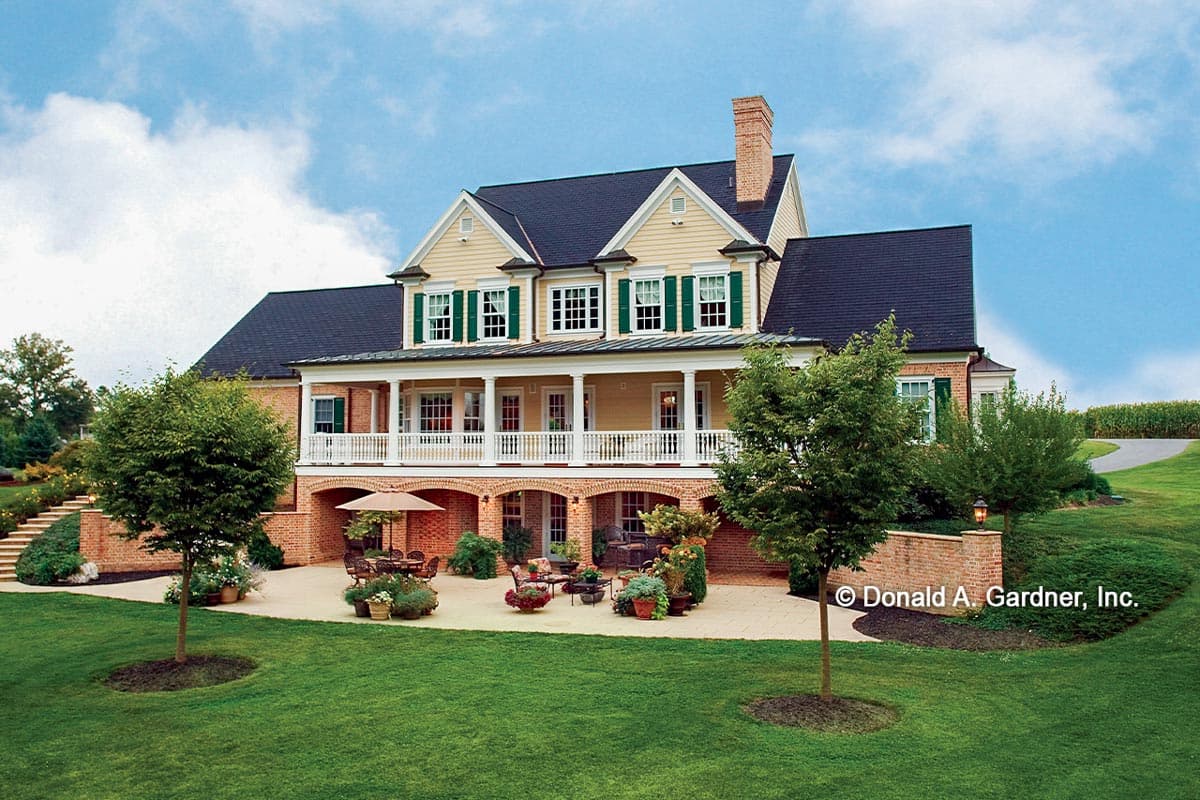

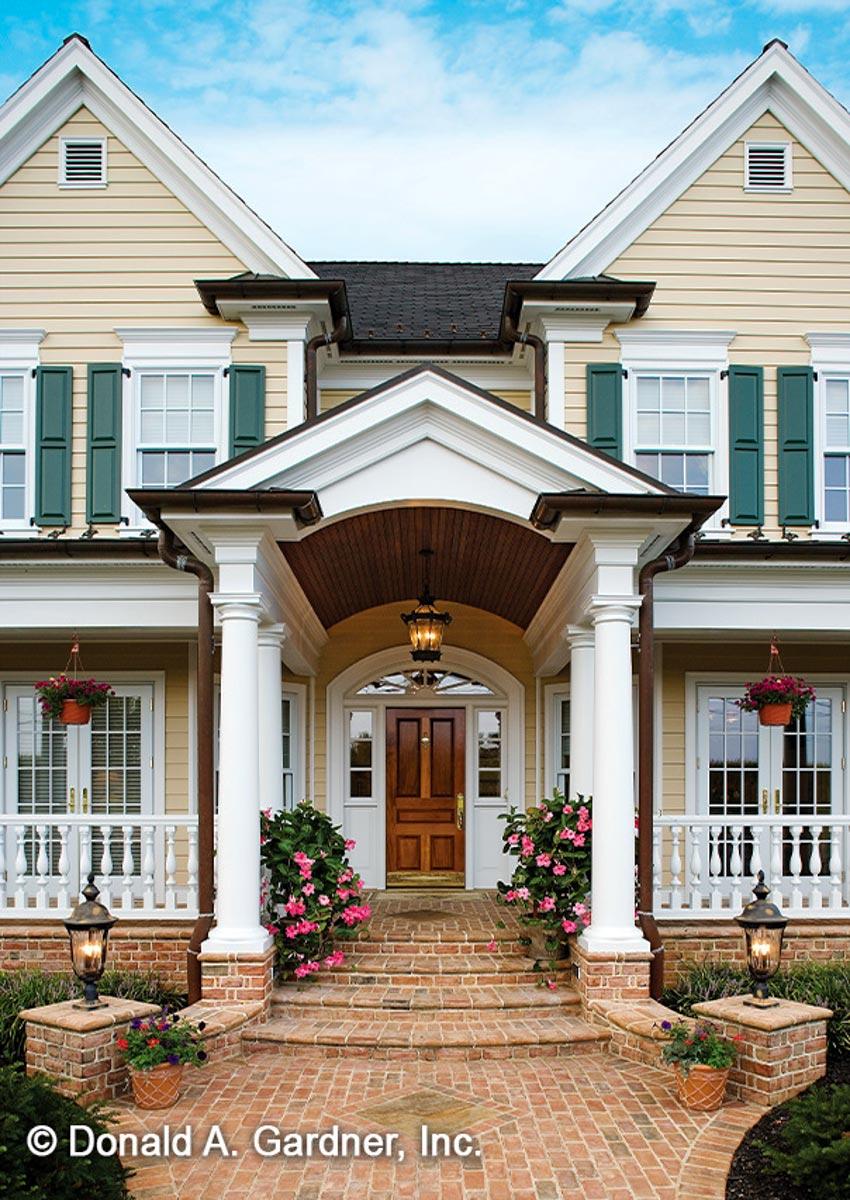

  • This beautiful farmhouse with prominent twin gables and bays adds just the right amount of country style to modern family life. The front porch extends across 50'8" of the home and is 11'8" deep, giving you great fresh air space to enjoy. In back, there's an equally generous porch (50'8" wide and 7' deep) that wraps around the breakfast room.

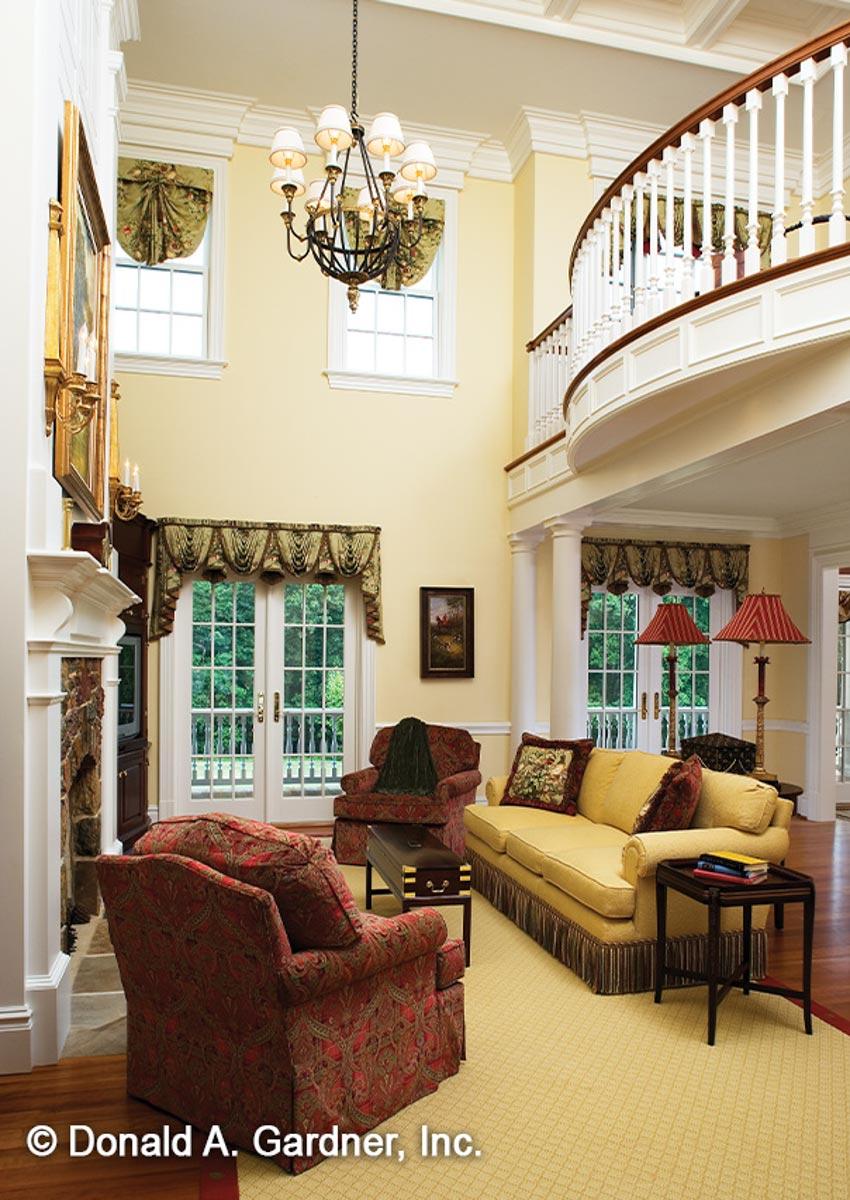

  • Step inside and marvel at the 18'-high ceilings in the foyer with the living room on your left and dining room to your right and the 2-story family room (18' ceilings) ahead.

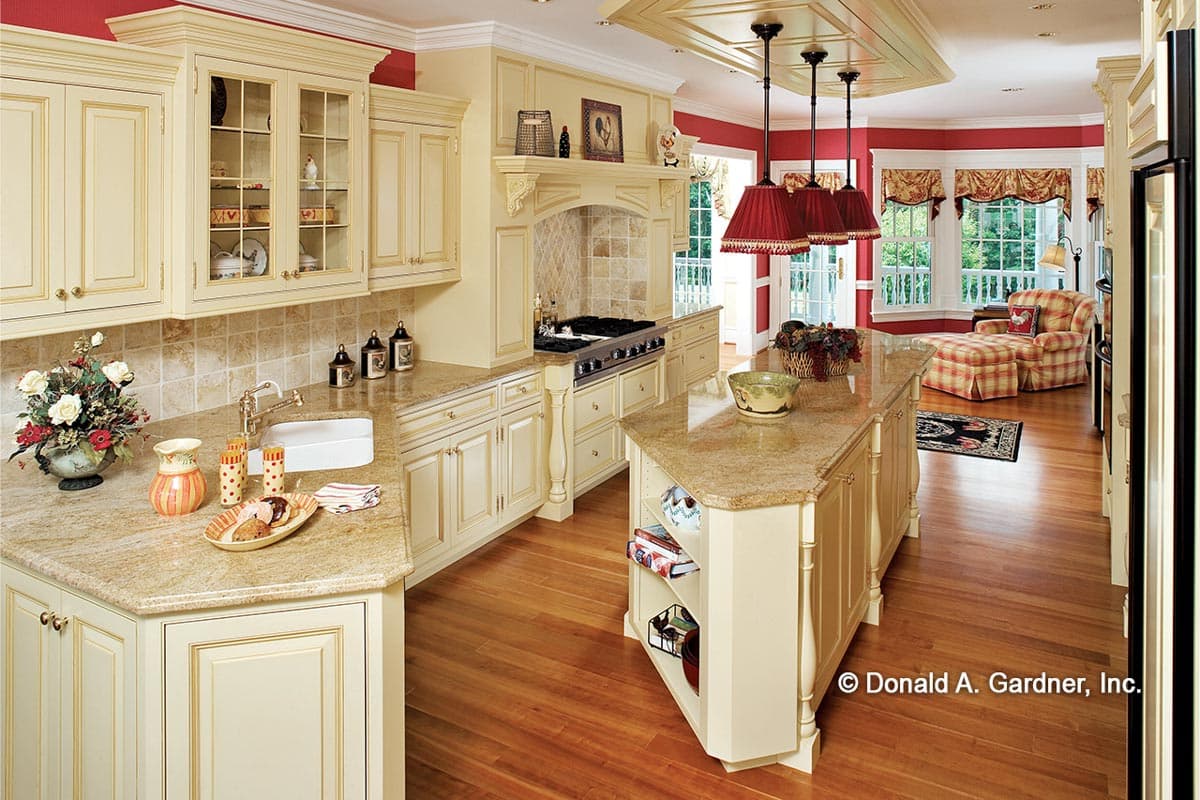

  • The cook of the family will love the spacious U-shaped kitchen with ample cabinets and pantry.

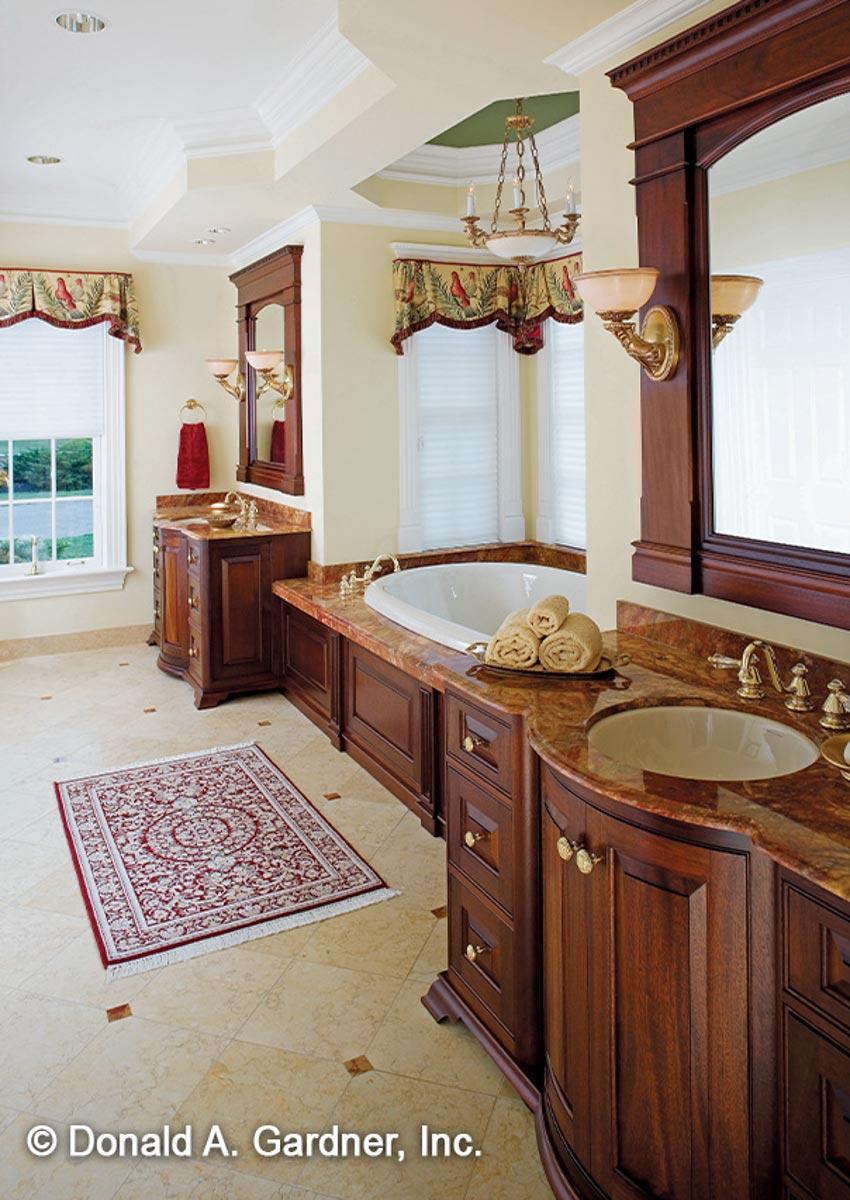

  • The master suite with 11'7" tray ceiling is quietly tucked away downstairs with no bedrooms directly above.
  • The bonus room (403 square feet of potential finished space) is easily accessible from the back stairs or second floor, where three large bedrooms share two full baths.
  • Storage space abounds in this home plan with walk-ins, hall shelves, and a linen closet upstairs.

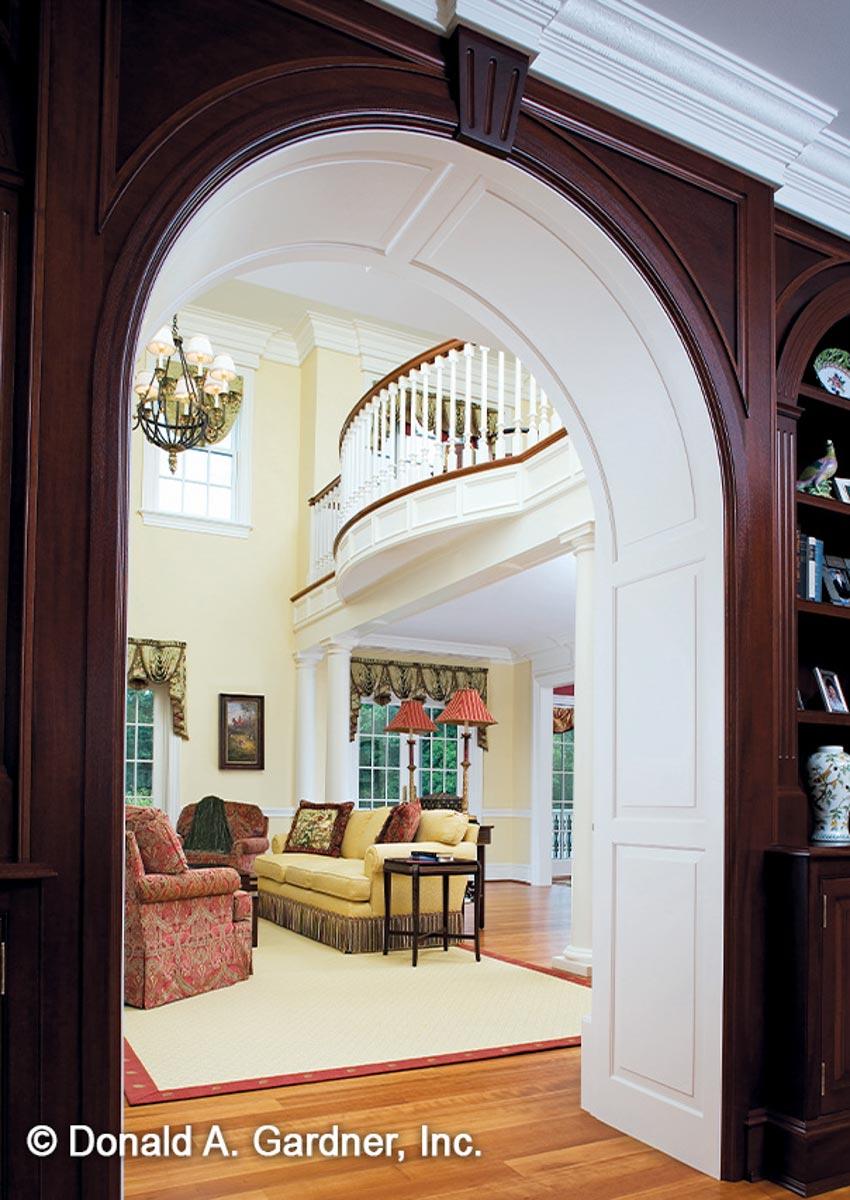

  • A curved balcony borders a versatile loft/study that overlooks the family room below.
  • Related Plan: Get an alternate version with house plan 444033GDN.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

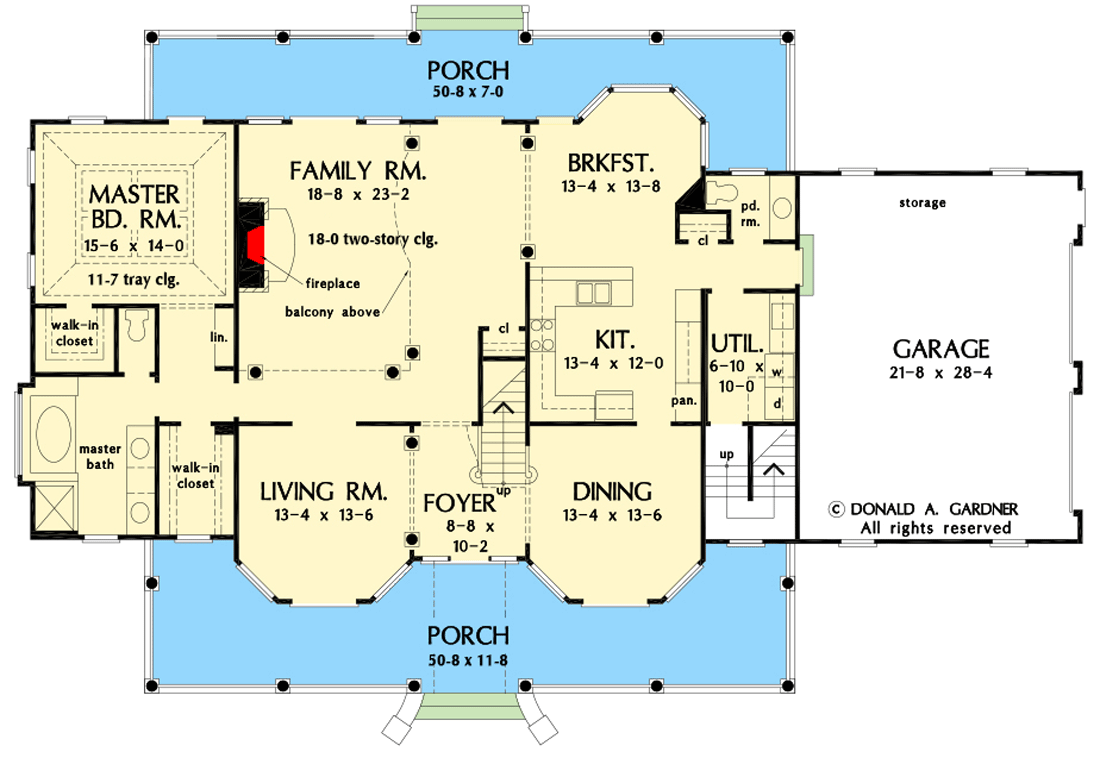

4-Bed Twin-Gabled Farmhouse with 50'-Wide Porches Front and Back - 444331GDN floor plan - Main Level

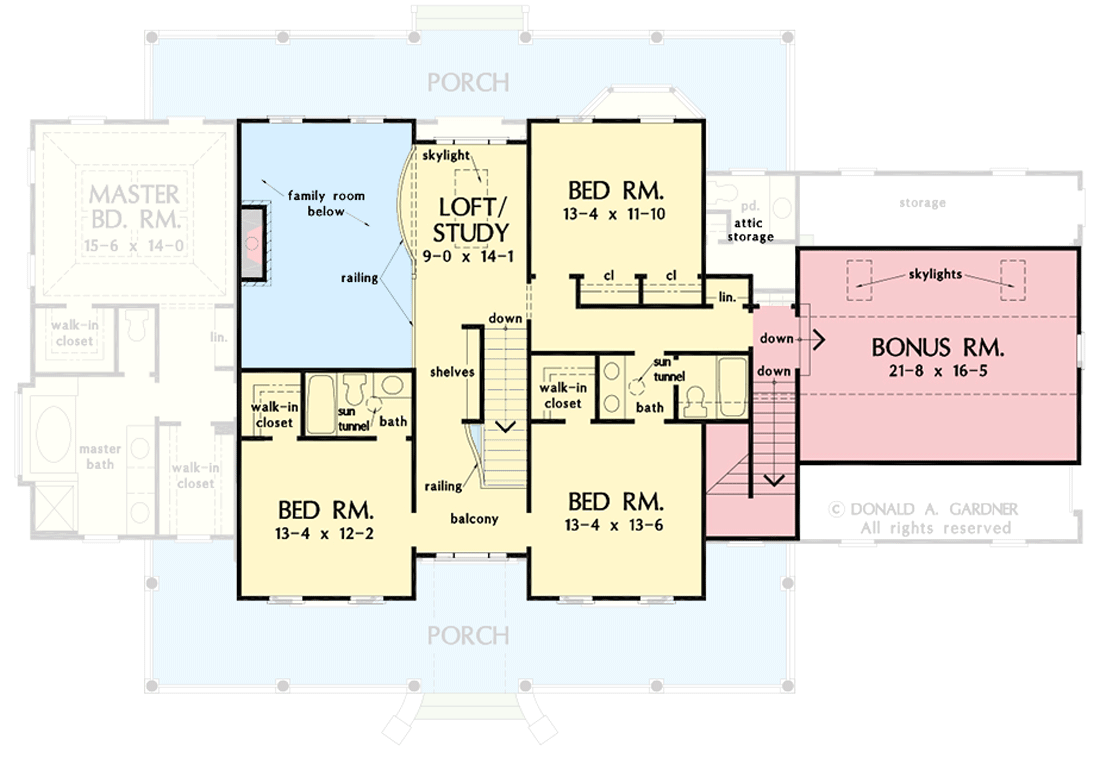

2nd Floor w/ Optionally Finished Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

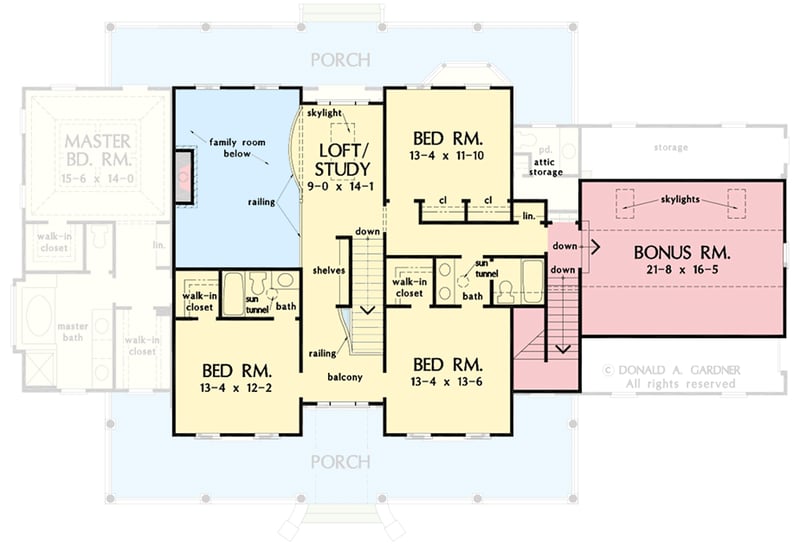

4-Bed Twin-Gabled Farmhouse with 50'-Wide Porches Front and Back - 444331GDN floor plan - 2nd Floor w/ Optionally Finished Bonus Room

Main Level - Basement Stair Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

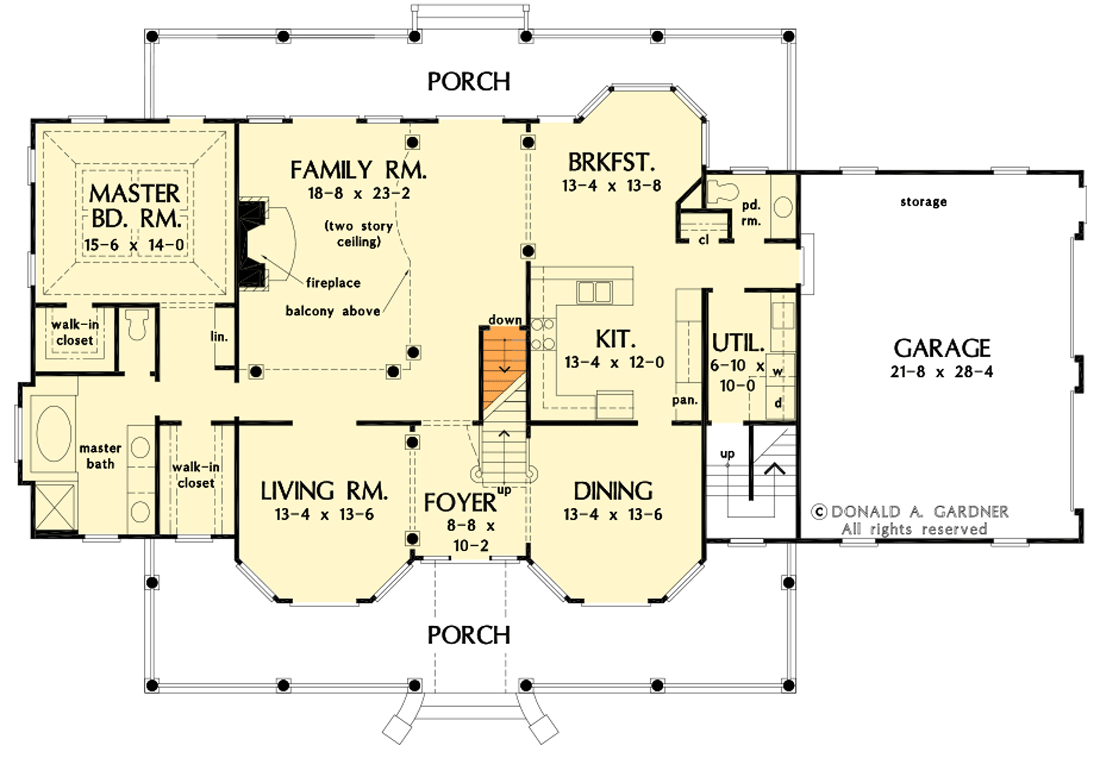

4-Bed Twin-Gabled Farmhouse with 50'-Wide Porches Front and Back - 444331GDN floor plan - Main Level - Basement Stair Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,163 sq. ft.
  • 1st Floor: 2,086 sq. ft.
  • 2nd Floor: 1,077 sq. ft.
  • Porch, Combined: 837 sq. ft.
  • Bonus: 403 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 82' 10"
  • Depth: 51' 8"
  • Max ridge height: 32' 4"

Garage

  • Type: Attached
  • Area: 638 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 8.875 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

4-Bed Twin-Gabled Farmhouse with 50'-Wide Porches Front and Back

  • 3,163

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $1,550
  • PDF - Single-Build $1,750
  • CAD Unlimited + PDF $3,075
  • View all purchase option online

About This Plan

  • This beautiful farmhouse with prominent twin gables and bays adds just the right amount of country style to modern family life. The front porch extends across 50'8" of the home and is 11'8" deep, giving you great fresh air space to enjoy. In back, there's an equally generous porch (50'8" wide and 7' deep) that wraps around the breakfast room.
  • Step inside and marvel at the 18'-high ceilings in the foyer with the living room on your left and dining room to your right and the 2-story family room (18' ceilings) ahead.
  • The cook of the family will love the spacious U-shaped kitchen with ample cabinets and pantry.
  • The master suite with 11'7" tray ceiling is quietly tucked away downstairs with no bedrooms directly above.
  • The bonus room (403 square feet of potential finished space) is easily accessible from the back stairs or second floor, where three large bedrooms share two full baths.
  • Storage space abounds in this home plan with walk-ins, hall shelves, and a linen closet upstairs.
  • A curved balcony borders a versatile loft/study that overlooks the family room below.
  • Related Plan: Get an alternate version with house plan 444033GDN.

Floor Plans

  • Main Level

  • 2nd Floor w/ Optionally Finished Bonus Room

  • Main Level - Basement Stair Location

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,163 sq. ft.
  • 1st Floor: 2,086 sq. ft.
  • 2nd Floor: 1,077 sq. ft.
  • Porch, Combined: 837 sq. ft.
  • Bonus: 403 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 82' 10"
  • Depth: 51' 8"
  • Max ridge height: 32' 4"

Garage

  • Type: Attached
  • Area: 638 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8.875 on 12
  • Framing Type: Stick
