Plan 51946HZ
4-Bed Two-Story Barndominium-Style Farmhouse Plan with Large Loft - 2417 Sq Ft
Heated S.F.
2,417
Beds
4
Baths
3
Stories
2
Cars
1
Tour
Floor Plan

Plan 51946HZ

Main Level
slide image 0
2nd Floor
slide image 1
Basement Stairs Location
slide image 2

Plan 51946HZ

1-800-854-7852

1-262-521-4596

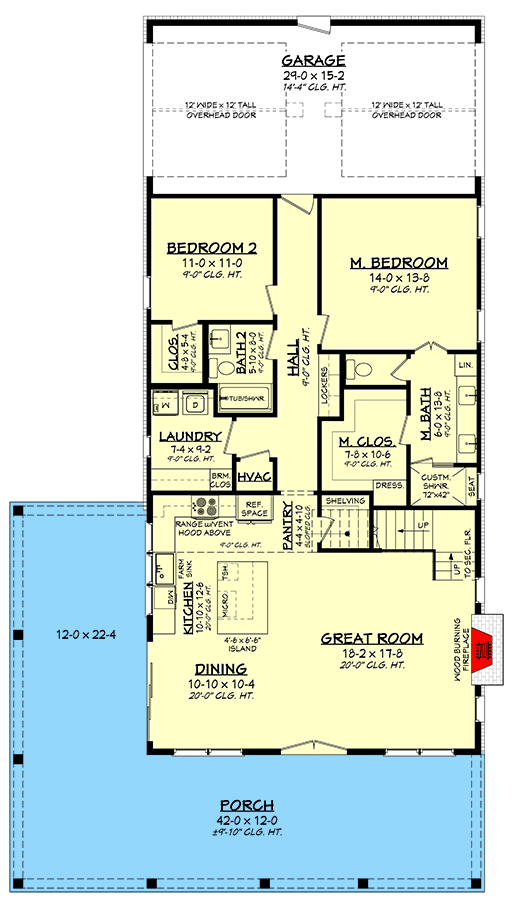

Main Level
floor plan image Main Level

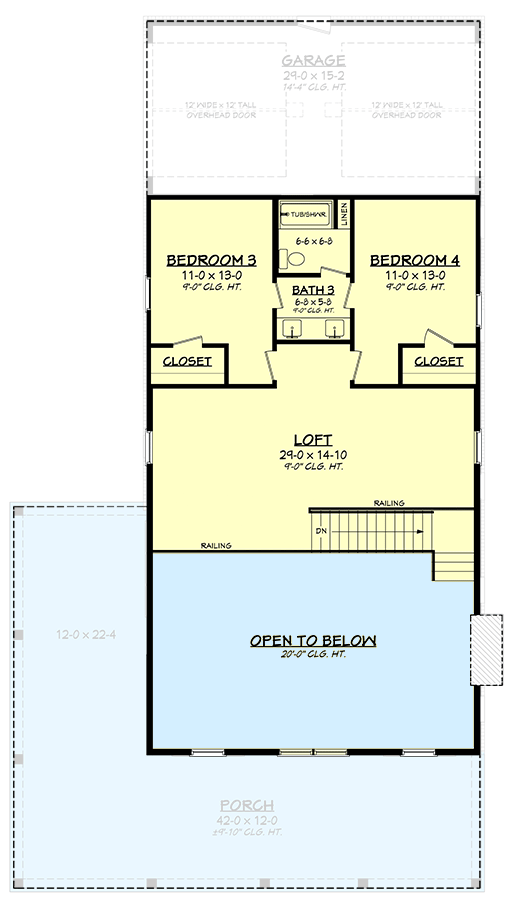

2nd Floor
floor plan image 2nd Floor

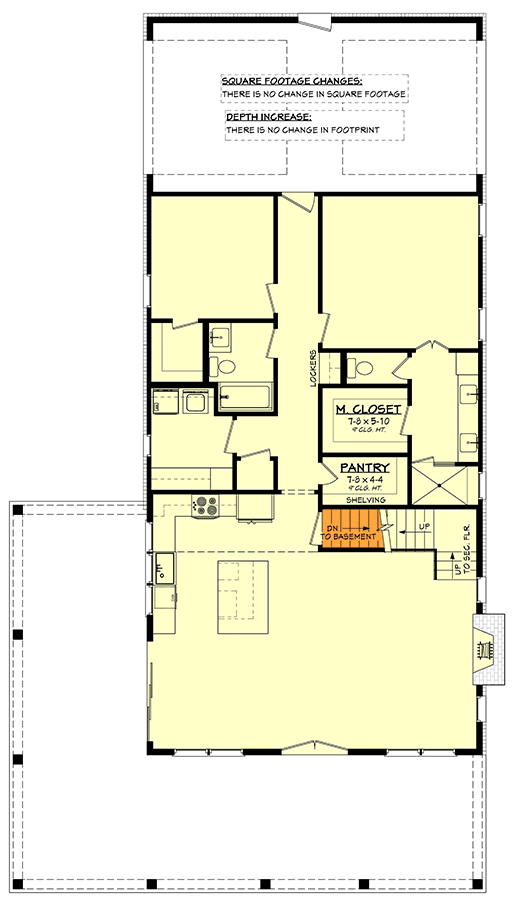

Basement Stairs Location
floor plan image Basement Stairs Location
Plan Details
  • This simple 2,417 square foot, two-story barndominium house plan boasts 4 bedrooms and 3 baths, with the main suite and a guest located on the first floor.
  • This plan is designed with conventional wood framing - with 2x6 exterior walls.

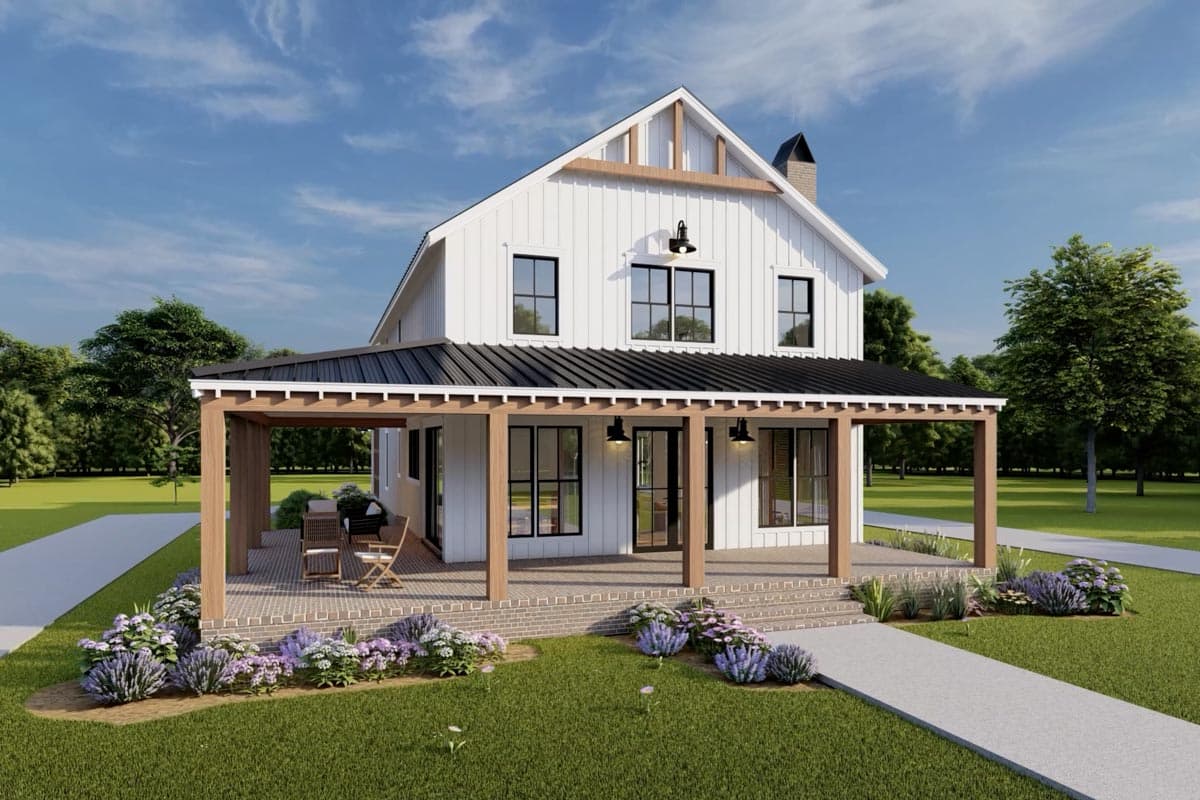

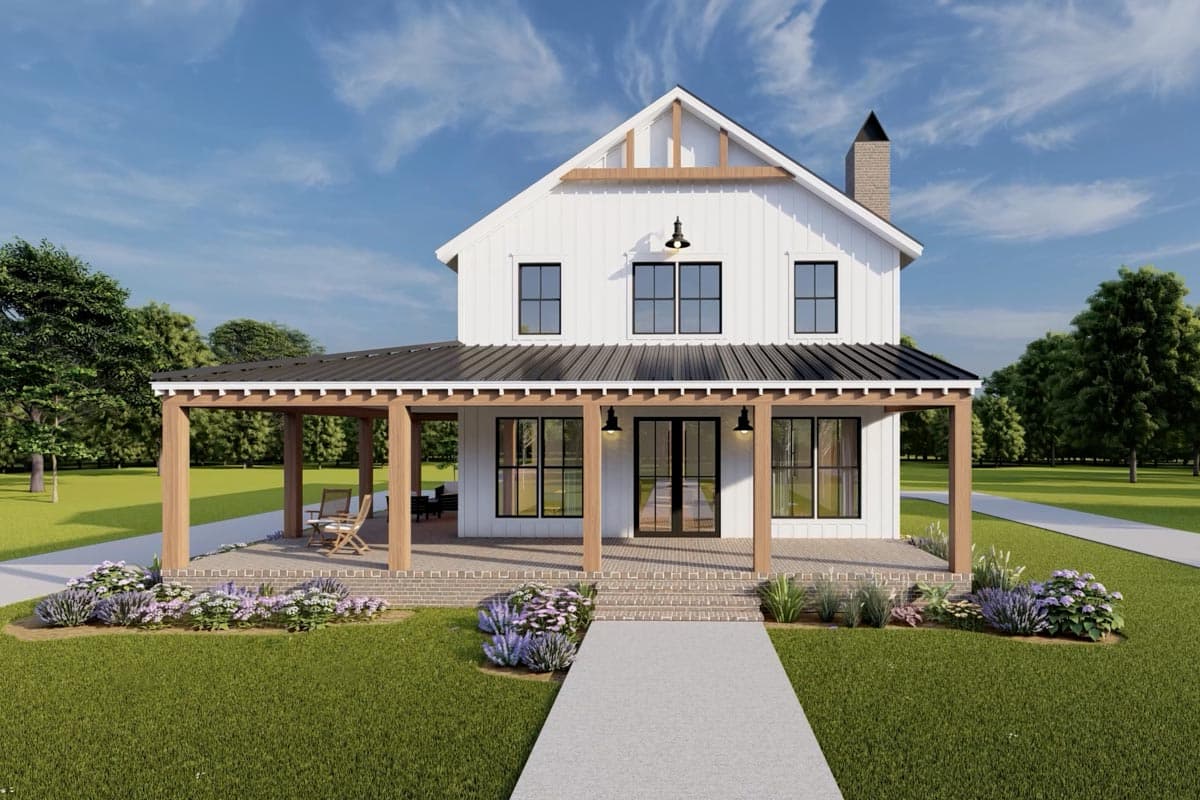

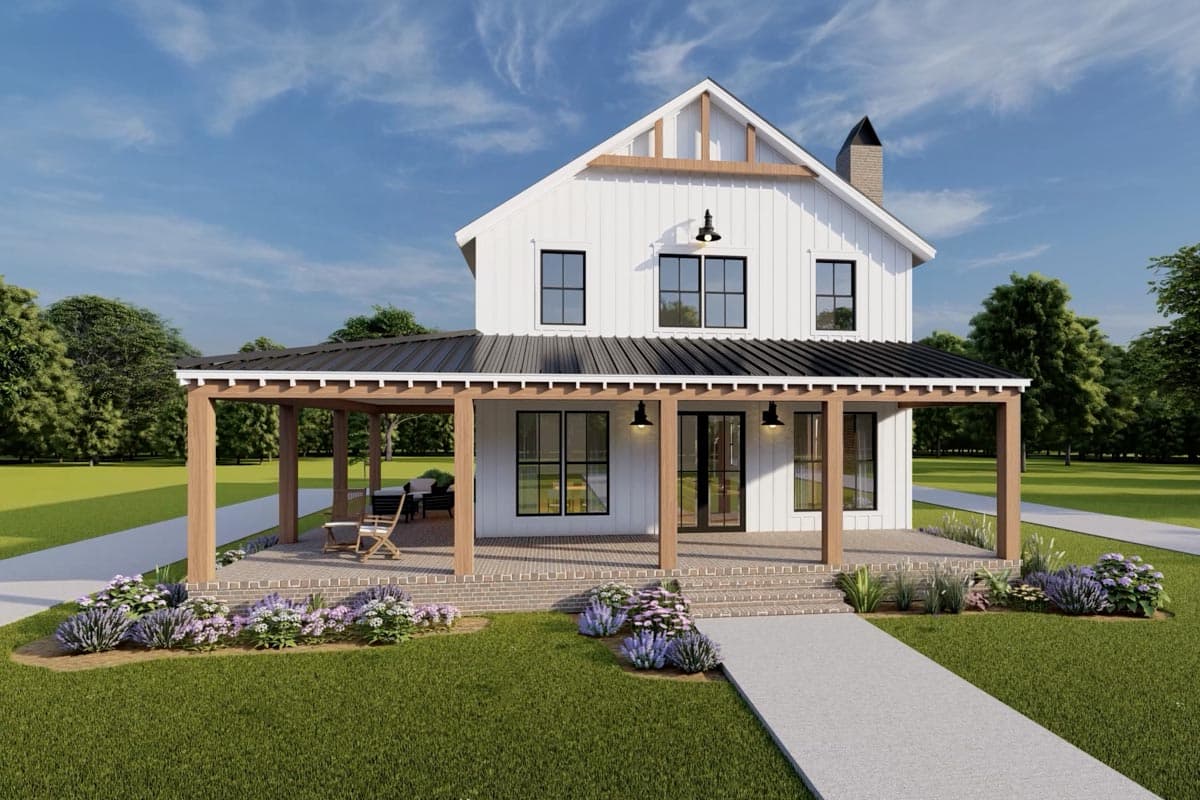

  • A corner wrap-around covered porch welcomes you home, the great room, dining and kitchen are open and located below a large loft on the second floor.

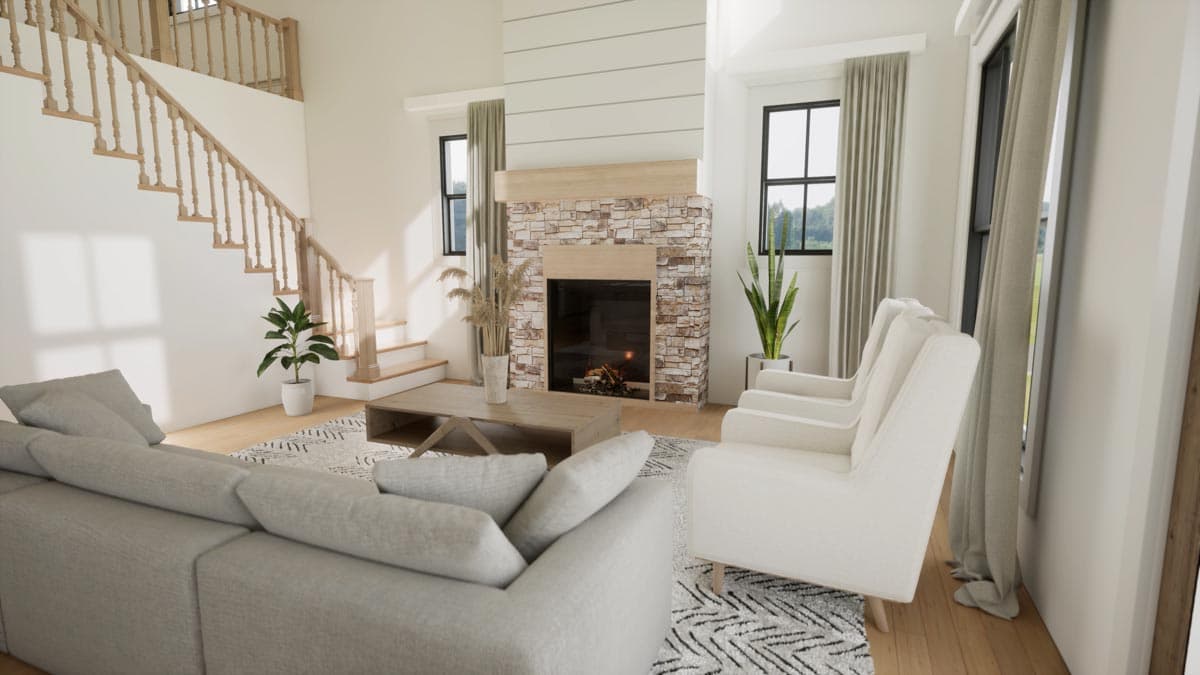

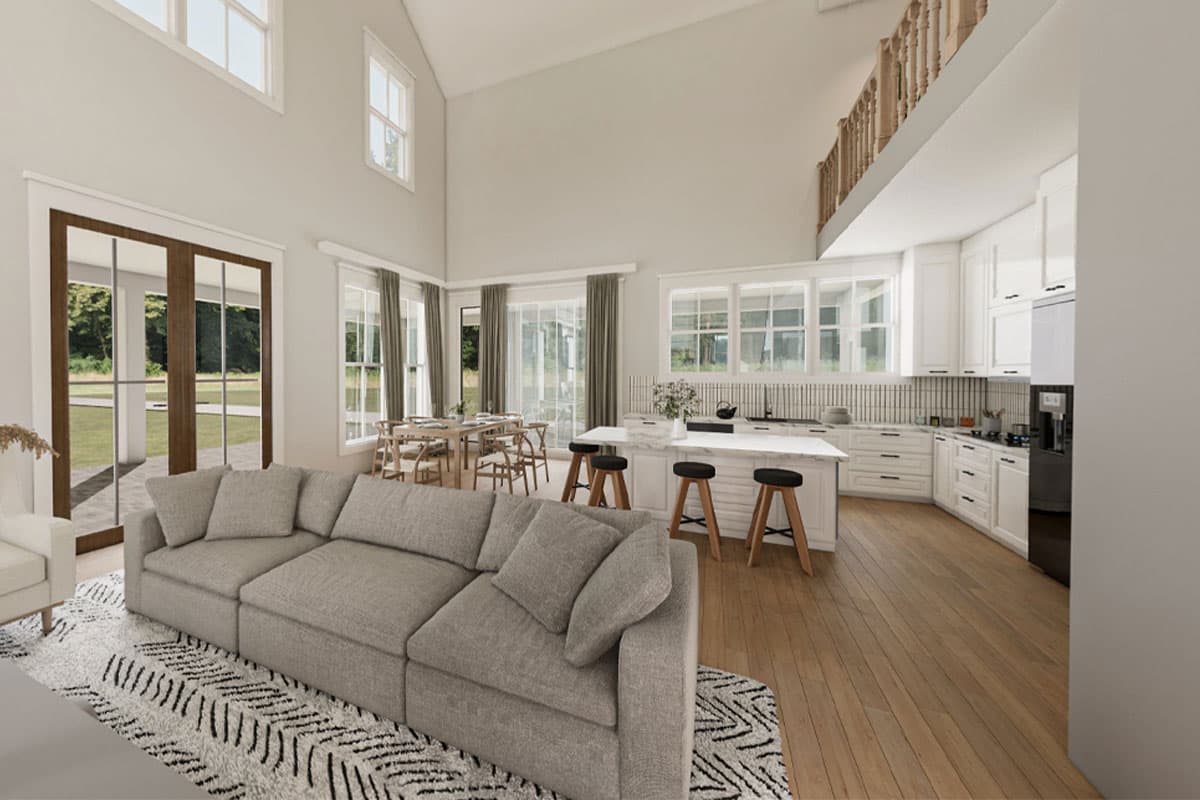

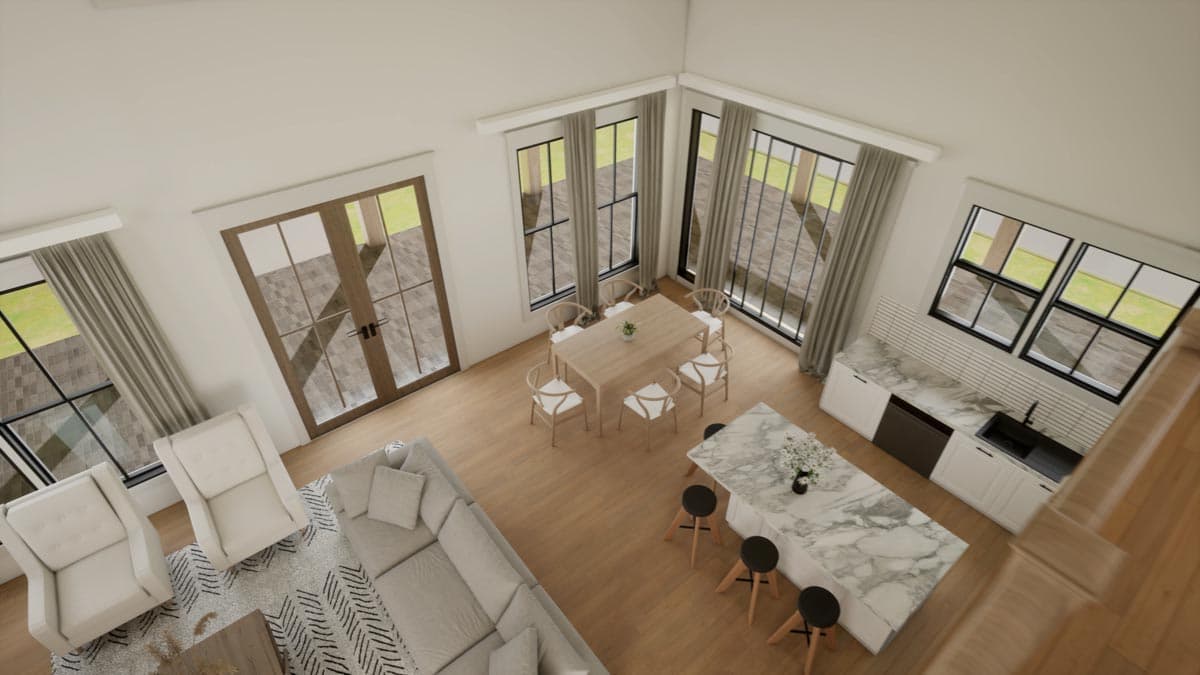

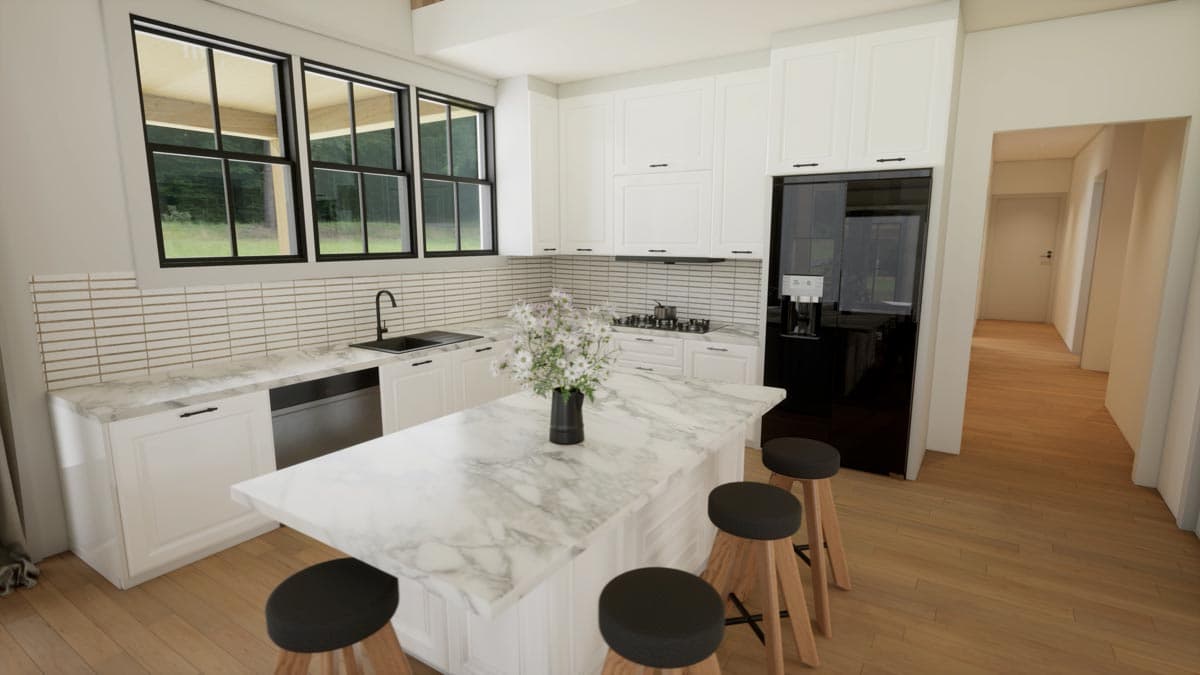

  • A 20' two-story open living area is shared by the great room, an l-shaped corner kitchen with 4'-6" x 6'-6" island, and a corner dining room/breakfast nook with glass slider leading to the covered porch. Warm the area with the wood burning fireplace.

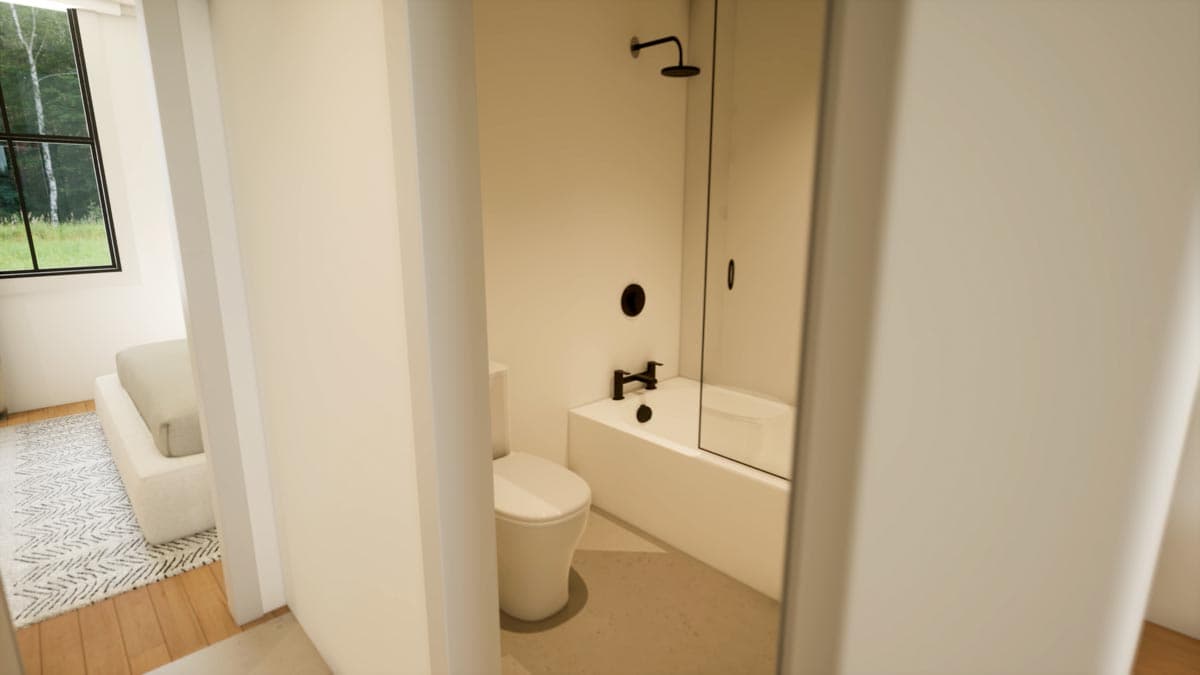

  • Down the hall to the rear you'll find the laundry room, a full bath, a storage locker drop-zone, the master suite, and a guest bedroom. A single door at the end of the hall leads to the garage.

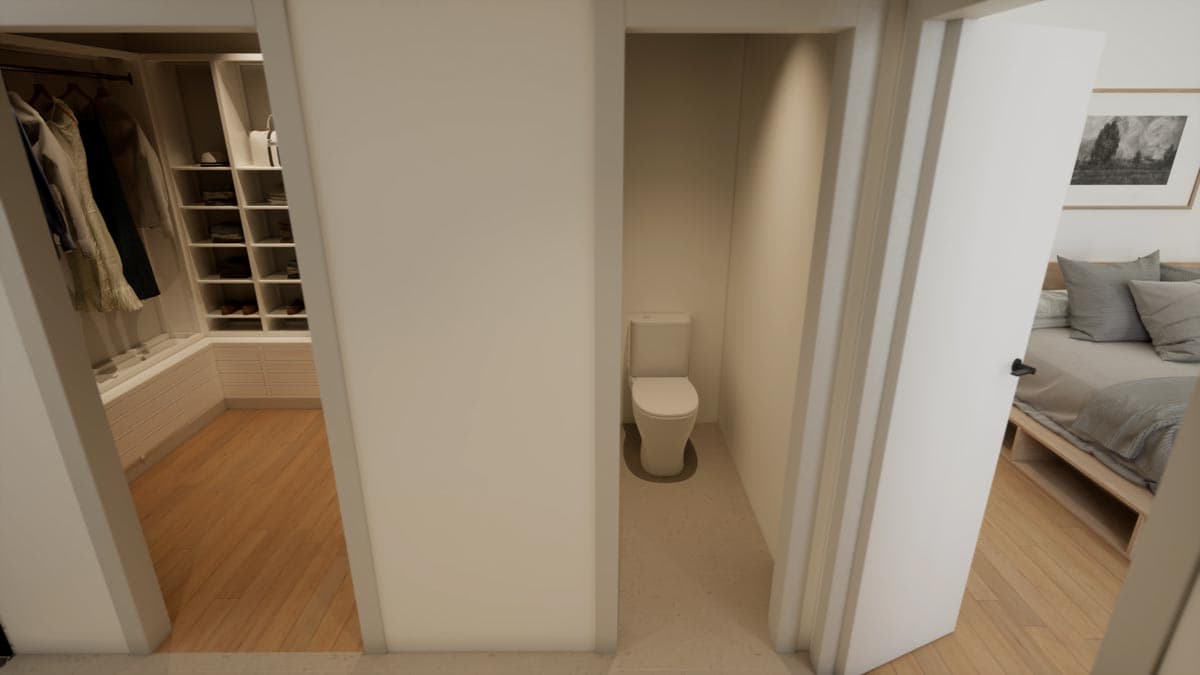

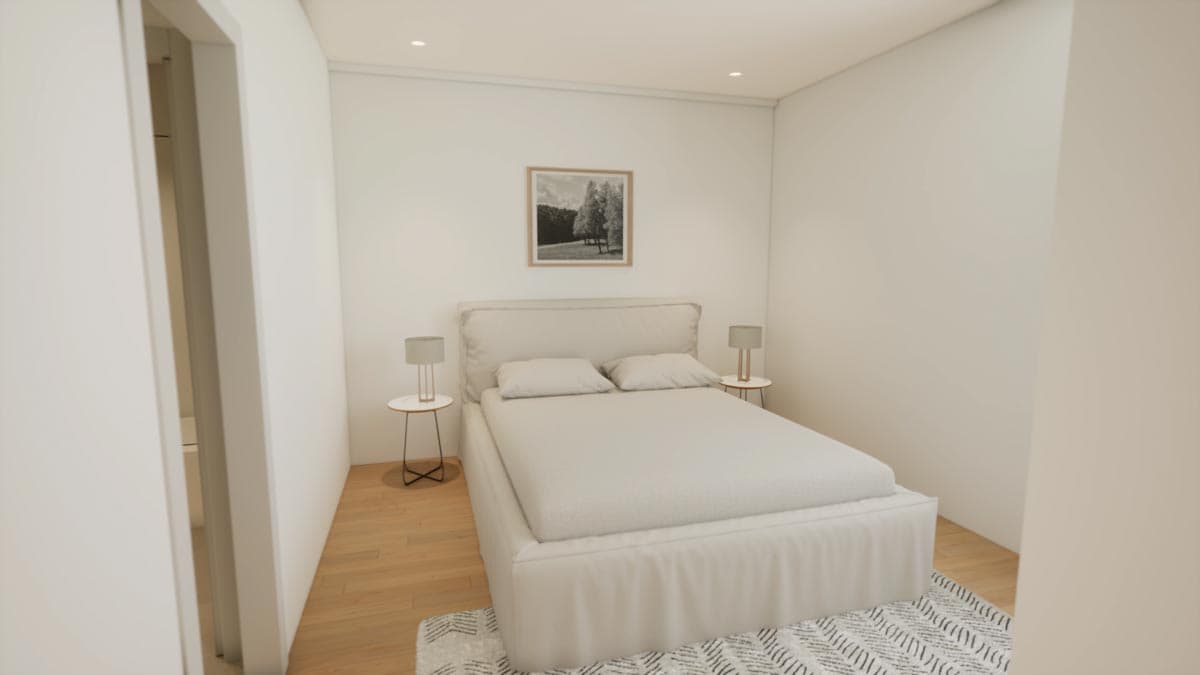

  • The master suite is on the main level with a 5 piece ensuite bath with large walk in closet.

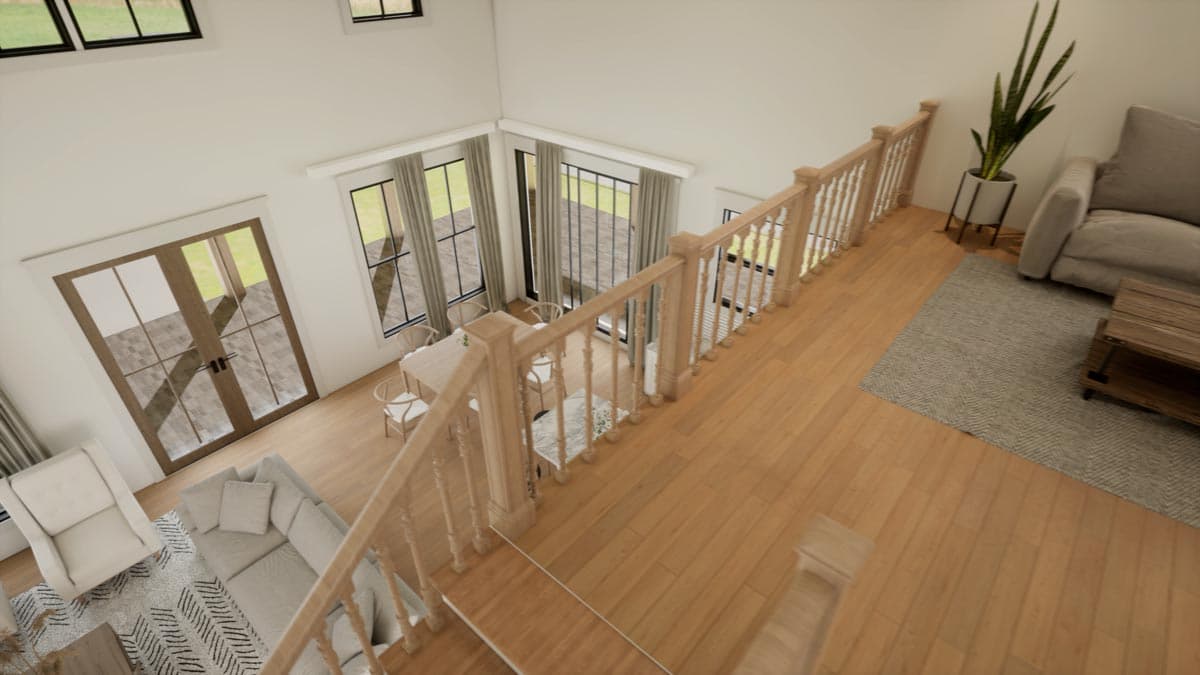

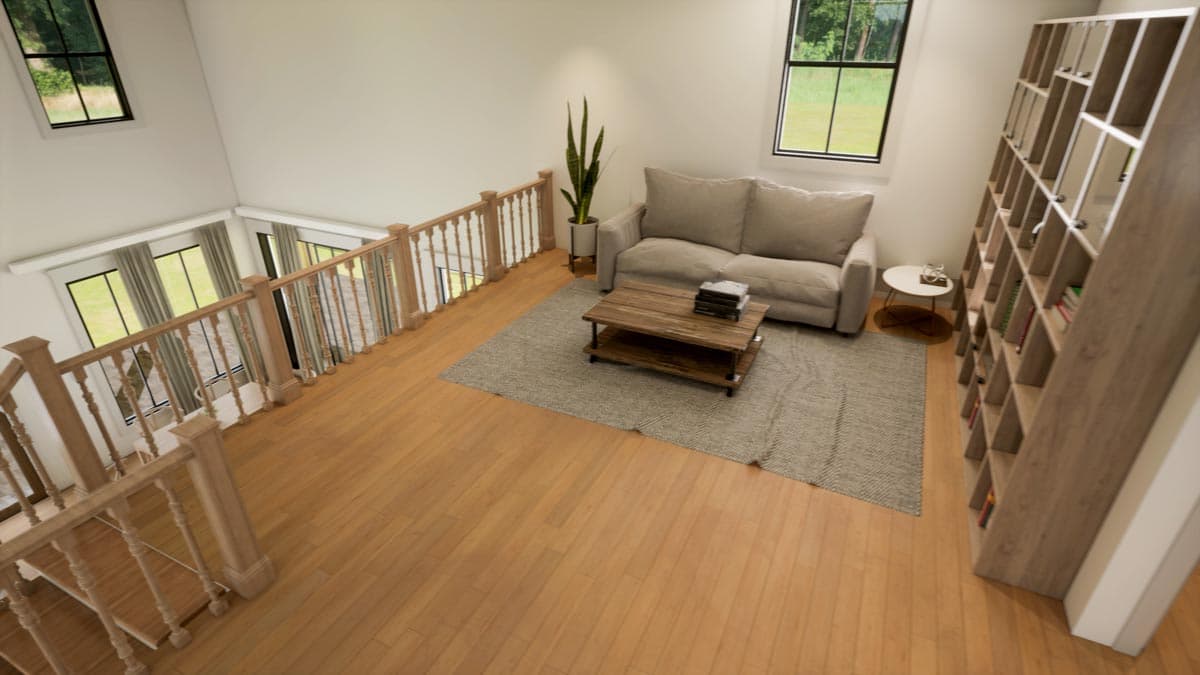

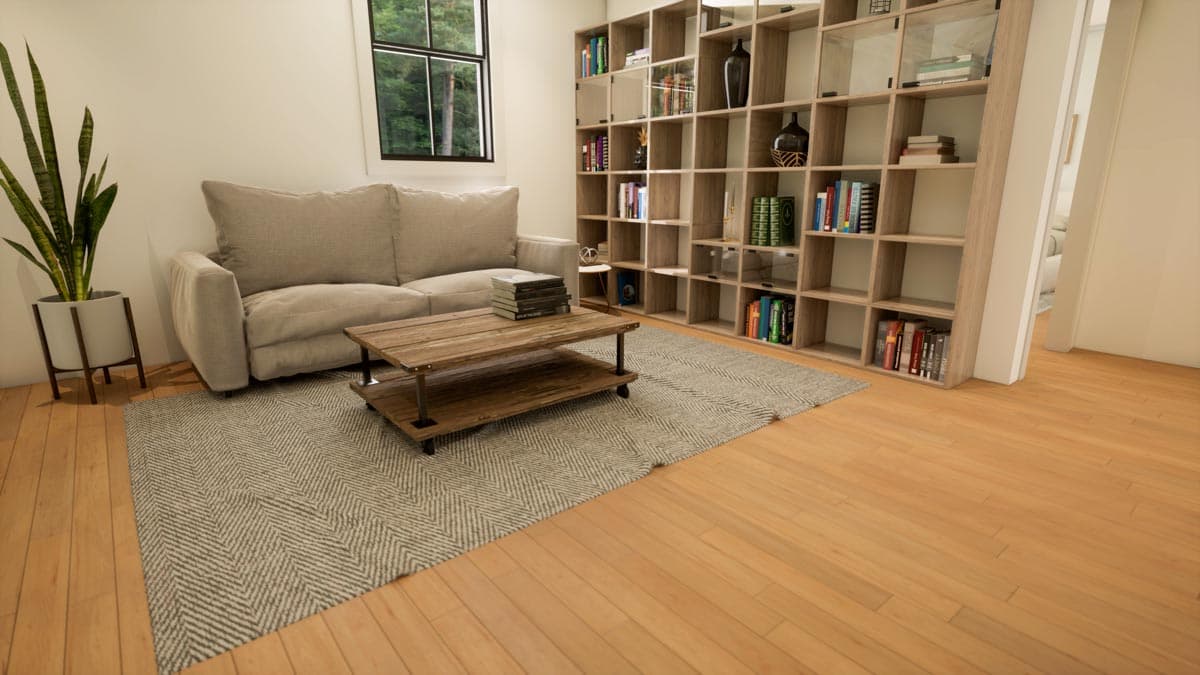

  • Up the stairs a large loft over looks the great room below, and provides a flexible living space that could be used as a lounge, game room, or even setup with a home office/homework station.
  • The two additional bedrooms are located to the rear of the second level. They are adjoined by a jack & jill bath equipped with a double vanity sink and private bath/shower and toilet.

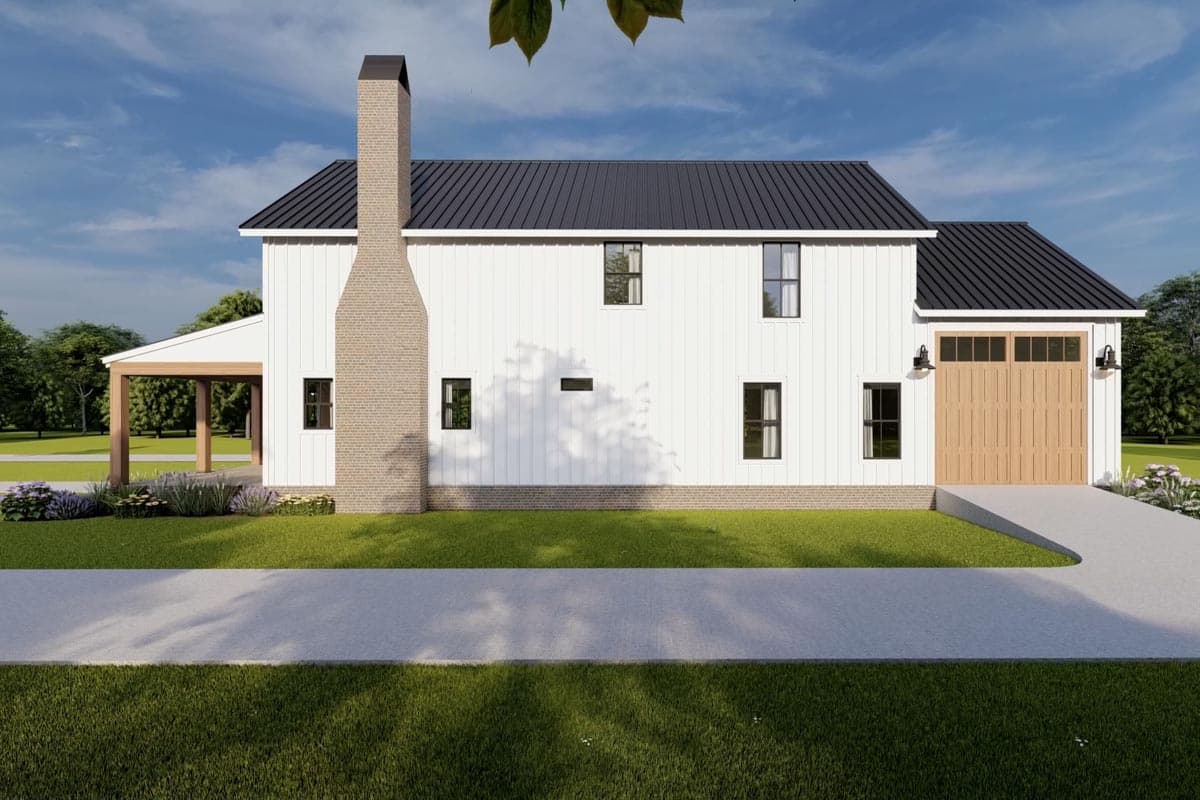

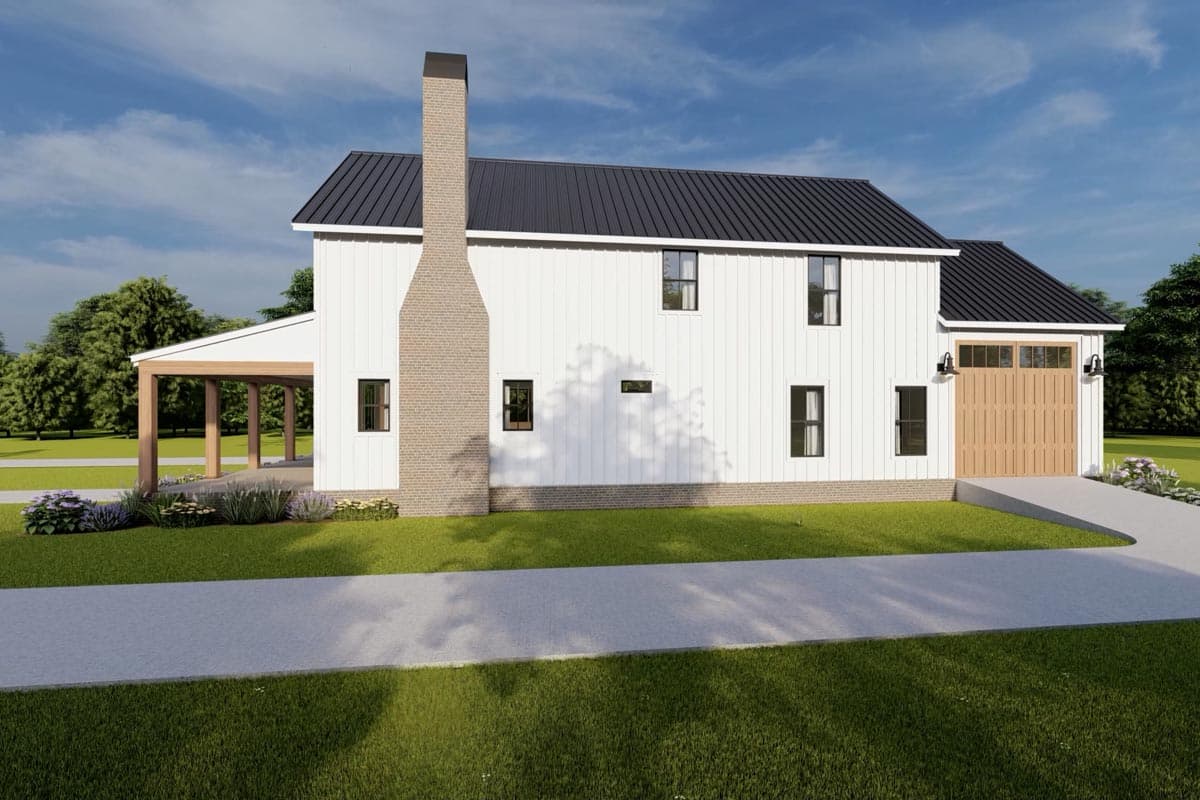

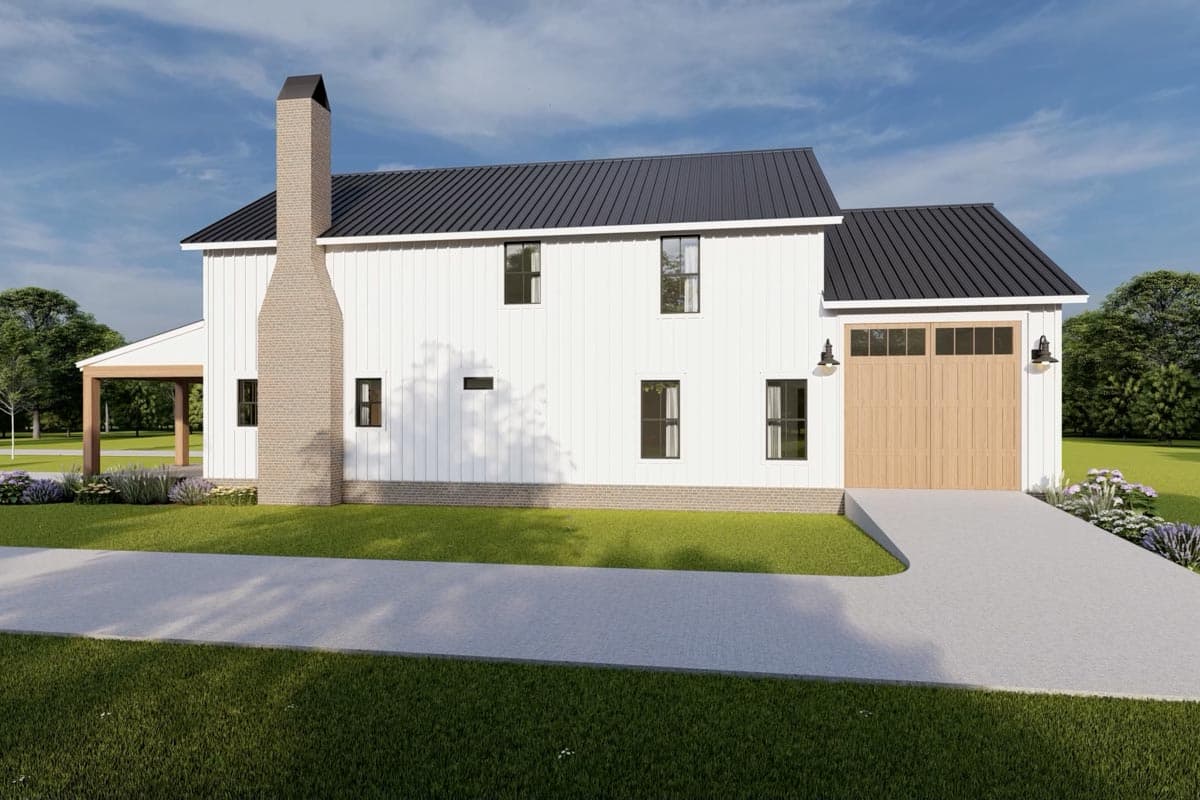

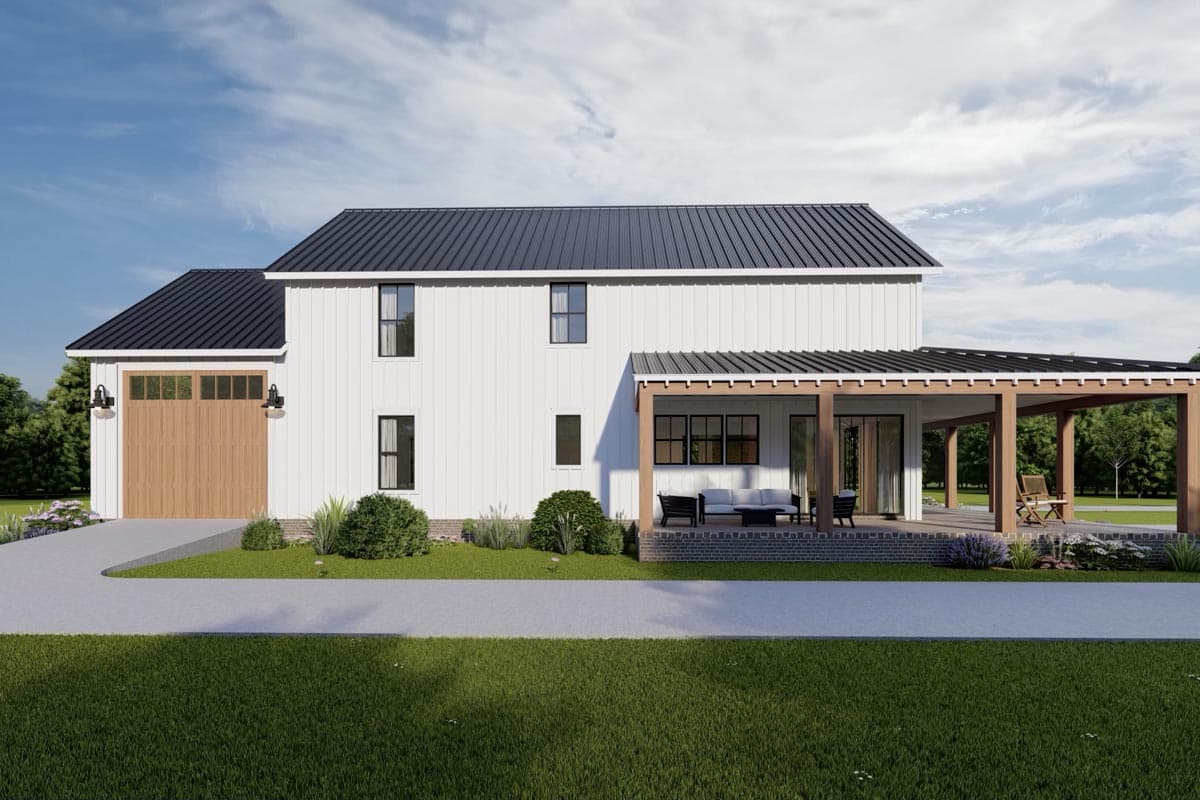

  • A side-entry garage located at the rear of the home has a drive through layout so that you can enter from either side of the home. Each garage bay door is oversized and 12' x 12', offering flexibility for RVs and tall trailers.
  • Related Plan: Get a one-story version with barndo-style house plan 51951HZ (2,500 sq. ft.), 51942HZ (2,000 sq. ft.), 51964HZ (1,989 sq. ft.) and 51956HZ (1,260 sq. ft.).
What's Included
Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation plan and details
Page 3  Detailed first and second floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

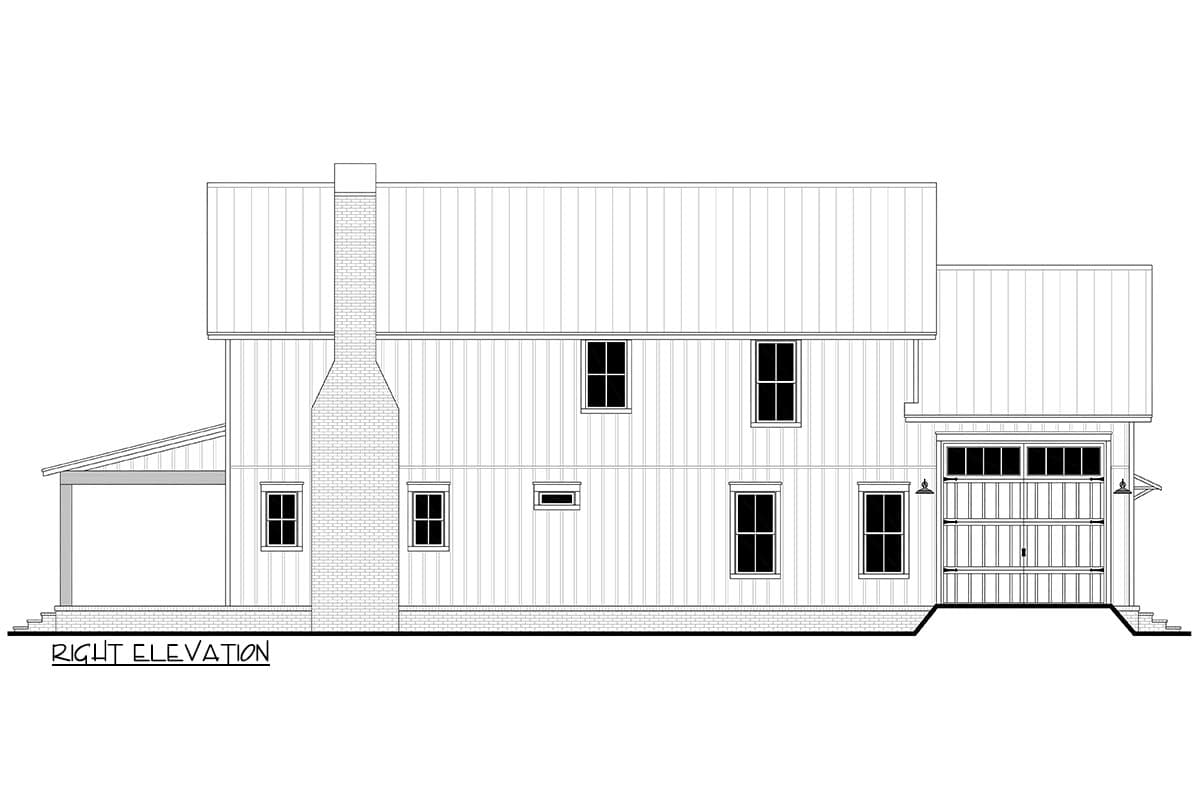

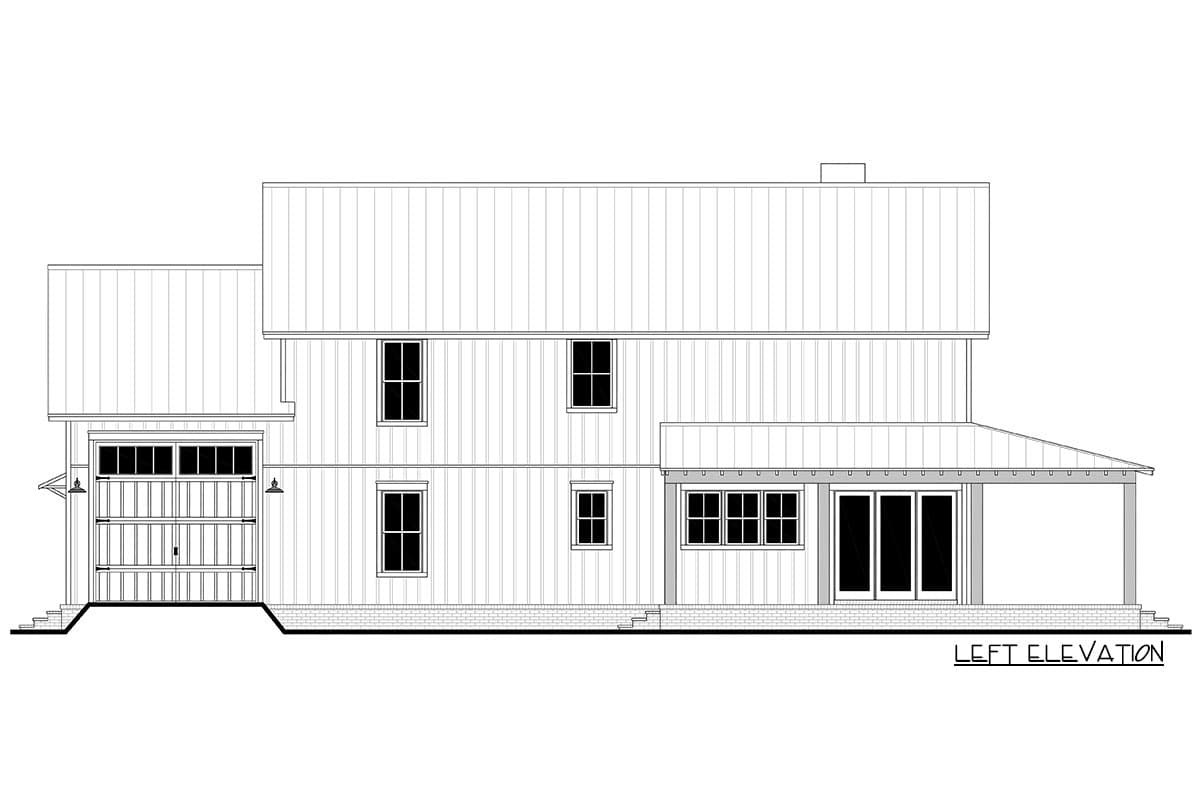

Page 4  Exterior views with additional notes and details
Page 5  Exterior views with additional notes and details
Page 6  Cross Sections & kitchen cabinet views
Page 7  Roof plan and span charts with additional notes
Page 8  Electrical plans with notes and legend
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,417 sq. ft.

1st Floor

1,510 sq. ft.

2nd Floor

907 sq. ft.

Porch, Front

772 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

78' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached, RV Garage

Area

470 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Truss

Architectural Style

Barndominium
