Plan 70513MK
4 Bed with Finished Lower Level - 3697 Sq Ft
Heated S.F.
3,697
Beds
4
Baths
4.5
Stories
1
Cars
3
Floor Plan

Plan 70513MK

Main Level
slide image 0
Basement
slide image 1

Plan 70513MK

1-800-854-7852

1-262-521-4596

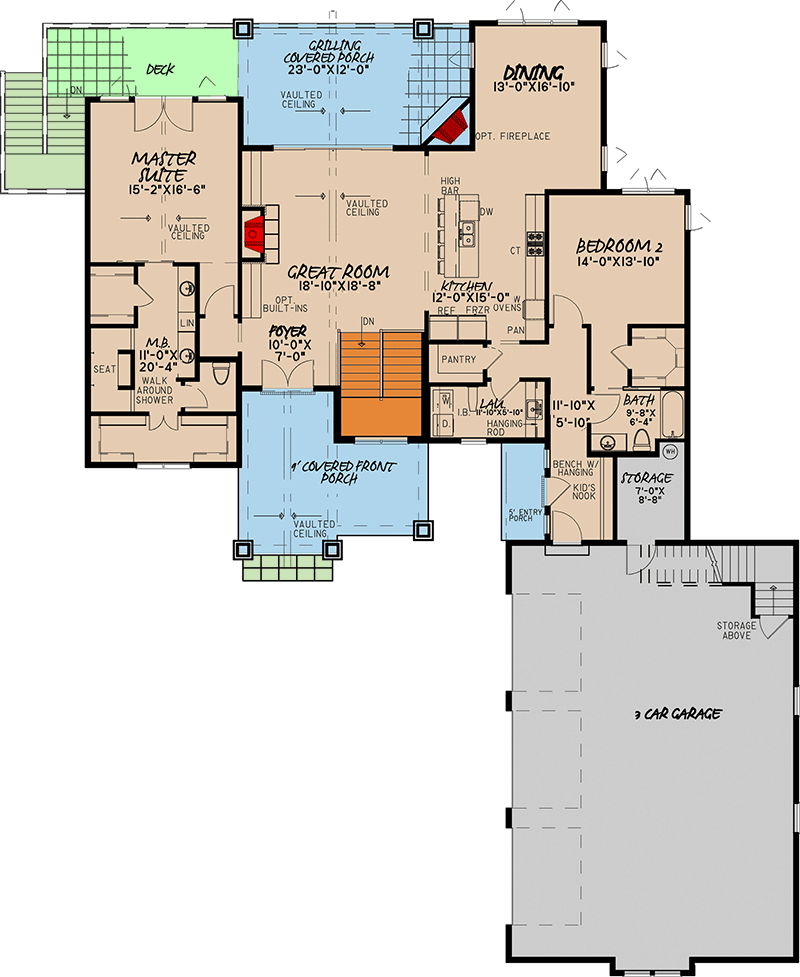

Main Level
floor plan image Main Level

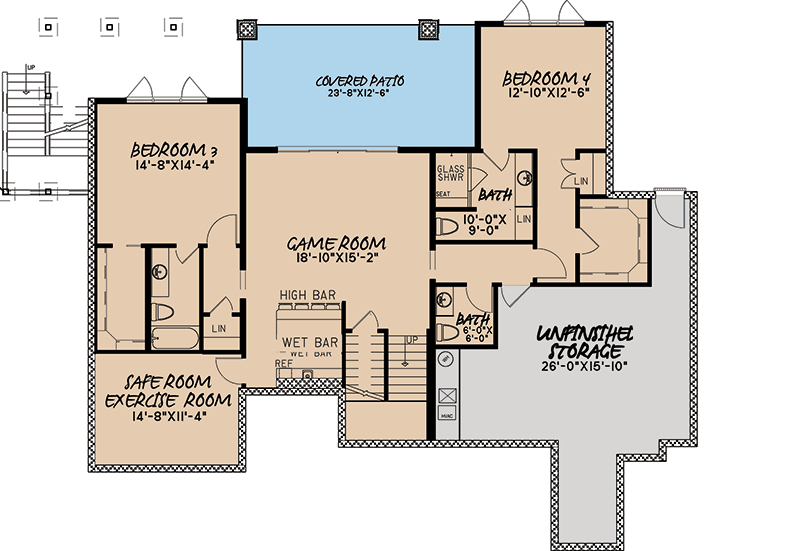

Basement
floor plan image Basement
Plan Details
  • This beautiful 4 bed home plan is ideally built on a rear-sloping lot and features a timber column front covered porch and a 3-car, courtyard style garage. The large front covered porch welcomes you into the foyer and great room with its vaulted ceiling and fireplace. The great room is open to the kitchen that features a large eat-at island bar and a walk-in pantry.
  • A large covered grilling porch with a vaulted ceiling and optional fireplace is accessible from the great room and the adjacent deck offers convenient stairs going down to the ground level in back.
  • The dining room is tucked in the back corner with plenty of windows for natural lighting.
  • The master suite features a vaulted ceiling and access to the rear deck and the bath offers a double vanity, a walk-around shower with a seat, and his and her walk-in closets. A second bedroom on the other side of the home has a walk-in closet and a full bath.
  • The finished lower level gives you a large game room with a wet bar and an eat-at bar. This opens to the large covered patio. Two more bedrooms each have their own bath and walk-in closet. There's also a safe room/exercise room and an unfinished storage area with plenty more space.
  • The stick framed roof has a 10:12 pitch.
  • Related Plans: For an alternate version, see house plans - 60602ND
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,697 sq. ft.

Lower Level

1,519 sq. ft.

1st Floor

2,178 sq. ft.

Bonus

464 sq. ft.

Porch, Combined

598 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

73' 2"

Depth

98' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

1378 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

European

Square Footage Breakdown

Total Heated Area

3,697 sq. ft.

Lower Level

1,519 sq. ft.

1st Floor

2,178 sq. ft.

Bonus

464 sq. ft.

Porch, Combined

598 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

73' 2"

Depth

98' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

1378 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style
