Picturesque Mountain Ranch Home Plan

Plan 60602ND

  • 3,140

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • Wood shakes and decorative wood trim over the porch give this 4 bedroom mountain ranch home plan a delightful rustic look.
  • The floor plan is well thought out with the open layout that is so popular with today's families.
  • On one side of the home is the master suite that opens to the rear deck through double doors.
  • The other side of the home has a guest bedroom suite, giving privacy to both bedrooms on this level.
  • In the spacious kitchen, an eating bar, walk-in pantry and large gas stove make it easy to prepare meals.
  • Two more bedrooms can be found on the huge lower level along with a hobby room and game room.
  • Related Plans: For an alternate version, see house plans - 70513MK

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

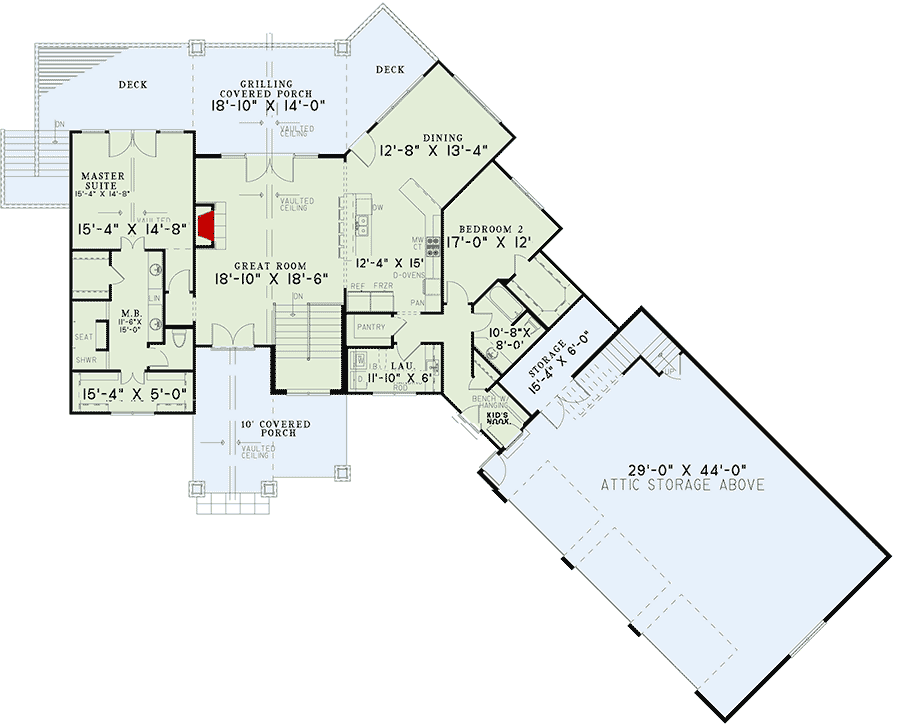

Picturesque Mountain Ranch Home Plan - 60602ND floor plan - Main Floor

Finished Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

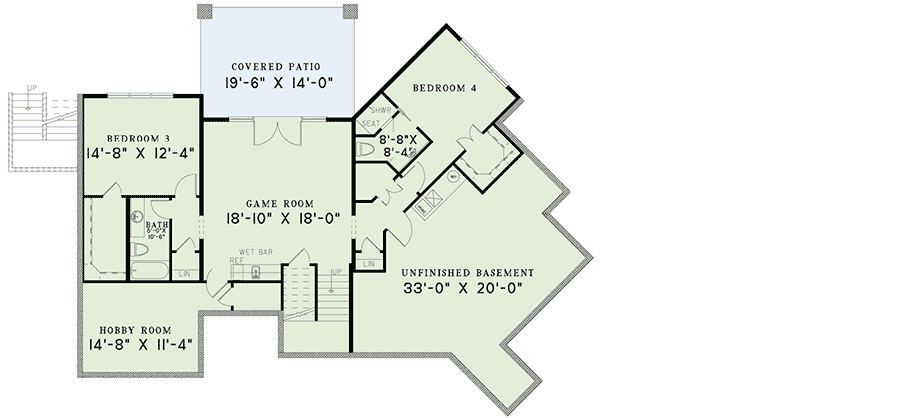

Picturesque Mountain Ranch Home Plan - 60602ND floor plan - Finished Lower Level

Picturesque Mountain Ranch Home Plan

  • 3,140

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Floor

  • Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,140 sq. ft.
  • Lower Level: 1,111 sq. ft.
  • 1st Floor: 2,029 sq. ft.

Dimensions

  • Width: 104' 5"
  • Depth: 86' 7"
  • Max ridge height: 22' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 1276 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
