4 BedCraftsman House Plan with Open Floor Plan

Plan 68410VR

  • 2,697

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • A shed dormer and a vaulted front porch add to the character of this 4 bed Craftsman-inspired house plan.
  • Inside, an open floor plan combines the vaulted family room, kitchen, dining room and breakfast area with columns providing separation between the dining and family rooms while maintaining great sightlines.
  • The stunning vaulted and beamed ceiling of the family room carries out onto the rear porch too.
  • The split bedroom layout works well giving the master suite its privacy.
  • Homeowners get pampered with tray ceilings in both the bedroom and the large sitting room that opens to the rear porch. Even the master bathroom is vaulted and there's a window seat in the huge walk-in closet.
  • Three bedrooms are clustered across the home enhancing your privacy.
  • Related Plans: Downsize with house plans 68405VR (2,512 sq. ft.),  68516VR (2,500 sq. ft.) and 68404VR (2,300 sq. ft.). Get a front-entry garage with house plans 68527VR and 68569VR, both 2,095 sq. ft..

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

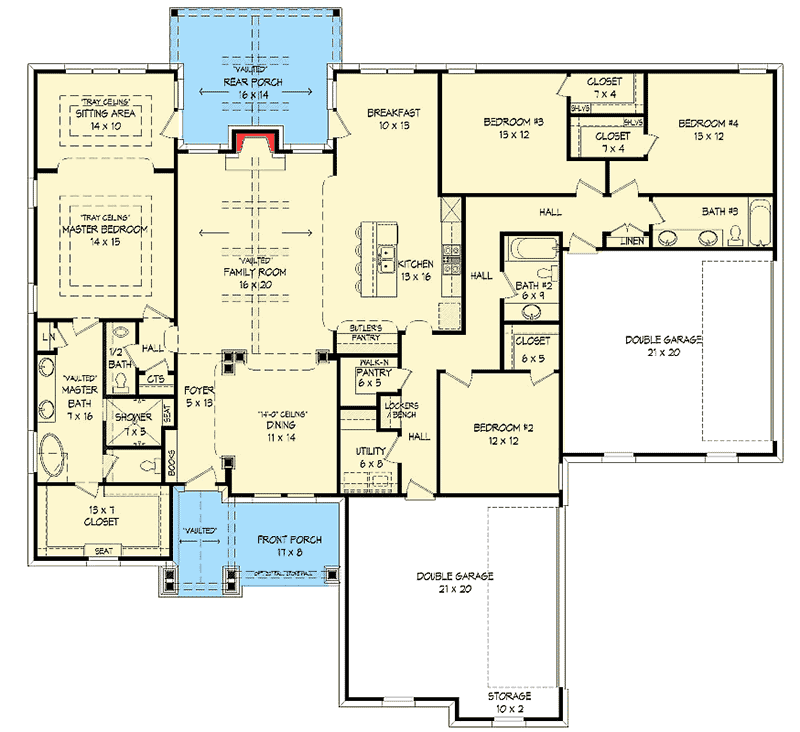

4 BedCraftsman House Plan with Open Floor Plan - 68410VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,697 sq. ft.
  • 1st Floor: 2,697 sq. ft.
  • Storage: 20 sq. ft.
  • Balcony / Veranda: 96 sq. ft.
  • Porch, Rear: 224 sq. ft.
  • Porch, Front: 140 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 75' 0"
  • Depth: 72' 0"
  • Max ridge height: 20' 6"

Garage

  • Type: Attached
  • Area: 840 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features
