Plan 68405VR Craftsman House Plan with Vaulted Family Room

2,512 4 3.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman House Plan with Vaulted Family Room

Plan 68405VR

  • 2,512

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Rustic detailing enhances the exterior of this exciting Craftsman house plan.
  • Columns are used instead of walls, giving the home a huge expanse of wonderful sightlines.
  • The stunning vaulted and beamed ceiling of the family room carries out onto the rear porch too.
  • The split bedroom layout works well giving the master suite its privacy.
  • Homeowners get pampered with tray ceilings in both the bedroom and the large sitting room that opens to the rear porch.
  • Even the master bathroom is vaulted and there's a window seat in the huge walk-in closet.
  • Related Plans: Get more room with house plan 68410VR (2,697 sq. ft.). Downsize with house plan 68404VR (2,300 sq. ft.). Get a brick and board and batten exterior with house plan  68516VR (2,500 sq. ft.). Get a front-entry garage with house plans 68527VR and 68569VR, both 2,095 sq. ft.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

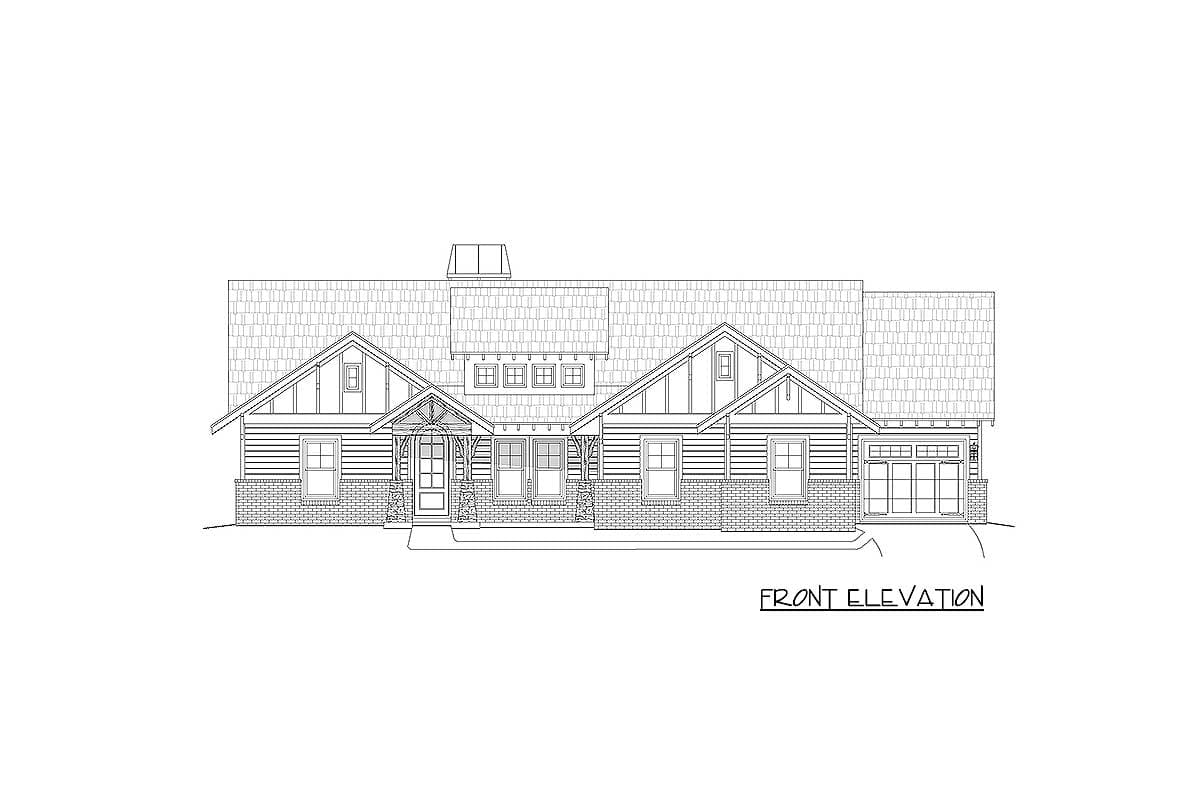

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman House Plan with Vaulted Family Room - 68405VR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,512 sq. ft.
  • 1st Floor: 2,512 sq. ft.
  • Porch, Rear: 221 sq. ft.
  • Porch, Front: 136 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 72' 0"
  • Max ridge height: 20' 6"

Garage

  • Type: Attached
  • Area: 740 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Family Room Vaulted
Dining Room 14' 0"
Master Bedroom Tray

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

Craftsman House Plan with Vaulted Family Room

  • 2,512

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,475
  • 5 Sets $1,560
  • 5 Sets + PDF $1,702
  • CAD + PDF - Single-Build $2,025
  • View all purchase option online

About This Plan

  • Rustic detailing enhances the exterior of this exciting Craftsman house plan.
  • Columns are used instead of walls, giving the home a huge expanse of wonderful sightlines.
  • The stunning vaulted and beamed ceiling of the family room carries out onto the rear porch too.
  • The split bedroom layout works well giving the master suite its privacy.
  • Homeowners get pampered with tray ceilings in both the bedroom and the large sitting room that opens to the rear porch.
  • Even the master bathroom is vaulted and there's a window seat in the huge walk-in closet.
  • Related Plans: Get more room with house plan 68410VR (2,697 sq. ft.). Downsize with house plan 68404VR (2,300 sq. ft.). Get a brick and board and batten exterior with house plan  68516VR (2,500 sq. ft.). Get a front-entry garage with house plans 68527VR and 68569VR, both 2,095 sq. ft.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,512 sq. ft.
  • 1st Floor: 2,512 sq. ft.
  • Porch, Rear: 221 sq. ft.
  • Porch, Front: 136 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 72' 0"
  • Max ridge height: 20' 6"

Garage

  • Type: Attached
  • Area: 740 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front, Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
Plan 68405VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68405VR
|
