Plan 35143GH

4-Bedroom Country Mountain House Plan with Walkout Garage

Name: Plan 35143GH: 4-Bedroom Country Mountain House Plan with Walkout Garage
Brand: Architectural Designs
SKU: 35143GH
Price: 1069.30 USD
Availability: InStock

Heated S.F.

2,592

Beds

Baths

2.5

Stories

Cars

Floor Plan

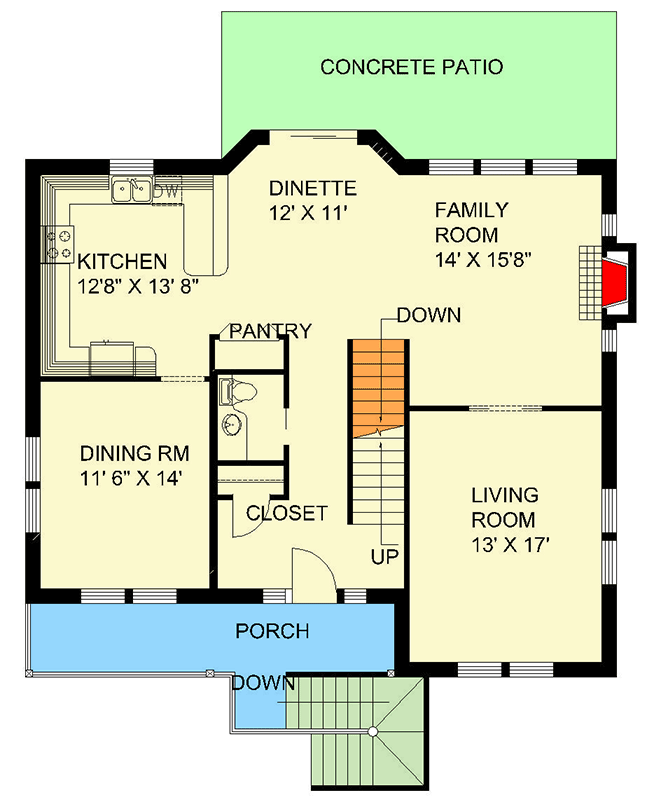

Main Level

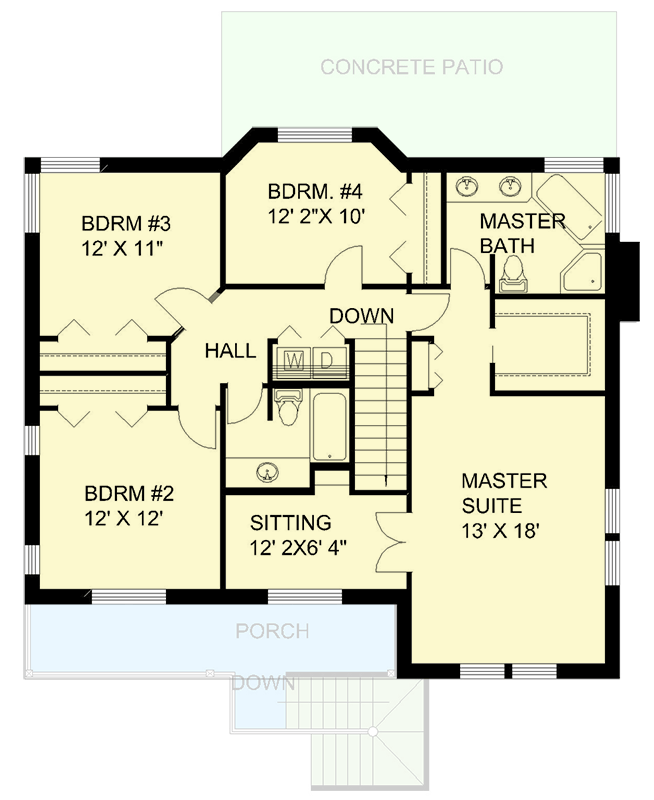

2nd Floor

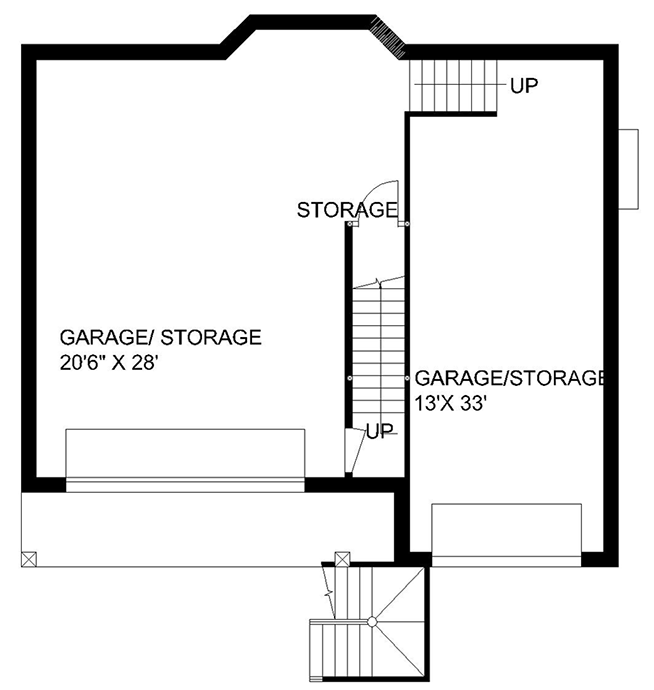

Basement

Plan Details

This 2,592 sq ft Country Mountain house plan offers 4 bedrooms, 2.5 baths, and a 579 sq ft drive-under 2-car garage, featuring charming gables and wood accents.
Ascend the exterior wooden staircase to a welcoming covered porch, leading into a layout designed for comfortable living with distinct yet flowing spaces.
The main floor includes a formal dining room for special occasions and a cozy breakfast nook, ensuring versatile dining options, while the main living areas connect seamlessly.
The primary suite, located upstairs, offers a private sitting area for relaxation, while the additional three bedrooms are clustered nearby with convenient access to a shared bath and an upstairs laundry.
A dedicated workshop space provides an ideal area for hobbies or projects.
Enjoy the outdoors from the inviting covered porch, perfect for morning coffee or evening relaxation.
An expansive 1,296 sq ft unfinished walkout basement offers significant potential for future customization and expansion.

What's Included

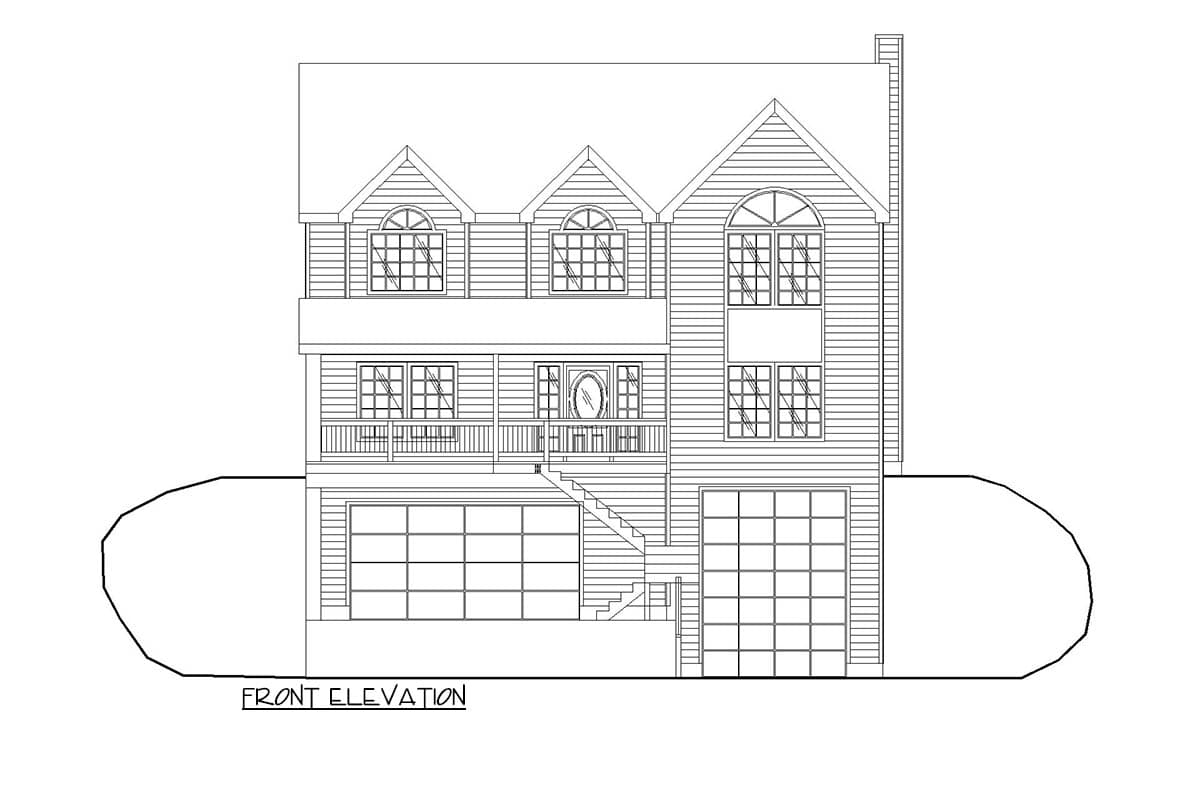

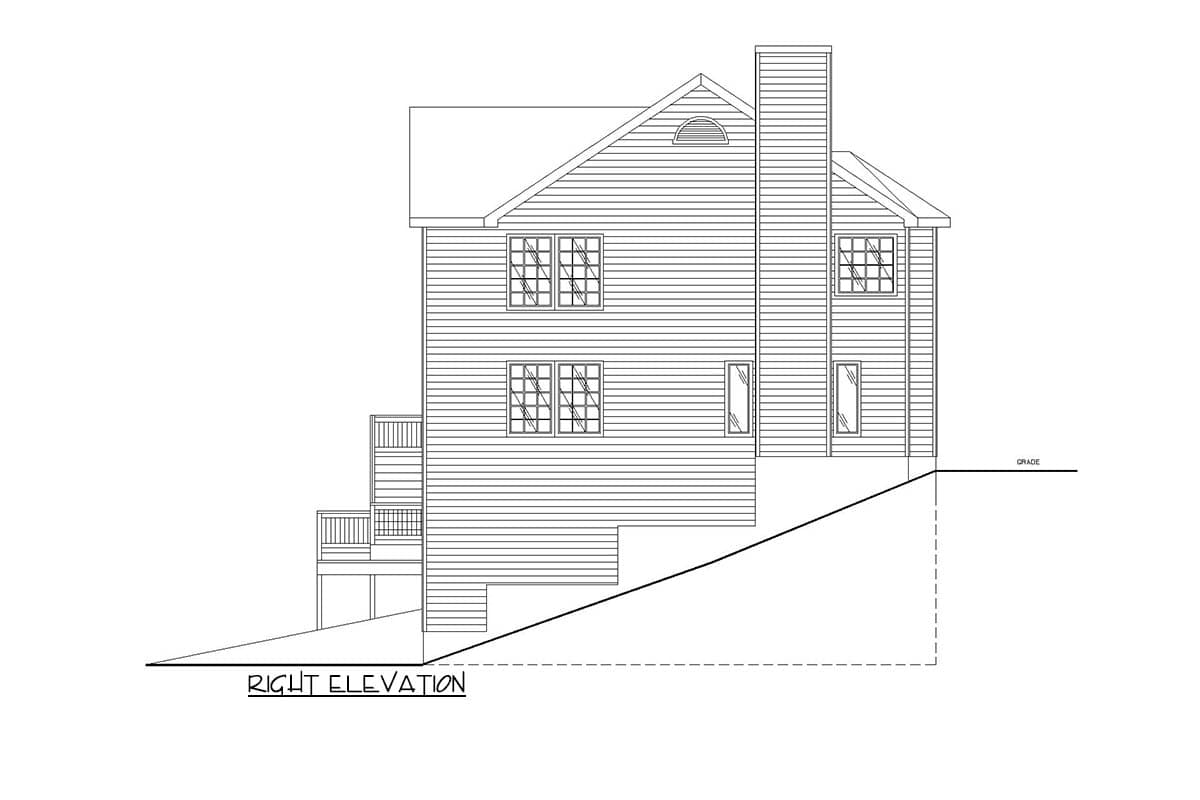

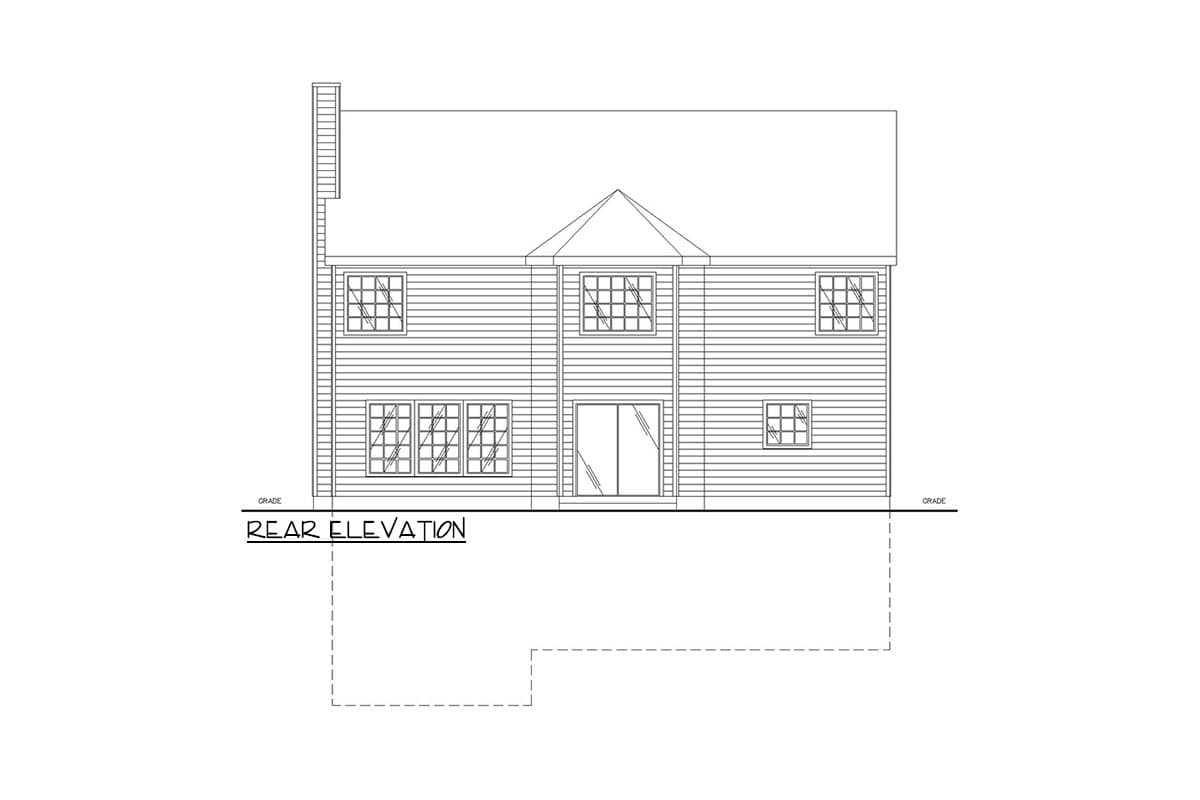

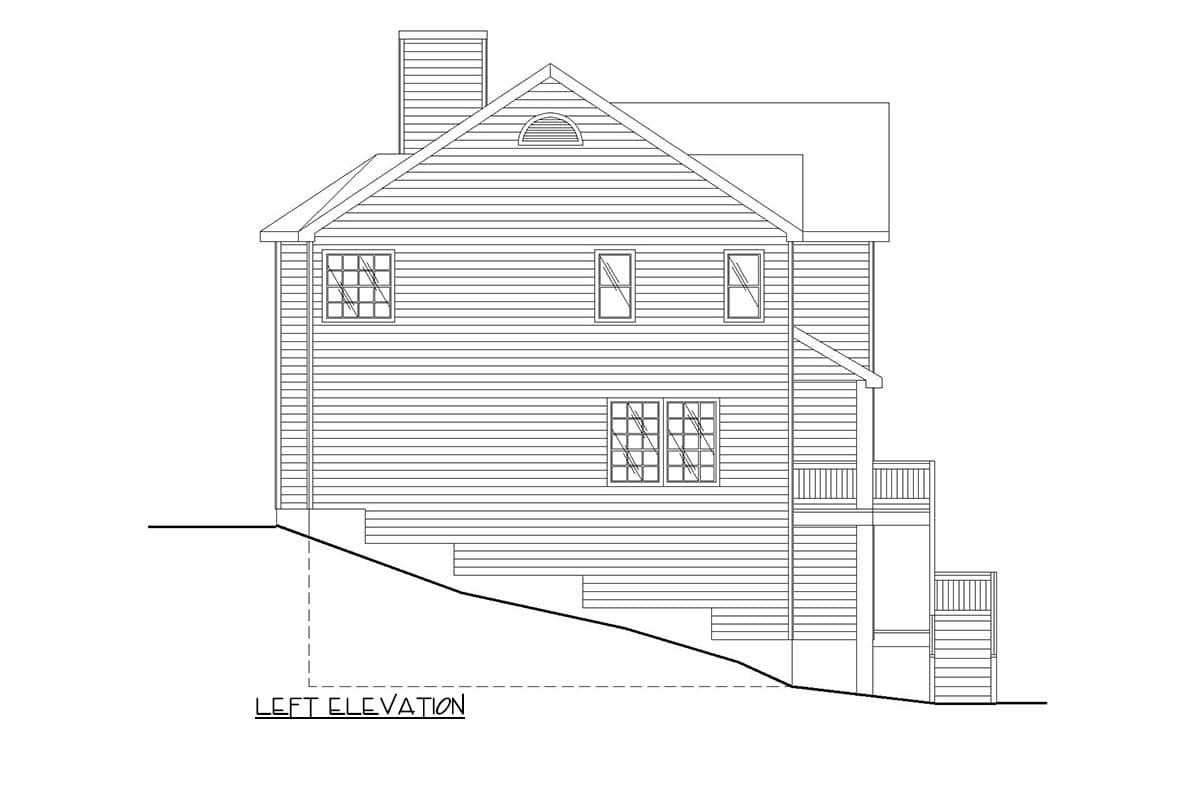

Exterior Elevations: The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
Floor Plans: The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
Details: This page includes the structural details for the construction of the house.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
