Plan 54048LK

4-Bedroom Craftsman House Plan with 3-Car Garage and Split Layout

Name: Plan 54048LK: 4-Bedroom Craftsman House Plan with 3-Car Garage and Split Layout
Brand: Architectural Designs
SKU: 54048LK
Price: 1788.19 USD
Availability: InStock

Heated S.F.

3,192

Beds

Baths

3.5

Stories

Cars

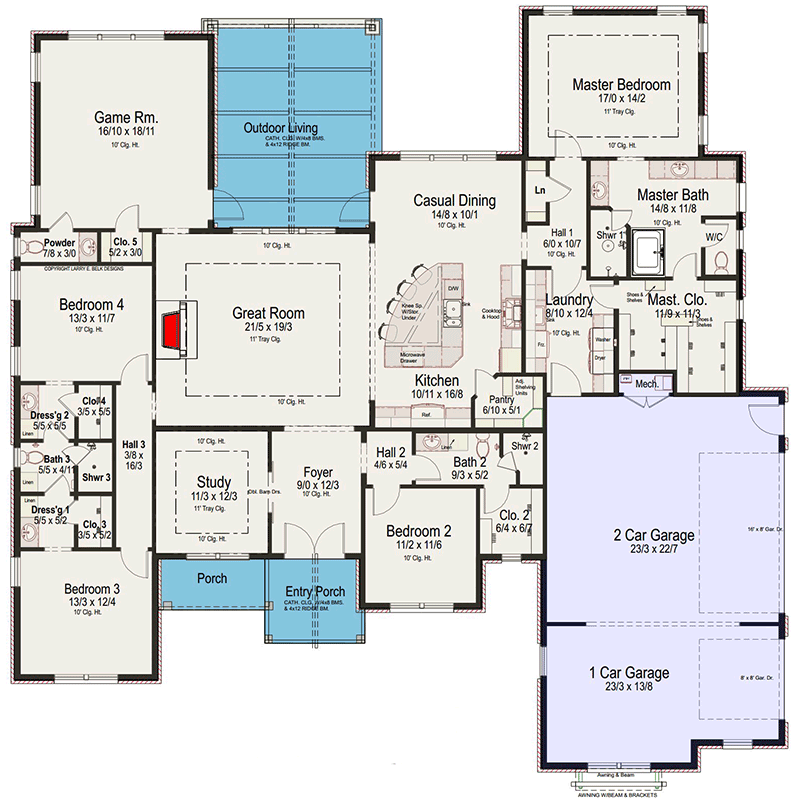

Floor Plan

Plan Details

Boasting 3,192 finished sq ft, this Craftsman New American house plan features 4 bedrooms, 3.5 baths, and an 893 sq ft, 3-car side-entry garage.

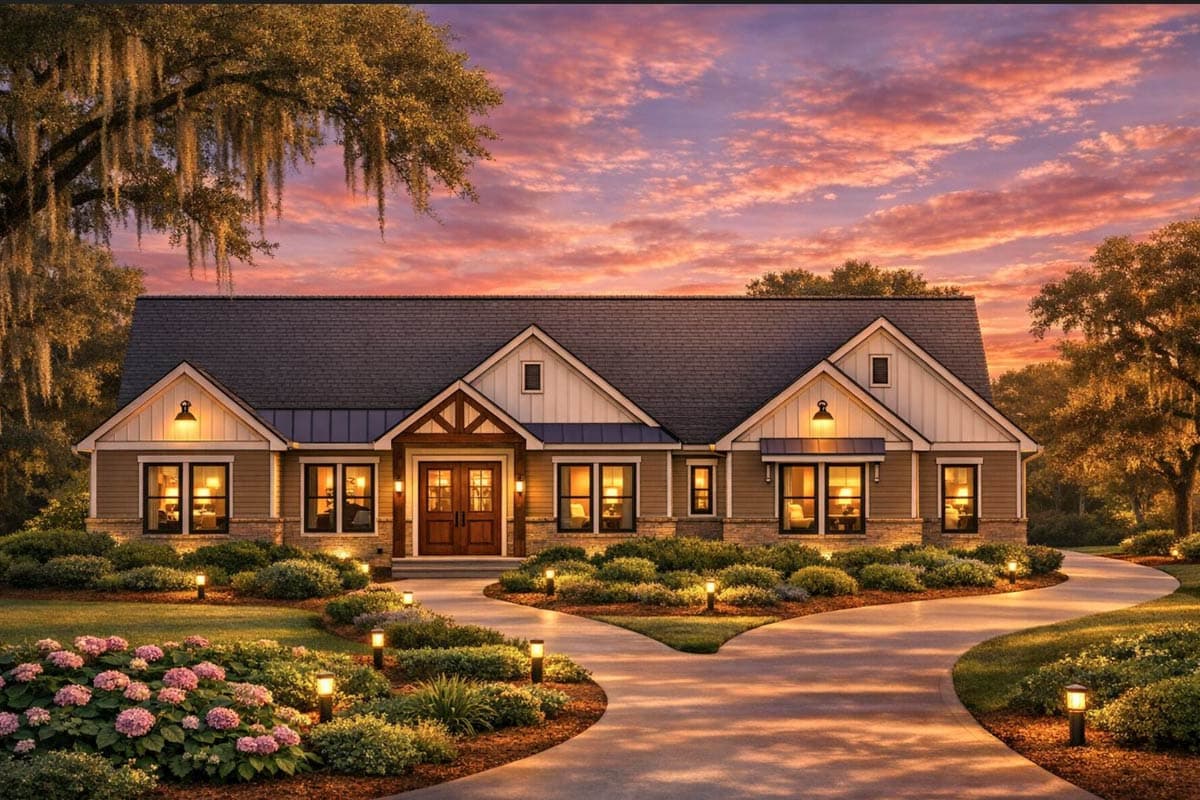

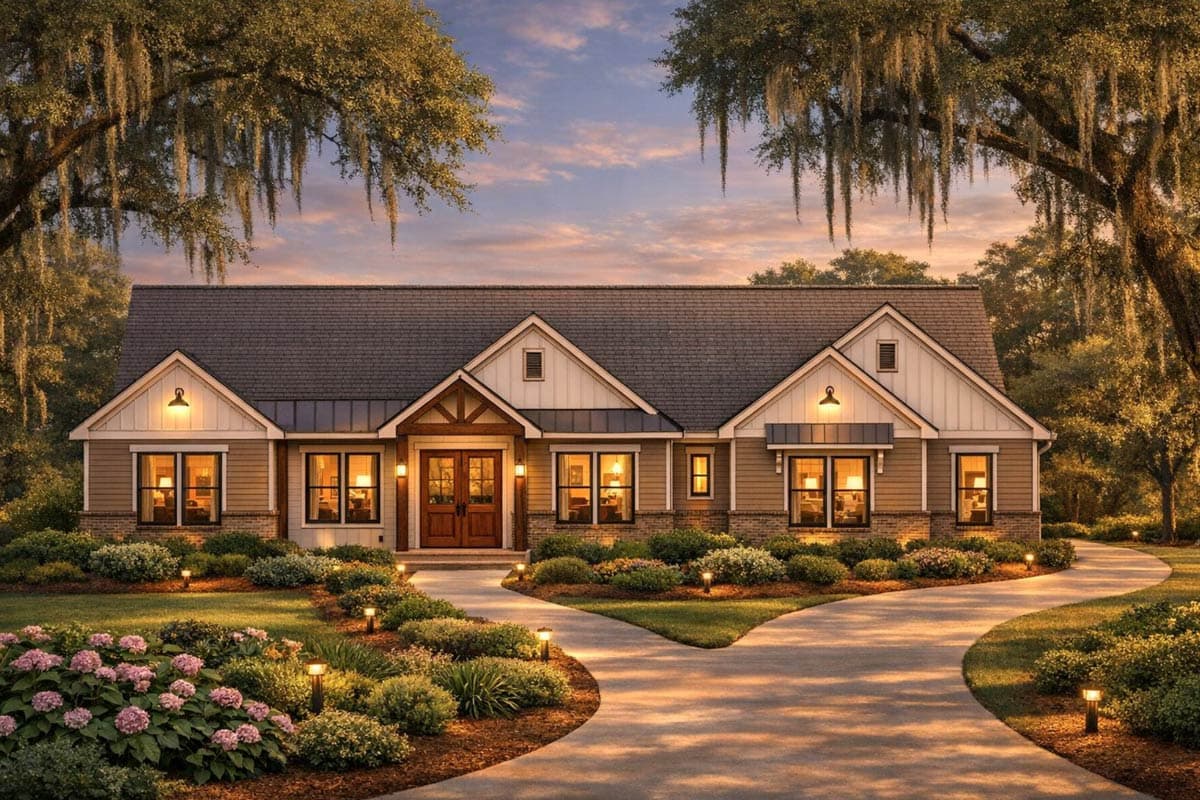

A welcoming timber-accented entry porch leads into a thoughtfully designed layout, offering 10-foot ceilings throughout the main floor.
The open-concept design connects main living areas, featuring a convenient breakfast nook and a dedicated library/study for focused work or quiet retreat.
The private first-floor primary suite offers direct laundry access, while secondary bedrooms are thoughtfully split, including a Jack & Jill bath arrangement.
Enjoy flexible living in the dedicated game or rec room, perfect for entertainment and relaxation.
Generous combined porches totaling 485 sq ft provide ample opportunity for outdoor enjoyment and curb appeal.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
