4 Bedroom Craftsman With Cathedral Ceiling

Plan 42296DB

  • 2,607

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 2

    Stories

  • 2

    Cars

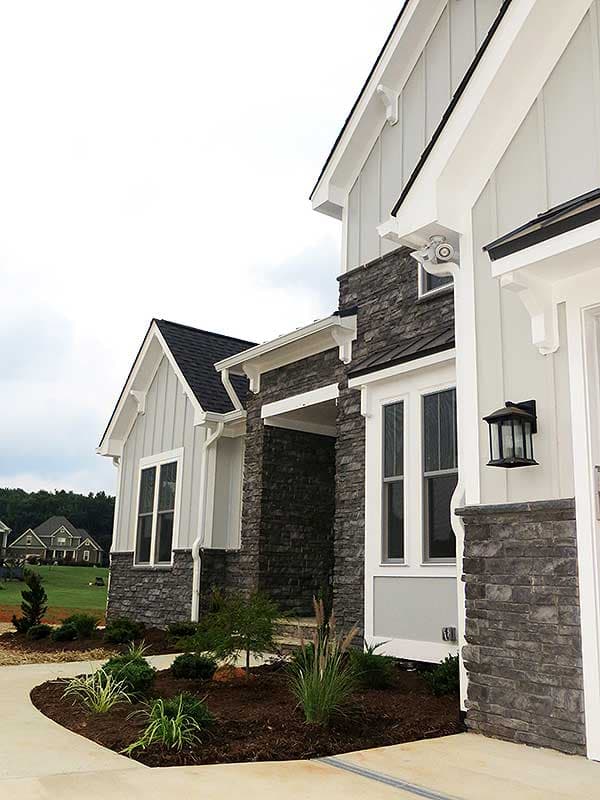

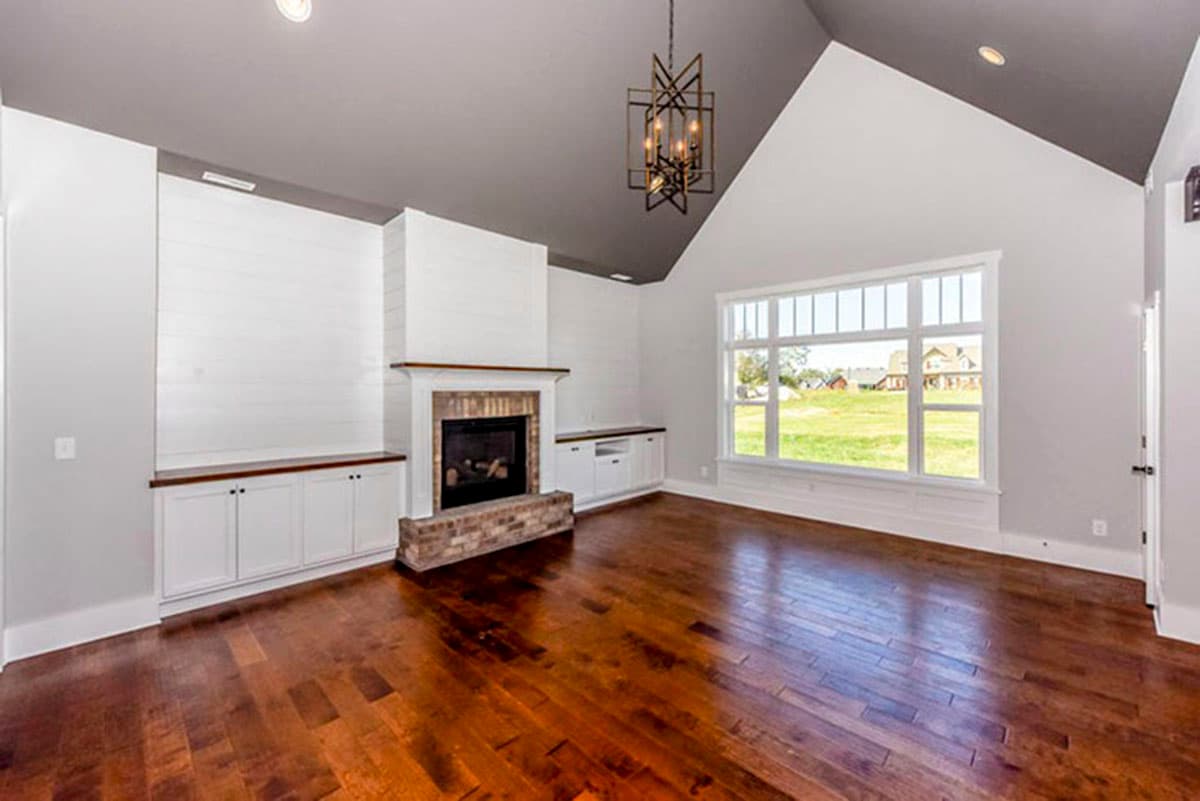

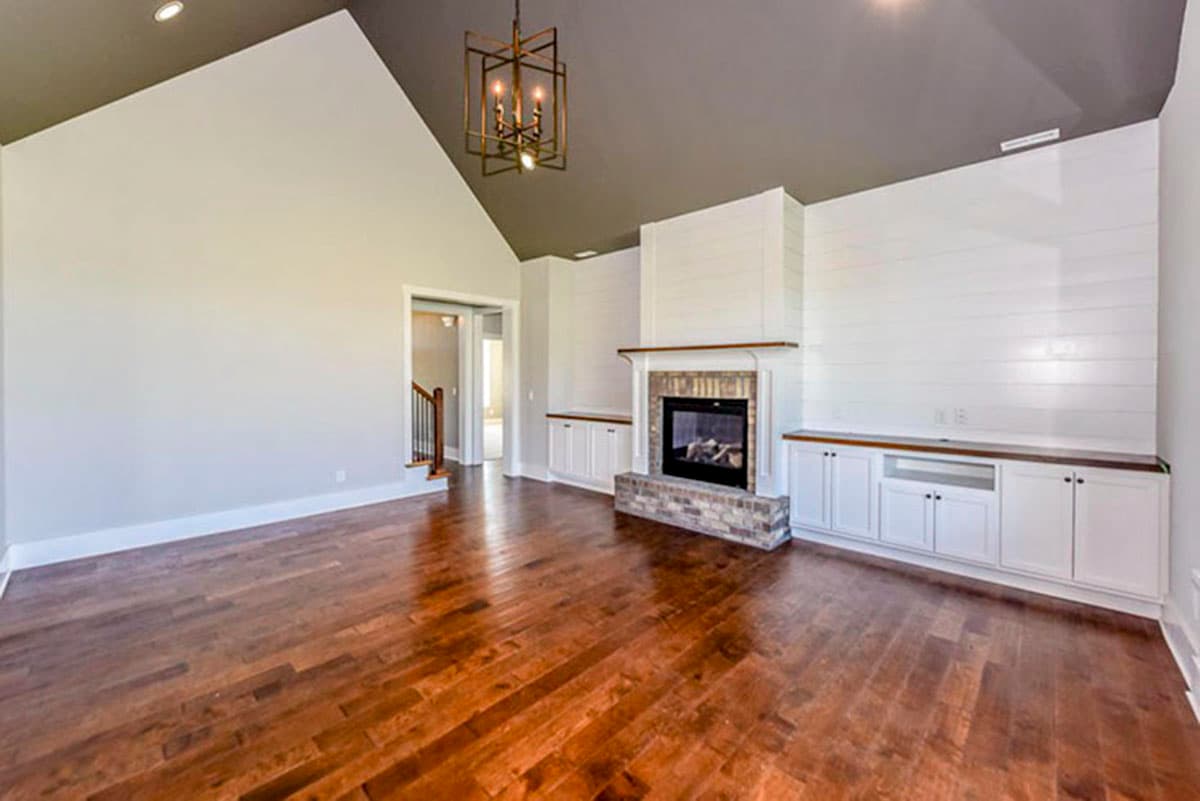

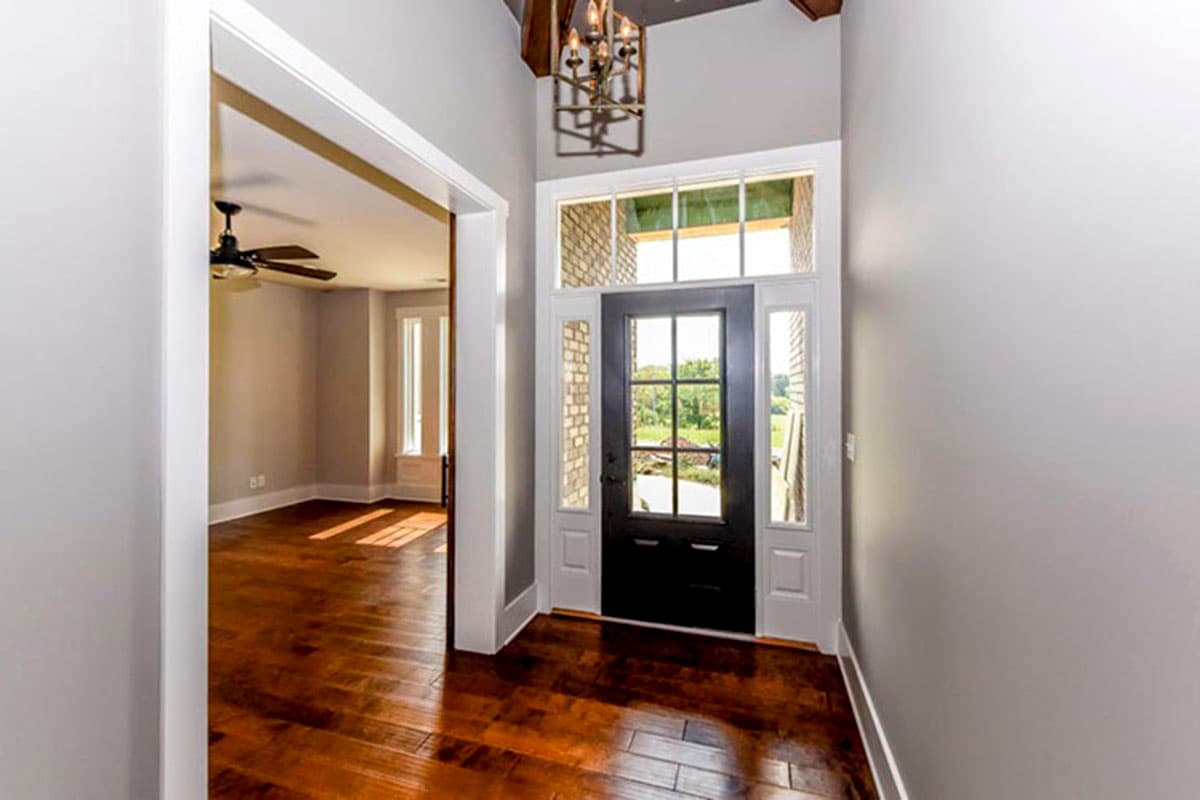

  • Stand in the foyer and enjoy views to the back of the home where the great room with cathedral ceiling awaits. A fireplace there is flanked by built-ins and the room opens to the eating area and kitchen.

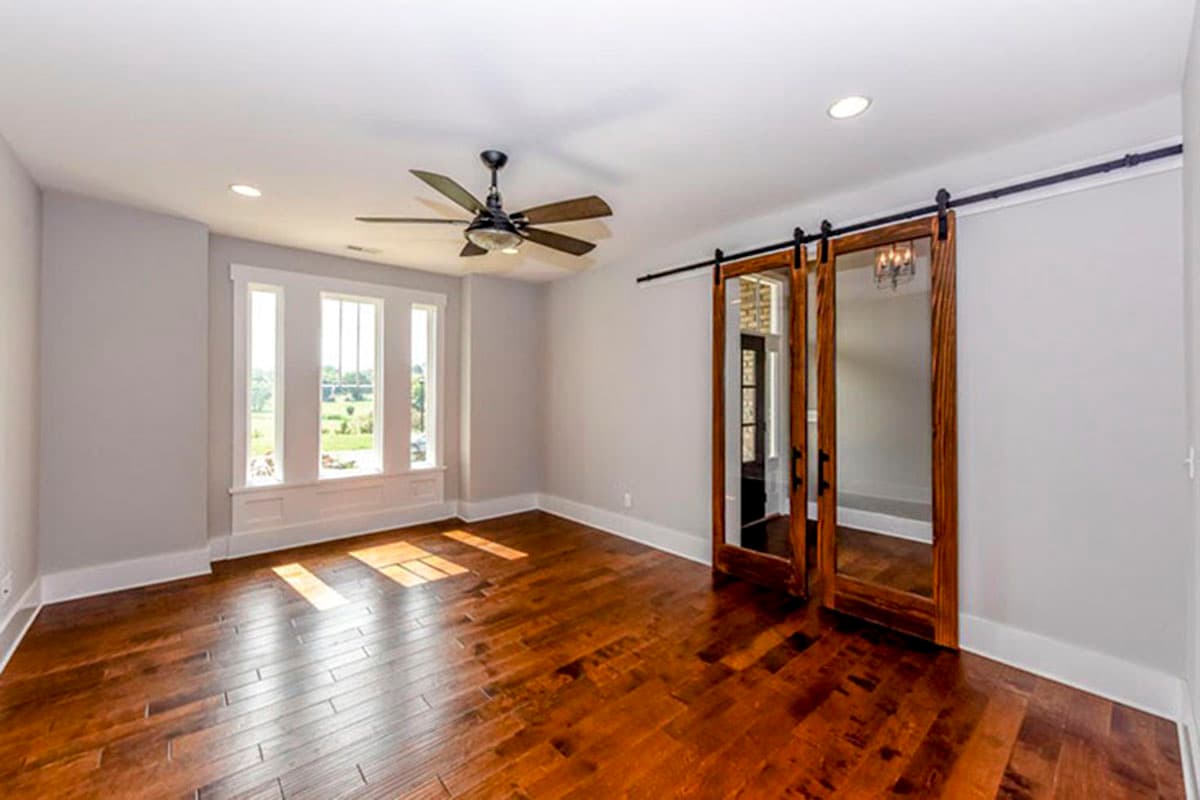

  • Off the foyer a flex room can be used as a formal dining room or enclosed to make it a study.

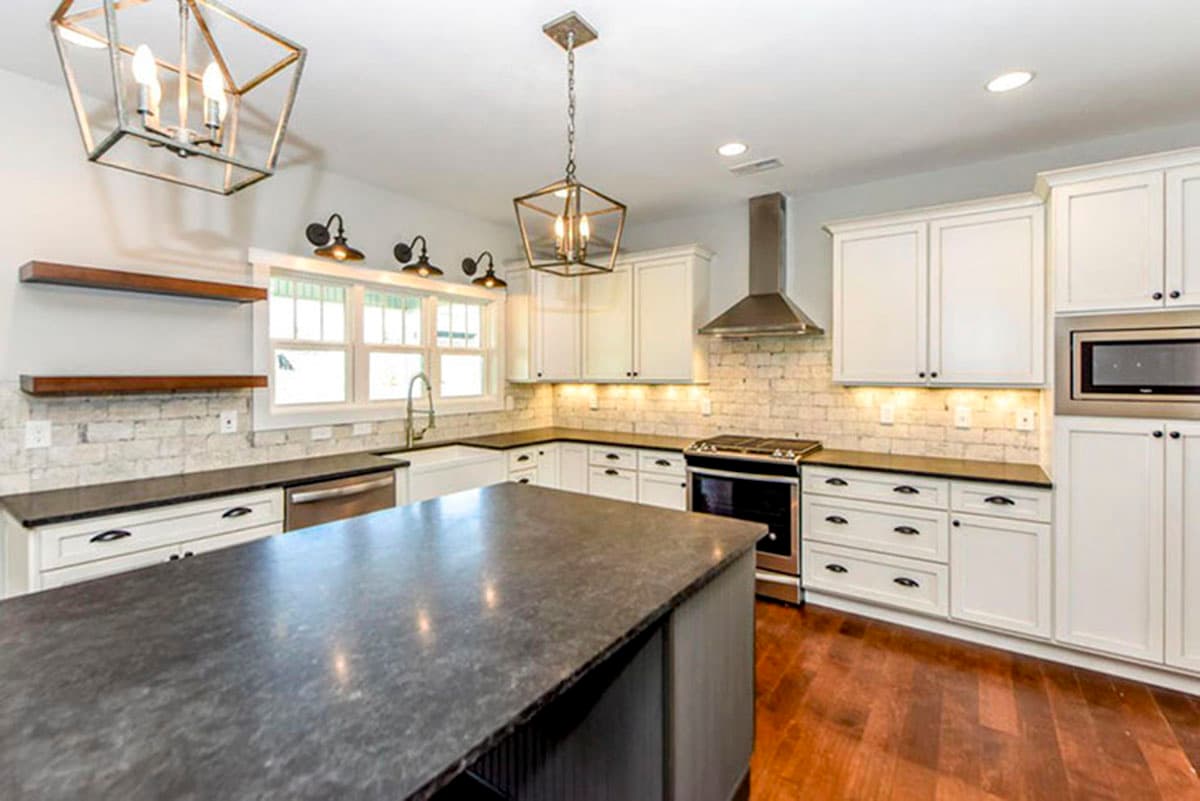

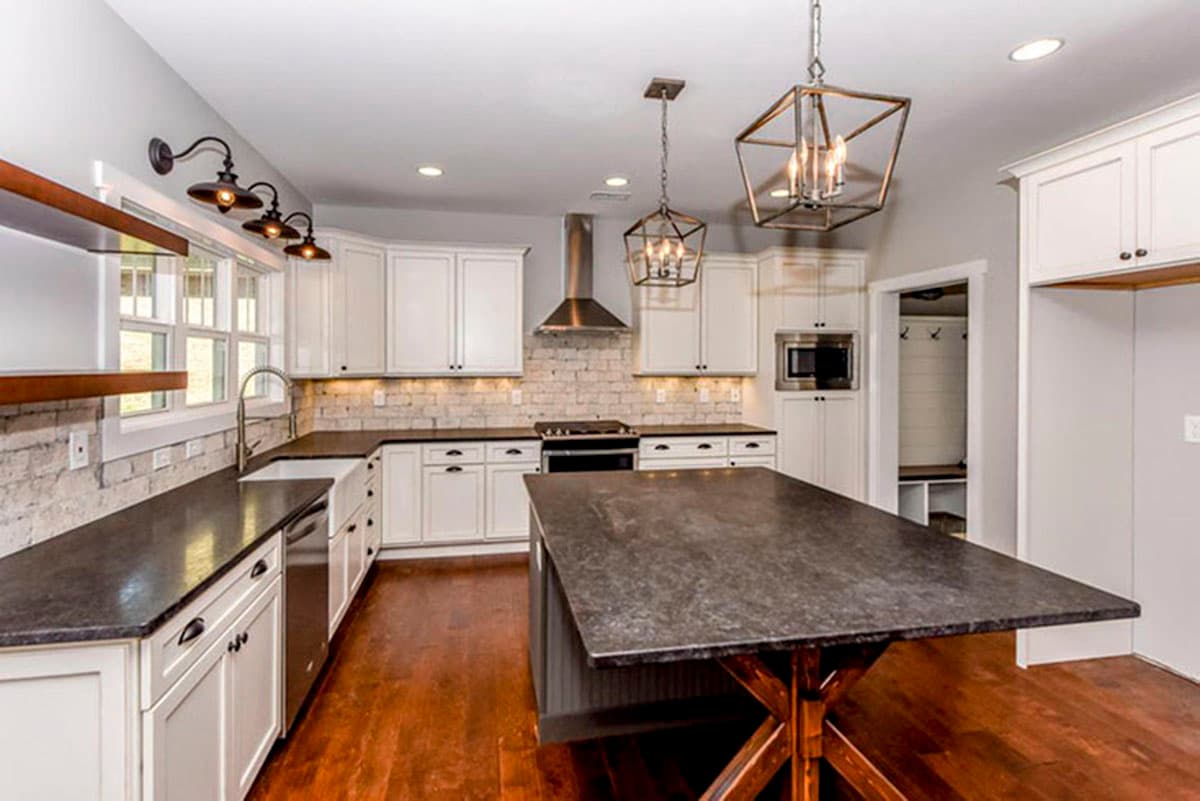

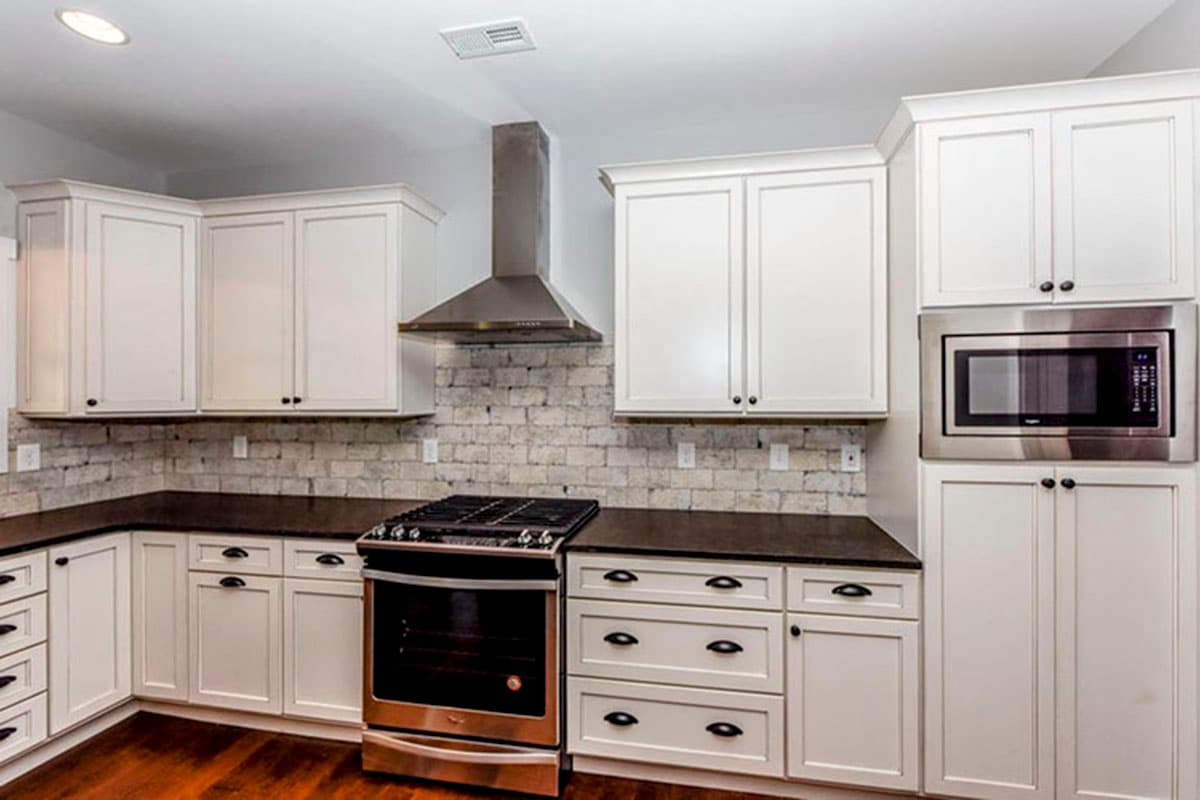

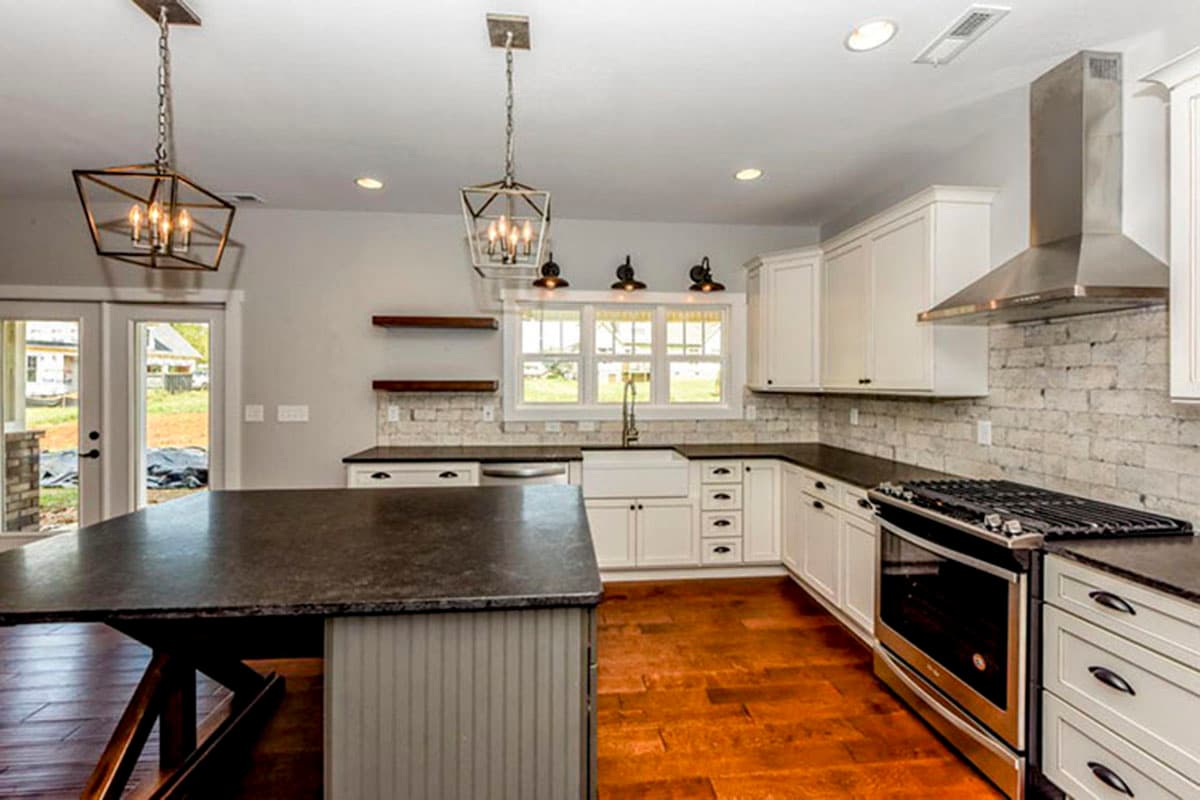

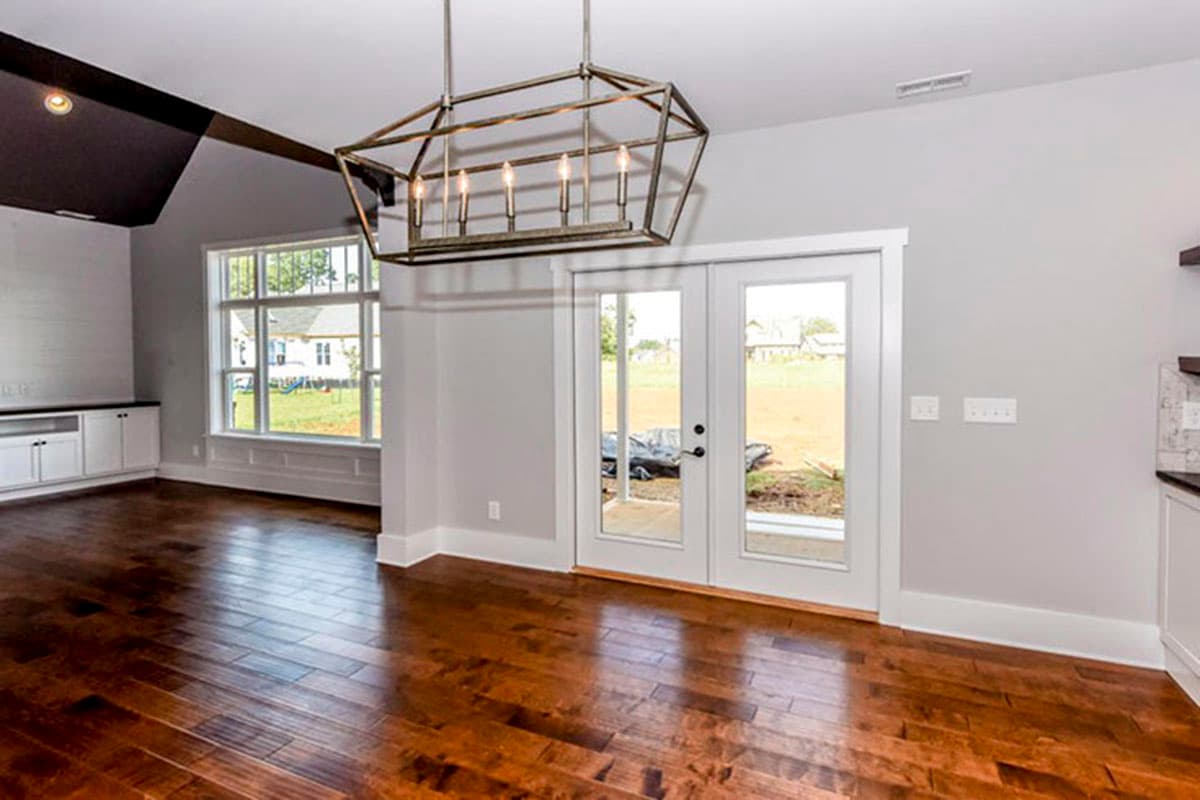

  • The kitchen has direct access to the garage for easy grocery unloading. There is lots of counterspace in the kitchen and the peninsula has casual seating. A door in the eating area leads to your covered deck for al fresco entertainment.

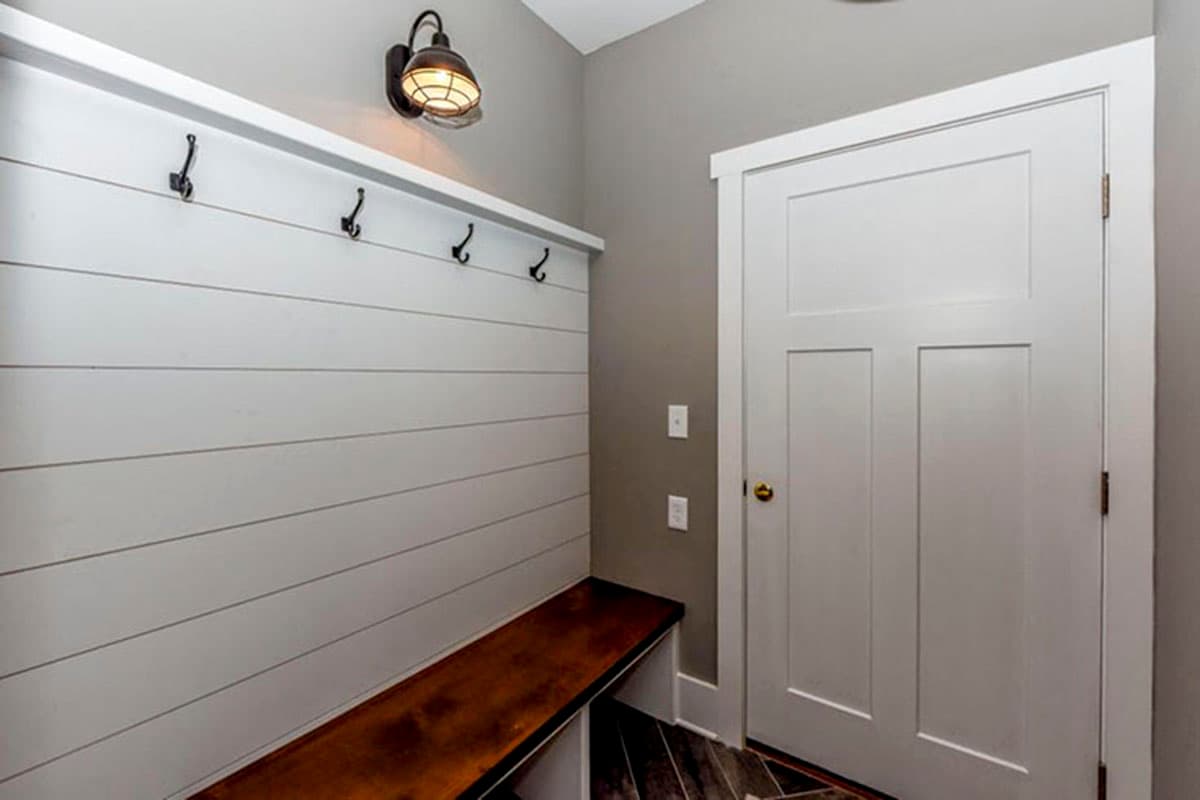

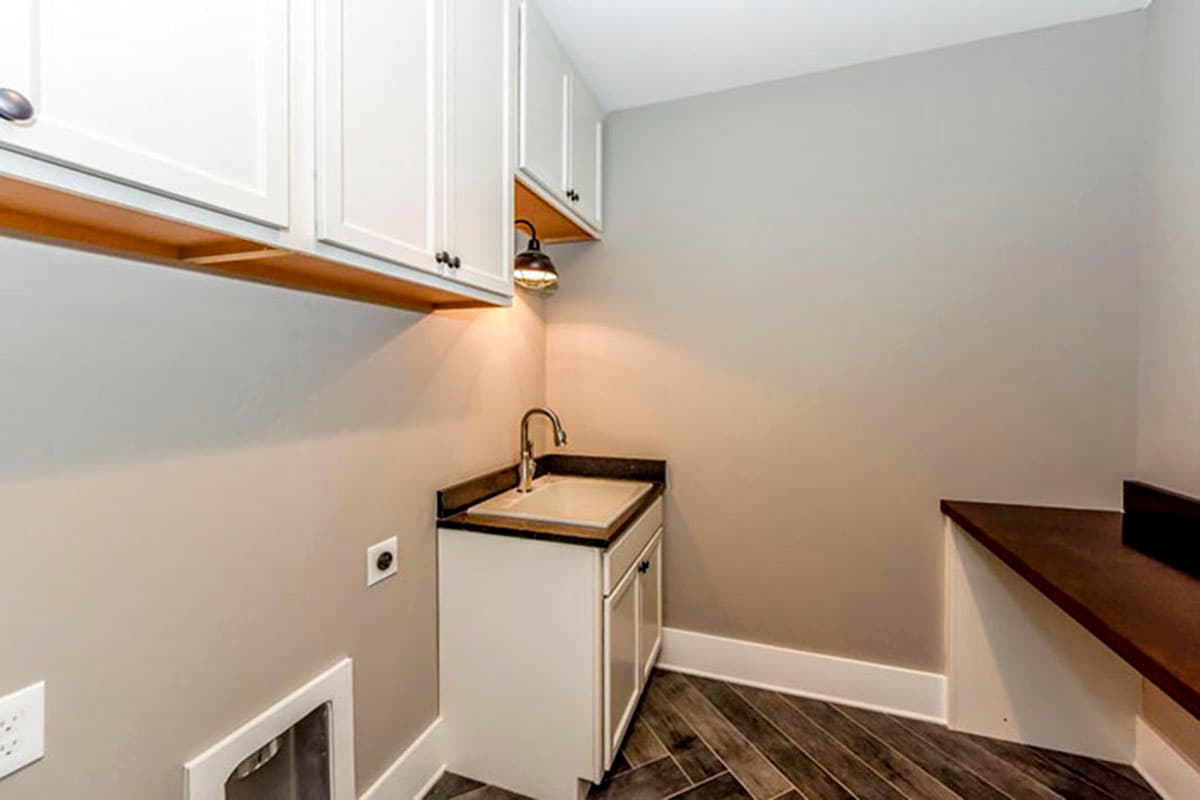

  • A mud room right off the garage has a built-in seat and a closet to reduce clutter.

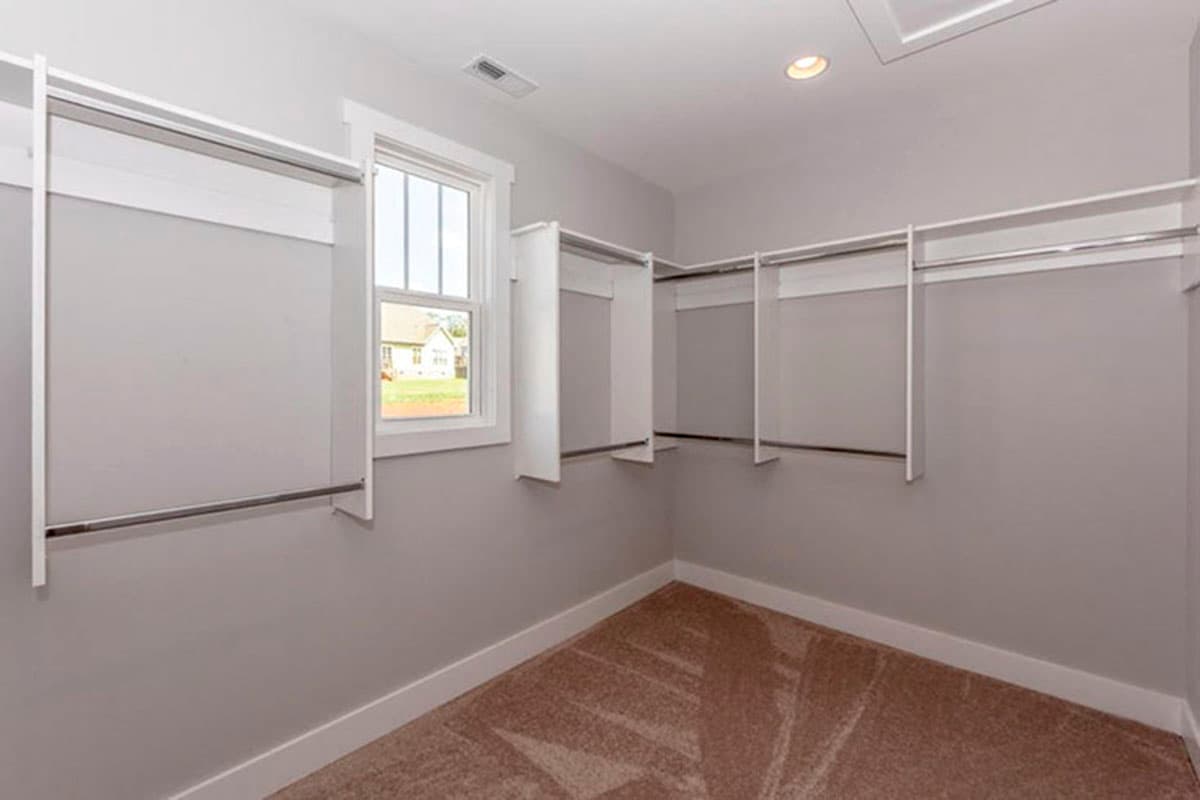

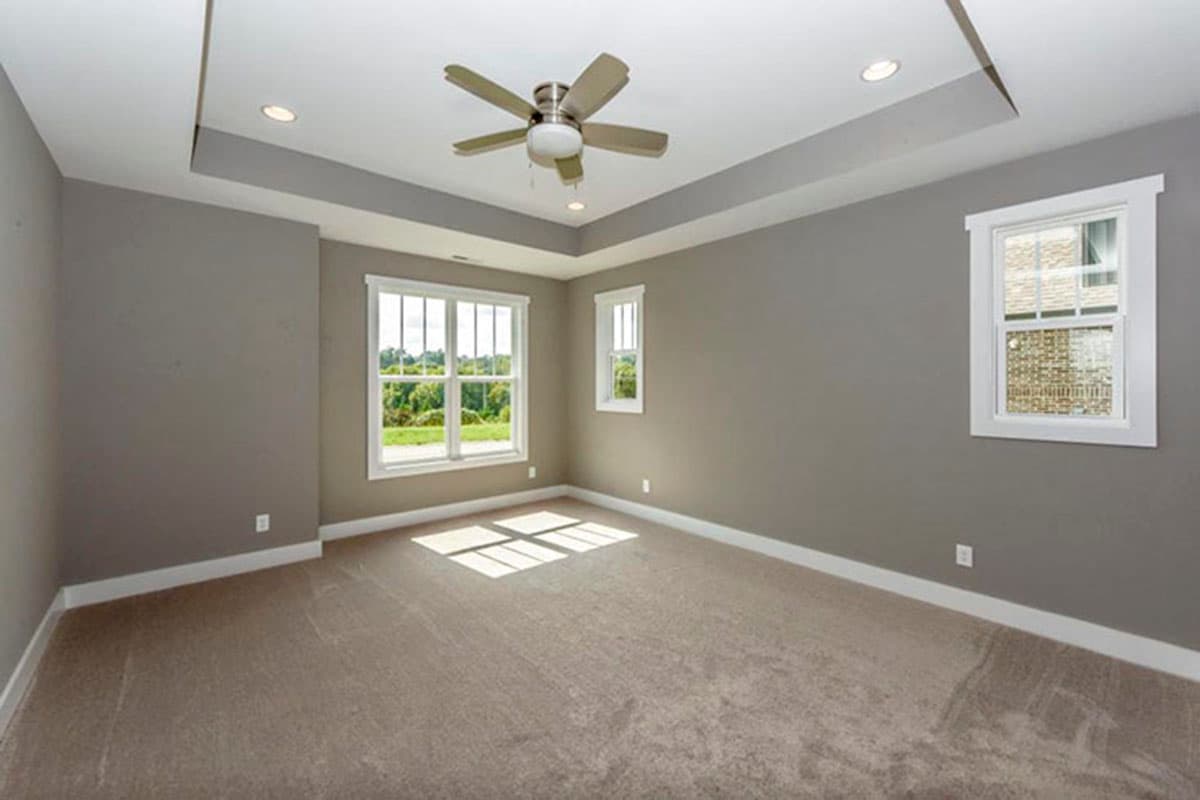

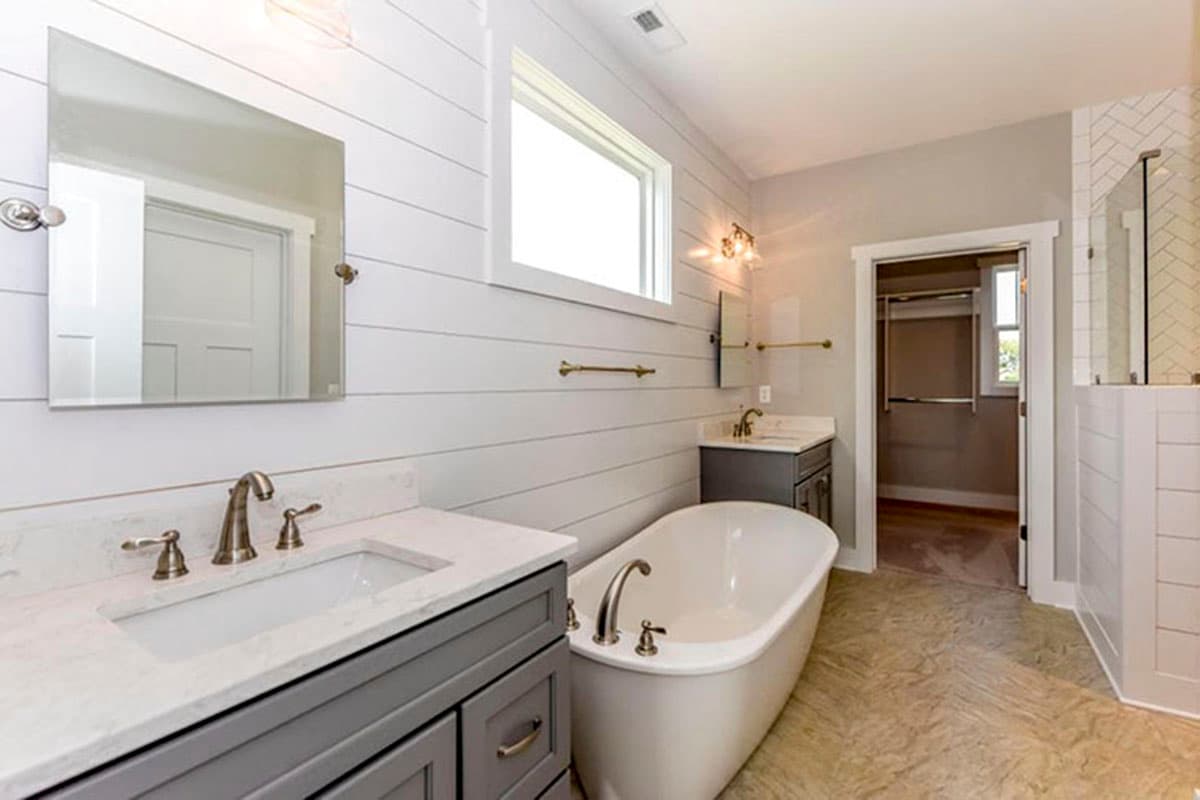

  • The master suite is spacious and private and has a huge walk-in closet. Three more bedrooms upstairs plus expansion space over the garage await.
  • The roof has a 8:12 main pitch and 12:12 secondary pitch.
  • Related Plans: Get an alternate exterior with with house plan 42295DB (2,196 sq. ft) and 4020DB (1,999 sq. ft.).

Plans include the following:

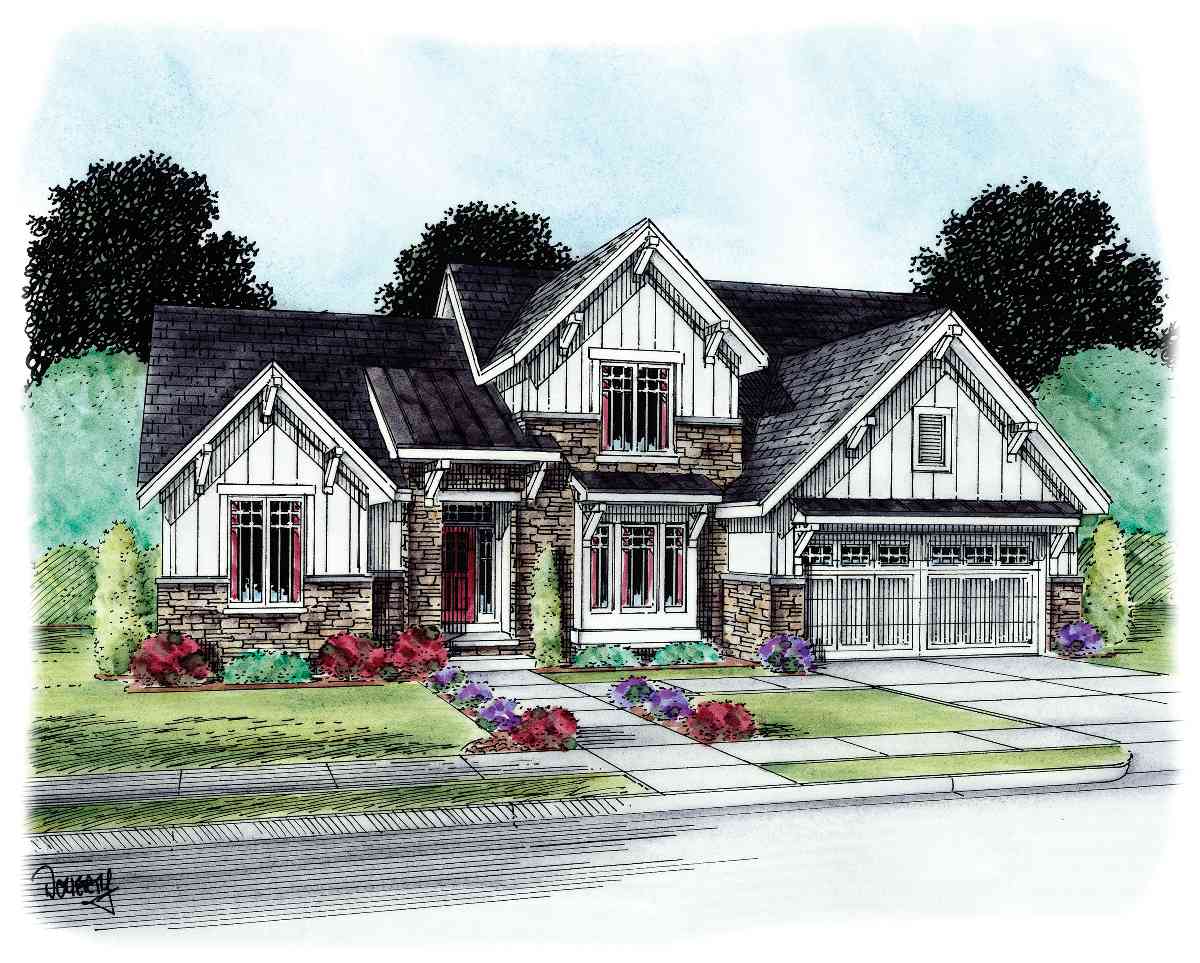

Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

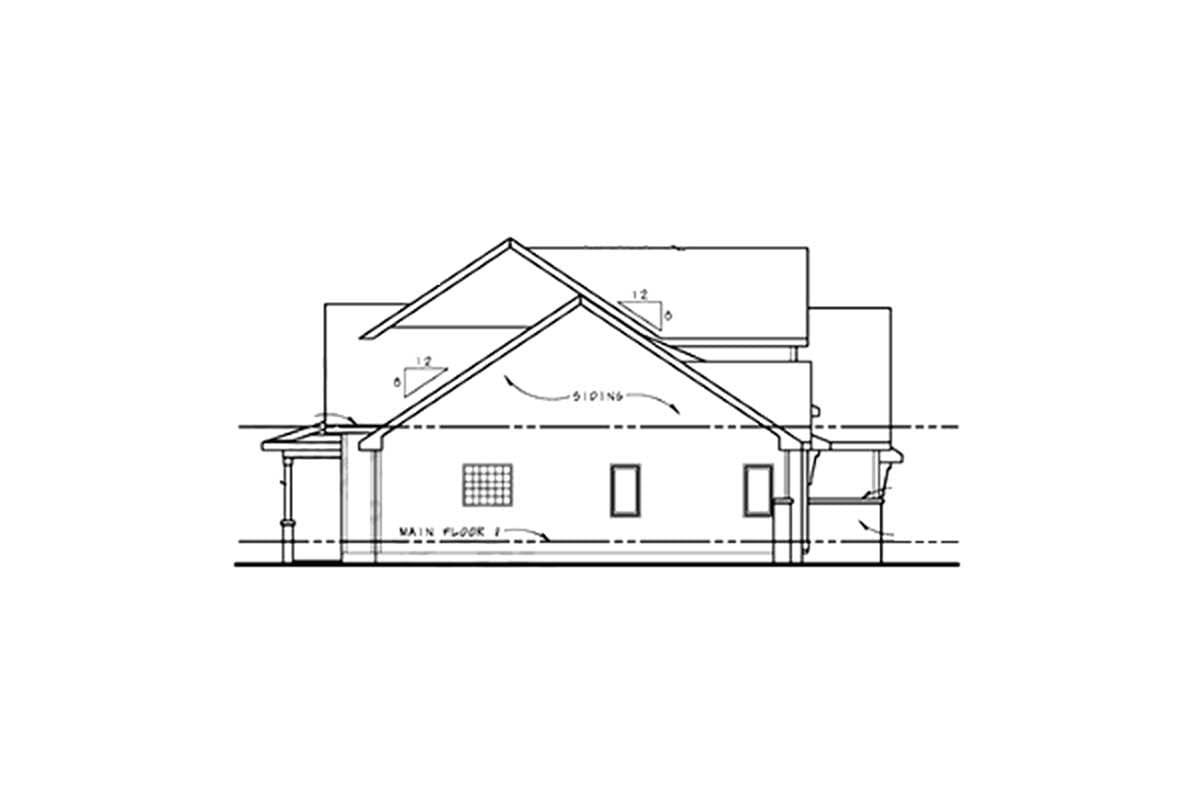

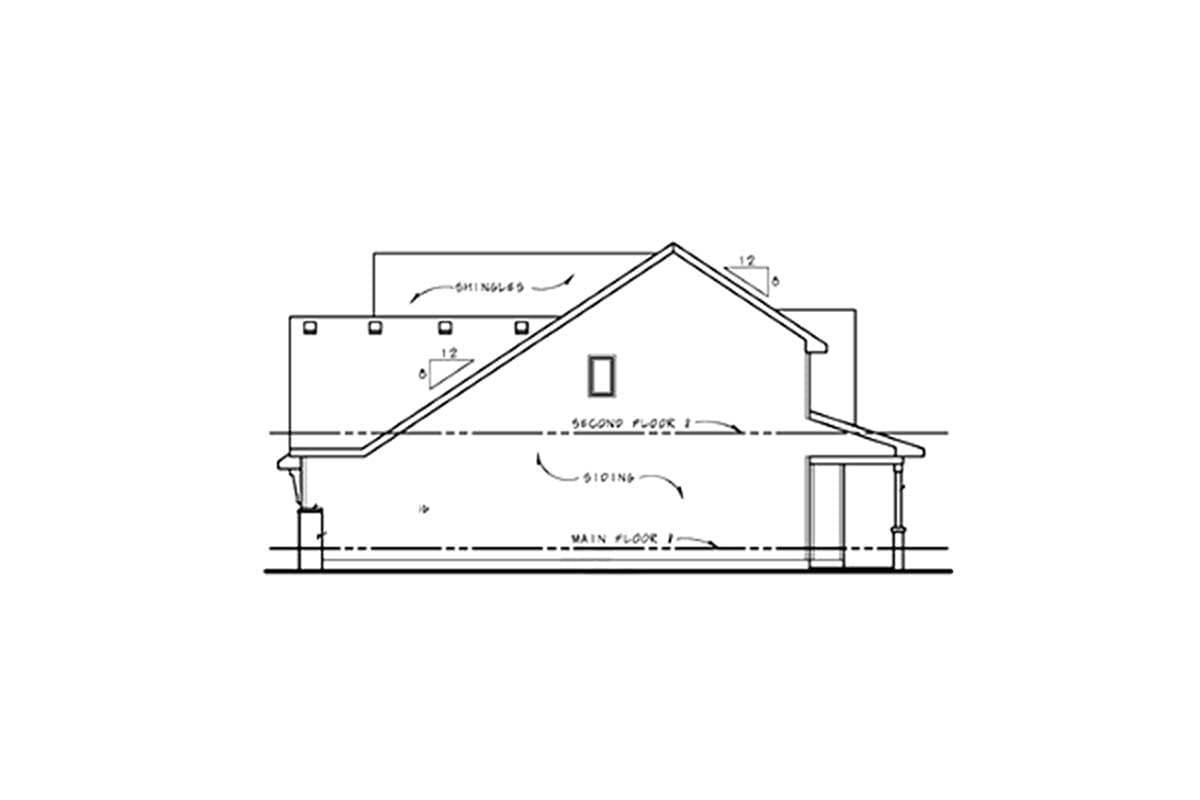

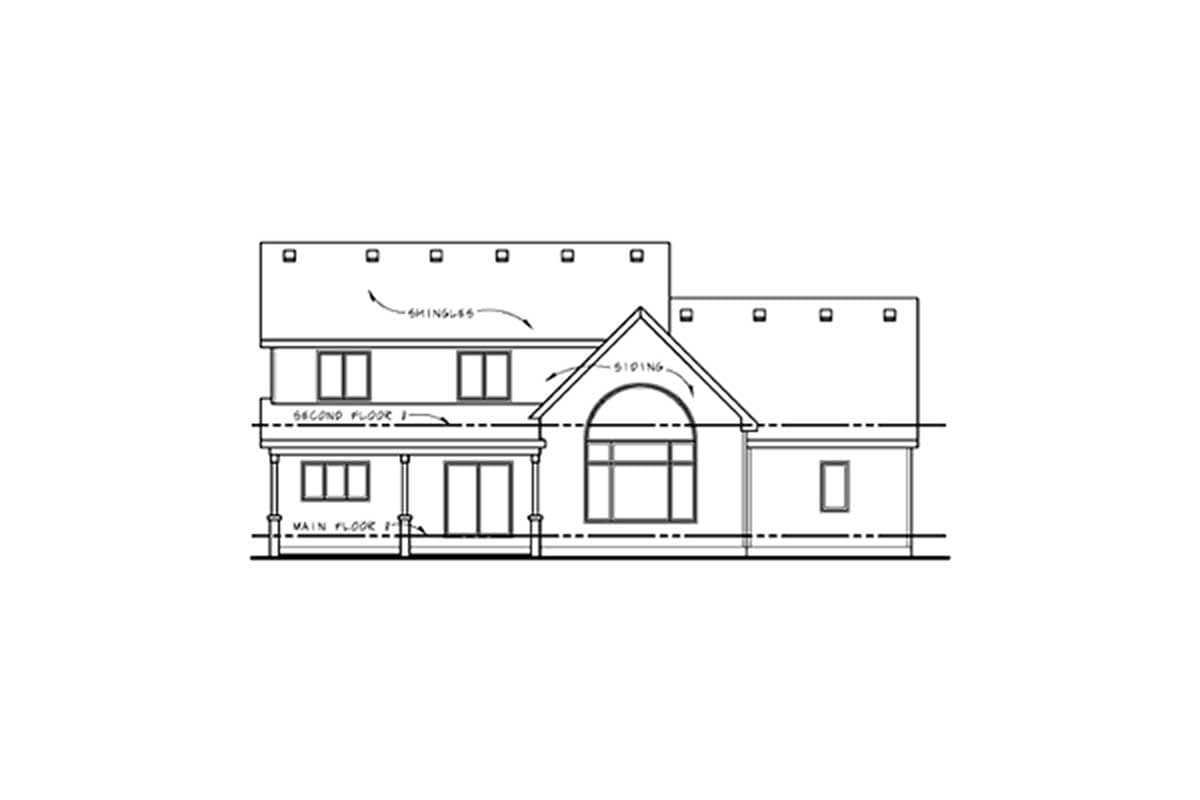

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



4 Bedroom Craftsman With Cathedral Ceiling

  • 2,607

    Heated s.f.

  • 3 - 4

    Beds

  • 2 +

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $680
  • PDF - single-use $1,045
  • 5 Sets $1,170
  • 8 Sets $1,240
  • PDF - multi-use $1,545
  • CAD $1,829
  • CAD - multi-use $2,329
  • View all purchase option online

About This Plan

  • Stand in the foyer and enjoy views to the back of the home where the great room with cathedral ceiling awaits. A fireplace there is flanked by built-ins and the room opens to the eating area and kitchen.
  • Off the foyer a flex room can be used as a formal dining room or enclosed to make it a study.
  • The kitchen has direct access to the garage for easy grocery unloading. There is lots of counterspace in the kitchen and the peninsula has casual seating. A door in the eating area leads to your covered deck for al fresco entertainment.
  • A mud room right off the garage has a built-in seat and a closet to reduce clutter.
  • The master suite is spacious and private and has a huge walk-in closet. Three more bedrooms upstairs plus expansion space over the garage await.
  • The roof has a 8:12 main pitch and 12:12 secondary pitch.
  • Related Plans: Get an alternate exterior with with house plan 42295DB (2,196 sq. ft) and 4020DB (1,999 sq. ft.).

Floor Plans

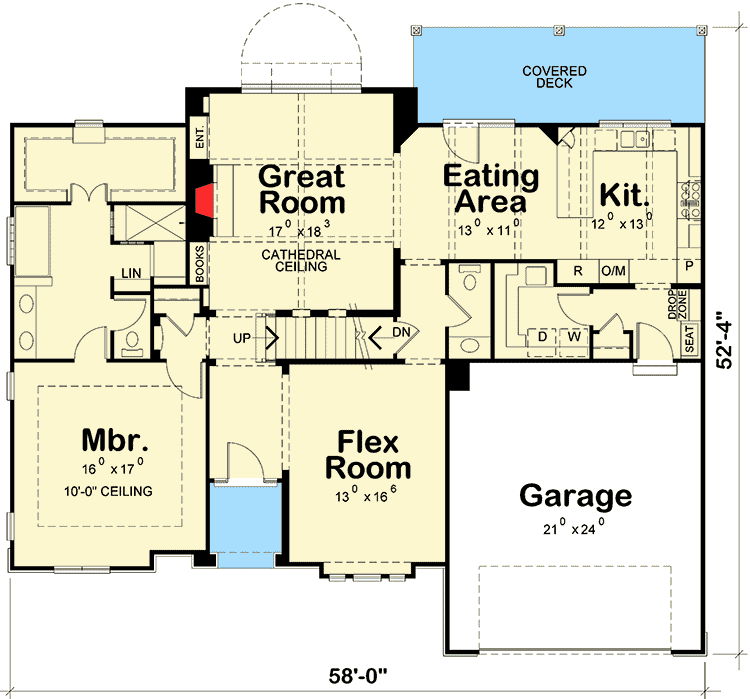

  • Main Level

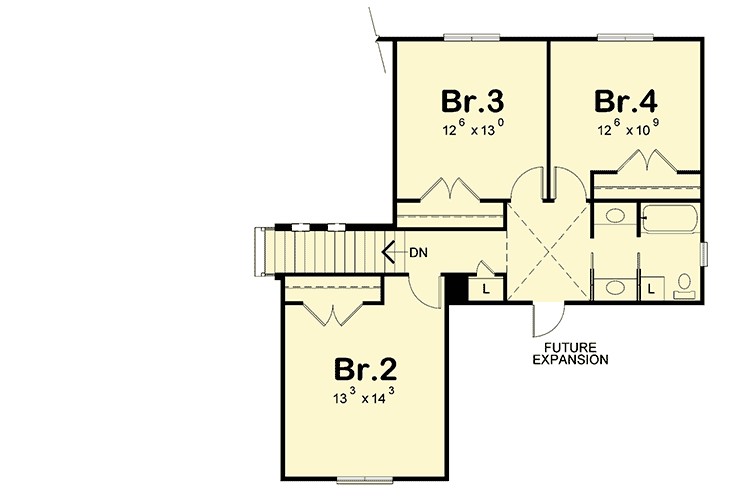

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,607 sq. ft.
  • 1st Floor: 1,807 sq. ft.
  • 2nd Floor: 800 sq. ft.
  • Porch, Rear: 194 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Basement, Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 58' 0"
  • Depth: 52' 4"
  • Max ridge height: 28' 10"

Garage

  • Type: Attached
  • Area: 522 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
