Plan 18261BE

4 Bedroom Mountain Style Retreat

3,013 4 4 2 2
Pageloader

4 Bedroom Mountain Style Retreat

Plan 18261BE

  • 3,013

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

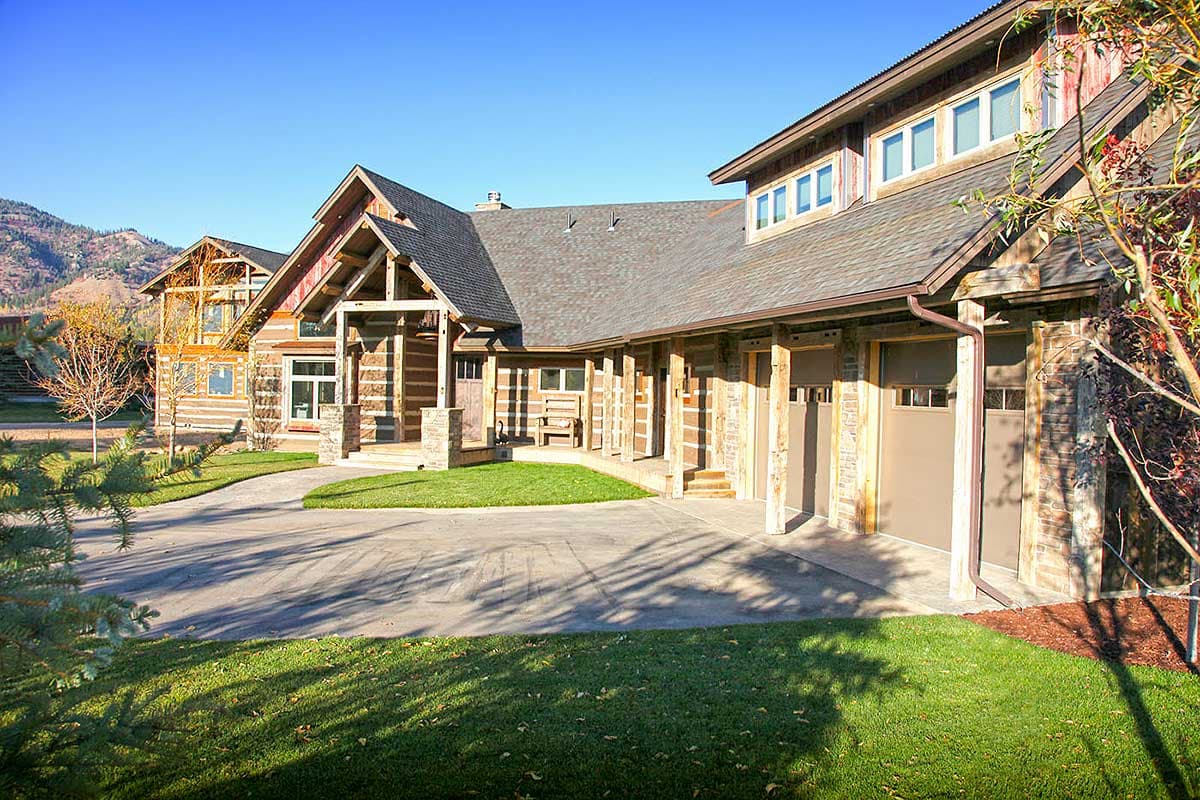

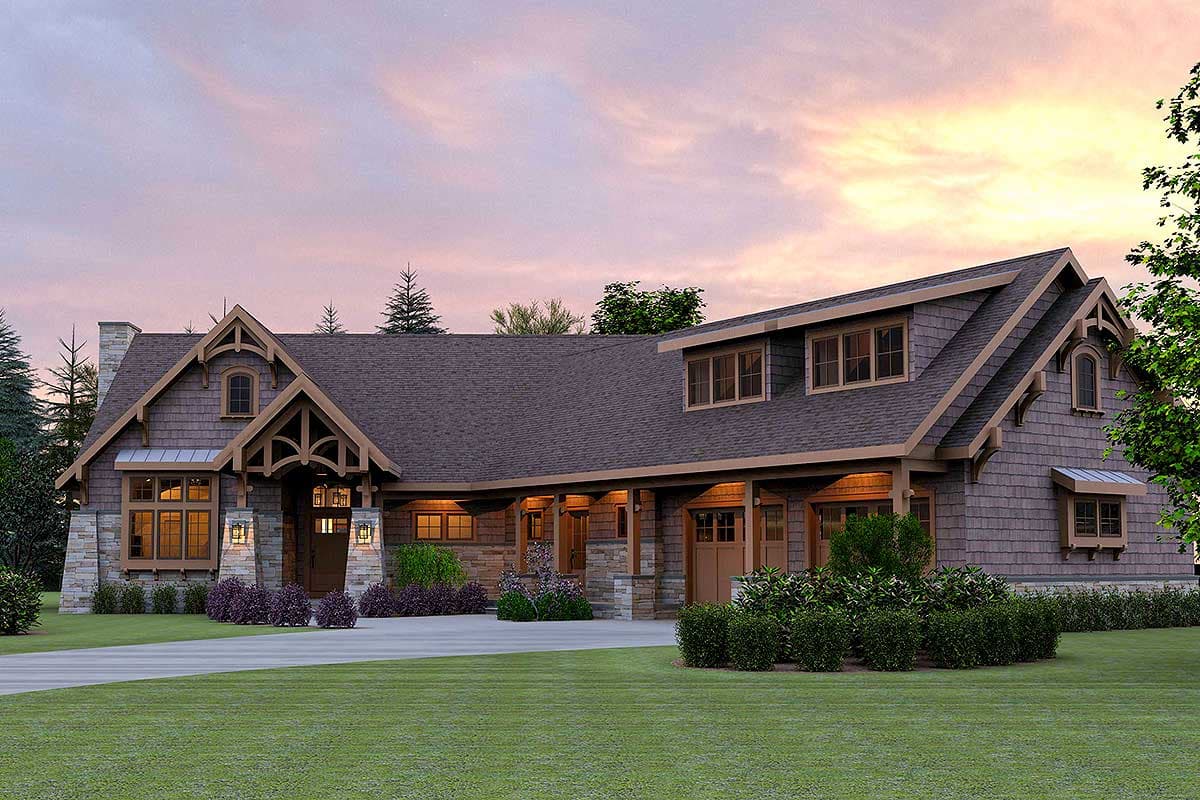

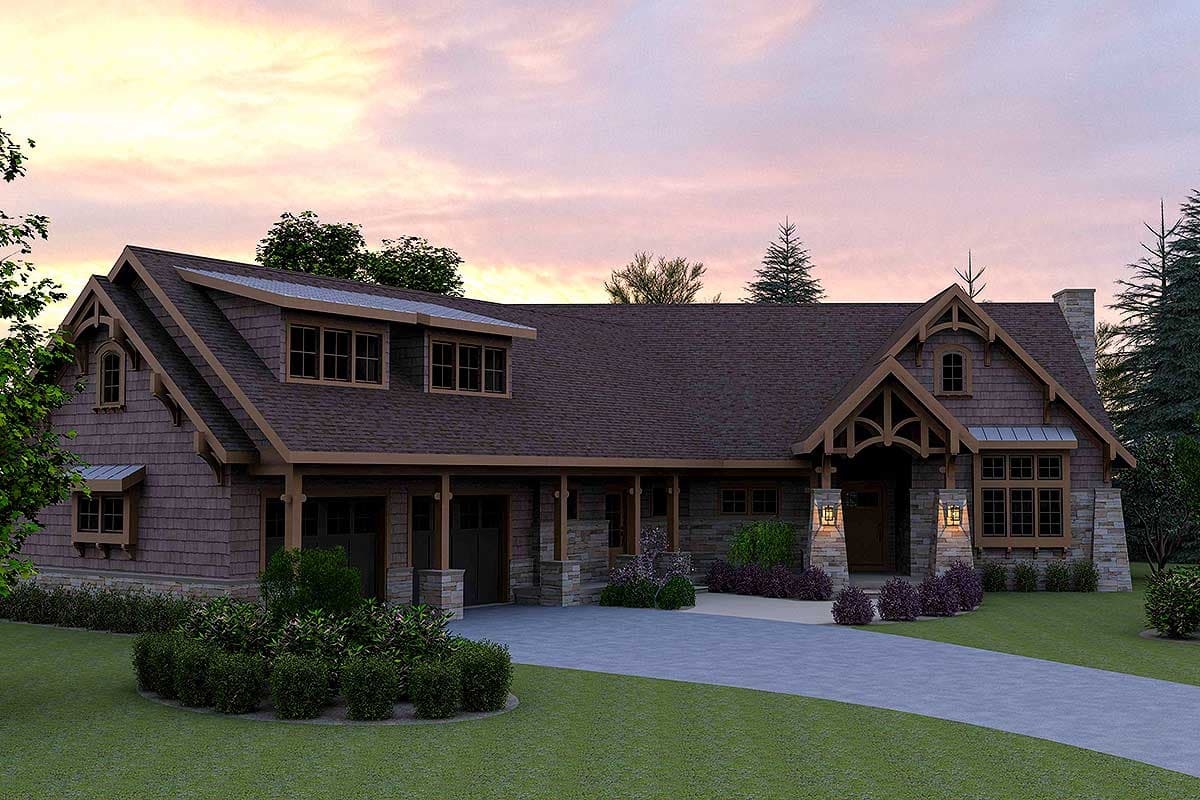

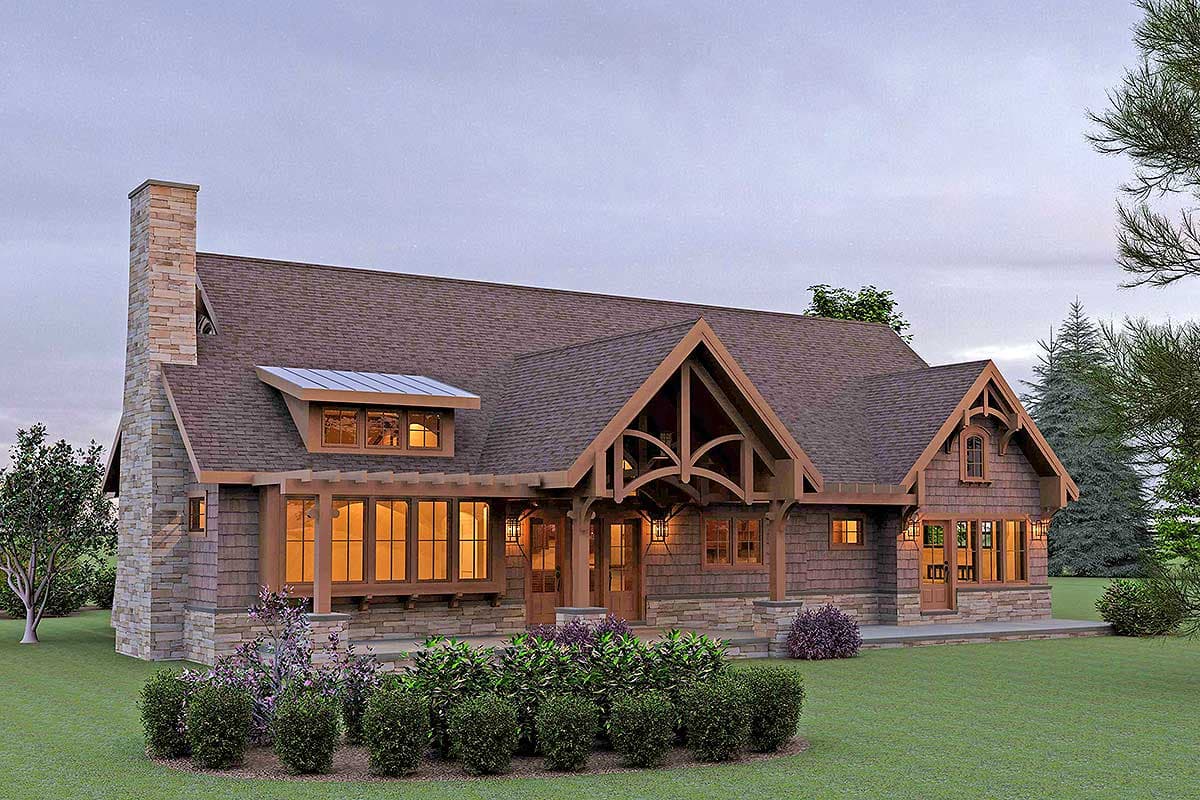

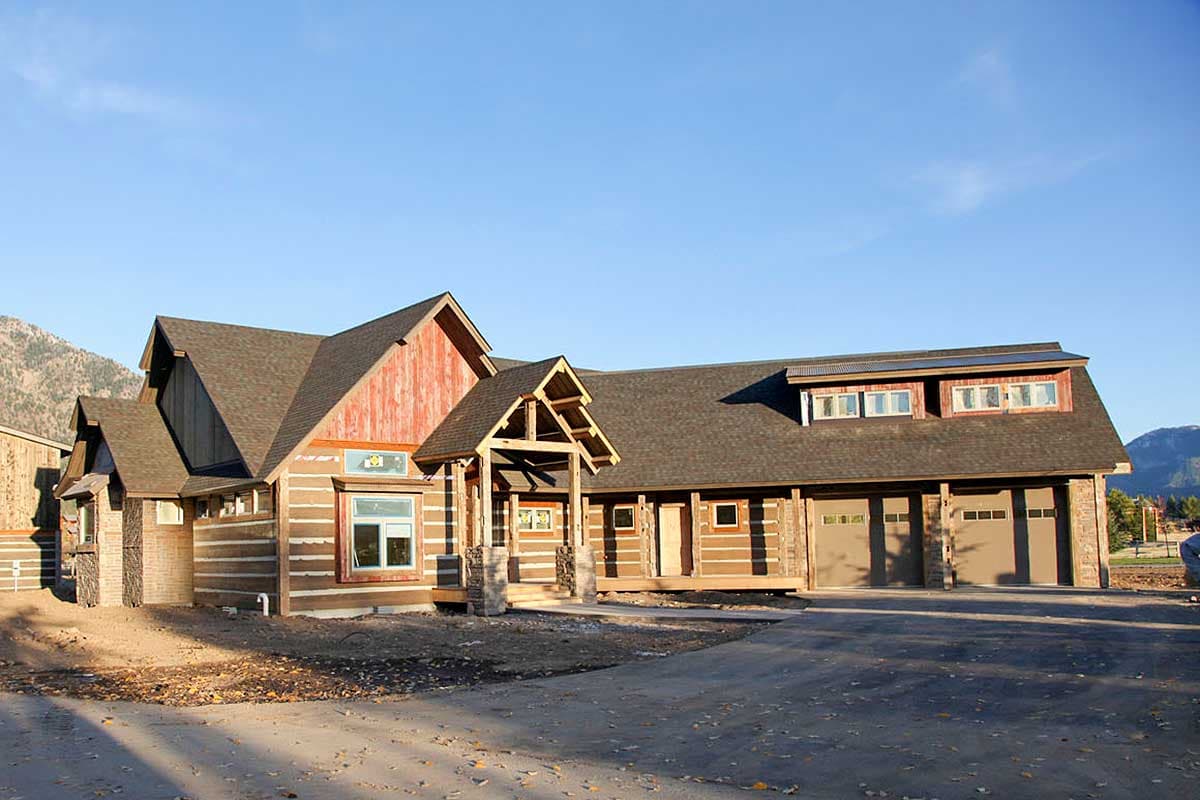

  • A rustic exterior gives this Mountain home plan a rugged style.
  • Inside, however all the comforts of a well-appointed home await.
  • The open floor plan unites the living room with window seat, the dining room and the spacious kitchen with its huge island.
  • For the homeowners, a quiet retreat lies on the main floor with a door that opens to the rear covered porch.
  • On the opposite side of the home, the guest suite has a walk-in closet and private bath.
  • The second floor holds a huge in-law apartment with two bedrooms (one with its own sitting area) and a big living room.

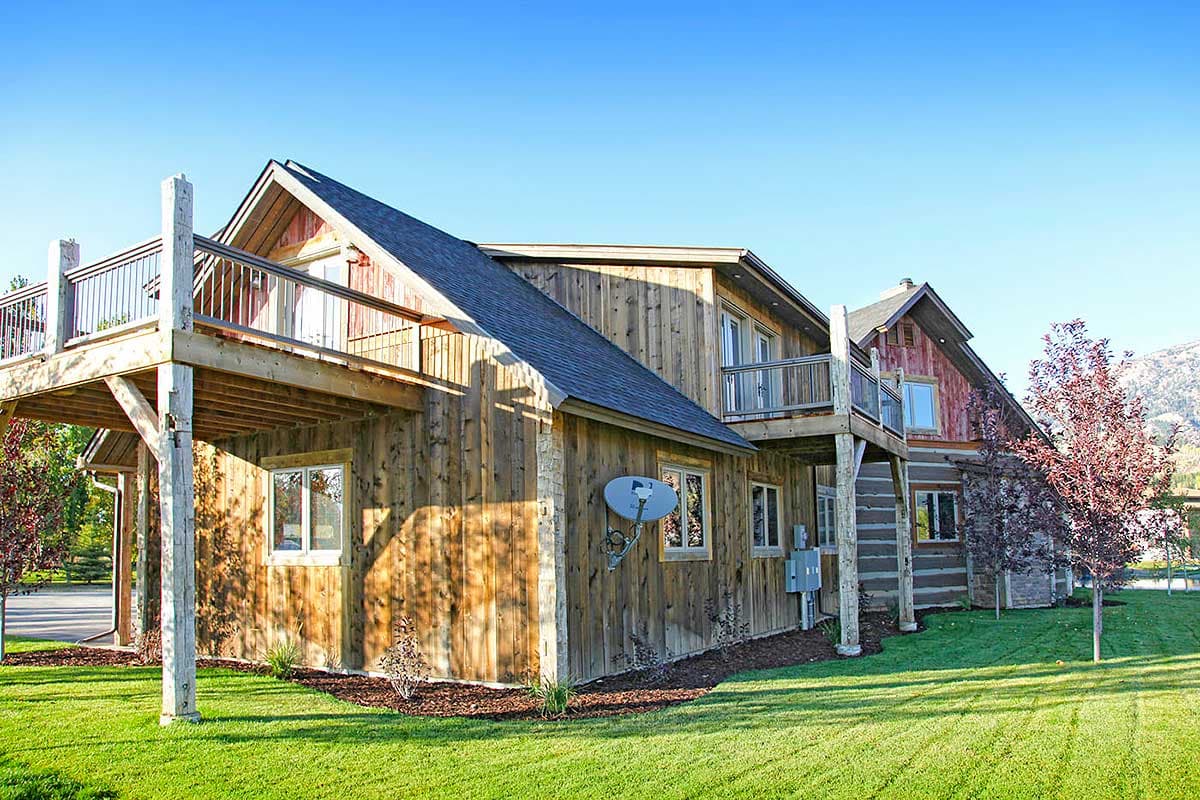

  • Two balconies let you enjoy the fresh air.
  • The roof is a truss design and has a 10 on 10 main pitch and a 10 on 12 secondary pitch.
  • Related Plan: Eliminate the upper floor with house plan 18248BE.

Plans include the following

  • General Notes & Design Criteria
  • Perspective views
  • Foundation plan
  • Floor plan
  • Exterior elevations
  • Cross sections
  • Door & window schedules
  • Roof plan and room finish schedule
  • Electrical plan

Floor Plan

Plan details



4 Bedroom Mountain Style Retreat

  • 3,013

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $1,085
  • PDF - single-use $1,085
  • 5 Sets $1,135
  • 8 Sets $1,285
  • CAD $1,645
  • View all purchase option online

About This Plan

  • A rustic exterior gives this Mountain home plan a rugged style.
  • Inside, however all the comforts of a well-appointed home await.
  • The open floor plan unites the living room with window seat, the dining room and the spacious kitchen with its huge island.
  • For the homeowners, a quiet retreat lies on the main floor with a door that opens to the rear covered porch.
  • On the opposite side of the home, the guest suite has a walk-in closet and private bath.
  • The second floor holds a huge in-law apartment with two bedrooms (one with its own sitting area) and a big living room.
  • Two balconies let you enjoy the fresh air.
  • The roof is a truss design and has a 10 on 10 main pitch and a 10 on 12 secondary pitch.
  • Related Plan: Eliminate the upper floor with house plan 18248BE.

Floor Plans

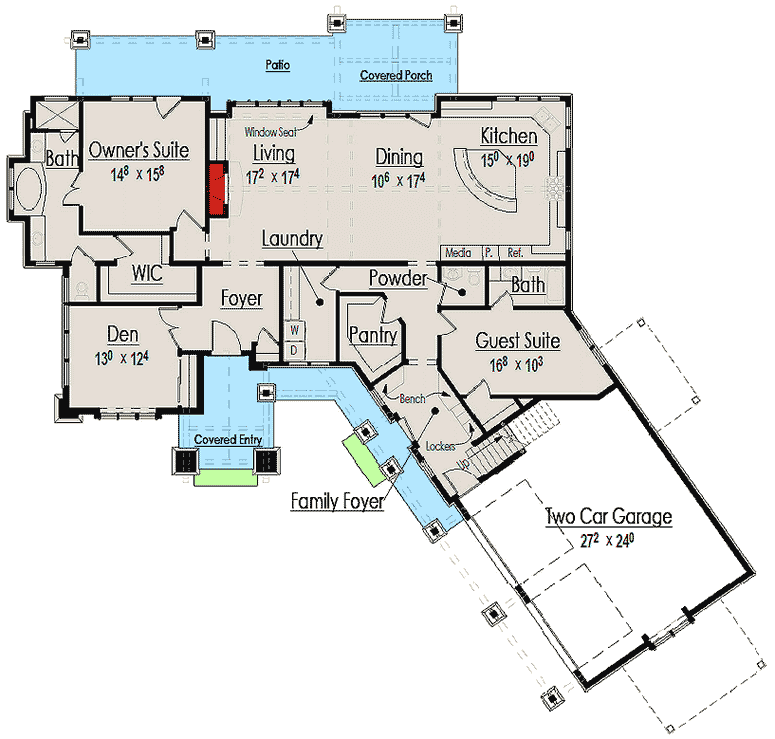

  • Main Level

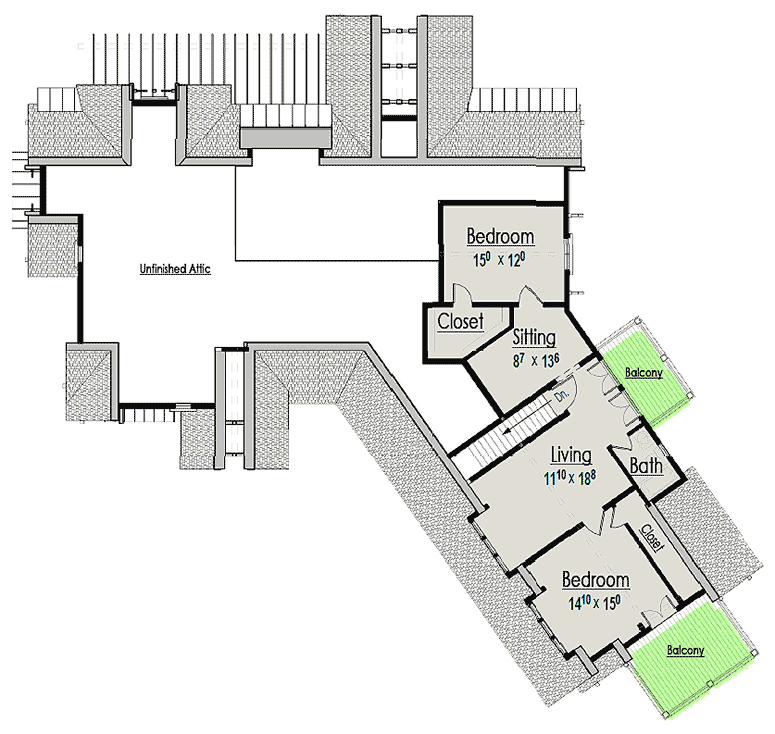

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,013 sq. ft.
  • 1st Floor: 2,117 sq. ft.
  • 2nd Floor: 896 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 89' 4"
  • Depth: 83' 6"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 705 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

  • Mountain
  • Vacation

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Den-Office-Library-Study
  • PDF
