Mountain Escape with Bonus Living Suite

Plan 18248BE

  • 2,221

    Heated s.f.

  • 2-5

    Beds

  • 2 - 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Based on our popular Red Cottage plan - see house plan 18222BE - this more rustic version has stout stone columns supporting a beautiful trussed covered entry.
  • The vaulted spaces - foyer, living & dining rooms, and kitchen - add comfortable volume to nicely proportioned room sizes.
  • Abundant windows maximize views and natural light with an emphasis placed on views to the back.
  • Wide hallways and doorways make for easy traffic flow, even for those that need Barrier Free Access.
  • The front room off the foyer is perfect for a den or extra bedroom.
  • The kitchen is designed for both efficiency and aesthetics. The large island aids in food preparation, additional storage and allows for a nice seating area. There are both pantry cabinets and a spacious closet pantry.
  • The owners' suite has patio access and the handsome master bath has an extra spacious shower.
  • The bonus level upstairs delivers a vaulted living area plus two bedrooms, one with a sitting area behind pocket doors, adding a potential 1,032 sq. ft. to this awesome house plan.
  • Related Plans: Get a side-entry garage with house plan 18268BE (2,221 sq. ft.). Get an alternate layout and second floor in-law suite with house plan 18263BE (2,318 sq. ft.).

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

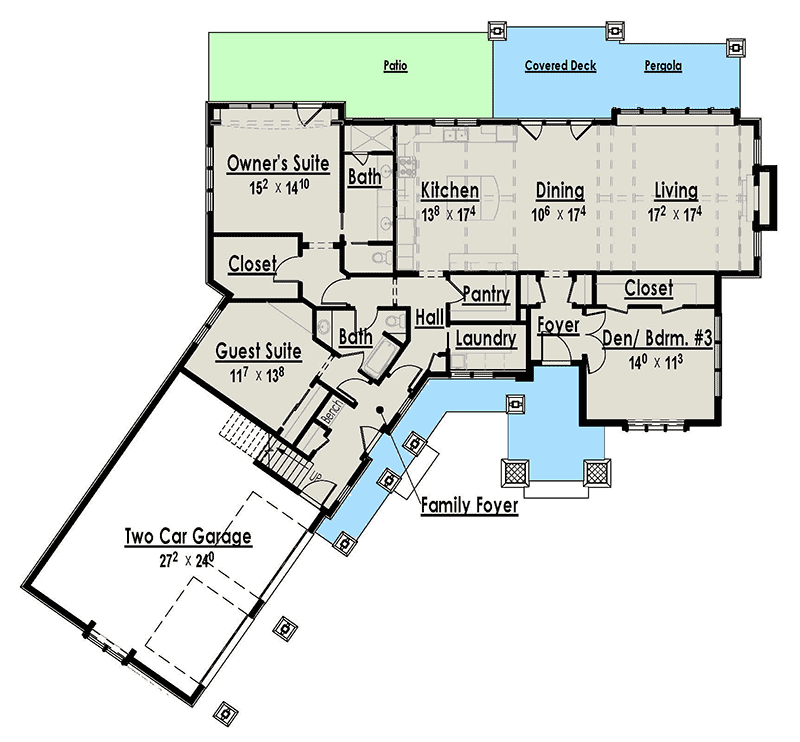

Main Level (Slab/Crawl version)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

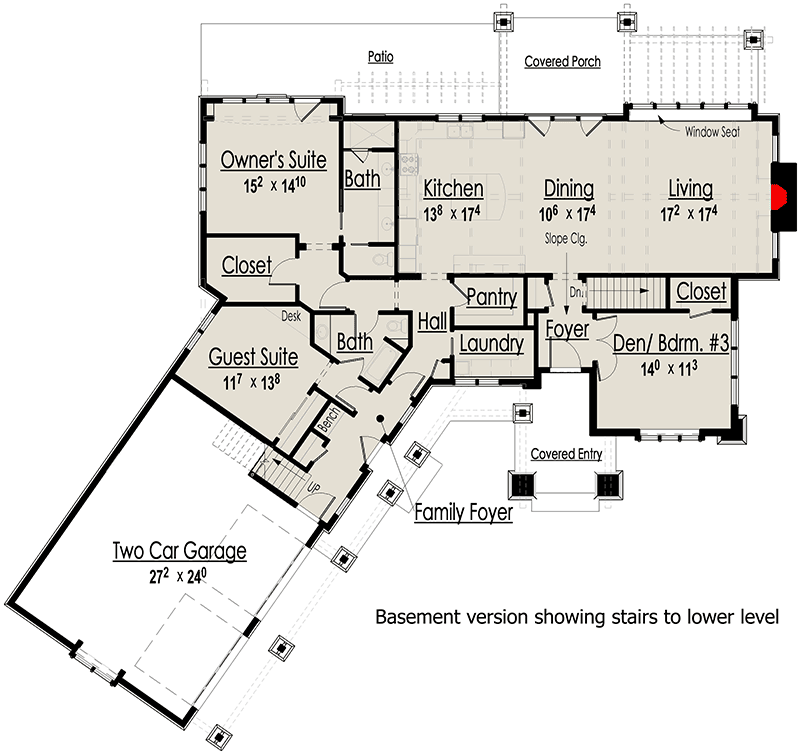

Mountain Escape with Bonus Living Suite - 18248BE floor plan - Main Level (Slab/Crawl version)

Main Level (Basement)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Escape with Bonus Living Suite - 18248BE floor plan - Main Level (Basement)

3D Main Level (Slab/Crawl)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

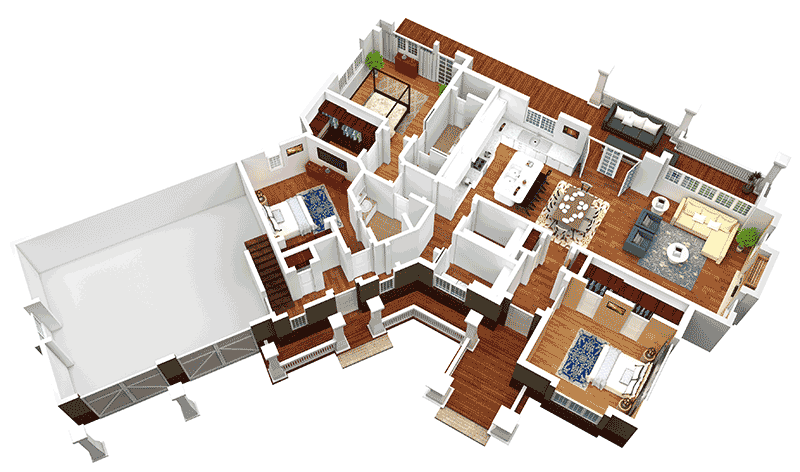

Mountain Escape with Bonus Living Suite - 18248BE floor plan - 3D Main Level (Slab/Crawl)

Bonus Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

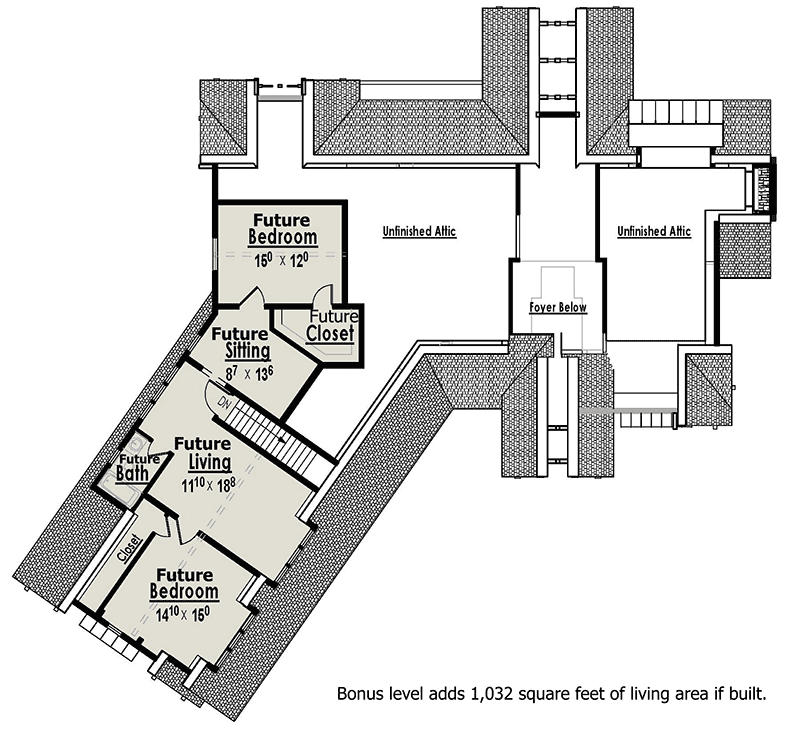

Mountain Escape with Bonus Living Suite - 18248BE floor plan - Bonus Level
