Plan 69134AM 4 Bedroom Plan with Narrow Footprint

2,100 4 2.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4 Bedroom Plan with Narrow Footprint

Plan 69134AM

  • 2,100

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • The main level contains the foyer, which leads past a half bath and laundry room to the open living spaces.
  • Columns and an island delineate the open kitchen. L-shape cabinets are augmented by a walk-in pantry.
  • The dining room also is open, allowing the option to expand into the great room if more seating is needed.
  • A fireplace and built-in cabinets create focal points on one wall of the great room, while a set of French doors leads to the backyard.
  • A C-shape staircase ascends to an upper-level landing area that overlooks the two-story entry.
  • The master suite is off this entry. It includes a tray ceiling, a walk-in closet, double-sink vanity, a shower, and toilet compartment.
  • An angled hallway leads to the other three bedrooms and a bath that provides two vanities.
  • All this efficiency is packaged in an attractive facade. Strap hinges on the wood garage door evoke the feel of carriage house doors that swing open to the sides. Stone, vertical board-and-batten siding and batten shutters create a casual country look with a hint of sophistication.
  • Related Plan: For an alternate version, see house plan 69010AM.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

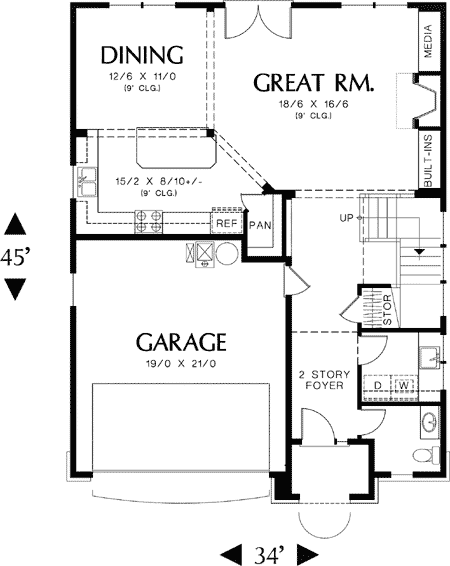

4 Bedroom Plan with Narrow Footprint - 69134AM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

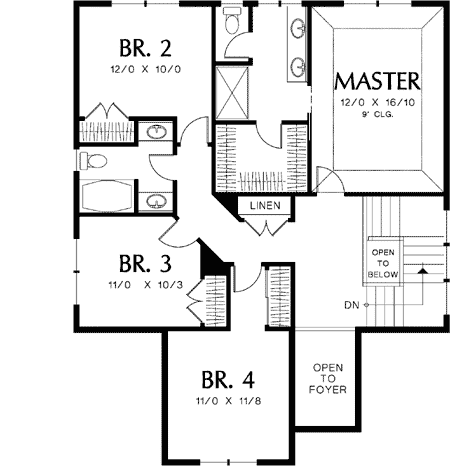

4 Bedroom Plan with Narrow Footprint - 69134AM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,100 sq. ft.
  • 1st Floor: 1,028 sq. ft.
  • 2nd Floor: 1,072 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 45' 0"
  • Max ridge height: 28' 8"

Garage

  • Type: Attached
  • Area: 411 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

4 Bedroom Plan with Narrow Footprint

  • 2,100

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,446
  • 5 Sets $1,646
  • 5 Sets + PDF $1,696
  • CAD + PDF - Unlimited Build $2,892
  • View all purchase option online

About This Plan

  • The main level contains the foyer, which leads past a half bath and laundry room to the open living spaces.
  • Columns and an island delineate the open kitchen. L-shape cabinets are augmented by a walk-in pantry.
  • The dining room also is open, allowing the option to expand into the great room if more seating is needed.
  • A fireplace and built-in cabinets create focal points on one wall of the great room, while a set of French doors leads to the backyard.
  • A C-shape staircase ascends to an upper-level landing area that overlooks the two-story entry.
  • The master suite is off this entry. It includes a tray ceiling, a walk-in closet, double-sink vanity, a shower, and toilet compartment.
  • An angled hallway leads to the other three bedrooms and a bath that provides two vanities.
  • All this efficiency is packaged in an attractive facade. Strap hinges on the wood garage door evoke the feel of carriage house doors that swing open to the sides. Stone, vertical board-and-batten siding and batten shutters create a casual country look with a hint of sophistication.
  • Related Plan: For an alternate version, see house plan 69010AM.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,100 sq. ft.
  • 1st Floor: 1,028 sq. ft.
  • 2nd Floor: 1,072 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 34' 0"
  • Depth: 45' 0"
  • Max ridge height: 28' 8"

Garage

  • Type: Attached
  • Area: 411 sq. ft.
  • Count: 2 Cars

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Truss
