Plan 86313HH

4-Bedroom Traditional Craftsman Home with Enclosed Game Room and Den

Heated S.F.

2,814

Beds

4

Baths

3

Stories

2

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

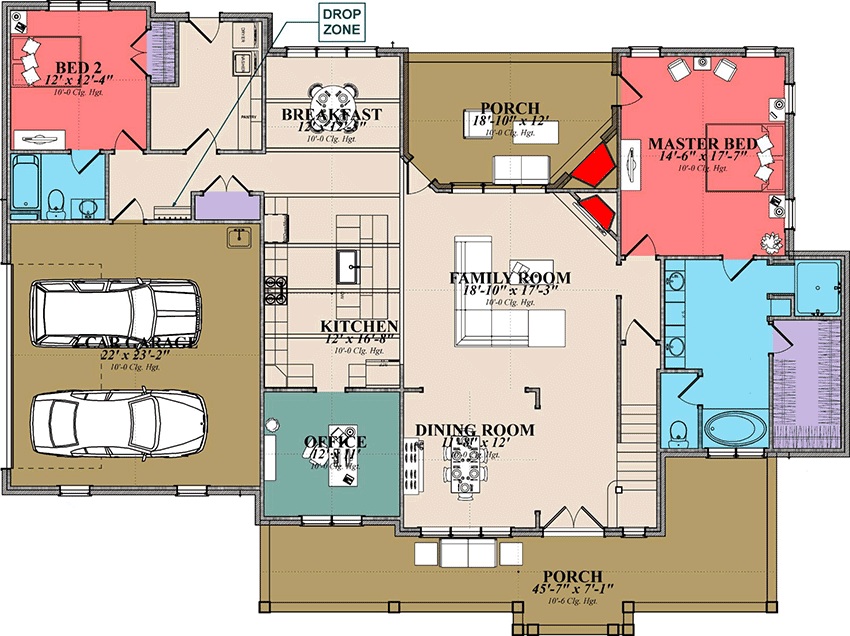

4-Bedroom Traditional Craftsman Home with Enclosed Game Room and Den - 86313HH floor plan - Main Level

2nd Floor

Reverse Floor Plan

4-Bedroom Traditional Craftsman Home with Enclosed Game Room and Den - 86313HH floor plan - 2nd Floor

Plan Details

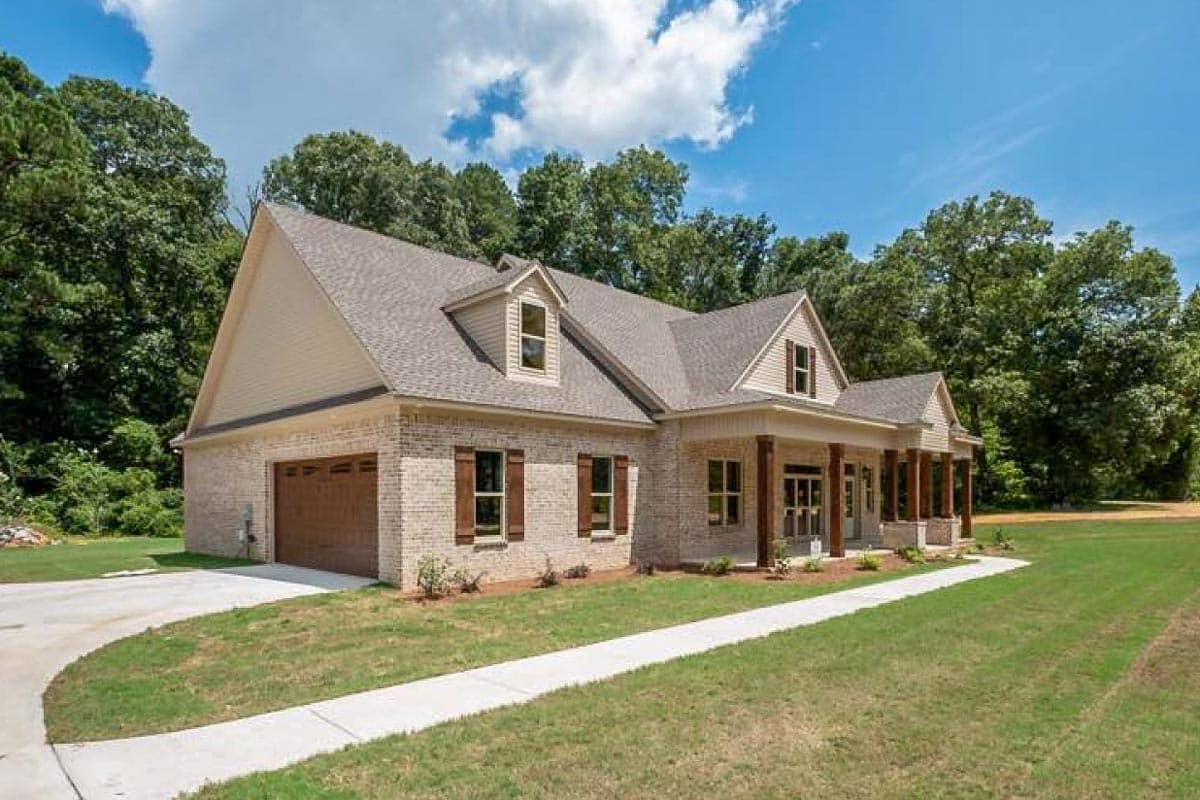

This single-story craftsman home plan features a traditional brick exterior, large covered front porch, double-door front entry, and a 2-car garage.
A welcoming family room with a fireplace is open to the kitchen for clean sightlines and effortless entertaining.

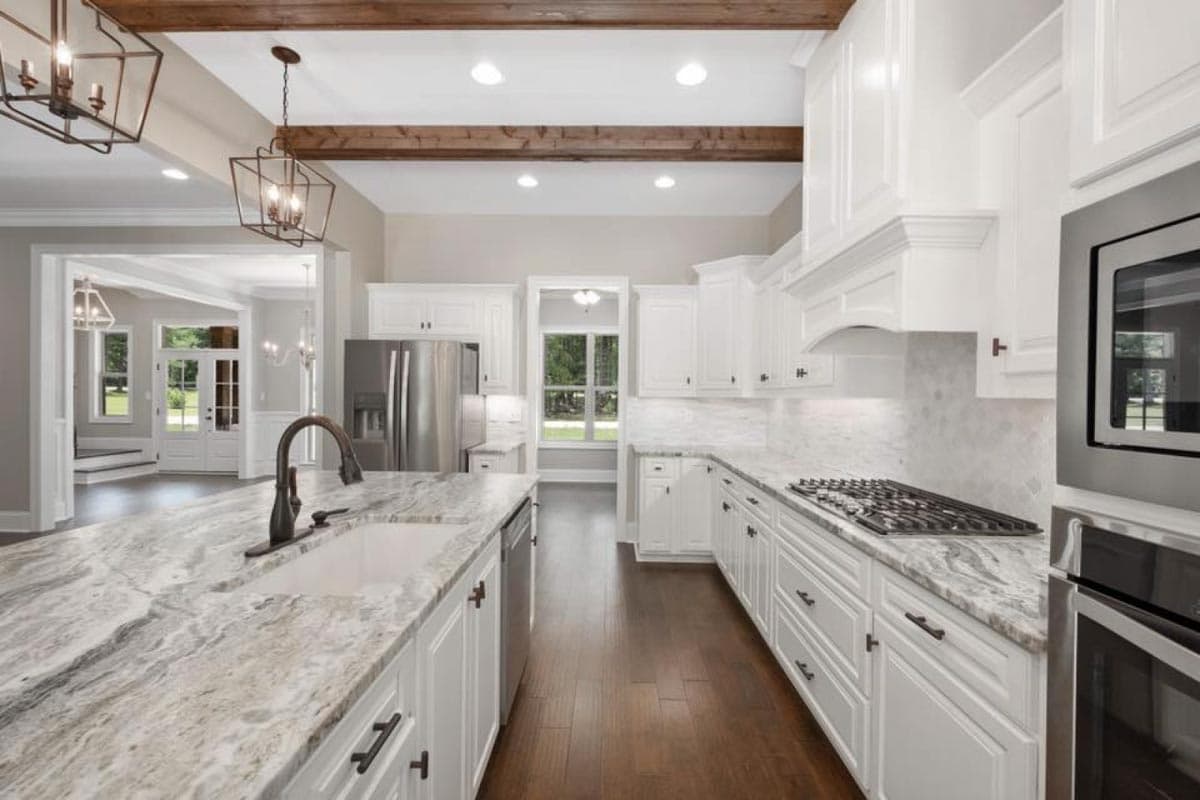

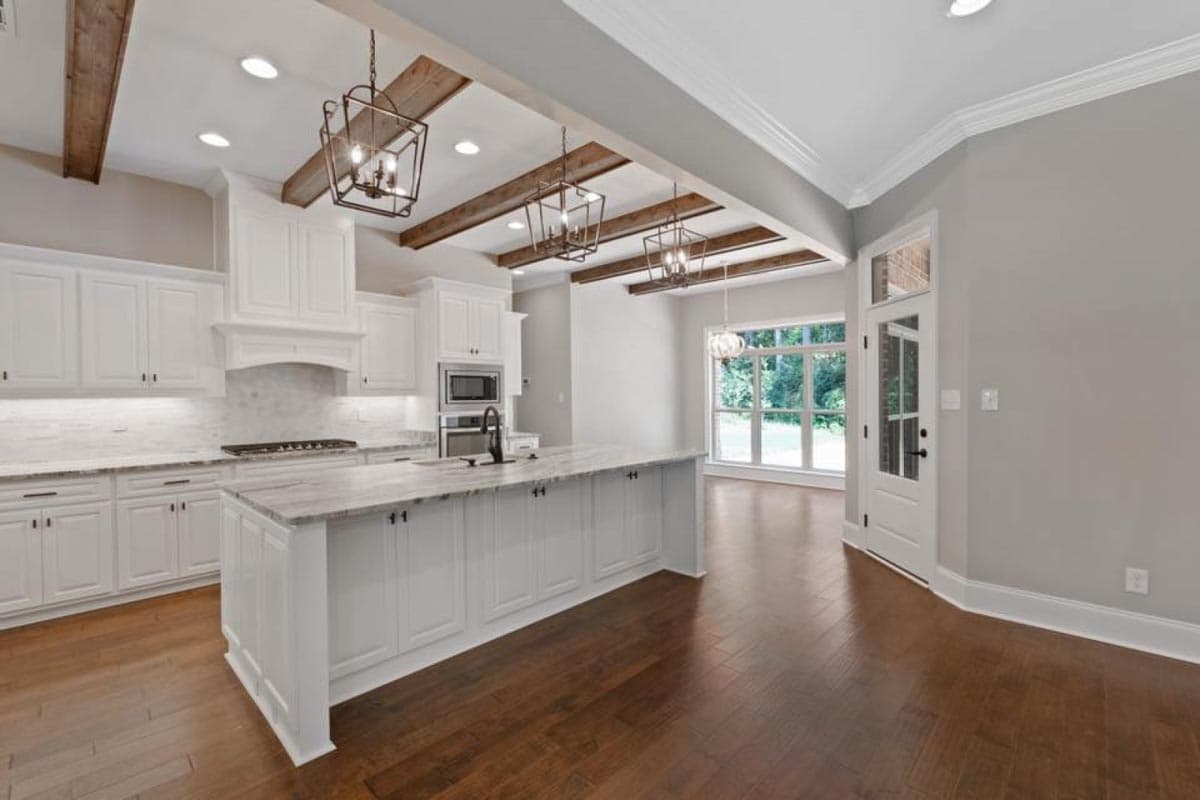

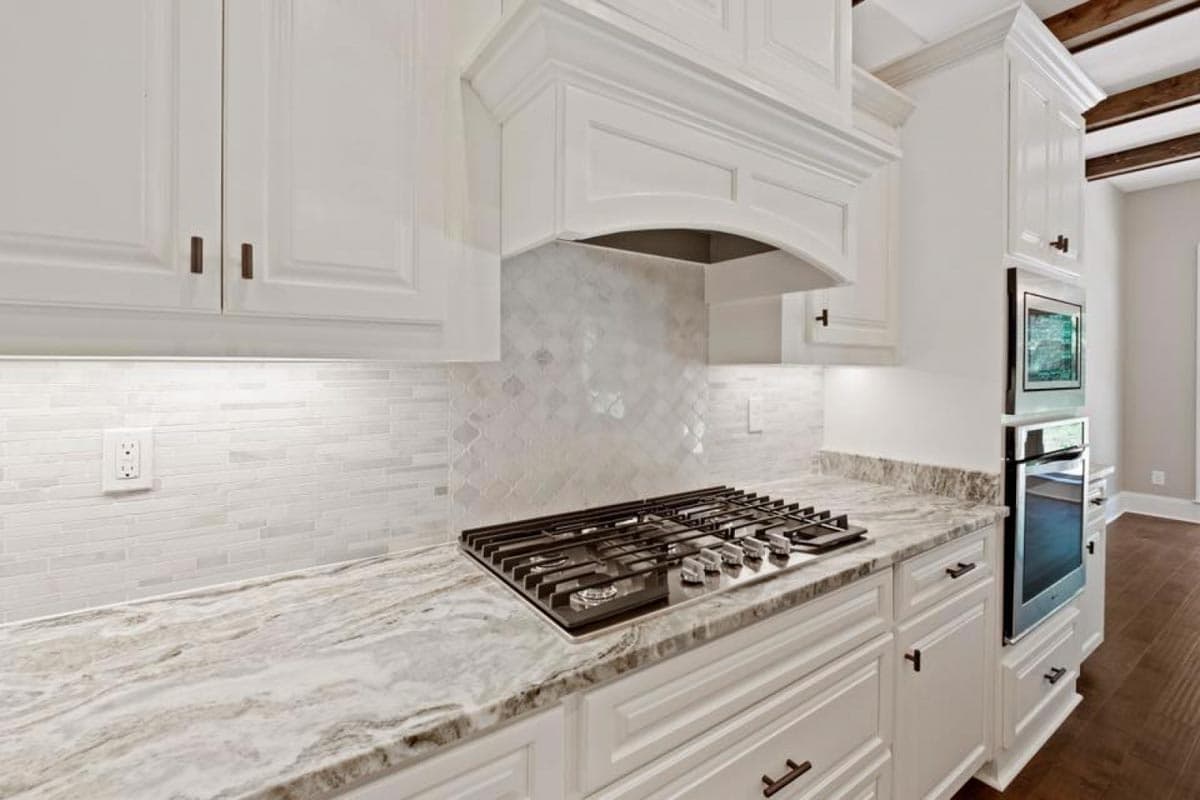

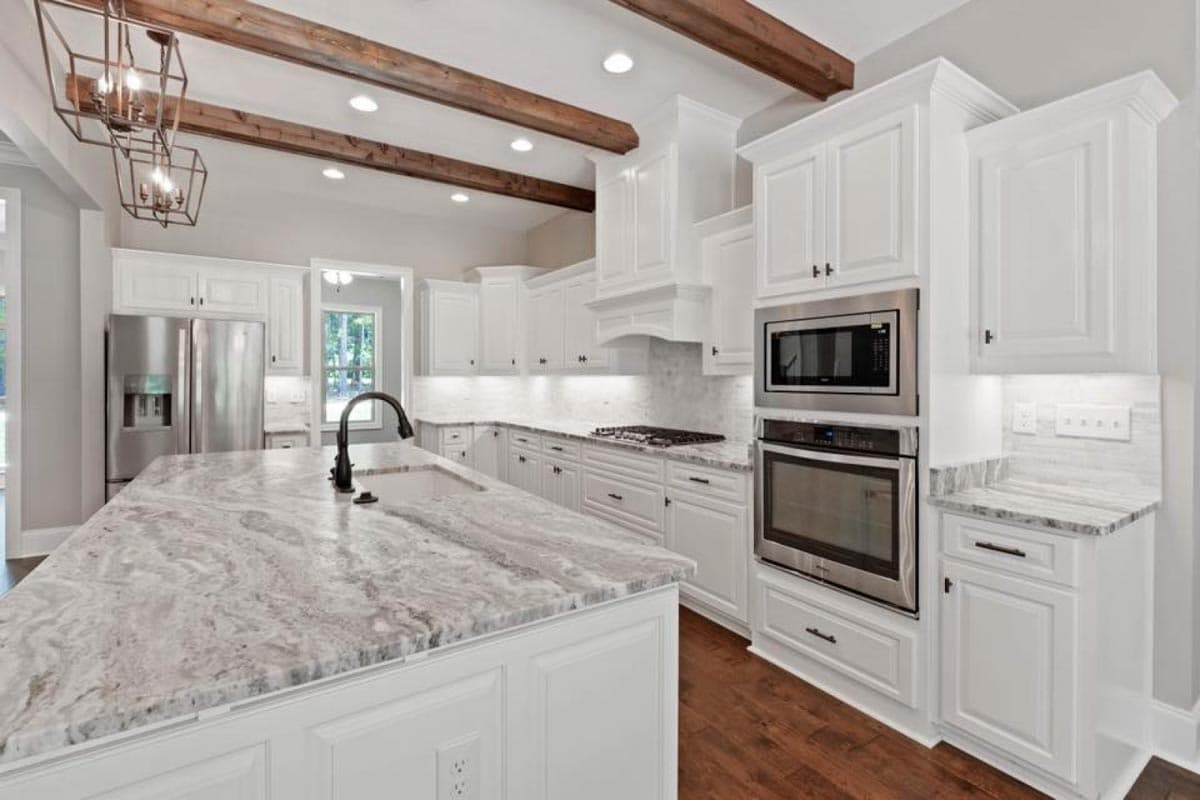

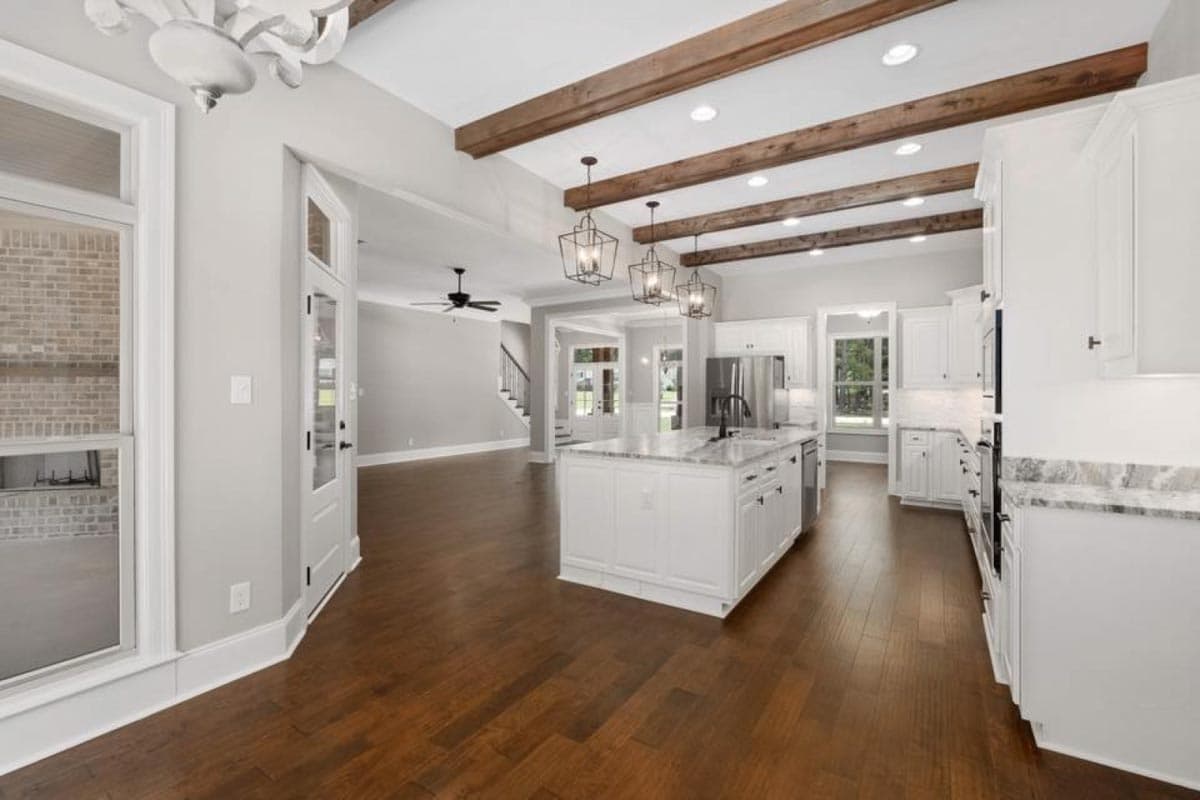

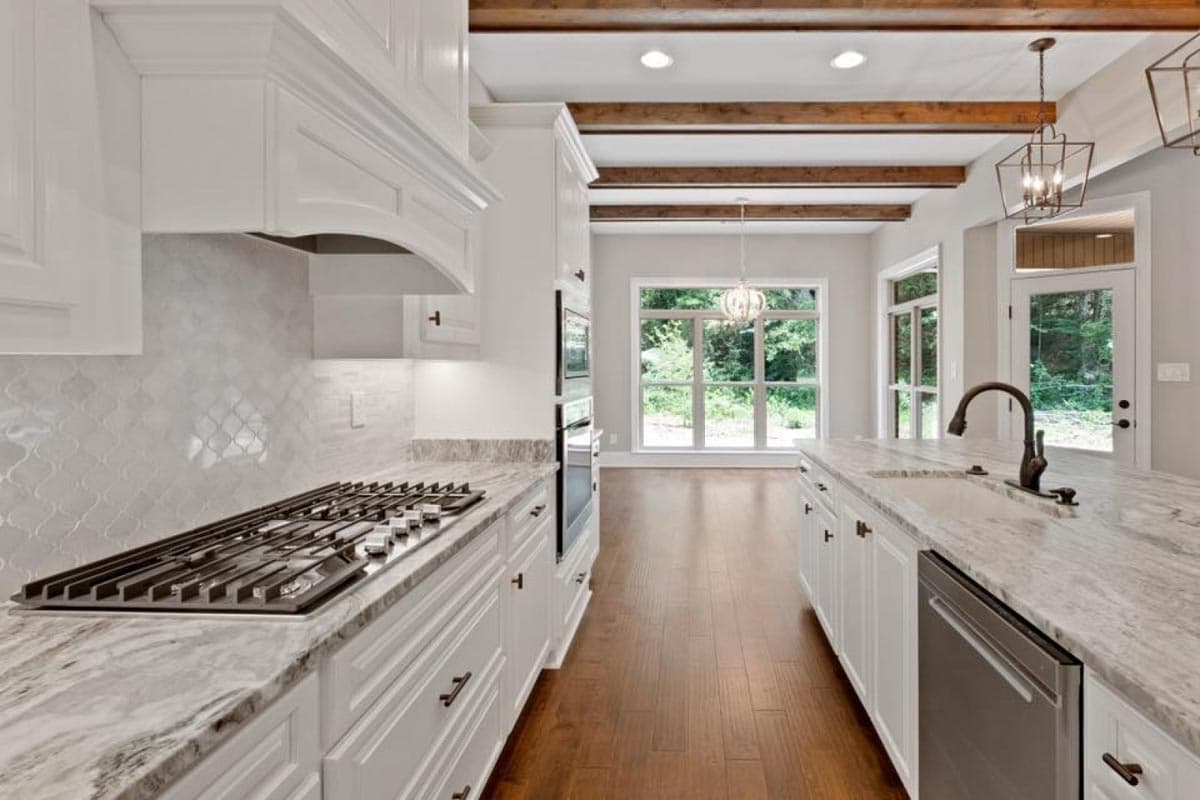

The wraparound kitchen includes an oversized island with a breakfast bar and cozy nook with a backyard view.
Guests will appreciate the privacy and convenience of a main-floor guest suite with a full bath.

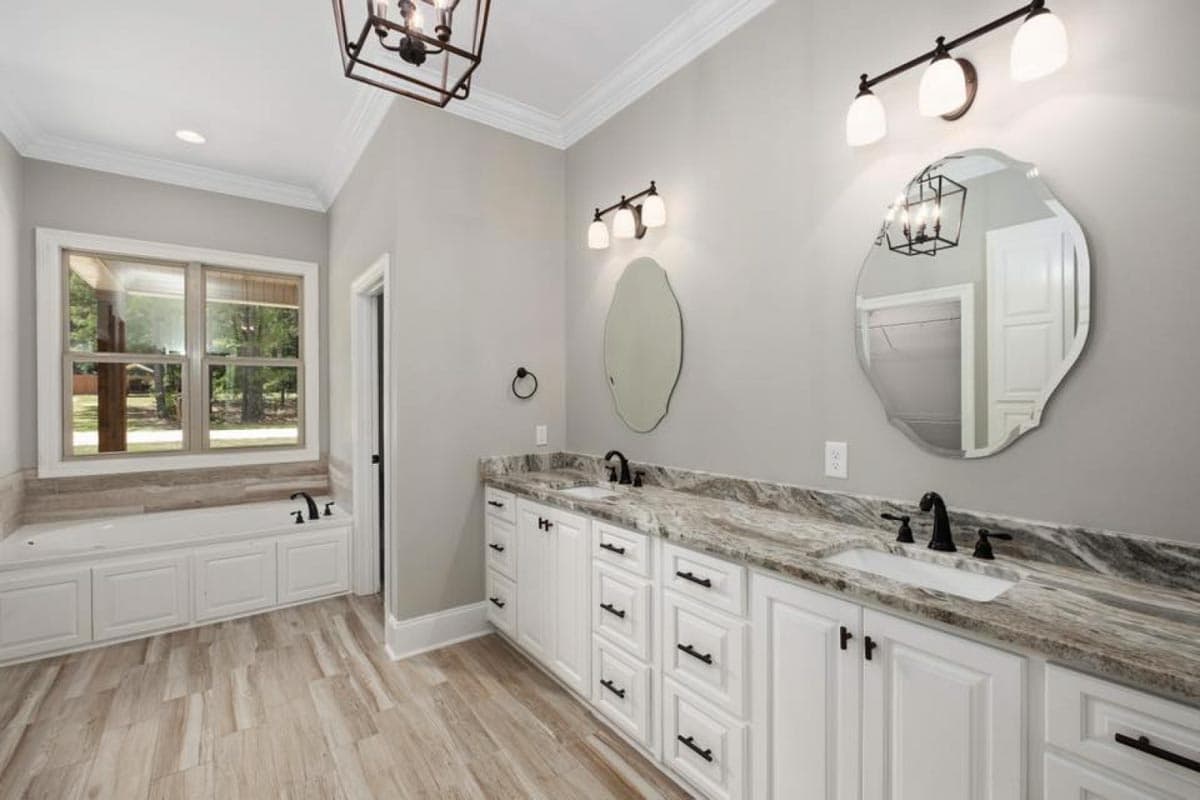

On the opposite side of the home, the main-floor master suite features a generously sized walk-in closet and a 5-piece bath with a double shower.

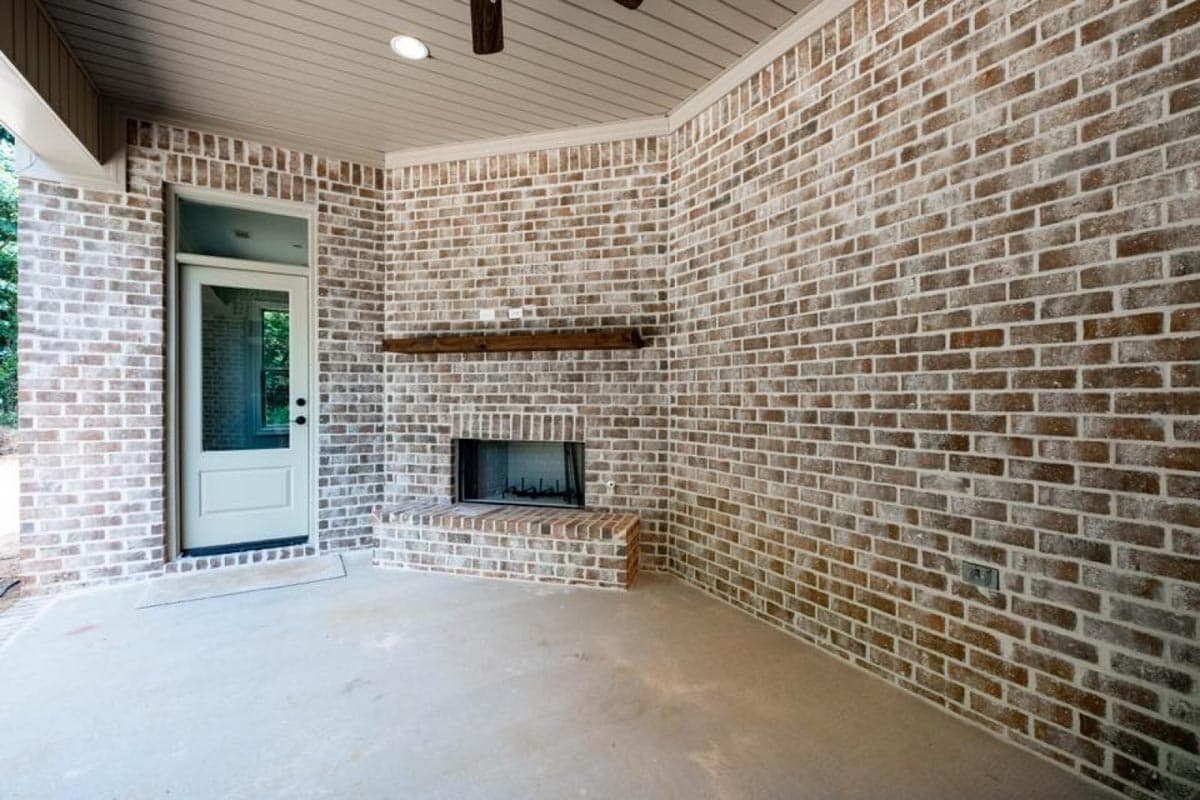

Enjoy outdoor living on the large covered back porch with a fireplace.

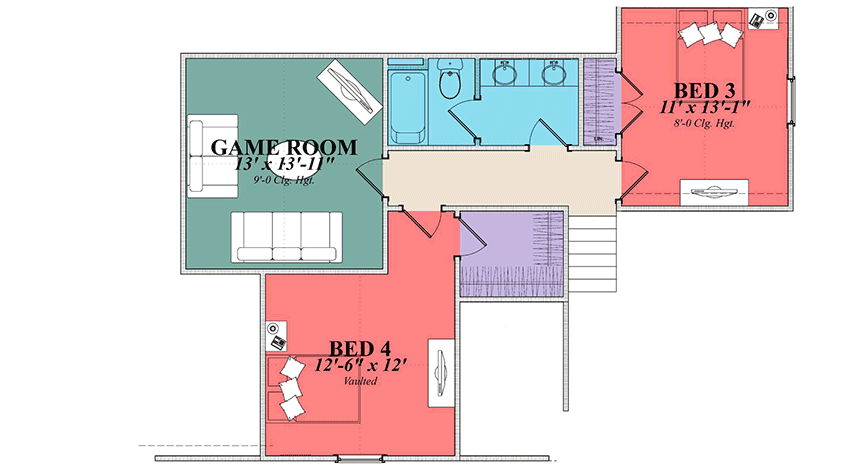

On the second level, discover an enclosed game room, two bedrooms, and a full bath.
Related Plan: Get an alternate upstairs with house plan 86343HH.
NOTE: Please allow 3-10 business days for optional foundations.

What's Included

Cover Sheet
Foundation plans
Elevations - complete with dimensions, ridge heights and special notes
Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
Rafter Plan
Details
Interior Elevations - include applicable cabinetry, electrical and special construction notes
Floor Joist Plan - complete with spans, sizes and direction (if applicable)
Ceiling Joist - complete with spans, sizes and direction
Sections - complete with dimensions, notes and specifications
Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

2,814 sq. ft.

1st Floor:

2,144 sq. ft.

2nd Floor:

570 sq. ft.

Beds/Baths

Bedrooms:

4

Full bathrooms:

3

Foundation Type

Standard Foundations:

Slab

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Dimensions

Width:

73' 11"

Depth:

55' 5"

Max Ridge Height:

27' 11"

Garage

Type:

Attached

Area:

525 sq. ft.

Count:

2 Cars

Entry Location:

Front, Side

Ceiling Heights

Floor / Height:

First Floor / 10' 0"

Roof Details

Primary Pitch:

10 on 12

Architectural Style

Special Features

Master Suite - 1st Floor

Plan Collections

Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.
