Plan 30030RT

4-Bedroom Traditional Farmhouse with Wrap-Around Porch - 2652 Sq Ft

Name: Plan 30030RT: 4-Bedroom Traditional Farmhouse with Wrap-Around Porch - 2652 Sq Ft
Brand: Architectural Designs
SKU: 30030RT
Price: 1395.0 USD
Availability: InStock

Heated S.F.

2,652

Beds

Baths

3.5

Stories

Cars

Floor Plan

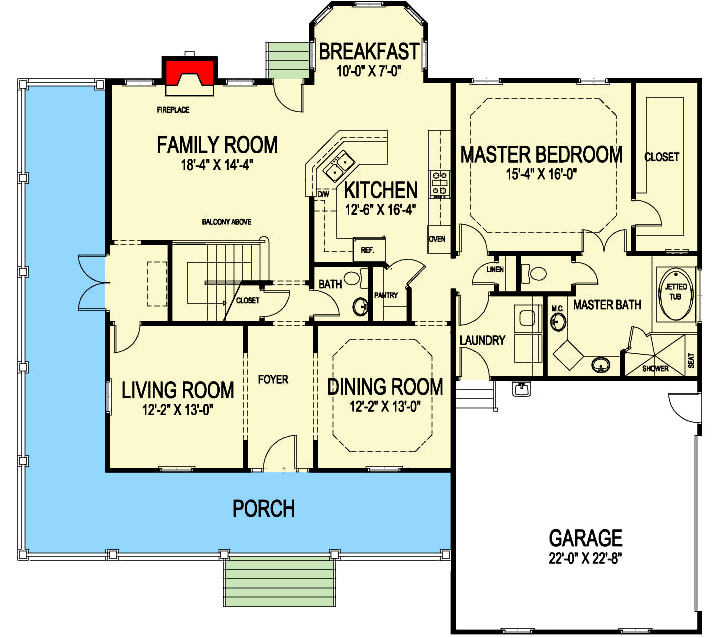

Main Level

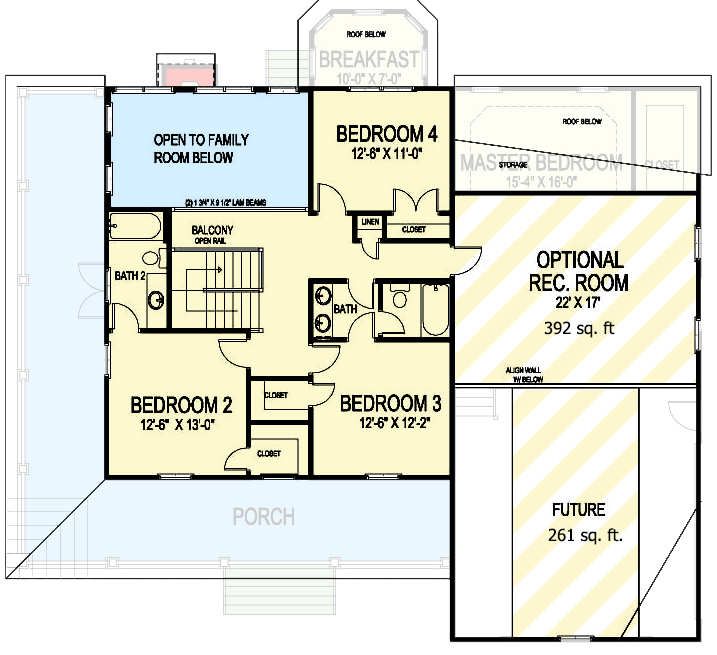

2nd Floor

Plan Details

This 4 bedroom farmhouse plan gives you 2,652 square feet of heated living with an additional 653 square feet of expansion space upstairs (261 above the 2-car 500 square foot garage and 392 square feet adjacent to that space).
Everywhere you turn, you see special design elements like the bar area connecting the family room to the living room.
The stairs are open to the family room which is open to the kitchen allowing for clear communication and views.
A double sink is set in the angled peninsula with seating on the family room and breakfast area side. A roomy pantry is located between the kitchen and the formal dining room.
The master suite is conveniently located on the main floor as is the laundry. Upstairs, a loft overlooks the family room. The three additional bedrooms are all vast in size.
The optional rec room is 392 square feet and the future bonus room is 261 square feet.

What's Included

Title sheet
Standard notes page
Foundation
First floor
Second floor (if applicable)
Roof plan
Elevations (all 4 sides)
General Notes and Details Pages

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
Electrical Plans and Full Building sections
