4-Car Tandem Garage with Covered Storage and 2-Bed Apartment Above

Heated S.F.
1,029
Beds
2
Baths
1.5
Stories
2
Cars
4

Floor Plan

Plan 350138GH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 350138GH

M-F 9am-5pm EST |

1-203-761-8500

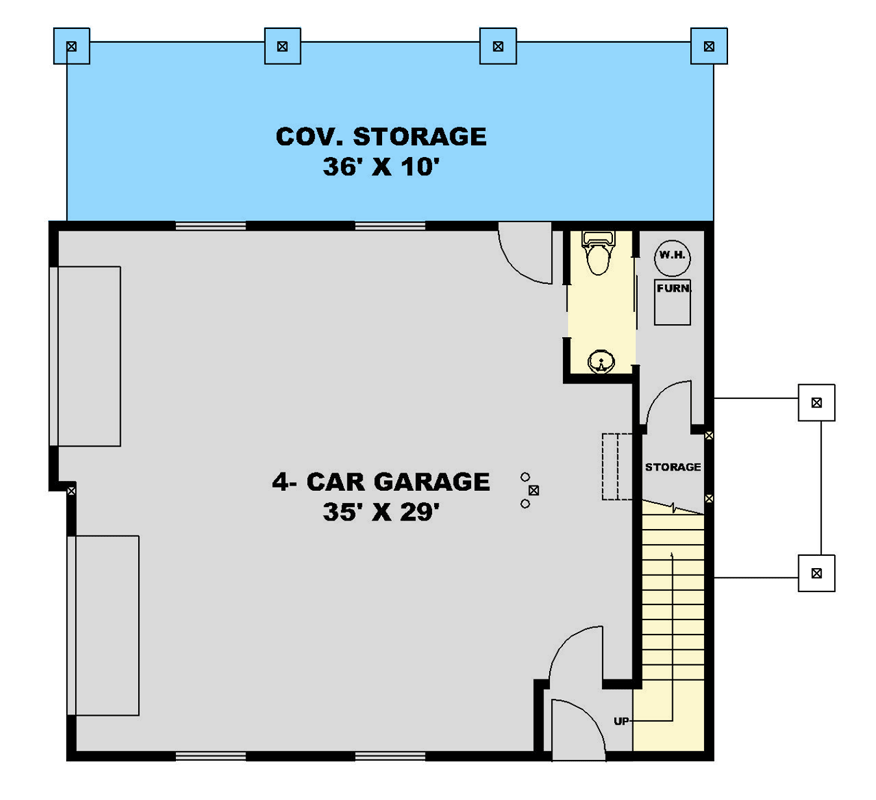

Main Level

Plan 350138GH: 4-Car Tandem Garage with Covered Storage and 2-Bed Apartment Above - Floor Plan - Main Level - Southern, Traditional

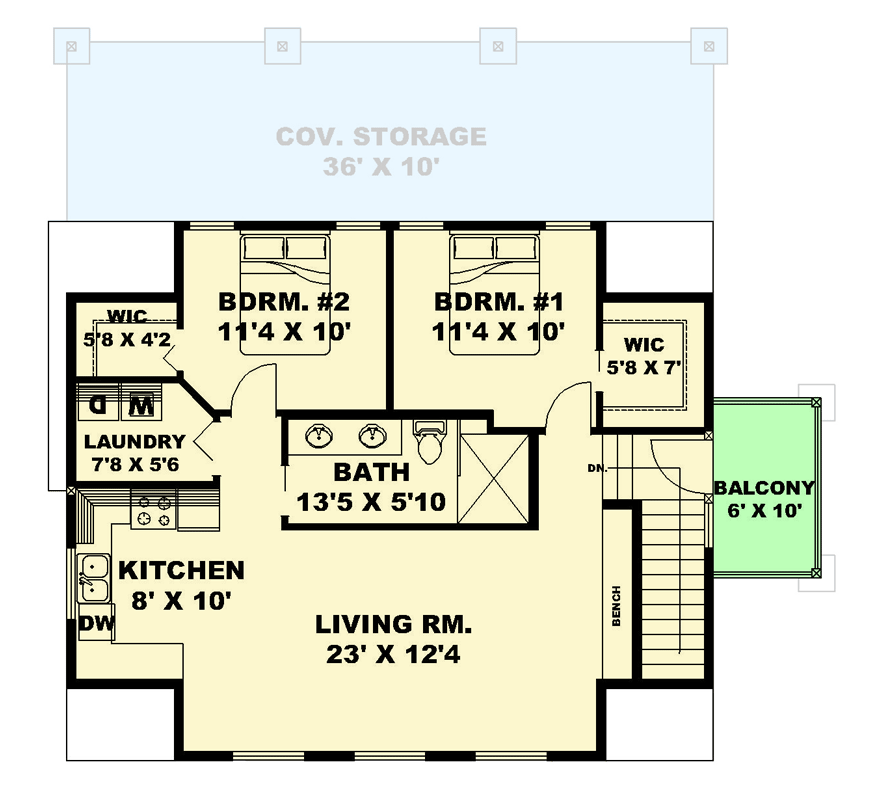

2nd Floor

Plan 350138GH: 4-Car Tandem Garage with Covered Storage and 2-Bed Apartment Above - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

  • This traditional garage with 4-car tadem layout features a separate apartment on the second floor with 1,029 sq. ft. of heated living area including 2 bedrooms with 1 full bath; the main floor is a 987 sq. ft. four-car tandem garage with a half bathroom plus a 360 sq. ft. covered storage area or carport.
  • Head up the interior staircase to the apartment and you’re welcomed by a bright, open-concept living room seamlessly flowing into a well-appointed kitchen, anchored by three front-facing windows that flood the space with natural light.
  • The living area transitions into an efficient kitchen with adjacent laundry/mudroom, while a central corridor leads to the dual-sink full bath and two generously sized bedrooms, ensuring smooth circulation and privacy.
  • The primary bedroom boasts a generous 5'8" x 7' walk-in closet and easy access to the dual-sink bathroom, while the secondary bedroom also enjoys its own walk-in closet for comfortable accommodation.
  • A private 6' x 10' balcony off the apartment offers a peaceful spot for morning coffee, and a 36' x 10' ground-level covered porch/storage area provides versatile outdoor use.

What's Included

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,029 sq. ft.

1st Floor

45 sq. ft.

2nd Floor

984 sq. ft.

Carport

360 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

36' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

987 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

Room

Ceiling Type

Height

Second Floor

Vaulted

5' 4''

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Workshop

Plan Collections

ADU

Square Footage Breakdown

Total Heated Area

1,029 sq. ft.

1st Floor

45 sq. ft.

2nd Floor

984 sq. ft.

Carport

360 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

36' 0"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

987 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

Room

Ceiling Type

Height

Second Floor

Vaulted

5' 4''

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Workshop

Plan Collections

ADU
