Plan 59825ND 4-Family House Plan with Lower Level Bonus Room

7,228 4 101' 0" 47' 9" 8
Print
Compare
...

4-Family House Plan with Lower Level Bonus Room

Plan 59825ND

  • 7,228

    Heated s.f.

  • 4

    Units

  • 101' 0"

    Width

  • 47' 9"

    Depth

  • This multi-family house plan offers 1876 square feet of living space per unit.
  • The first floor features a great room with a fireplace, kitchen with an island bar and dining room.
  • Upstairs are 3 bedrooms and 2 full bathrooms.
  • There’s an optional bonus room downstairs.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

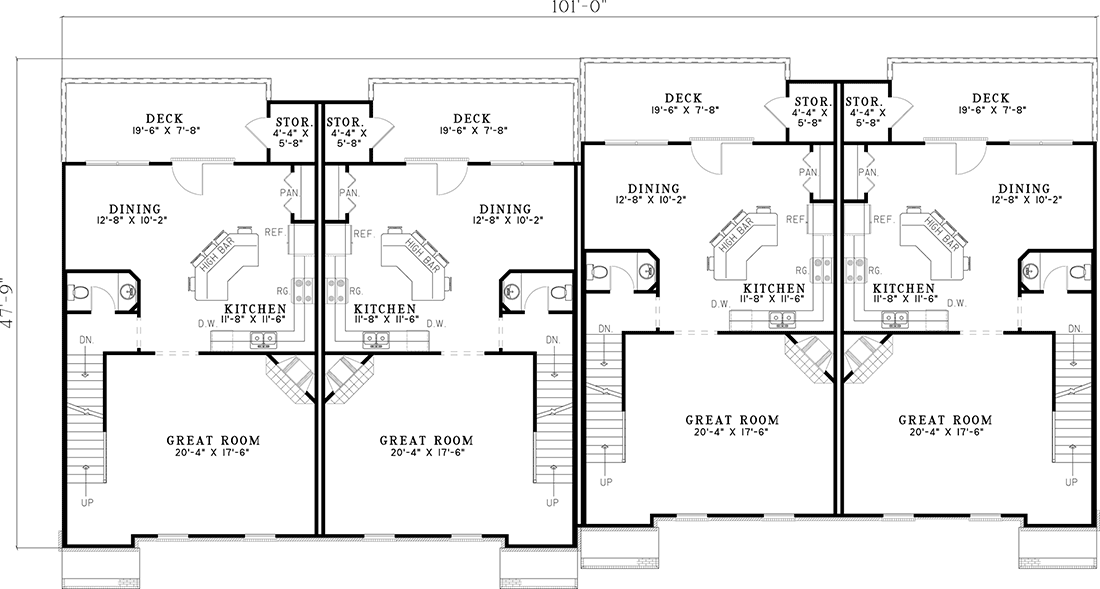

4-Family House Plan with Lower Level Bonus Room - 59825ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

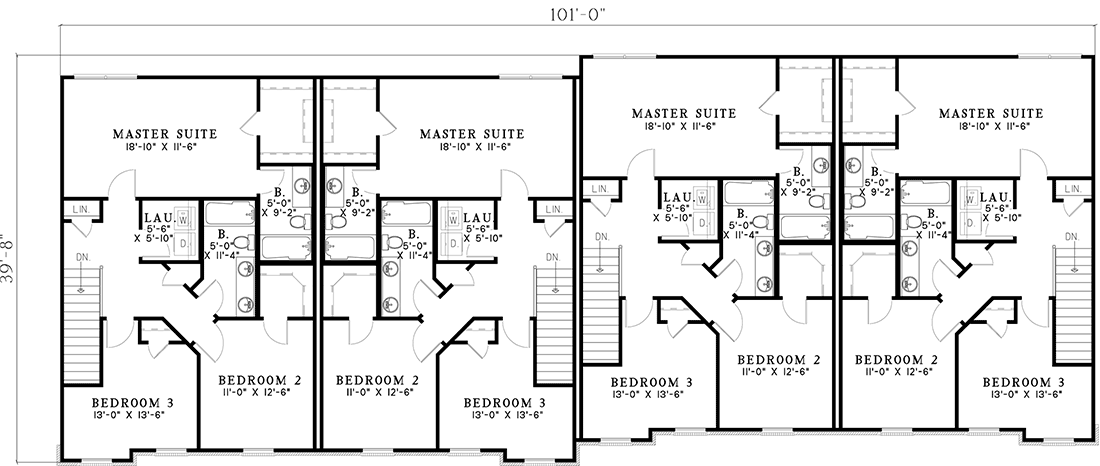

4-Family House Plan with Lower Level Bonus Room - 59825ND floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4-Family House Plan with Lower Level Bonus Room - 59825ND floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 7,228 sq. ft.
  • 1st Floor: 3,692 sq. ft.
  • 2nd Floor: 3,536 sq. ft.
  • Bonus: 1,416 sq. ft.
  • Entry: 56 sq. ft.

Beds/Baths

  • Bedrooms: 10
  • Full bathrooms: 8
  • Half bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 101' 0"
  • Depth: 47' 9"
  • Max ridge height: 45' 0"

Garage

  • Type: Drive Under
  • Area: 2240 sq. ft.
  • Count: 8 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Special features

Plan Collections

4-Family House Plan with Lower Level Bonus Room

  • 7,228

    Heated s.f.

  • 4

    Units

  • 101' 0"

    Width

  • 47' 9"

    Depth

Buy This Plan
  • PDF - Single-Build $2,050
  • 5 Sets $2,150
  • 5 Sets + PDF $2,400
  • CAD - Single-Build $4,100
  • View all purchase option online

About This Plan

  • This multi-family house plan offers 1876 square feet of living space per unit.
  • The first floor features a great room with a fireplace, kitchen with an island bar and dining room.
  • Upstairs are 3 bedrooms and 2 full bathrooms.
  • There’s an optional bonus room downstairs.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,228 sq. ft.
  • 1st Floor: 3,692 sq. ft.
  • 2nd Floor: 3,536 sq. ft.
  • Bonus: 1,416 sq. ft.
  • Entry: 56 sq. ft.

Beds/Baths

  • Bedrooms: 10
  • Full bathrooms: 8
  • Half bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 101' 0"
  • Depth: 47' 9"
  • Max ridge height: 45' 0"

Garage

  • Type: Drive Under
  • Area: 2240 sq. ft.
  • Count: 8 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
