Plan 666240RAF

4-Family Modern Scandinavian Style House Plan with 2 Bed Units Under 1700 Sq Ft

Heated S.F.
6,696
Units
4
Width
Depth

Floor Plan

Plan 666240RAF

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 666240RAF

M-F 9am-5pm EST |

1-203-761-8500

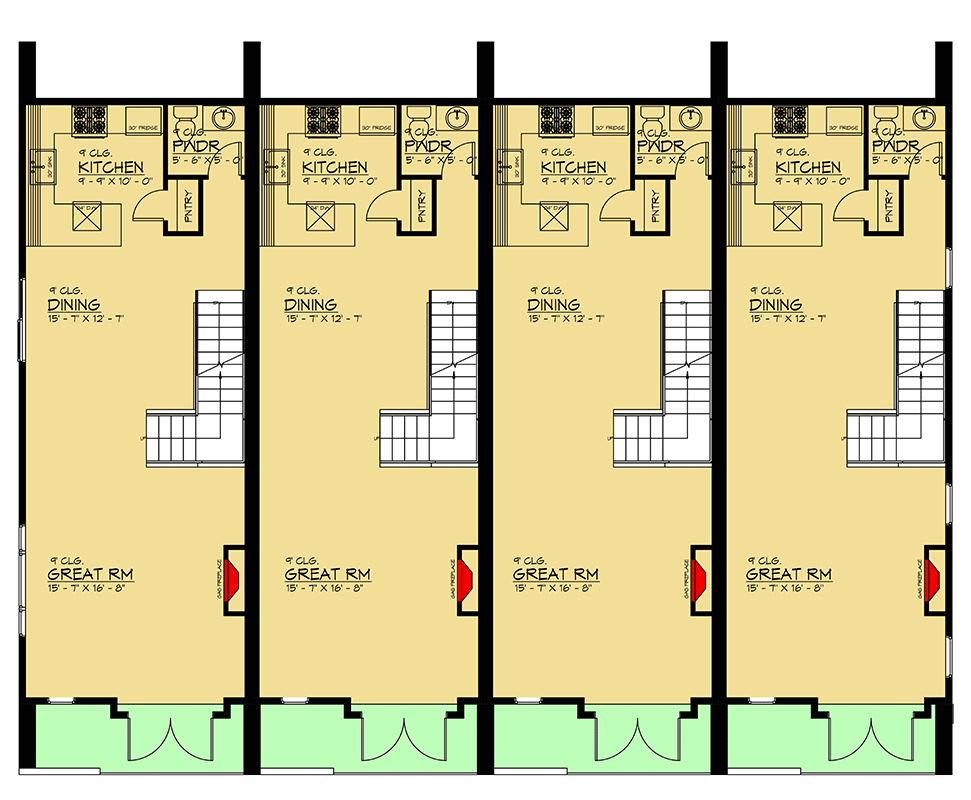

Main Level

Plan 666240RAF: 4-Family Modern Scandinavian Style House Plan with 2 Bed Units Under 1700 Sq Ft - Floor Plan - Main Level

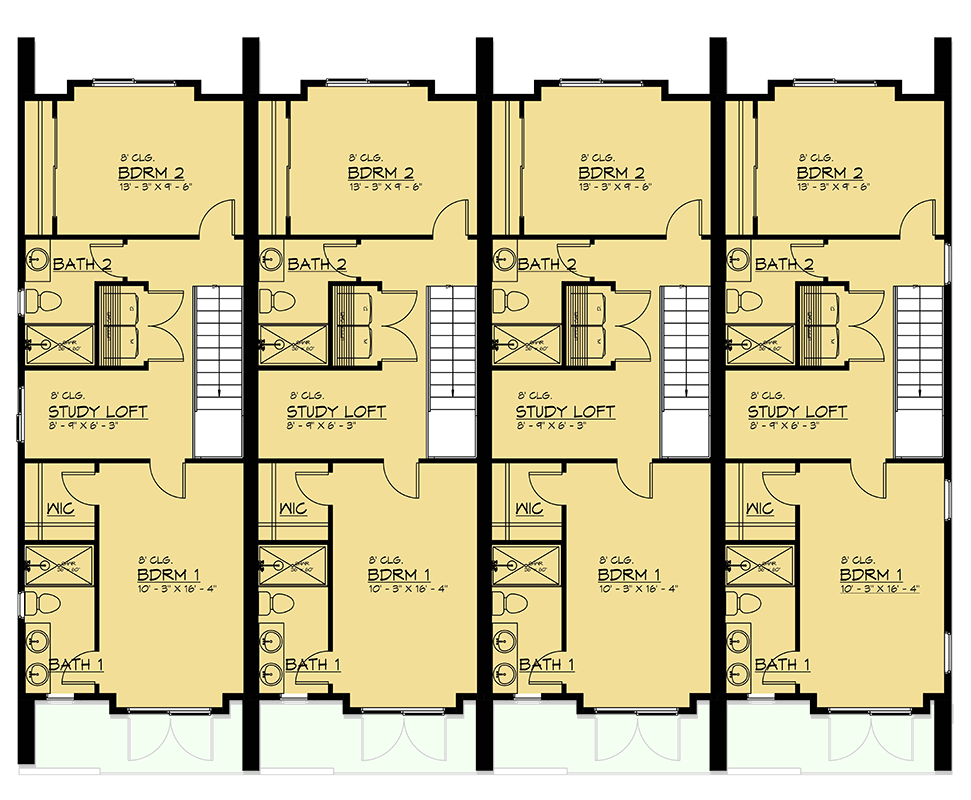

2nd Floor

Plan 666240RAF: 4-Family Modern Scandinavian Style House Plan with 2 Bed Units Under 1700 Sq Ft - Floor Plan - 2nd Floor

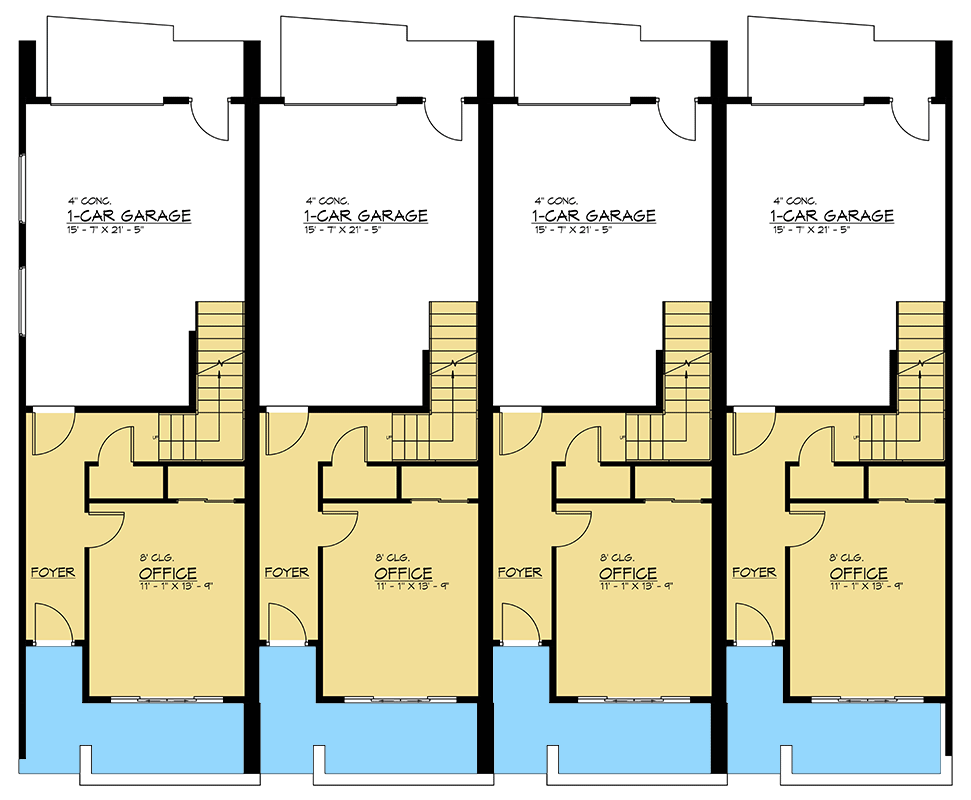

Lower Level

Plan 666240RAF: 4-Family Modern Scandinavian Style House Plan with 2 Bed Units Under 1700 Sq Ft - Floor Plan - Lower Level

Plan Details

  • This 4-family house plan has a modern Scandinavian aesthetic gives you 1,674 square foot 2-bed units with living spread across three levels.
  • The ground level has a 1-car (369 square foot garage) and a home office.
  • The main floor is open concept with a great room with fireplace in front, a dining area in the middle and a C-shaped kitchen with peninsula seating in back. There is a conveniently located powder room in back as well.
  • Upstairs has the bedrooms - each with access to its own bathroom - split front and back. They are separated by a study loft and laundry.
Unit A
Heated Area
1,674Sq. Ft.
322 Sq. Ft. LL
667 Sq. Ft. 1st
685 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
369 Sq. Ft.
Dimensions
16'width
52'depth
34'height
Unfinished Areas
369 Sq. Ft. Garage
Unit B
Heated Area
1,674Sq. Ft.
322 Sq. Ft. LL
667 Sq. Ft. 1st
685 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
369 Sq. Ft.
Dimensions
16'width
52'depth
34'height
Unfinished Areas
369 Sq. Ft. Garage
Unit C
Heated Area
1,674Sq. Ft.
322 Sq. Ft. LL
667 Sq. Ft. 1st
685 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
369 Sq. Ft.
Dimensions
16'width
52'depth
34'height
Unfinished Areas
369 Sq. Ft. Garage
Unit D
Heated Area
1,674Sq. Ft.
322 Sq. Ft. LL
667 Sq. Ft. 1st
2740 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
369 Sq. Ft.
Dimensions
16'width
52'depth
34'height
Unfinished Areas
369 Sq. Ft. Garage

What's Included

  • Cover Sheet with plan info
  • General Notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

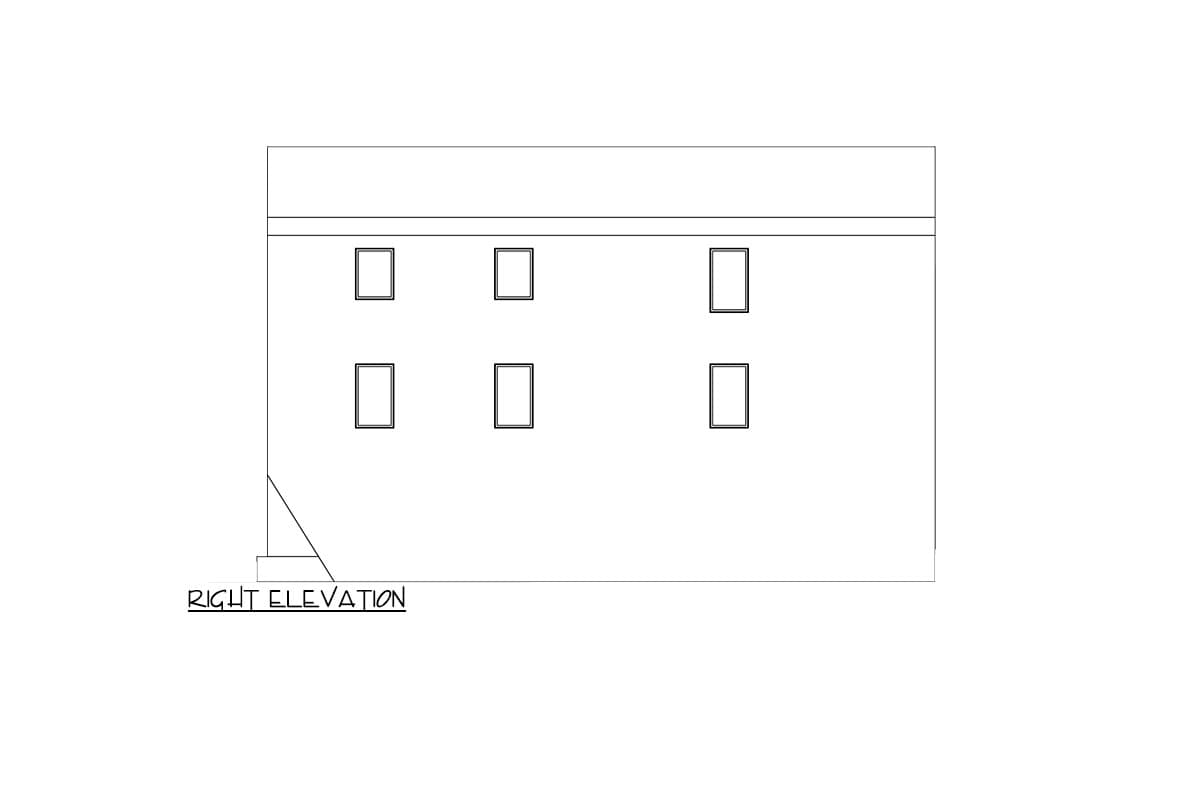

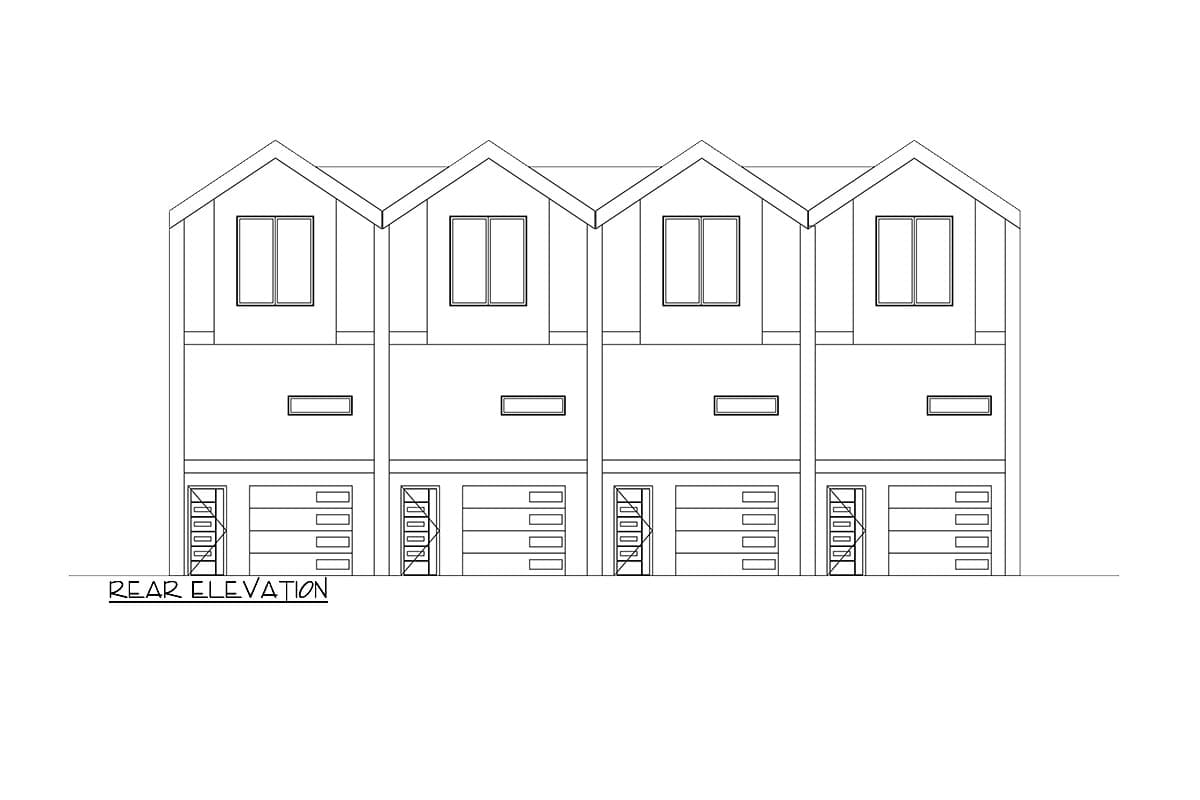

  • Elevations
  • Building Cross Section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans  - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

6,696 sq. ft.

Lower Level

1,288 sq. ft.

1st Floor

2,668 sq. ft.

2nd Floor

2,740 sq. ft.

Porch, Front

404 sq. ft.

Deck

296 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 3"

Depth

52' 0"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

1476 sq. ft.

Count

4 Cars

Entry Location

Rear

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Special Features

Laundry - Upstairs

Library/Study

Loft

Square Footage Breakdown

Total Heated Area

6,696 sq. ft.

Lower Level

1,288 sq. ft.

1st Floor

2,668 sq. ft.

2nd Floor

2,740 sq. ft.

Porch, Front

404 sq. ft.

Deck

296 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 3"

Depth

52' 0"

Max Ridge Height

34' 0"

Garage

Type

Attached

Area

1476 sq. ft.

Count

4 Cars

Entry Location

Rear

Ceiling Heights

Lower Level

8'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Special Features

Laundry - Upstairs

Library/Study

Loft
