Plan 52007HZ

4 or 5 Bedroom Modern Transitional House Plan with Vaulted Living and 3-Car Garage

Name: Plan 52007HZ: 4 or 5 Bedroom Modern Transitional House Plan with Vaulted Living and 3-Car Garage
Brand: Architectural Designs
SKU: 52007HZ
Price: 1188.51 USD
Availability: InStock

Heated S.F.

3,340

Beds

4 - 5

Baths

4.5

Stories

Cars

Floor Plan

Main Level

Basement Stairs Location

Plan Details

This 3,340 square foot home blends modern Transitional styling with a split-bedroom layout, offering 4 to 5 bedrooms, 4 full bathrooms, 1 half bath, and a spacious 3-car garage totaling 936 sq. ft.
Step inside from the covered front entry into a vaulted open-concept great room with fireplace, seamlessly connected to the kitchen and dining area. A walk-in pantry is tucked conveniently near the garage entry.
The heart of the home is framed by the kitchen’s central island, flowing into the vaulted dining and living spaces. Sliding doors at the rear extend living outdoors.
The primary suite sits apart from secondary bedrooms, creating privacy, and features a five-piece ensuite and a generous walk-in closet. Secondary bedrooms are grouped together, sharing full bathrooms and ample closet space.
A mudroom with built-in bench and laundry access enhances daily functionality.
Also gives you a generous front and rear outdoor living areas ideal for relaxing or entertaining.

What's Included

Cover Sheet with abbreviations, rendering, sheet index
Foundation plan with details

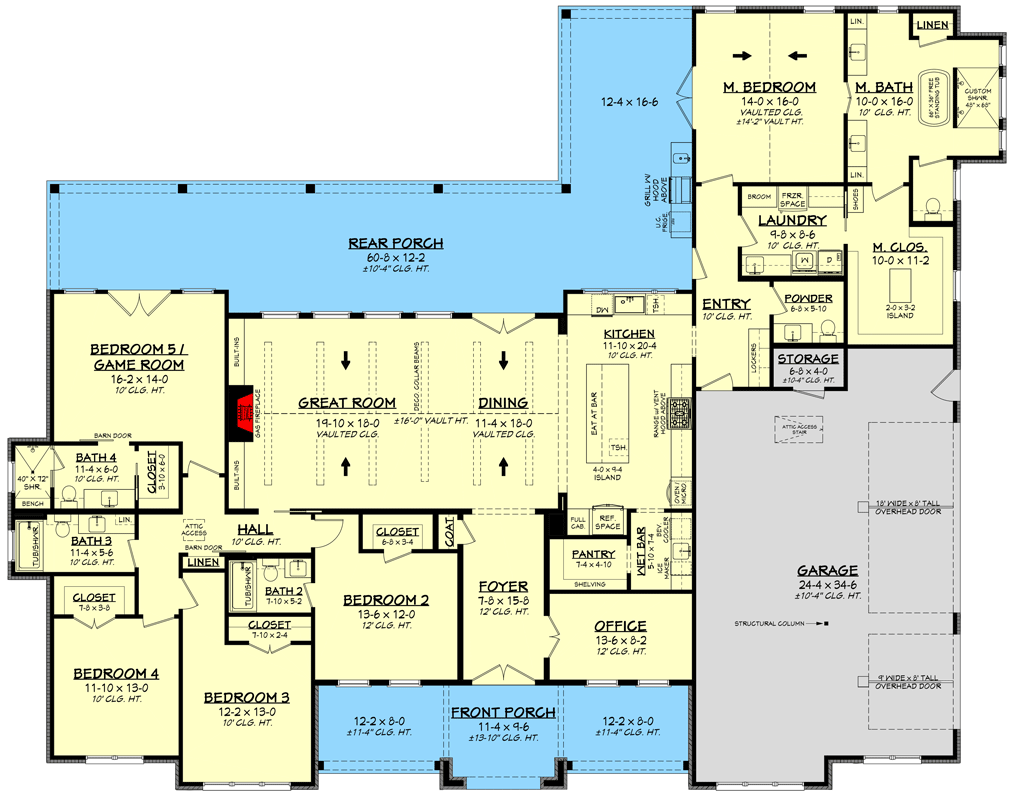

Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

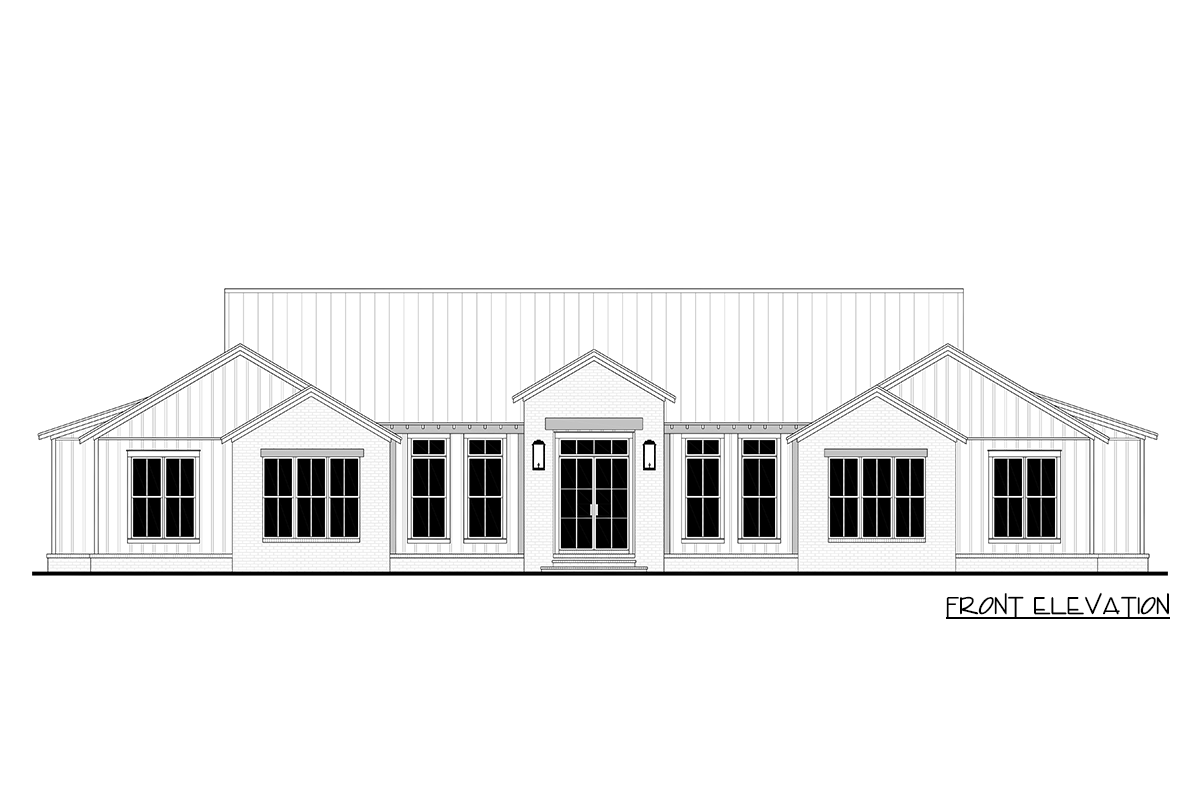

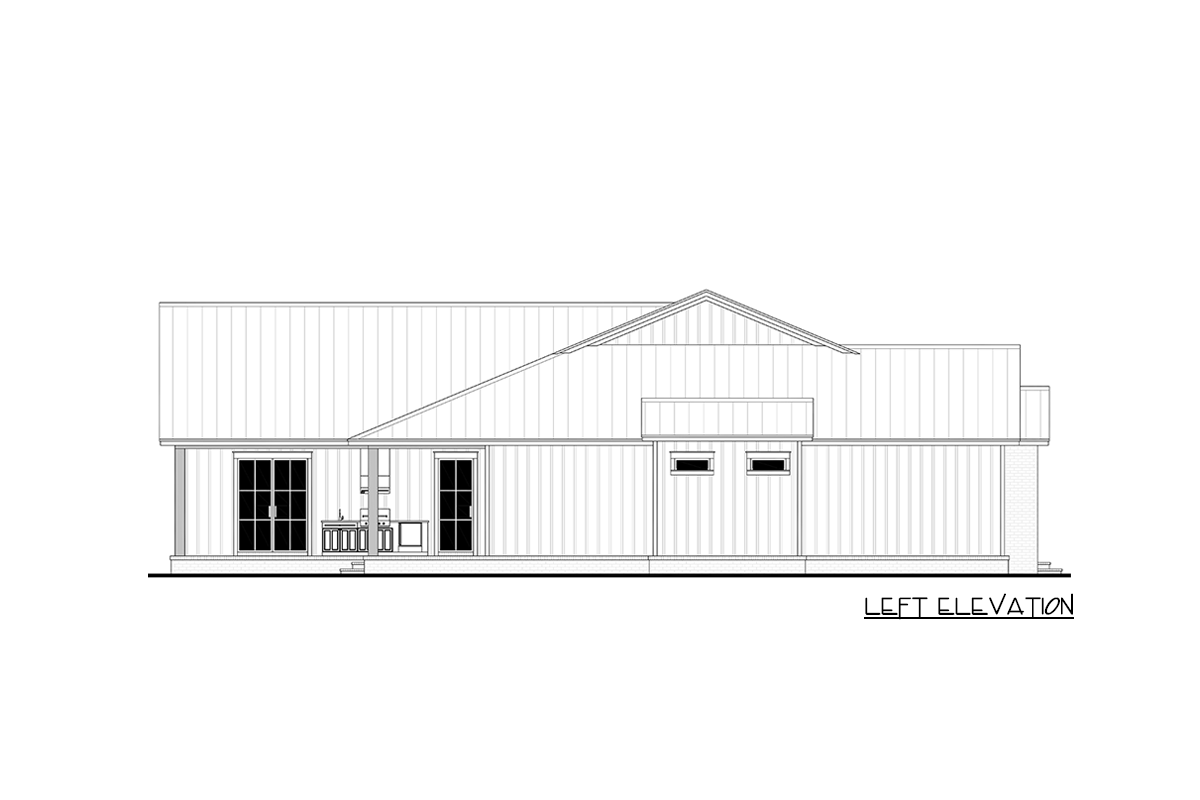

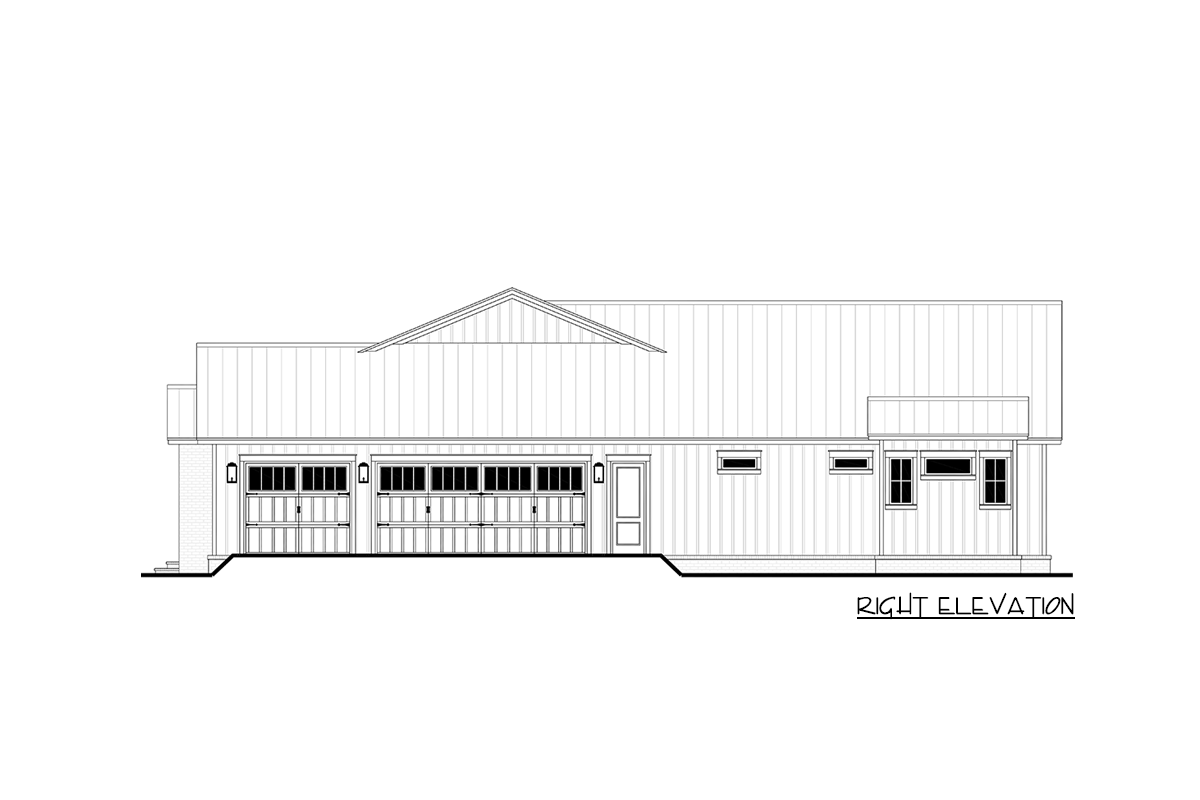

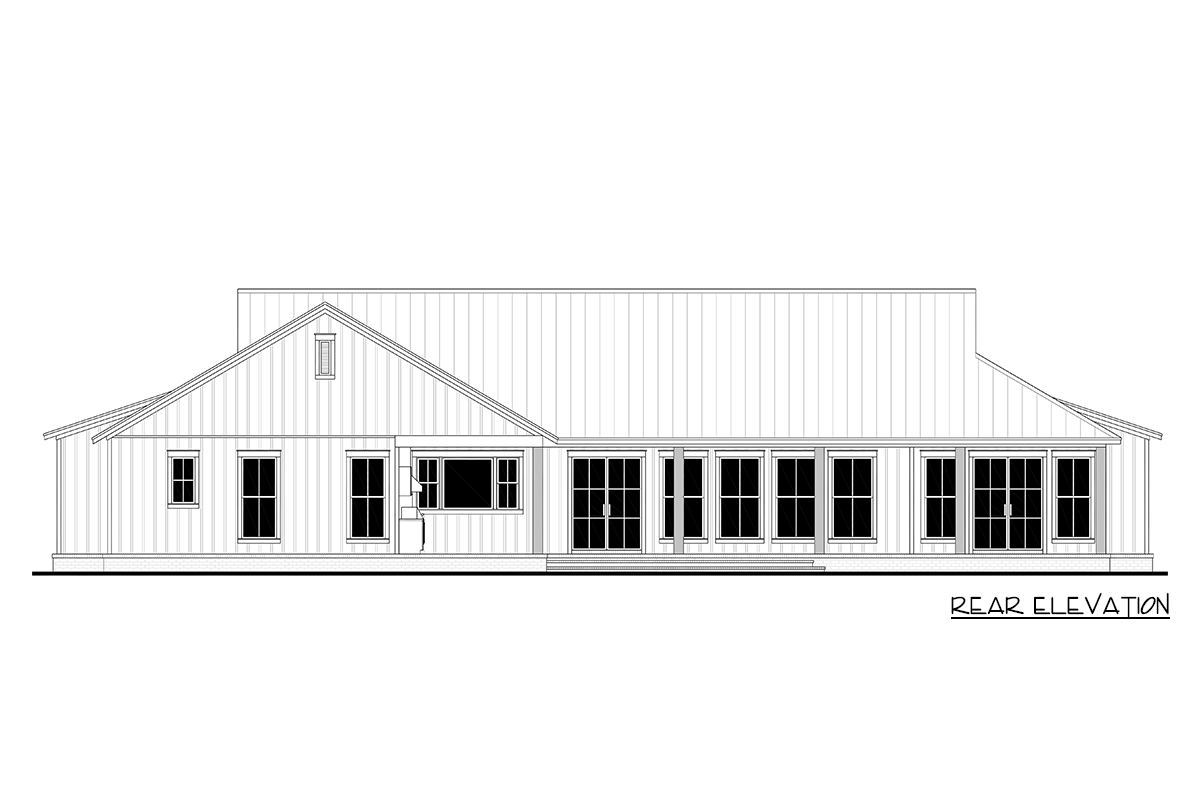

Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Kitchen cabinet views
Electrical plan
Span charts and other misc details

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require
