Plan 38022LB

4 Unit Row Home with Rear Garage

Heated S.F.
4,908
Units
4
Width
Depth

Floor Plan

Plan 38022LB

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 38022LB

M-F 9am-5pm EST |

1-203-761-8500

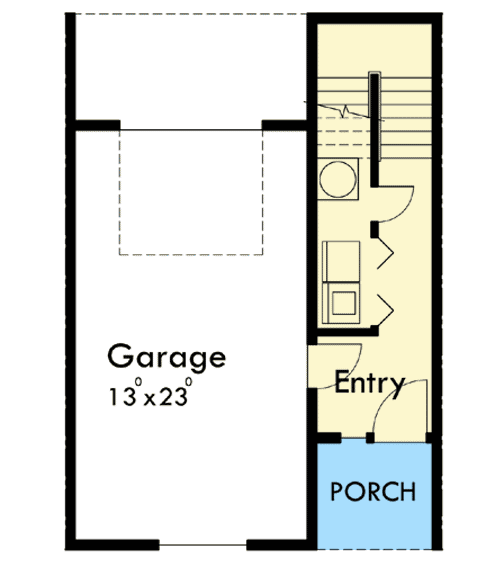

Basement

Plan 38022LB: 4 Unit Row Home with Rear Garage - Floor Plan - Basement

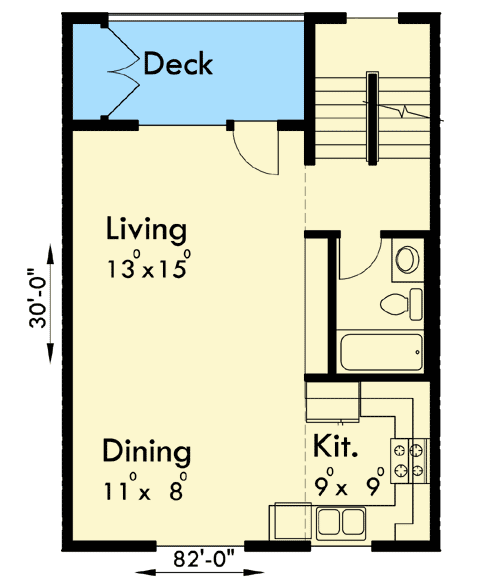

Main Level

Plan 38022LB: 4 Unit Row Home with Rear Garage - Floor Plan - Main Level

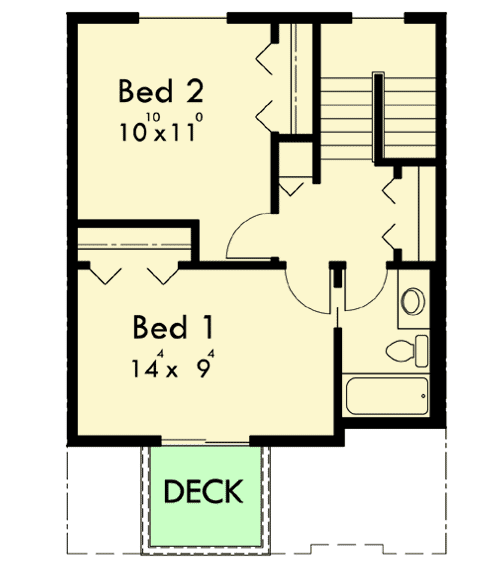

2nd Floor

Plan 38022LB: 4 Unit Row Home with Rear Garage - Floor Plan - 2nd Floor

Plan Details

  • This house plan gives you four units that are all equal in size.
  • Each unit gives you 1,227 square feet of living (180 sq. ft. on the lower level, 549 sq. ft. on the main floor, and 498 sq. ft. on the upper level) and a 327 square foot garage.
  • The main floor has an open floor plan and access to a covered deck. Upstairs, the front bedroom has a private deck.
Unit A
Heated Area
1,227Sq. Ft.
180 Sq. Ft. LL
498 Sq. Ft. 1st
549 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Cars
Drive Under
327 Sq. Ft.
Dimensions
20' 6"width
30'depth
32' 10"height
Unfinished Areas
327 Sq. Ft. Garage
Unit B
Heated Area
1,227Sq. Ft.
180 Sq. Ft. LL
549 Sq. Ft. 1st
498 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Cars
Drive Under
327 Sq. Ft.
Dimensions
20' 6"width
30'depth
32' 10"height
Unfinished Areas
327 Sq. Ft. Garage
Unit C
Heated Area
1,227Sq. Ft.
120 Sq. Ft. LL
549 Sq. Ft. 1st
498 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Cars
Drive Under
329 Sq. Ft.
Dimensions
20' 6"width
30'depth
32' 10"height
Unfinished Areas
329 Sq. Ft. Garage
Unit D
Heated Area
1,227Sq. Ft.
180 Sq. Ft. LL
549 Sq. Ft. 1st
498 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
Cars
Drive Under
329 Sq. Ft.
Dimensions
20' 6"width
30'depth
32' 10"height
Unfinished Areas
329 Sq. Ft. Garage

What's Included

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,908 sq. ft.

Lower Level

720 sq. ft.

1st Floor

2,196 sq. ft.

2nd Floor

1,992 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 0"

Depth

30' 0"

Max Ridge Height

32' 10"

Garage

Type

Drive Under

Area

1308 sq. ft.

Count

4 Cars

Entry Location

Rear

Special Features

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

4,908 sq. ft.

Lower Level

720 sq. ft.

1st Floor

2,196 sq. ft.

2nd Floor

1,992 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

82' 0"

Depth

30' 0"

Max Ridge Height

32' 10"

Garage

Type

Drive Under

Area

1308 sq. ft.

Count

4 Cars

Entry Location

Rear

Special Features

Master Suite - Upstairs
