Plan 680136VR 4039 Sq Ft Lake House Plan with 2-Story Great Room and 2-Car Garage for a Side Sloping Lot

4,039 4 3.5 2 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4039 Sq Ft Lake House Plan with 2-Story Great Room and 2-Car Garage for a Side Sloping Lot

Plan 680136VR

  • 4,039

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

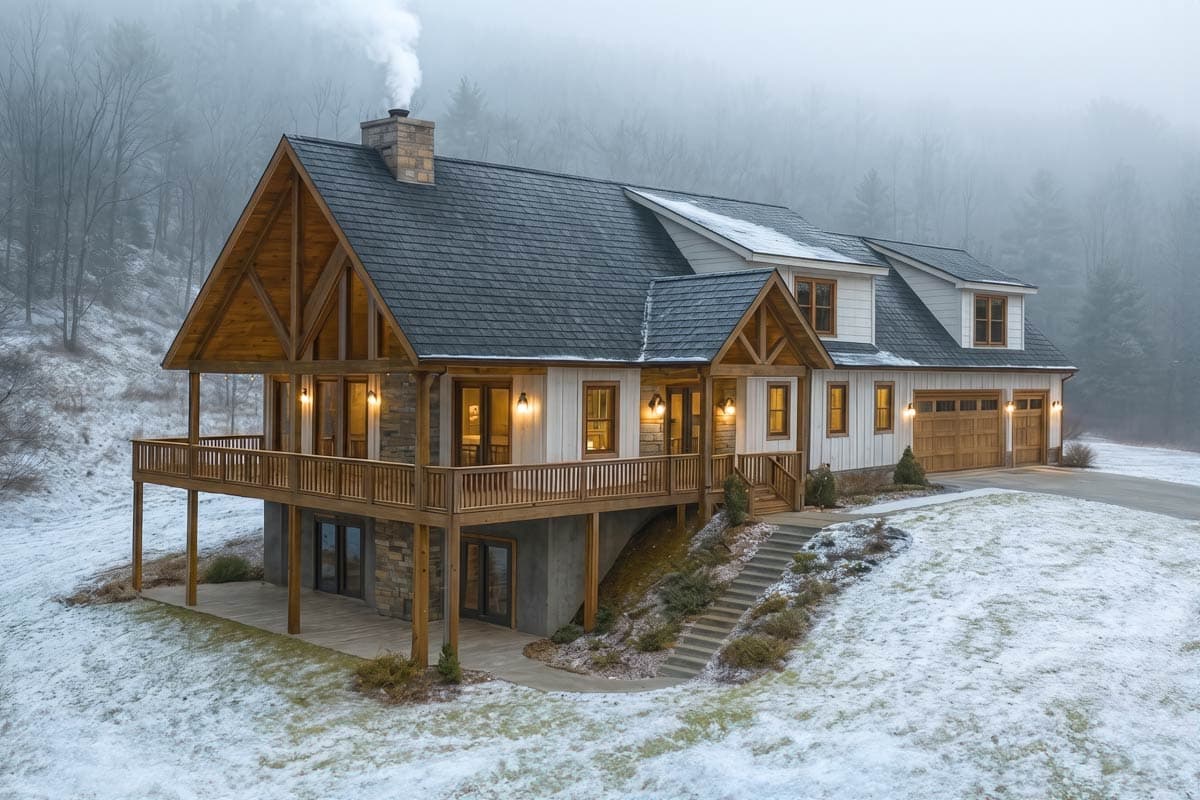

  • Board and batten combined with the timber supports and trusses and the stone-clad fireplace give this side-sloping mountain home plan great curb appela.
  • Double doors are sheltered by the covered entry which opens to reveal a 2-story great room with a beamed ceiling and a fireplace which flows into the kitchen and dining area.
  • The eat-in kitchen includes a multi-purpose island and enjoys easy access to the deck for grilling.
  • The master bedroom is located on the main floor and has a 4-fixture bathroom and a large walk-in closet.
  • At the top of the stairs, a loft with sloped roof looks out across the first floor and Bed 2 has its own bath with walk-in shower. The flex room - 700 square feet; included in the Total Living Area - can be put to many uses.
  • In the lower level, two bedrooms share a bath and an open family area is a great place for games and movies. There's also a dedicated area for mechanicals. Two sets of sliding doors in the family area open to outside.
  • Related Plan: Remove the garage with house plan 68963VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

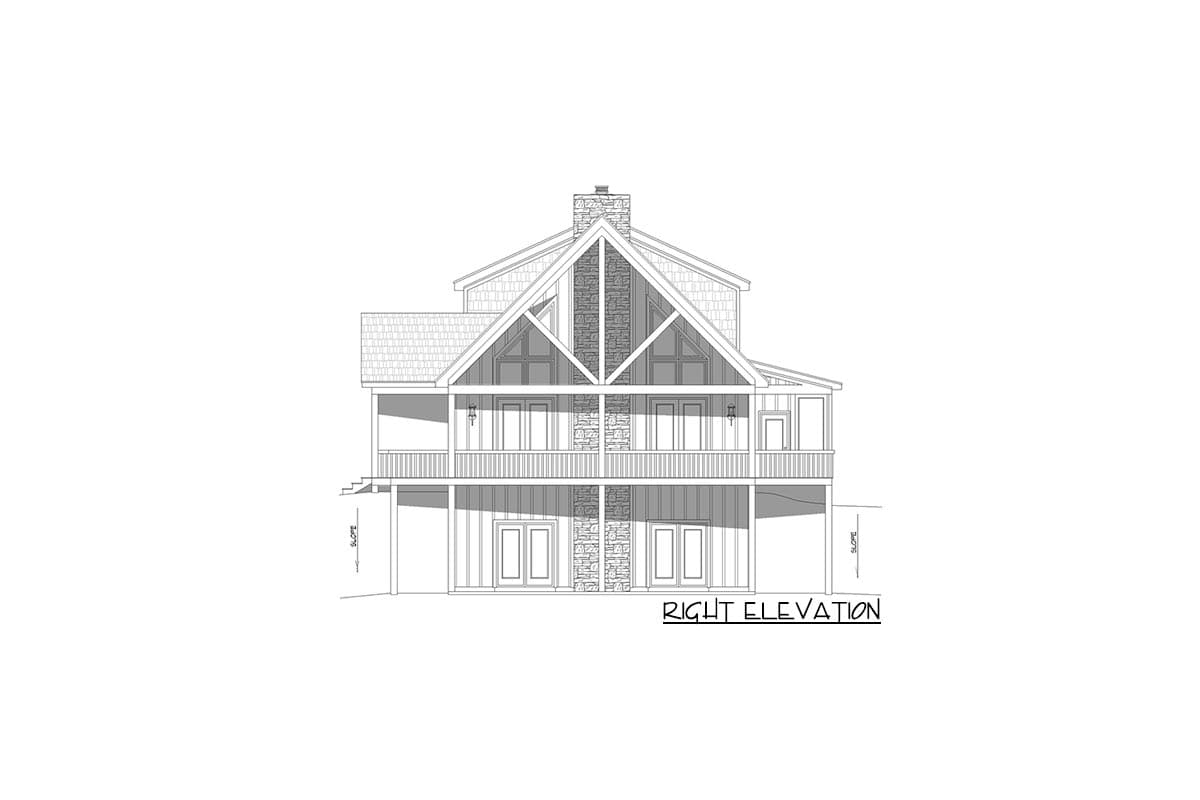

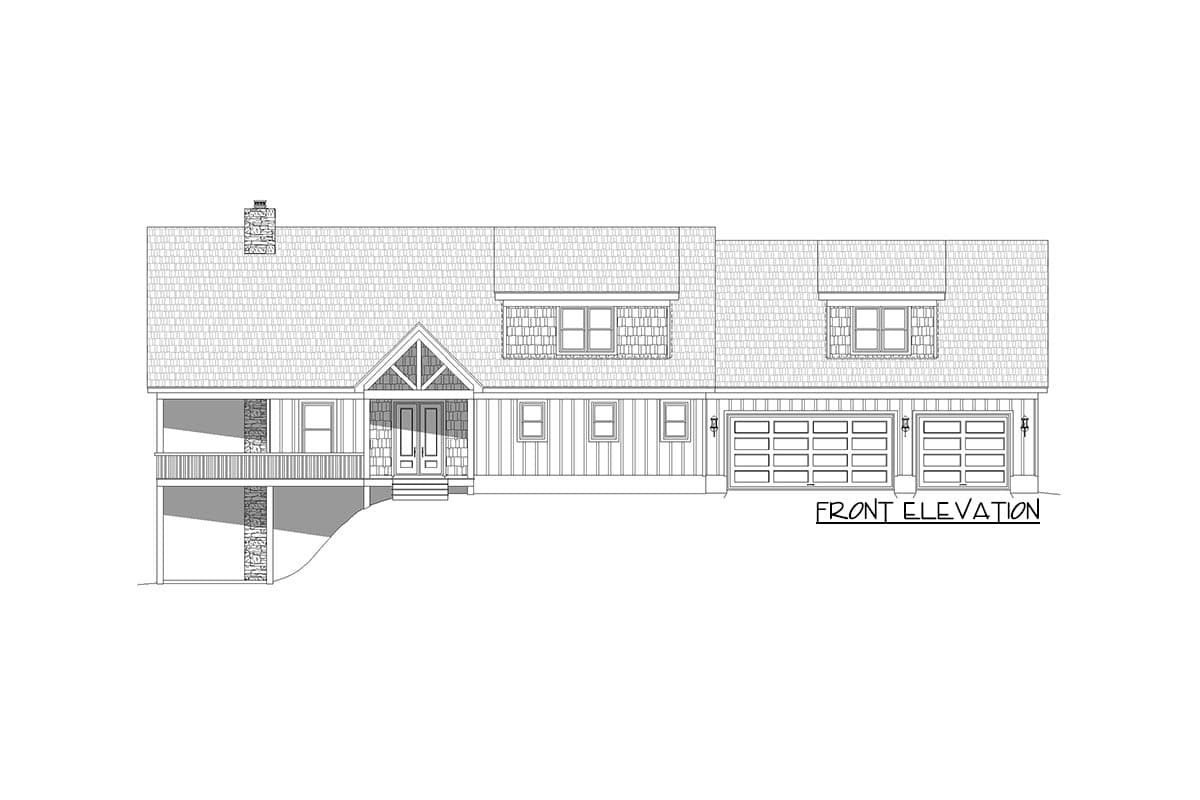

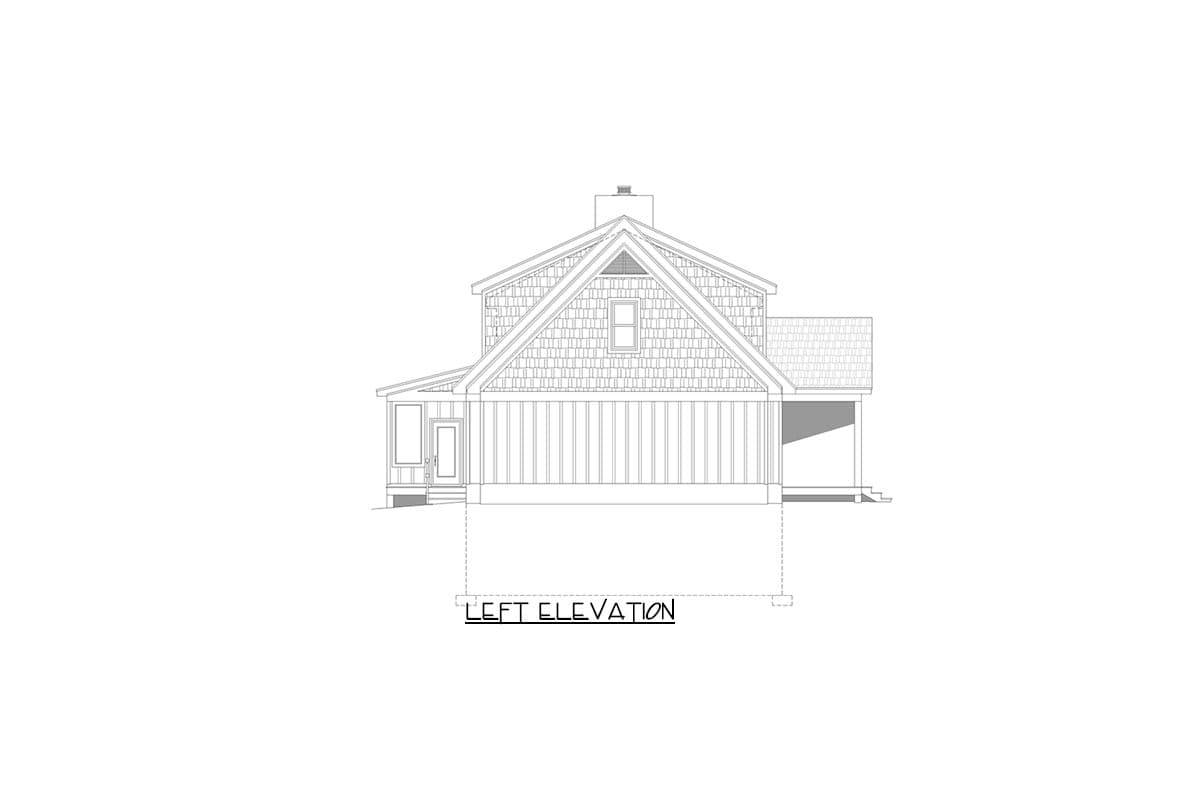

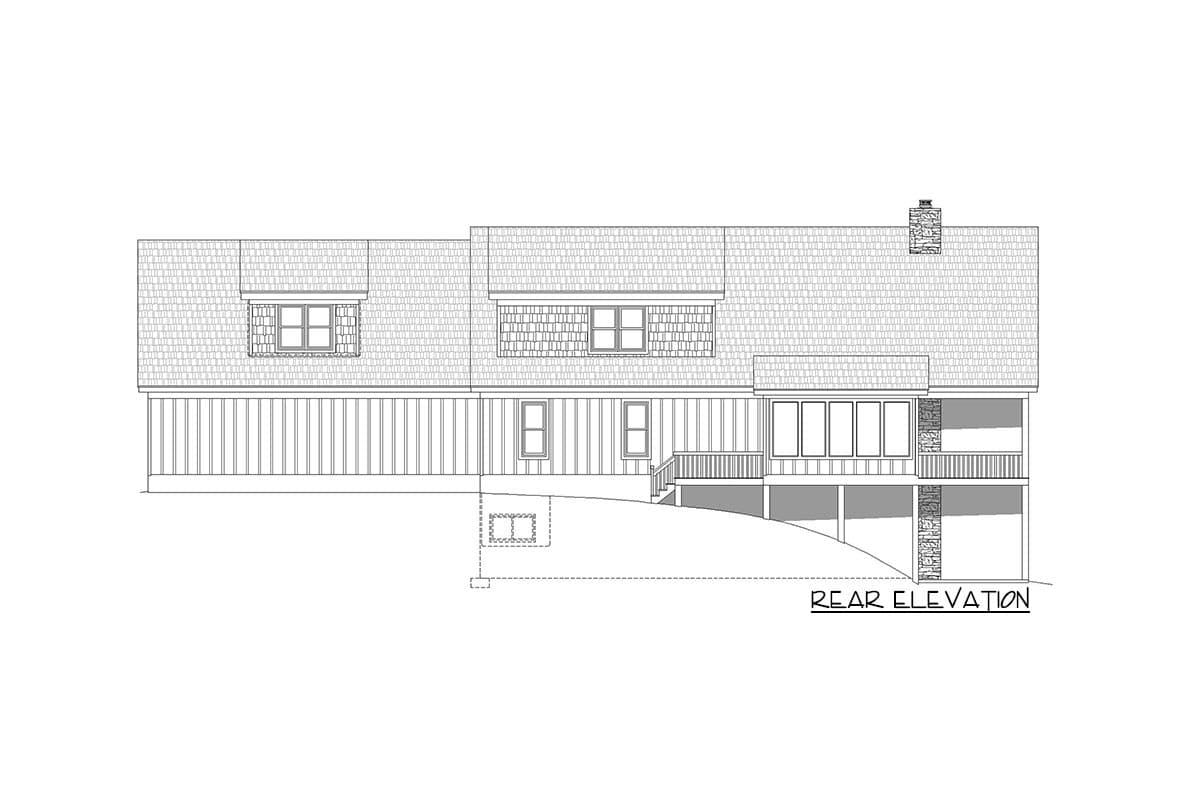

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

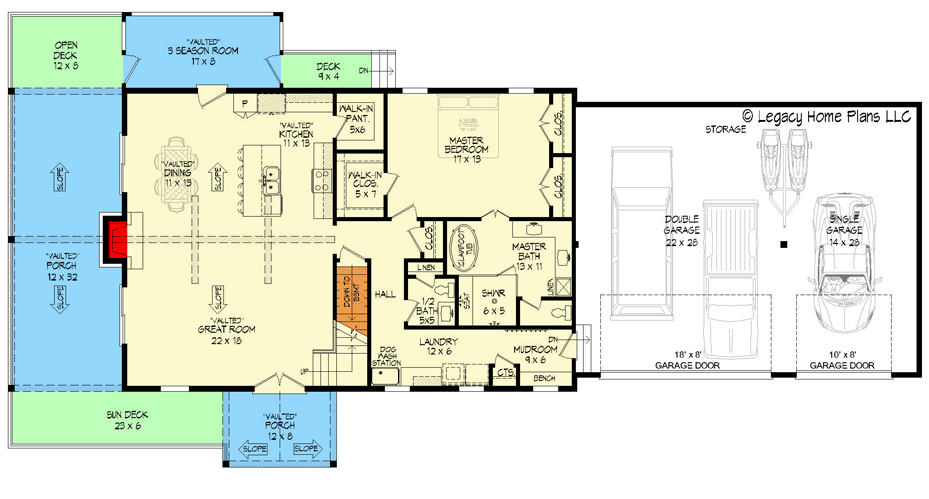

4039 Sq Ft Lake House Plan with 2-Story Great Room and 2-Car Garage for a Side Sloping Lot - 680136VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

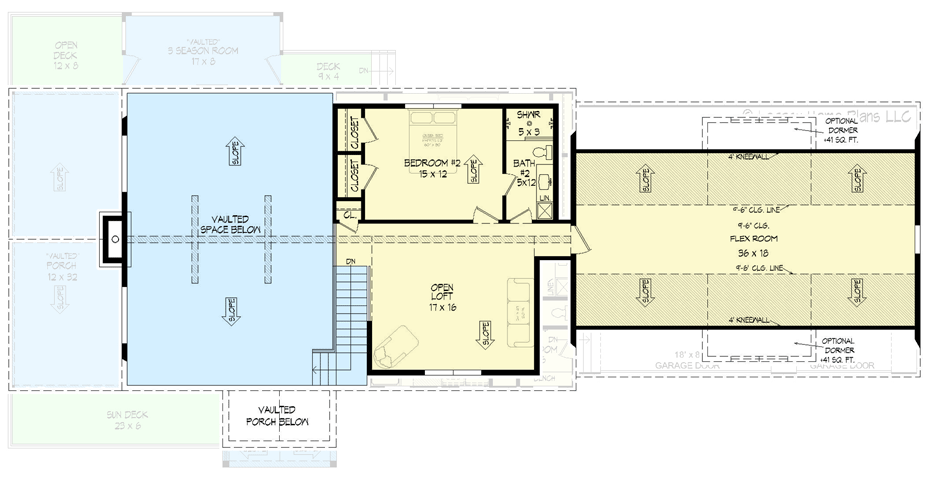

4039 Sq Ft Lake House Plan with 2-Story Great Room and 2-Car Garage for a Side Sloping Lot - 680136VR floor plan - 2nd Floor

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

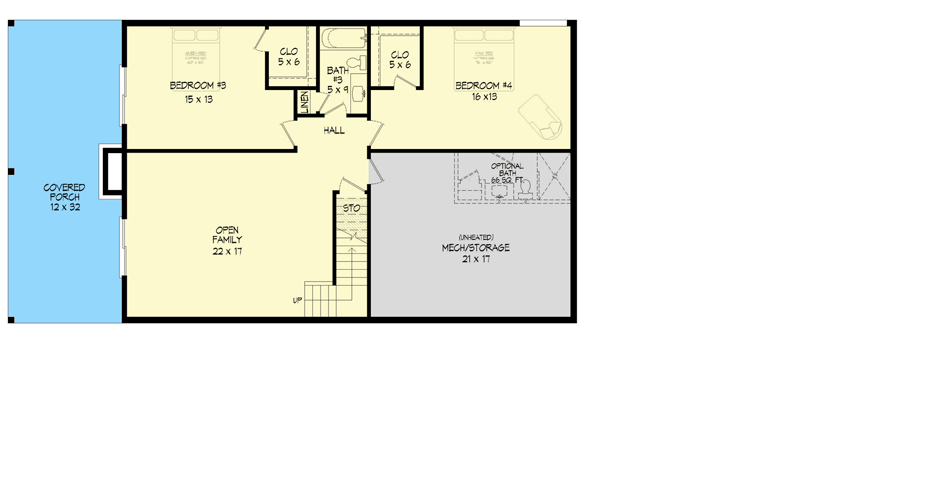

4039 Sq Ft Lake House Plan with 2-Story Great Room and 2-Car Garage for a Side Sloping Lot - 680136VR floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,039 sq. ft.
  • Lower Level: 1,159 sq. ft.
  • 1st Floor: 1,550 sq. ft.
  • 2nd Floor: 1,330 sq. ft.
  • Porch, Combined: 1,105 sq. ft.
  • 3 Season Rm.: 136 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 96' 5"
  • Depth: 48' 0"
  • Max ridge height: 27' 2"

Garage

  • Type: Attached
  • Area: 1050 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

4039 Sq Ft Lake House Plan with 2-Story Great Room and 2-Car Garage for a Side Sloping Lot

  • 4,039

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,375
  • 5 Sets $2,545
  • 5 Sets + PDF $2,723
  • CAD + PDF - Single-Build $2,925
  • View all purchase option online

About This Plan

  • Board and batten combined with the timber supports and trusses and the stone-clad fireplace give this side-sloping mountain home plan great curb appela.
  • Double doors are sheltered by the covered entry which opens to reveal a 2-story great room with a beamed ceiling and a fireplace which flows into the kitchen and dining area.
  • The eat-in kitchen includes a multi-purpose island and enjoys easy access to the deck for grilling.
  • The master bedroom is located on the main floor and has a 4-fixture bathroom and a large walk-in closet.
  • At the top of the stairs, a loft with sloped roof looks out across the first floor and Bed 2 has its own bath with walk-in shower. The flex room - 700 square feet; included in the Total Living Area - can be put to many uses.
  • In the lower level, two bedrooms share a bath and an open family area is a great place for games and movies. There's also a dedicated area for mechanicals. Two sets of sliding doors in the family area open to outside.
  • Related Plan: Remove the garage with house plan 68963VR.

Floor Plans

  • Main Level

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,039 sq. ft.
  • Lower Level: 1,159 sq. ft.
  • 1st Floor: 1,550 sq. ft.
  • 2nd Floor: 1,330 sq. ft.
  • Porch, Combined: 1,105 sq. ft.
  • 3 Season Rm.: 136 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 96' 5"
  • Depth: 48' 0"
  • Max ridge height: 27' 2"

Garage

  • Type: Attached
  • Area: 1050 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
Plan 680136VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/680136VR
|
