Plan 421516CHD

418 Square Foot ADU Garage Apartment

Heated S.F.
418
Beds
1
Baths
1
Stories
2
Cars
2
Client Photos

Floor Plan

Plan 421516CHD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 421516CHD

M-F 9am-5pm EST |

1-203-761-8500

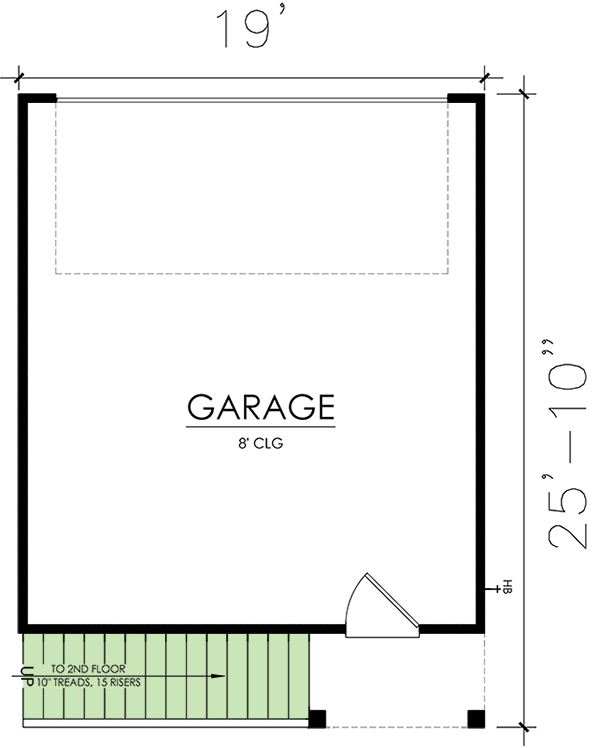

Main Level

Plan 421516CHD: 418 Square Foot ADU Garage Apartment - Floor Plan - Main Level - Carriage, Country, Modern, New American, Northwest

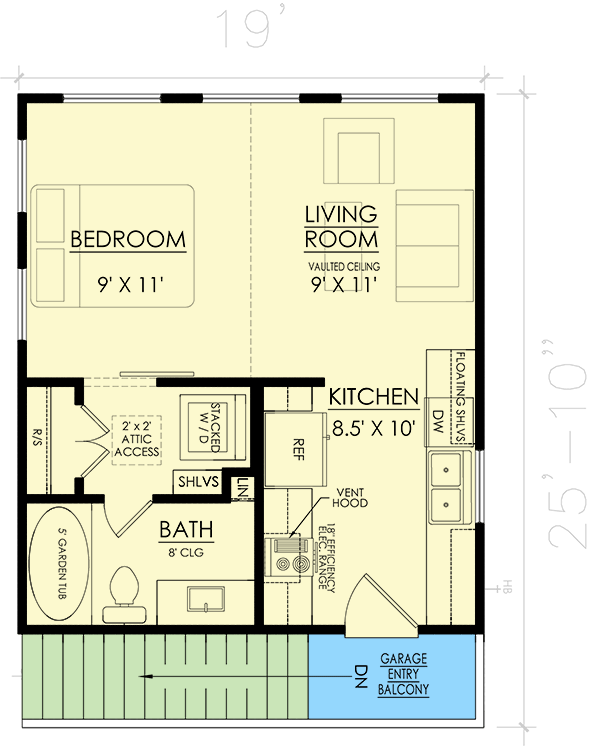

2nd Floor

Plan 421516CHD: 418 Square Foot ADU Garage Apartment - Floor Plan - 2nd Floor - Carriage, Country, Modern, New American, Northwest

Plan Details

  • This 418 square foot detached garage apartment gives you parking for two vehicles on the ground floor accessible with a single overhead garage door.
  • A door on the front of the garage accesses the garage while a set of external stairs gets you to the 418 square foot apartment above.
  • A galley kitchen greets you as you enter from the landing. Ahead, a vaulted space gives you a combined living room and bedroom.
  • The closet is set off from the open space by a barn door and contains a stackable washer/dryer.

Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

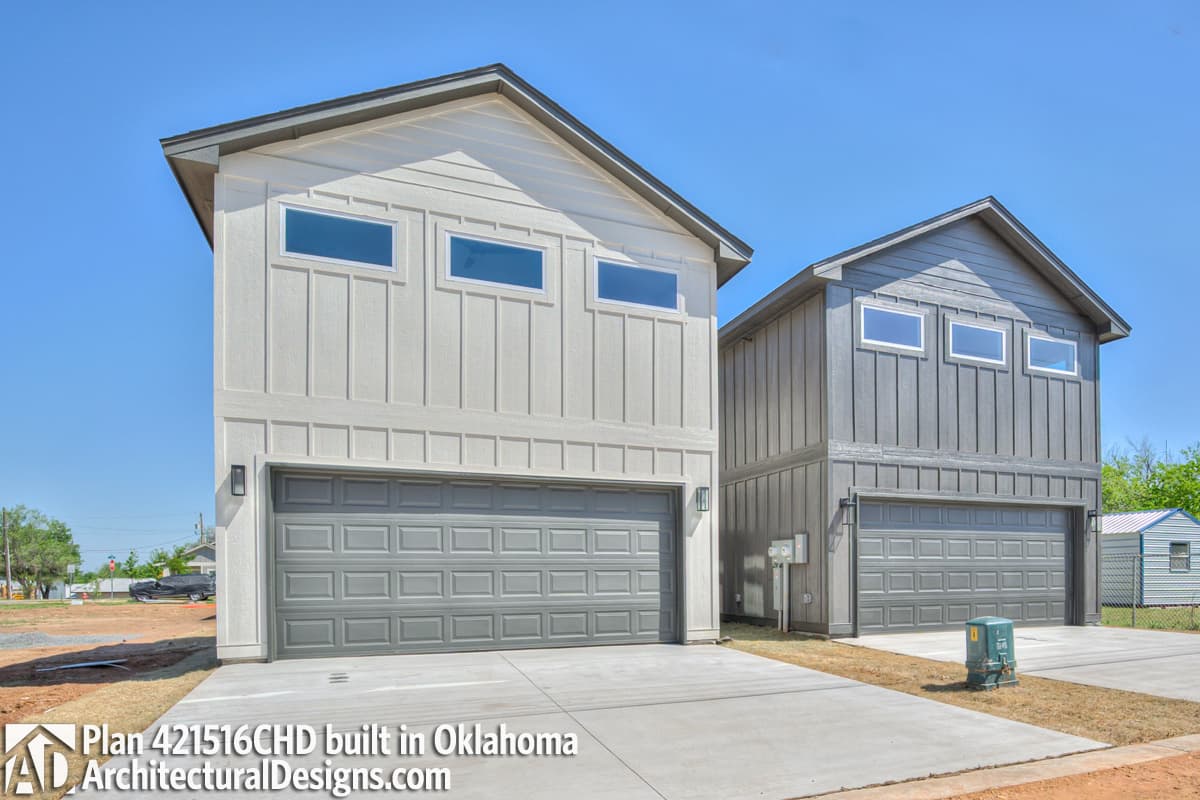

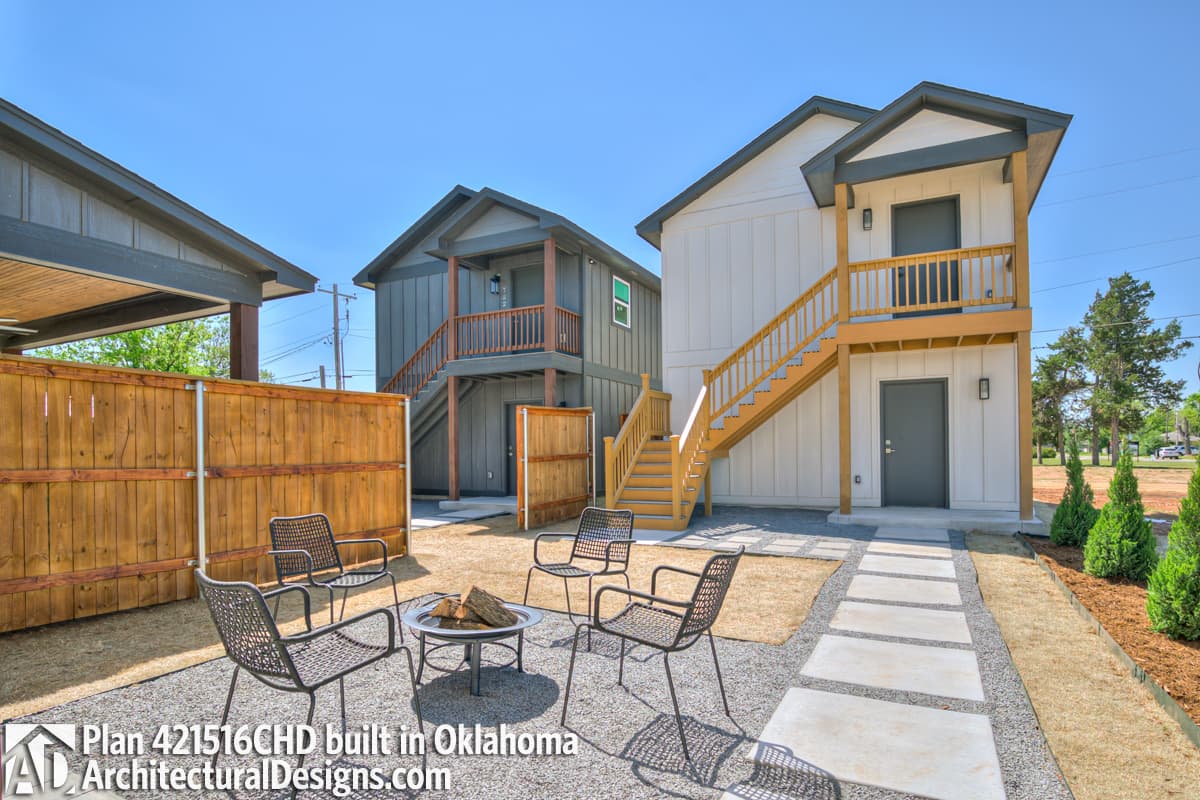

build gallery item - House Plan 421516CHD Comes to Life in Oklahoma
