Plan 28024J
45-Foot Wide 4 Bed New American Home Plan with 4 Bedrooms
Heated S.F.
1,845
Beds
4
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This 4 bed, 2 bath Craftsman home plan gives you 1,845 square feet of heated living space in a 45'-wide building envelope making this a great choice for your narrow lot. The exterior has a blend of clapboard and board and batten siding and has a decorative shed dormer above the garage.
  • There are coffered ceilings in the great room and master bedroom and flat ceilings in the rest of the home.
  • Laundry is conveniently located to the master bedroom and the two bedrooms on the right.
  • The front bedroom can be converted for use as a home office if needed.
  • Related Plan: Get an alternate exterior with house plan 28023J.
What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

45-Foot Wide 4 Bed New American Home Plan with 4 Bedrooms

  • 1,845

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

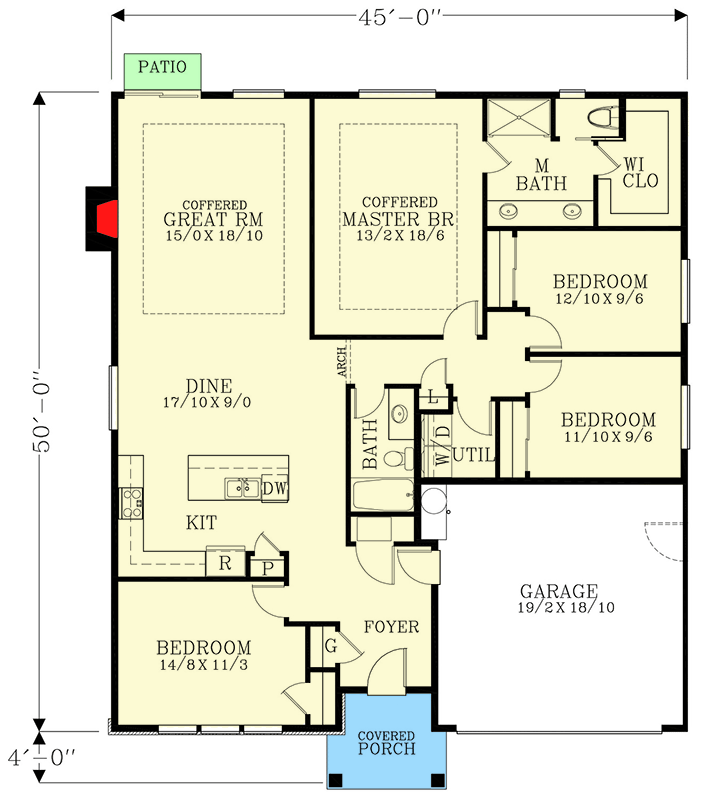

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,845 sq. ft.
  • 1st Floor: 1,845 sq. ft.

Dimensions

  • Width: 45' 0"
  • Depth: 50' 0"
  • Max ridge height: 21' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 165 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6
