Plan 777058MTL 4590 Sq Ft Barndominium Style House Plan with Apartment Behind 1090 Sq Ft Garage

4,590 6 4 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

4590 Sq Ft Barndominium Style House Plan with Apartment Behind 1090 Sq Ft Garage

Plan 777058MTL

  • 4,590

    Heated s.f.

  • 6

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

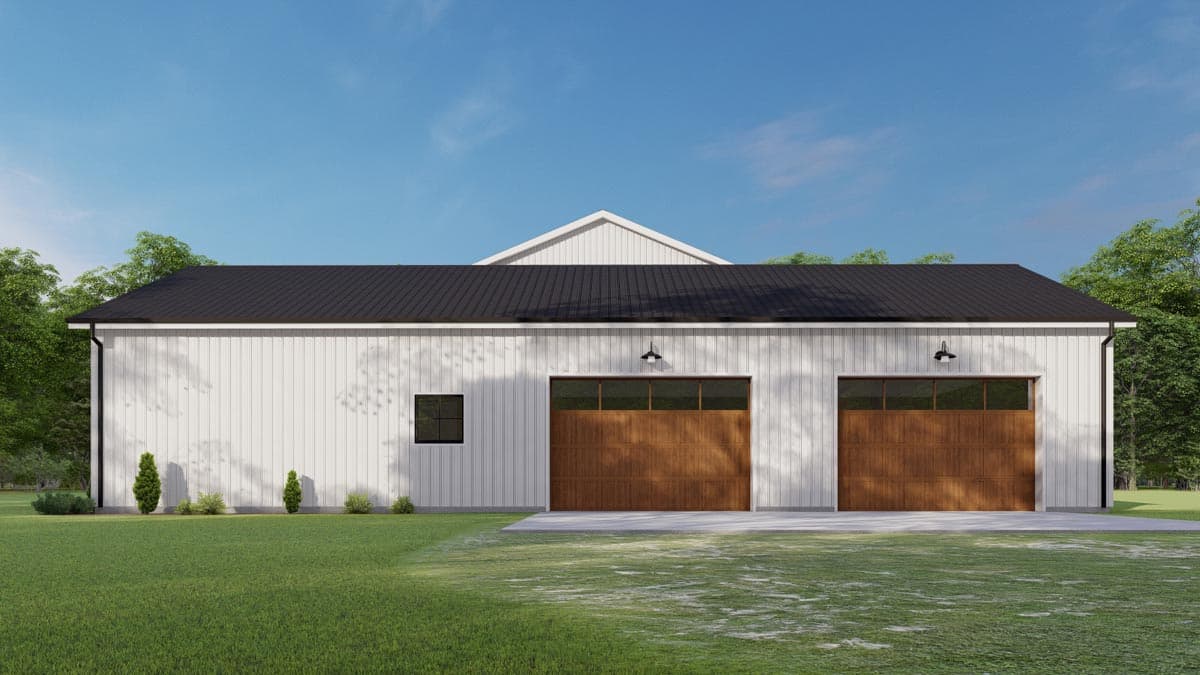

  • This 6 bed barndominium style house plan gives you 4,590 square feet of heated living and a 1,090 square foot 2-car garage with a guest apartment behind it - perfect for use as an in-law suite, multi-generational living or a rental - and a full wraparound porch. NOTE: the apartment is factored into the total living area.
  • The entry is open to the great room with fireplace and French doors that take you to the back porch.
  • The kitchen has an island with seating for up to four, a walk-in pantry, and is open to both the dining room and the great room.
  • A split bedroom layout maximizes your privacy with the master suite occupying the entire right side of the home when you include the office which is accessible from the bedroom through a pocket door. Bed 2 is across the home and has direct access to Bath 2.
  • Upstairs, a loft overlooking the great room below is flanked by two matching pairs of 14' by 12' bedrooms with Jack and Jill baths.
  • This house plan was designed with a Pre-Engineered Metal Building (PEMB) in mind. A PEMB is the most commonly used structure when building a barndominium. A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it from the Options menu.

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof plan
  • Elevations with necessary sections
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Floor Plan

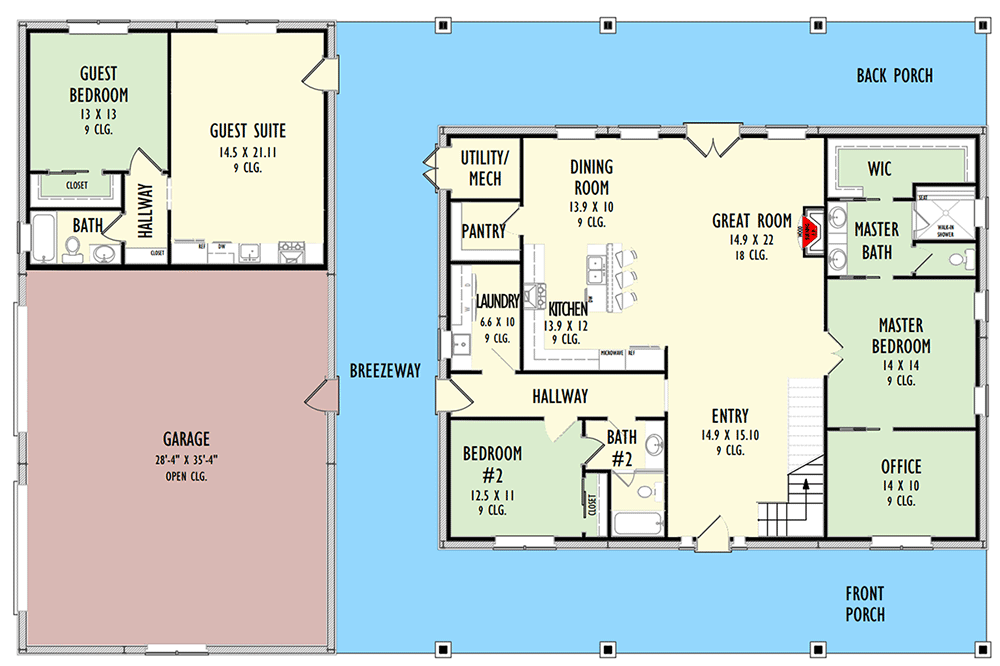

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4590 Sq Ft Barndominium Style House Plan with Apartment Behind 1090 Sq Ft Garage - 777058MTL floor plan - Main Level

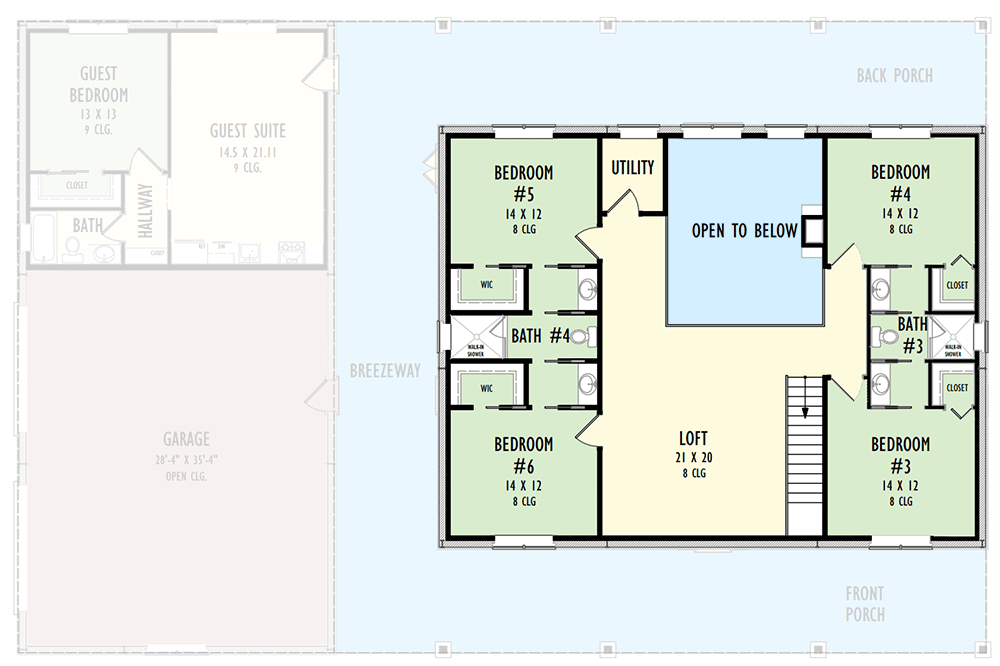

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4590 Sq Ft Barndominium Style House Plan with Apartment Behind 1090 Sq Ft Garage - 777058MTL floor plan - 2nd Floor

Wall Framing Section

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
4590 Sq Ft Barndominium Style House Plan with Apartment Behind 1090 Sq Ft Garage - 777058MTL floor plan - Wall Framing Section

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,590 sq. ft.
  • 1st Floor: 2,790 sq. ft.
  • 2nd Floor: 1,800 sq. ft.
  • Entry: 233 sq. ft.
  • Porch, Combined: 1,640 sq. ft.
  • Porch, Rear: 620 sq. ft.
  • Porch, Front: 620 sq. ft.
  • Loft: 420 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Metal
  • Optional Type(s): 2x6

Dimensions

  • Width: 113' 0"
  • Depth: 60' 0"
  • Max ridge height: 28' 6"

Garage

  • Type: Detached
  • Area: 1090 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 5
  • Secondary Pitch: 12 on 2
  • Framing Type: PEMB and Stick

Architectural Style

Special features

Plan Collections

4590 Sq Ft Barndominium Style House Plan with Apartment Behind 1090 Sq Ft Garage

  • 4,590

    Heated s.f.

  • 6

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • PDF - Unlimited Build $2,395
  • View all purchase option online

About This Plan

  • This 6 bed barndominium style house plan gives you 4,590 square feet of heated living and a 1,090 square foot 2-car garage with a guest apartment behind it - perfect for use as an in-law suite, multi-generational living or a rental - and a full wraparound porch. NOTE: the apartment is factored into the total living area.
  • The entry is open to the great room with fireplace and French doors that take you to the back porch.
  • The kitchen has an island with seating for up to four, a walk-in pantry, and is open to both the dining room and the great room.
  • A split bedroom layout maximizes your privacy with the master suite occupying the entire right side of the home when you include the office which is accessible from the bedroom through a pocket door. Bed 2 is across the home and has direct access to Bath 2.
  • Upstairs, a loft overlooking the great room below is flanked by two matching pairs of 14' by 12' bedrooms with Jack and Jill baths.
  • This house plan was designed with a Pre-Engineered Metal Building (PEMB) in mind. A PEMB is the most commonly used structure when building a barndominium. A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it from the Options menu.

Floor Plans

  • Main Level

  • 2nd Floor

  • Wall Framing Section

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,590 sq. ft.
  • 1st Floor: 2,790 sq. ft.
  • 2nd Floor: 1,800 sq. ft.
  • Entry: 233 sq. ft.
  • Porch, Combined: 1,640 sq. ft.
  • Porch, Rear: 620 sq. ft.
  • Porch, Front: 620 sq. ft.
  • Loft: 420 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Metal
  • Optional Type(s): 2x6

Dimensions

  • Width: 113' 0"
  • Depth: 60' 0"
  • Max ridge height: 28' 6"

Garage

  • Type: Detached
  • Area: 1090 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 5
  • Secondary Pitch: 12 on 2
  • Framing Type: PEMB and Stick
