5 Bed 1.5 Story House Plan with Hidden Fun Room Upstairs

Plan 623132DJ

This plan plants 3 trees

3,129
Heated s.f.
5
Beds
3
Baths
2
Stories
2
Cars

This 5-bed house plan combines multiple styles into a beautiful traditional 1.5 story plan. The exterior features a wonderful combination of stone, wood, and traditional lap siding.
Adjacent to the entryway, you'll find the two main floor guest bedrooms, each with its own walk-in closet. The bedrooms share a hall bathroom with the rest of the main living space.
Further into the home, the great room, kitchen, and dining room are situated in an open layout. The great room lies under a 2-story sloped ceiling and is warmed by a cozy fireplace. The kitchen has a large island with a snack bar seating and a large walk-in pantry with a counter and shelves. The dining room opens up to the rear patio through a triple glass sliding door.
Tucked behind the kitchen for privacy, you'll find the master suite with a luxurious bathroom with soaking tub, dual vanities and linen closets, and a large walk-in closet with a built-in dresser.
Upstairs, you'll find 2 additional guest bedrooms and a loft space with a secret bookshelf door taking you to a fun hidden room.
Back on the main floor, the 2-car garage accesses the home through a convenient mudroom that includes a bench and lockers.

Each plan set includes:

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical wall section
Typical Stair section
Cabinets are shown on all plans.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

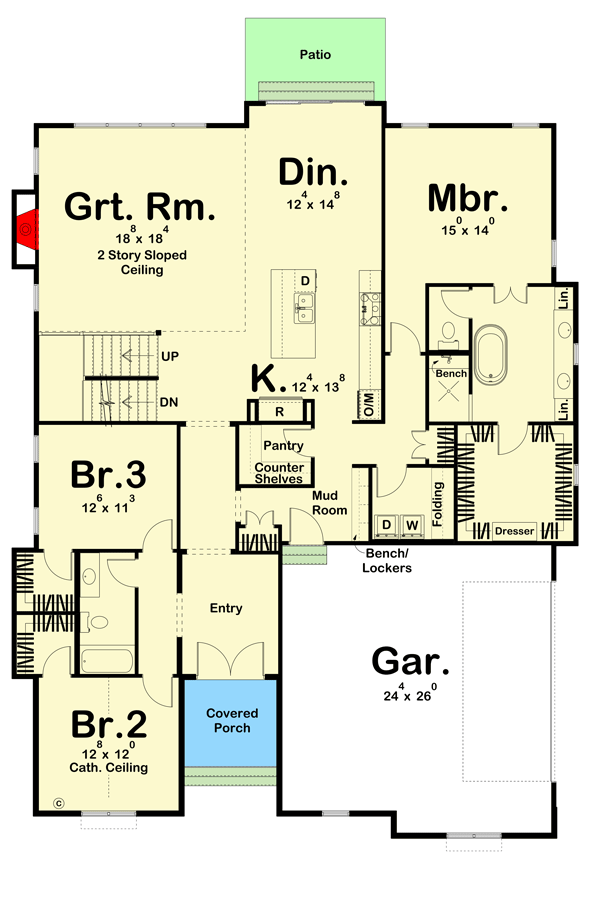

5 Bed 1.5 Story House Plan with Hidden Fun Room Upstairs - 623132DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

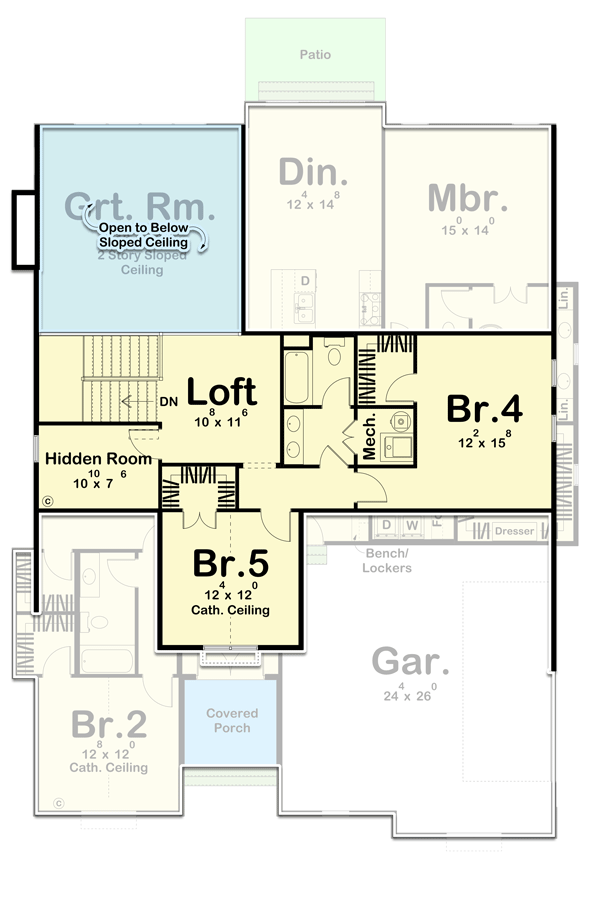

5 Bed 1.5 Story House Plan with Hidden Fun Room Upstairs - 623132DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 3,129 sq. ft.
1st Floor: 2,319 sq. ft.
2nd Floor: 810 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 3

Foundation Type

Standard Foundations: Basement

Optional Foundations: Walkout, Slab, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 51' 0"
Depth: 66' 4"

Garage

Type: Attached
Area: 637 sq. ft.
Count: 2 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 8 on 12
Secondary Pitch: 4 on 12

Architectural Style

Special features
