Plan 777067MTL
5-Bed Barndominium with 2-Story Living Room
Heated S.F.
3,793
Beds
5
Baths
3.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS

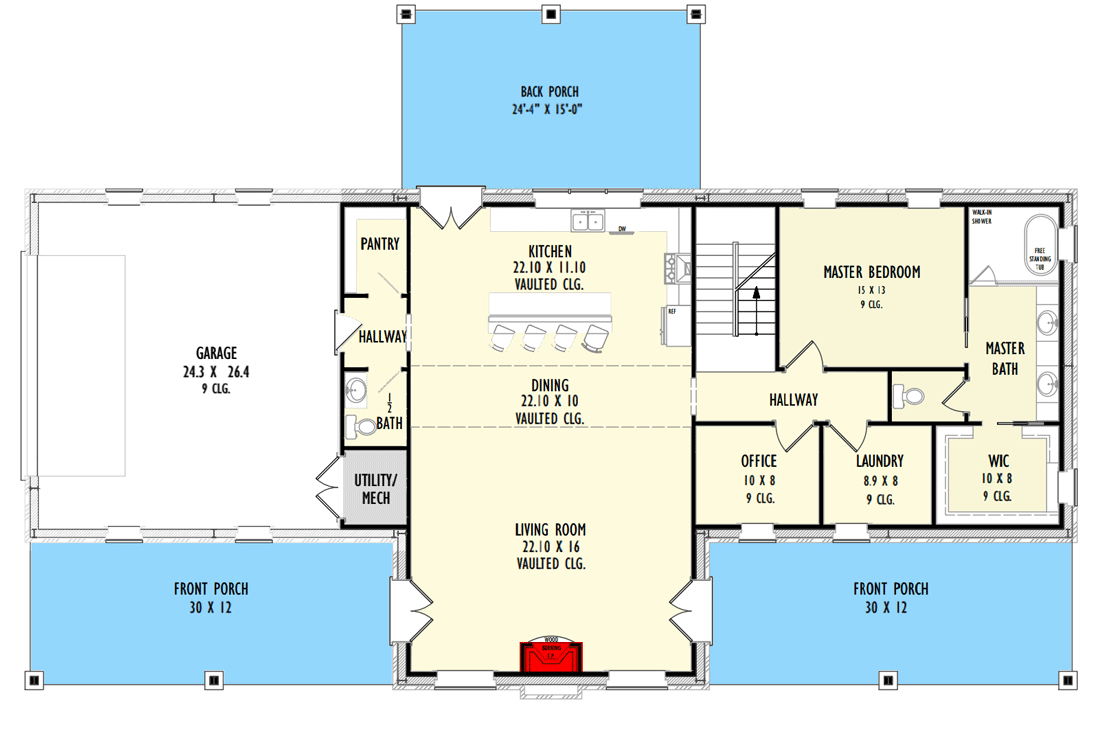

Main Level
Reverse Floor Plan
5-Bed Barndominium with 2-Story Living Room - 777067MTL floor plan - Main Level

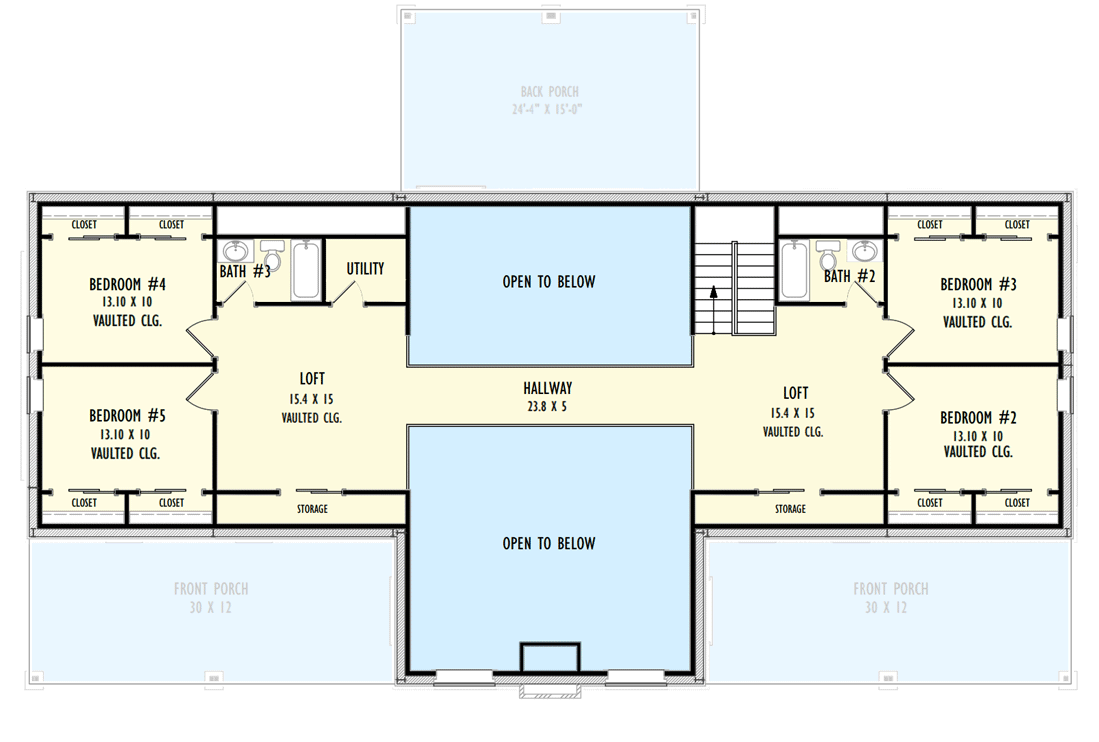

2nd Floor
Reverse Floor Plan
5-Bed Barndominium with 2-Story Living Room - 777067MTL floor plan - 2nd Floor
Wall Framing Section
Reverse Floor Plan
5-Bed Barndominium with 2-Story Living Room - 777067MTL floor plan - Wall Framing Section
Plan Details
  • The center of this 5-bedroom Barndominium delivers an open living room, dining area, and kitchen with tall ceilings making the space feel even larger.

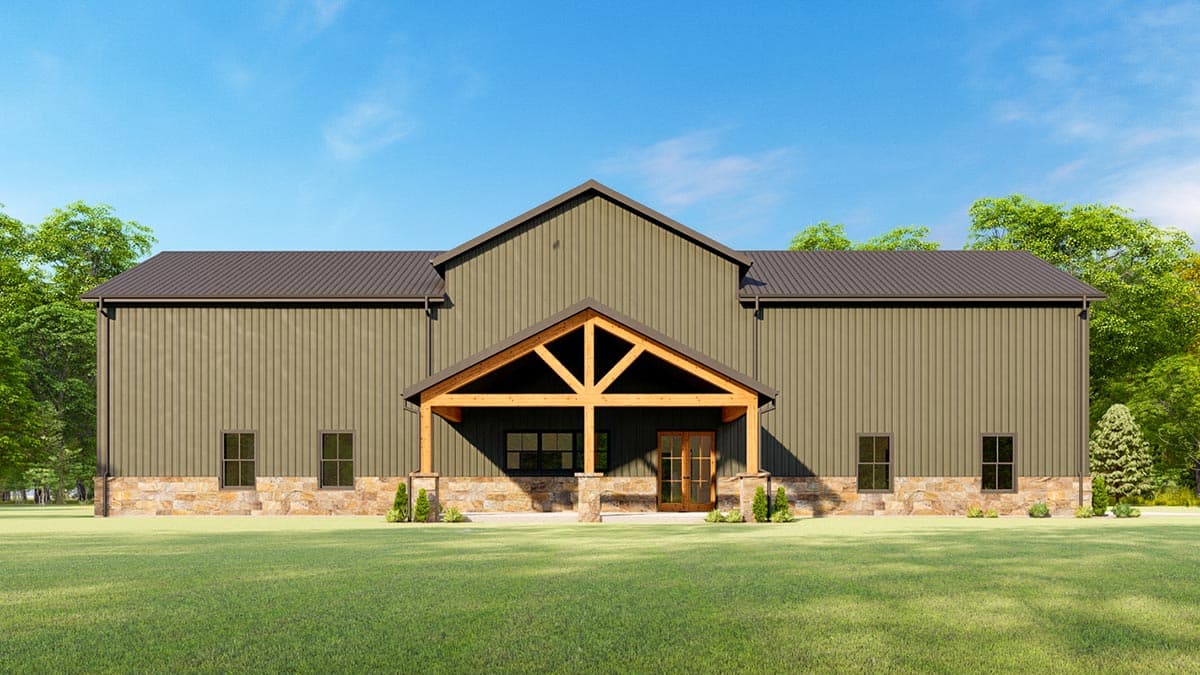

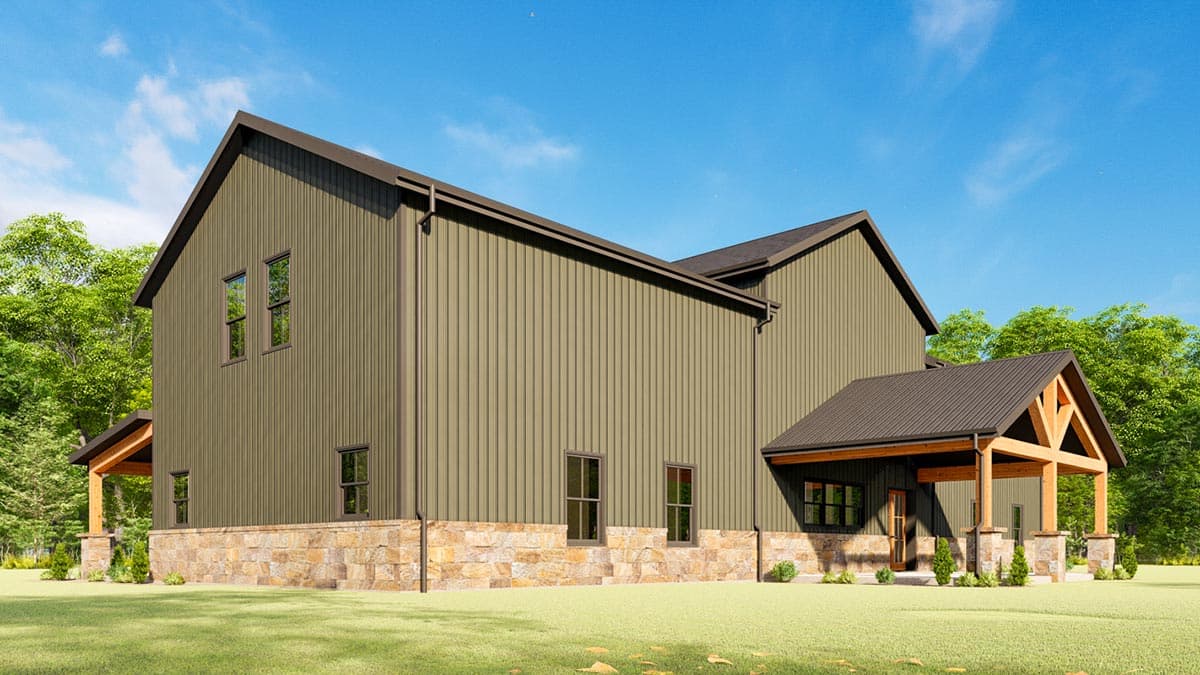

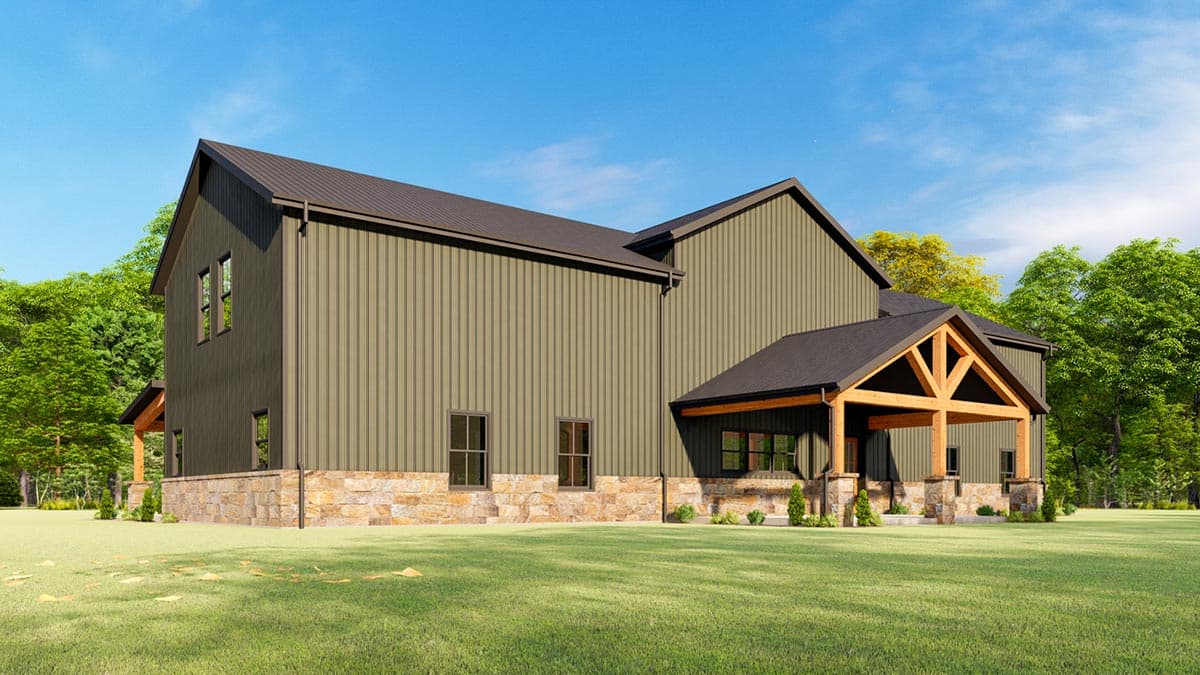

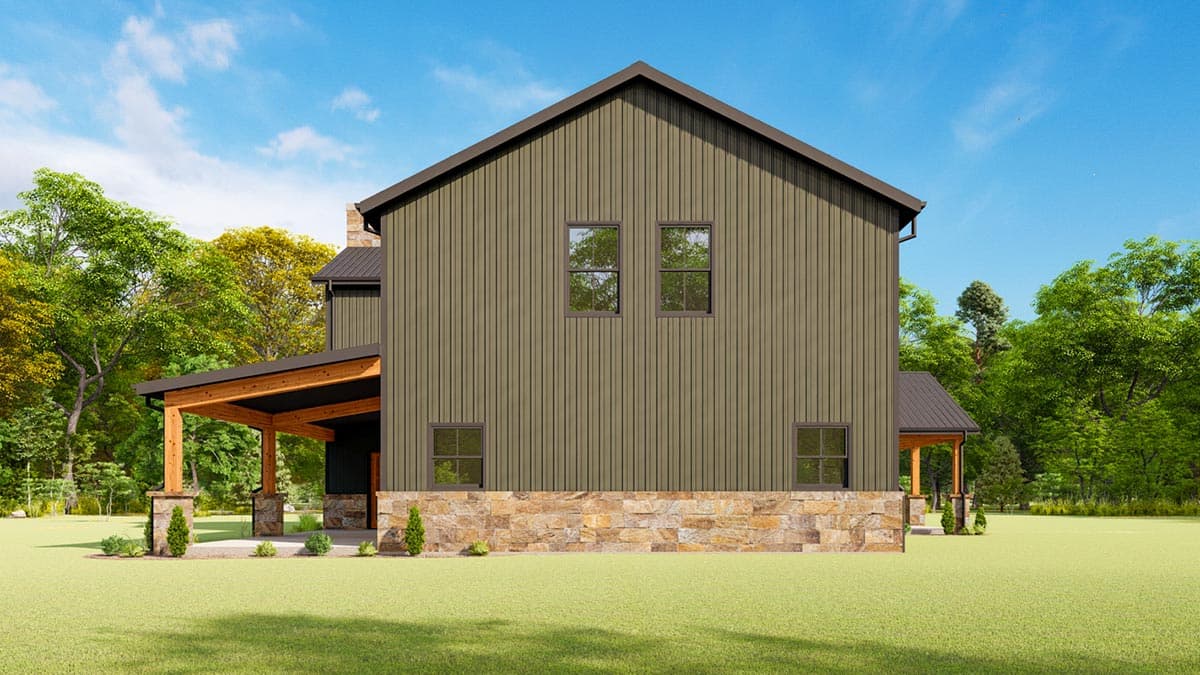

  • A 12'-deep porch sits on either side of the living room, and a back porch allows you to enjoy every angle of the surrounding landscape.
  • The master bedroom enjoys a main-level location and is situated across the hall from an office and laundry room.

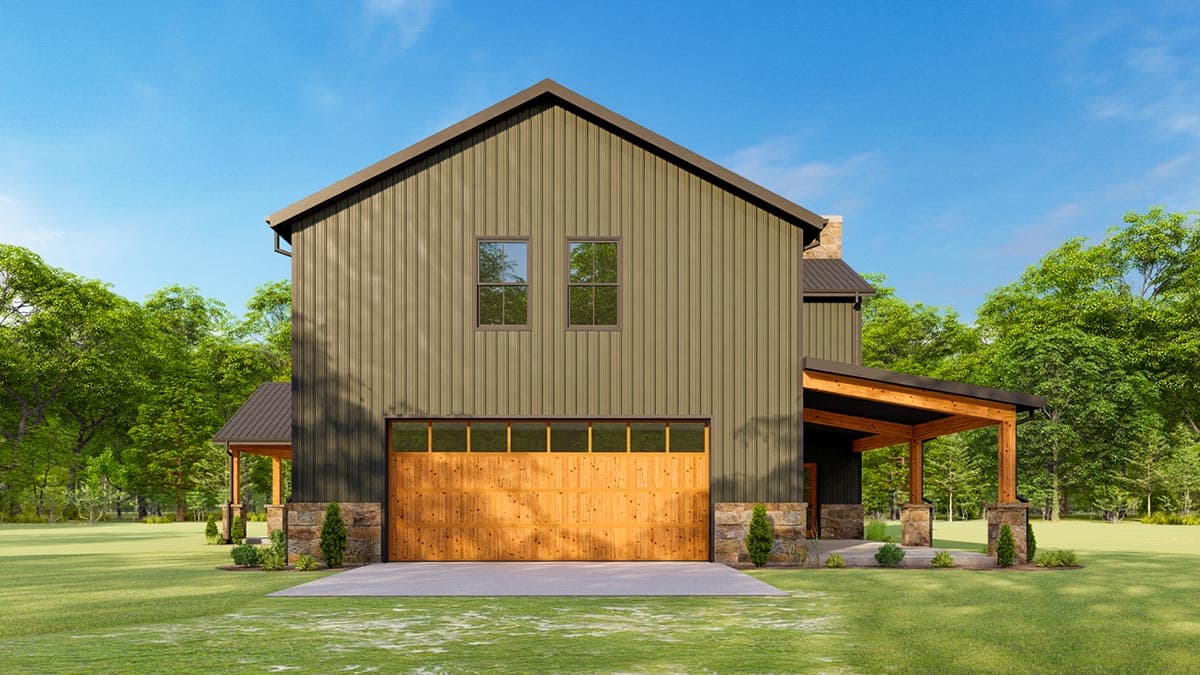

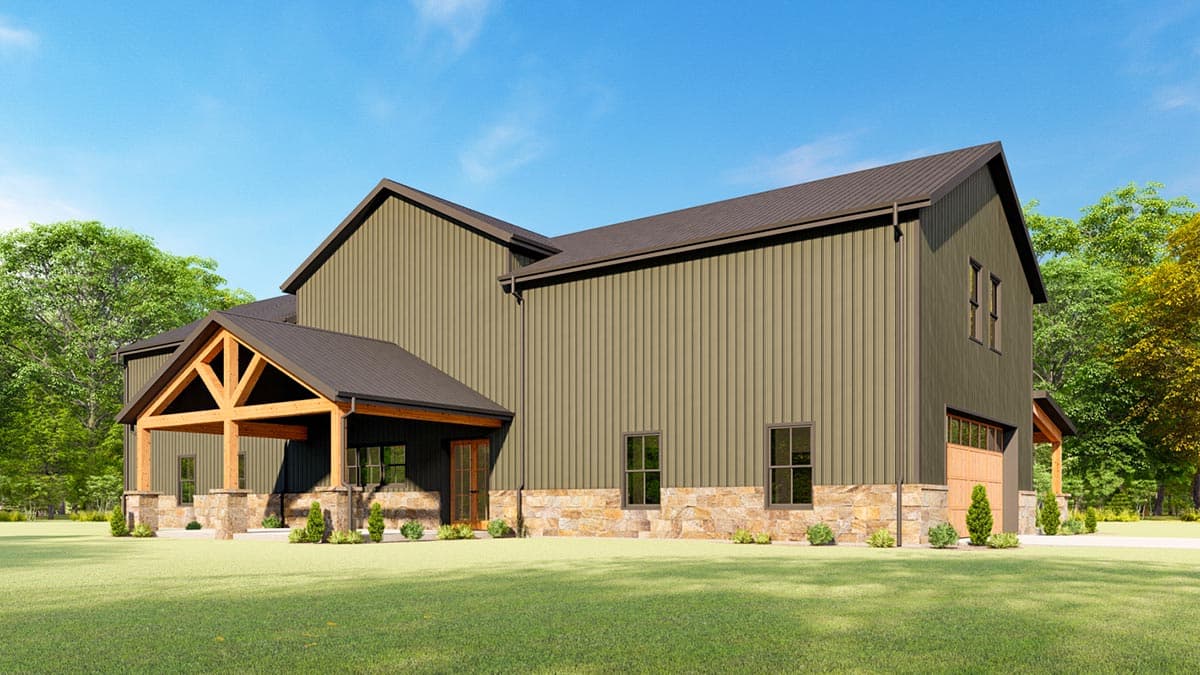

  • A mud hall serves as the transition between the kitchen and 2-car garage and provides access to a pantry and powder bath.
  • Upstairs, a catwalk overlooks the living space below. Each side of the second level includes a loft and two bedrooms that share a full bathroom.
What's Included
  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

5-Bed Barndominium with 2-Story Living Room

  • 3,793

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Wall Framing Section

Plan Details

Square Footage Breakdown

  • Total: 3,793 sq. ft.
  • 1st Floor: 1,973 sq. ft.
  • 2nd Floor: 1,820 sq. ft.

Dimensions

  • Width: 85' 0"
  • Depth: 55' 0"
  • Max ridge height: 26' 2"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 707 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Metal
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: PEMB & Stick
