5-Bed Beach-y House Plan with Two Upstairs Options Included - 3287 Sq Ft

Plan 765011TWN

  • 3,287

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 2

    Cars

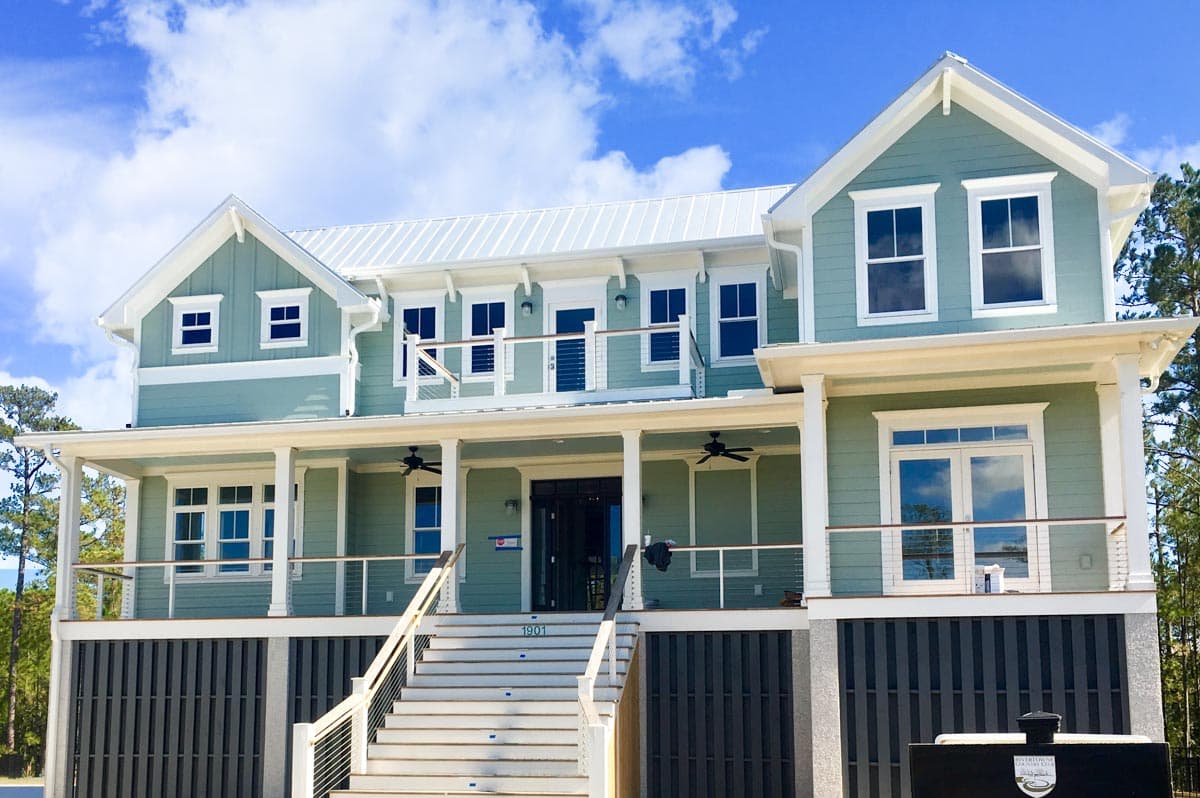

  • This 5-bed house plan gets you up off the ground making this a beach-friendly home. Outdoor spaces on both floors help you enjoy your setting.
  • An open layout in the heart of the home offers a feeling of spaciousness, and transom windows contribute to the natural light provided throughout. Enjoy outdoor living on the screened porch, accessible through the living room.
  • The back of the main floor is wide open giving you great entertaining space indoors and out. For some privacy, retreat to the media/den and the study/nook.
  • The second floor comes with two layouts for you to choose from (both come with your purchase). One version gives you four bedrooms including the master suite with its own private outdoor balcony overlooking the front. The optional version removes the balcony and puts the master suite in back.
  • The ground level gives you parking and an entry with an elevator accessing both floors.
  • Related Plan: Get a non-elevated farmhouse version with house plan 765009TWN.
  • DELIVERY NOTE: Please allow 10 to 15 days for plan delivery.

This designer's plans include the following:

  • Cover sheet with general notes
  • Foundation Plan
  • Floor Plans with Dimensions
  • Exterior Elevations
  • Cross Section
  • Door & Window Schedules
  • Roof plan
  • Electrical Plans
  • Cabinetry Elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

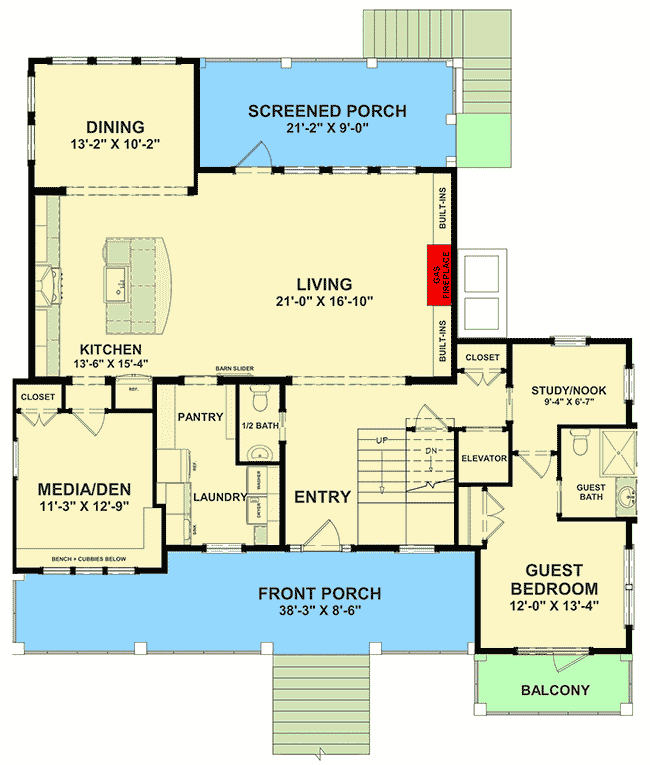

5-Bed Beach-y House Plan with Two Upstairs Options Included - 3287 Sq Ft - 765011TWN floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

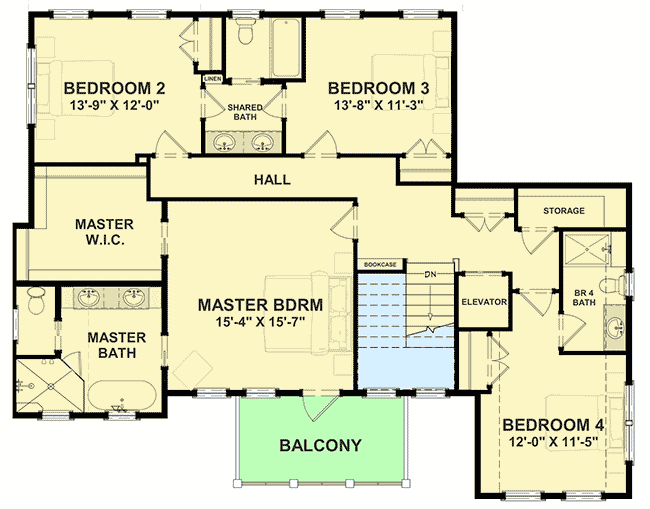

5-Bed Beach-y House Plan with Two Upstairs Options Included - 3287 Sq Ft - 765011TWN floor plan - Second Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

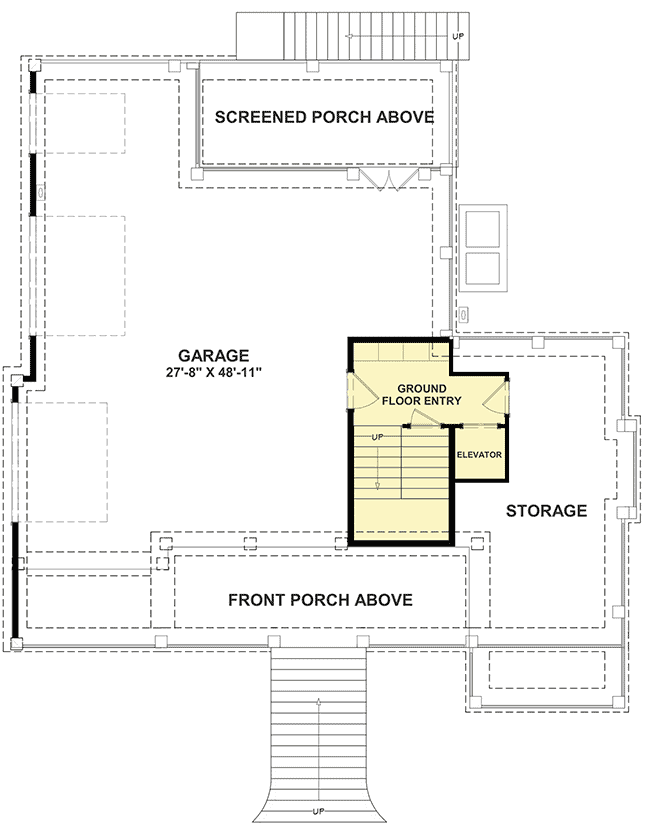

5-Bed Beach-y House Plan with Two Upstairs Options Included - 3287 Sq Ft - 765011TWN floor plan - Lower Level

Optional Second Level Layout

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

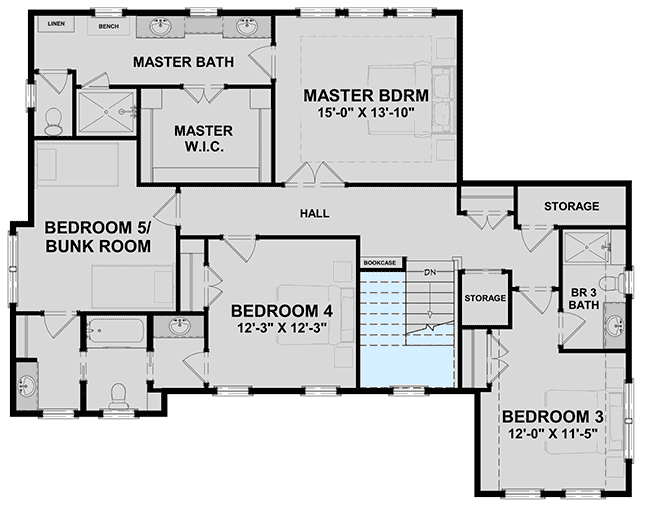

5-Bed Beach-y House Plan with Two Upstairs Options Included - 3287 Sq Ft - 765011TWN floor plan - Optional Second Level Layout

5-Bed Beach-y House Plan with Two Upstairs Options Included - 3287 Sq Ft

  • 3,287

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Second Level

  • Lower Level

  • Optional Second Level Layout

Plan Details

Square Footage Breakdown

  • Total: 3,287 sq. ft.
  • 1st Floor: 1,681 sq. ft.
  • 2nd Floor: 1,407 sq. ft.

Dimensions

  • Width: 52' 6"
  • Depth: 54' 6"
  • Max ridge height: 39' 7"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached, Drive Under
  • Area: 1307 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Pier

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
