Plan 93218EL

Exclusive

5-Bed Contemporary New American House Plan with Outdoor Living Space - 4118 Sq Ft

Heated S.F.
4,118
Beds
5
Baths
5.5
Stories
2
Cars
3

Floor Plan

Plan 93218EL

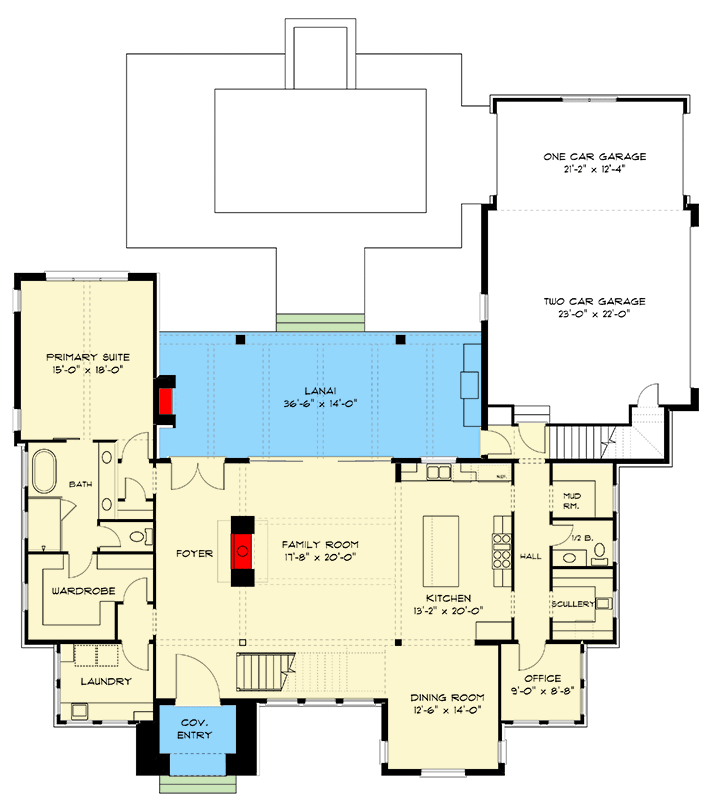

Main Level
Main Level
2nd Floor
2nd Floor

Plan 93218EL

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 93218EL: 5-Bed Contemporary New American House Plan with Outdoor Living Space - 4118 Sq Ft - Floor Plan - Main Level - Contemporary, New American, Transitional

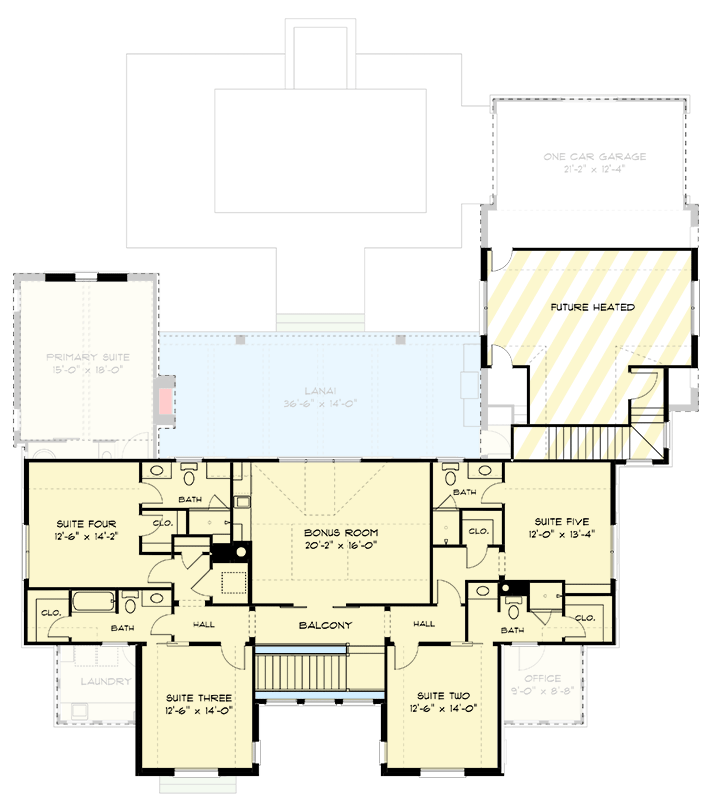

2nd Floor

Plan 93218EL: 5-Bed Contemporary New American House Plan with Outdoor Living Space - 4118 Sq Ft - Floor Plan - 2nd Floor - Contemporary, New American, Transitional

Plan Details

  • This contemporary New American house plan features 4,118 square feet of heated living space, with 5 bedrooms, 5.5 bathrooms, and an 874 square foot three-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • Floor Plan
  • Bird's Eye Roof Plan

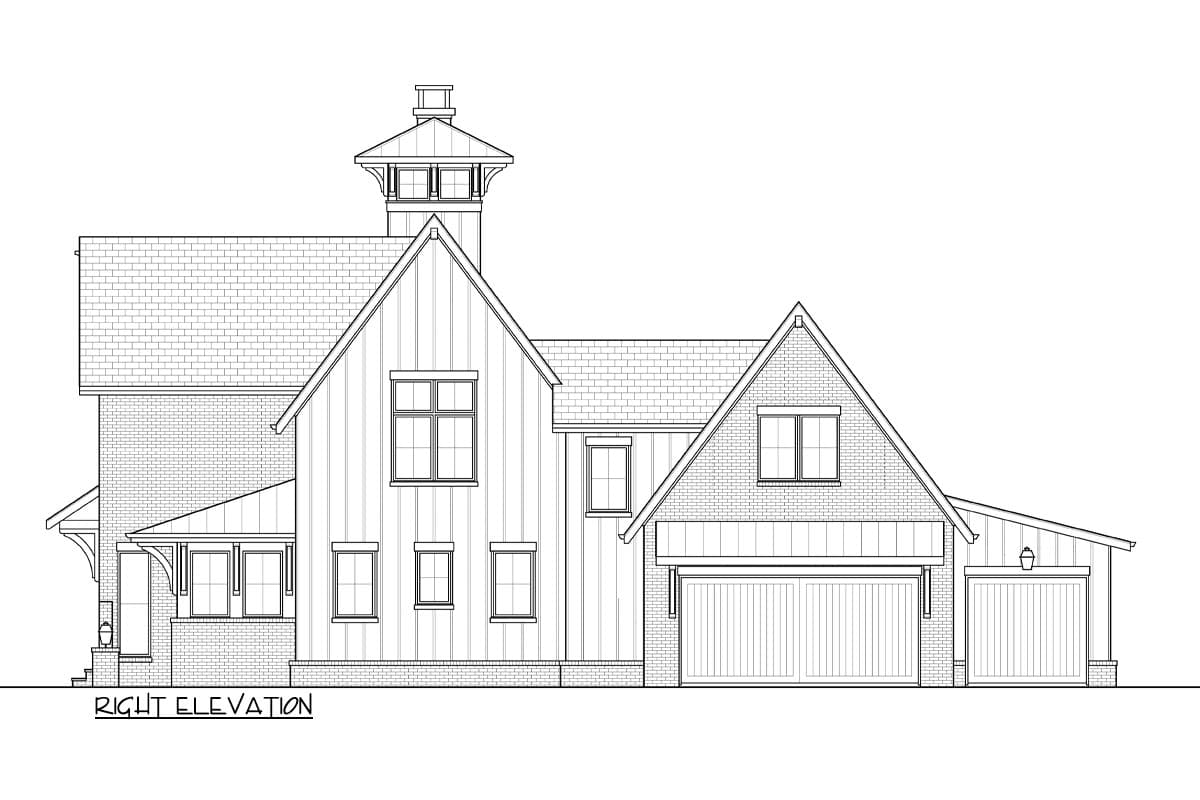

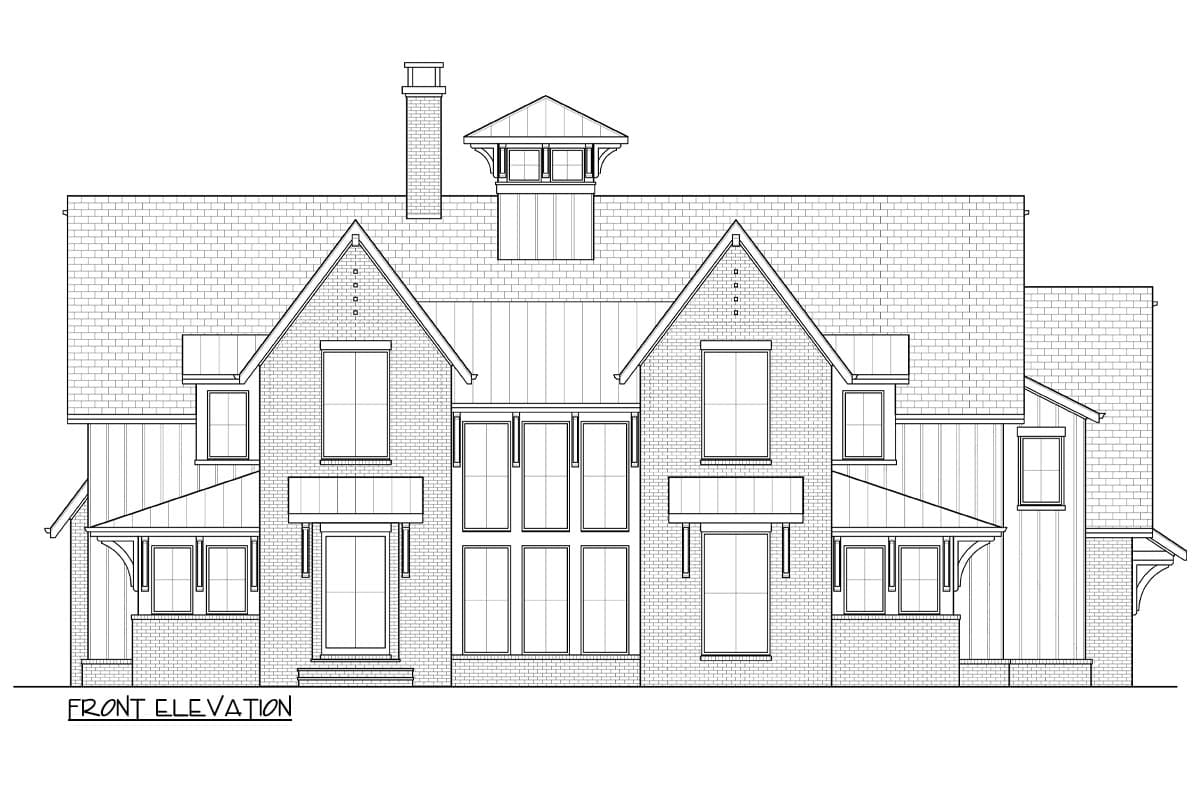

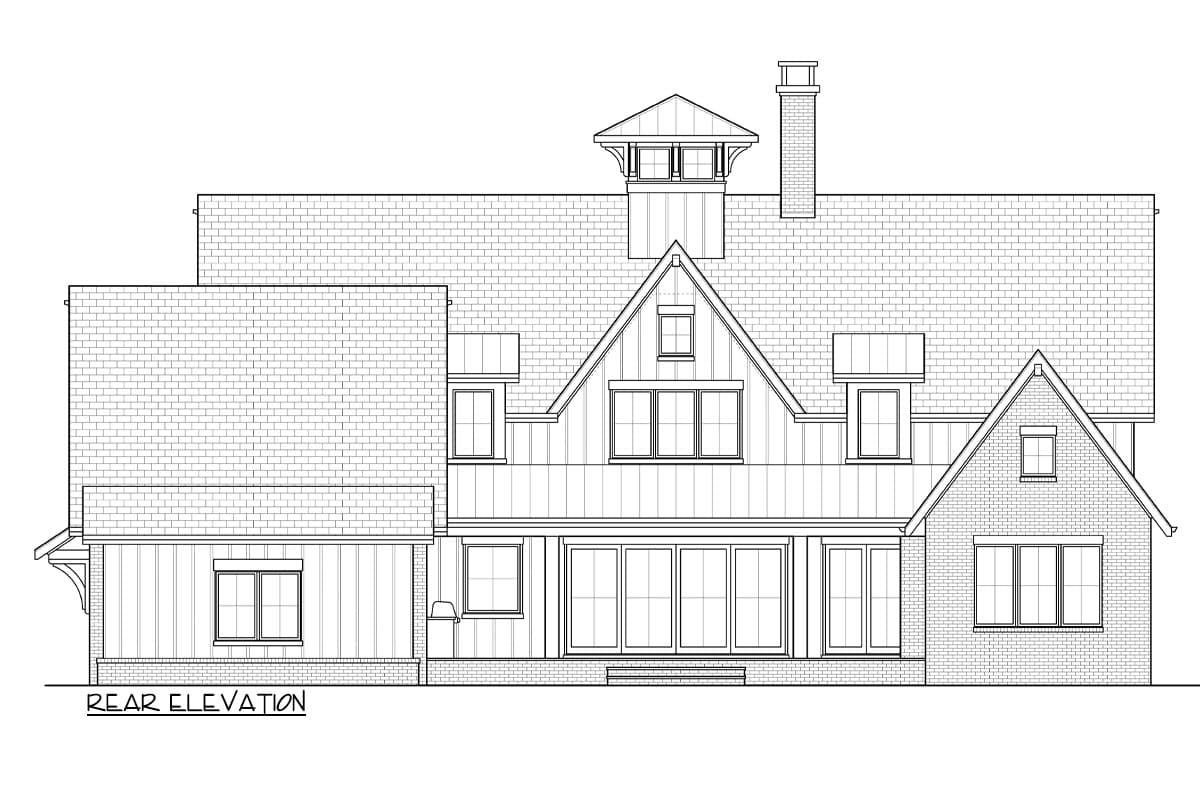

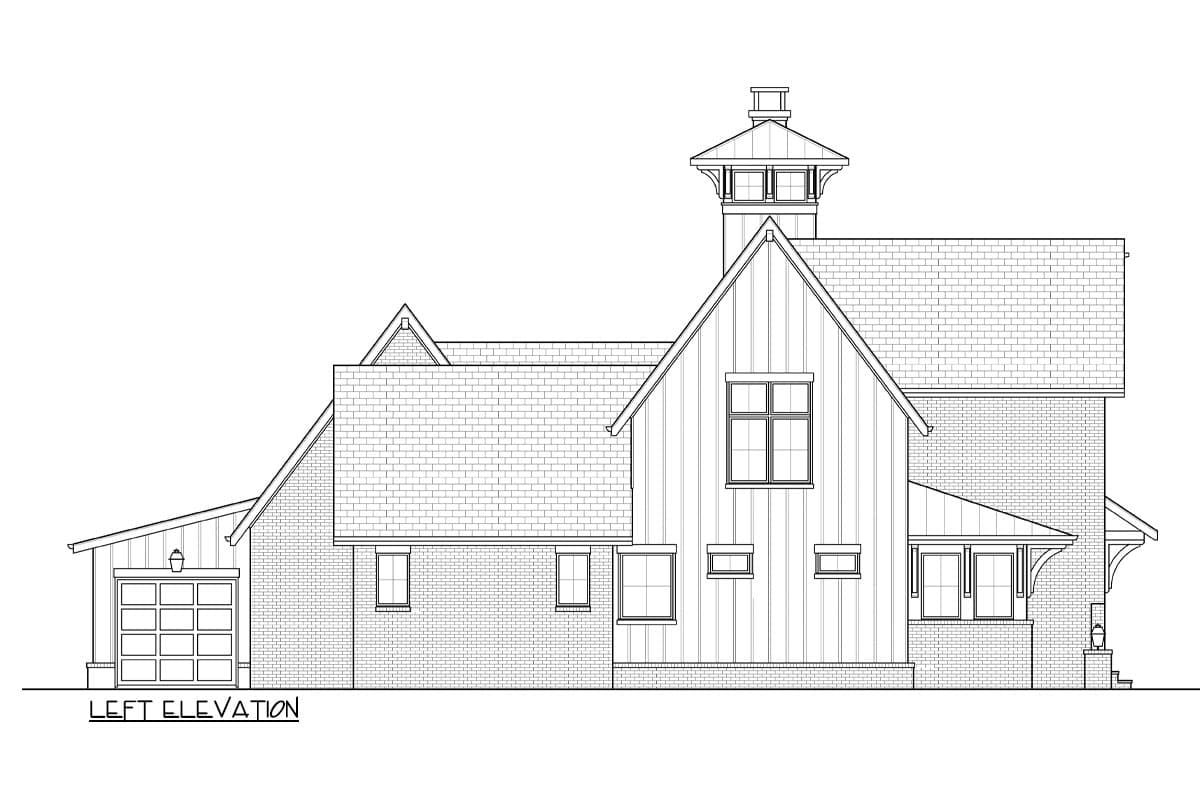

  • 4 Elevations
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • Electrical

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,118 sq. ft.

1st Floor

2,327 sq. ft.

2nd Floor

1,791 sq. ft.

Bonus

423 sq. ft.

Porch, Front

96 sq. ft.

Porch, Rear

524 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

76' 8"

Depth

77' 2"

Max Ridge Height

13' 7"

Garage

Type

Attached

Area

874 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

16 on 12

Architectural Style

Contemporary

New American

Transitional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

Laundry - Main Level

Laundry - Upstairs

Master Suite - 1st Floor

Media Room

Mudroom

Optionally Finished Bonus Room

Outdoor Fireplace

Outdoor Kitchen

Wet Bar

Plan Collections

Exclusive

Home Office
