5 Bed Cottage Home Plan with Loft

Pageloader

5 Bed Cottage Home Plan with Loft

Plan 15631GE

  • 4,354

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

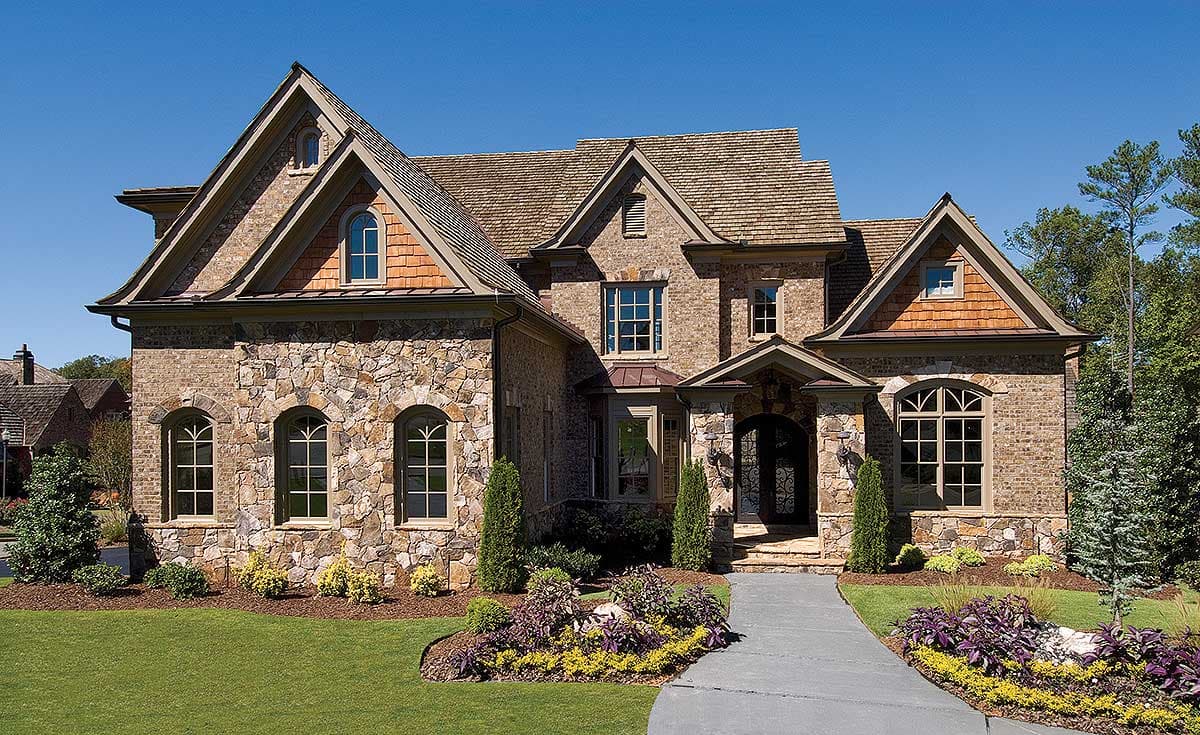

  • The front elevation of this cottage beautifully accented with stone, brick and shake create stunning curb appeal.
  • From the grand rooms two sided fireplace to the open family room and gourmet kitchen, this home design is the definition of luxurious living.
  • Perfect for outdoor entertaining of family and friends a covered porch with fireplace is accessible from the family room.
  • An exquisite master suite includes a lavish bath and large walk in closet.
  • Highlighting the second level is a princess suite.
  • Three additional bedrooms with private baths and a T.V. room complete this traditional style house plan.

The plan set includes the following:

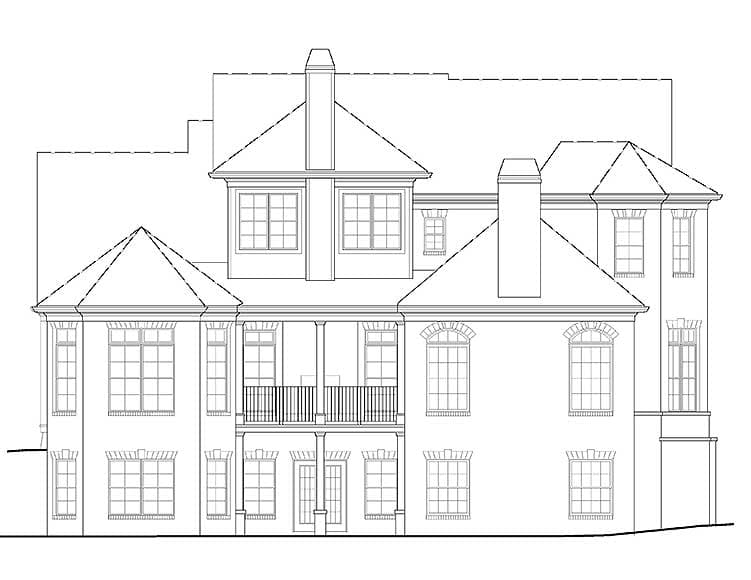

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • The plans are designed to meet the International Residential Code but are not designed for a specific area.  These plans do not come engineered or with structural drawings. They do not include framing plans.
  • Plans do include wall and cornice sections, general foundation sections and details.



Floor Plan

Plan details



5 Bed Cottage Home Plan with Loft

  • 4,354

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,395
  • CAD $3,545
  • View all purchase option online

About This Plan

  • The front elevation of this cottage beautifully accented with stone, brick and shake create stunning curb appeal.
  • From the grand rooms two sided fireplace to the open family room and gourmet kitchen, this home design is the definition of luxurious living.
  • Perfect for outdoor entertaining of family and friends a covered porch with fireplace is accessible from the family room.
  • An exquisite master suite includes a lavish bath and large walk in closet.
  • Highlighting the second level is a princess suite.
  • Three additional bedrooms with private baths and a T.V. room complete this traditional style house plan.

Floor Plans

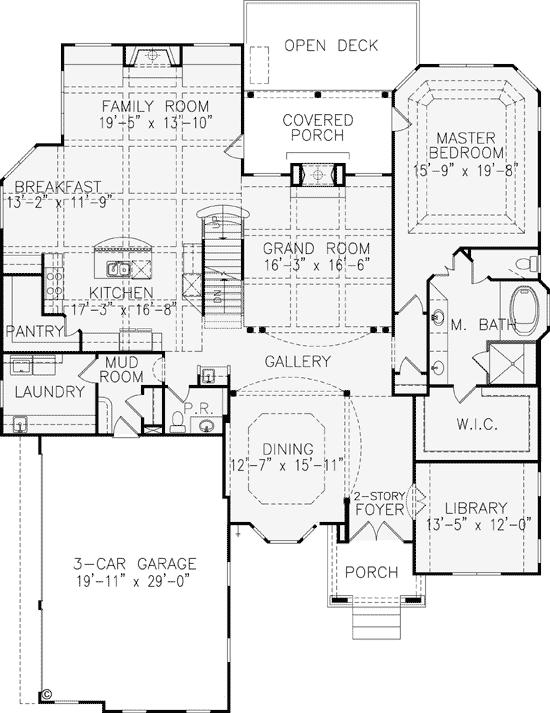

  • Main Level

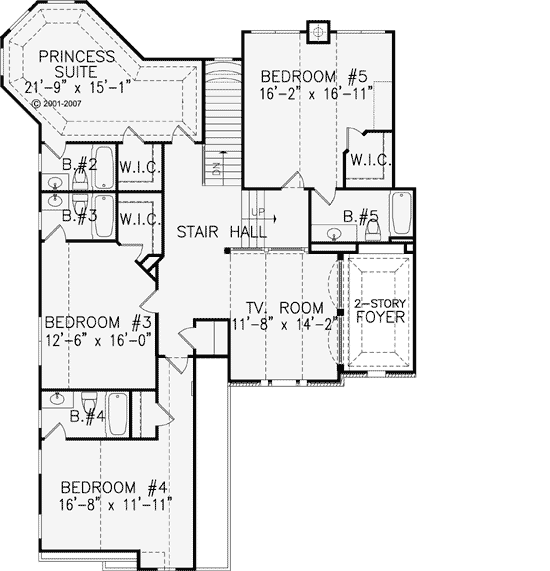

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,354 sq. ft.
  • 1st Floor: 2,633 sq. ft.
  • 2nd Floor: 1,721 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 61' 2"
  • Depth: 74' 4"

Garage

  • Type: Attached
  • Area: 580 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side
