Plan 500011VV

Exclusive

5 Bed Craftsman with Board and Batten Siding and 2 Porches

Heated S.F.
4,164
Beds
5
Baths
4.5
Stories
2
Cars
2

Floor Plan

Plan 500011VV

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor - Walk-up Attic (Unfinished)
3rd Floor - Walk-up Attic (Unfinished)

Plan 500011VV

M-F 9am-5pm EST |

1-203-761-8500

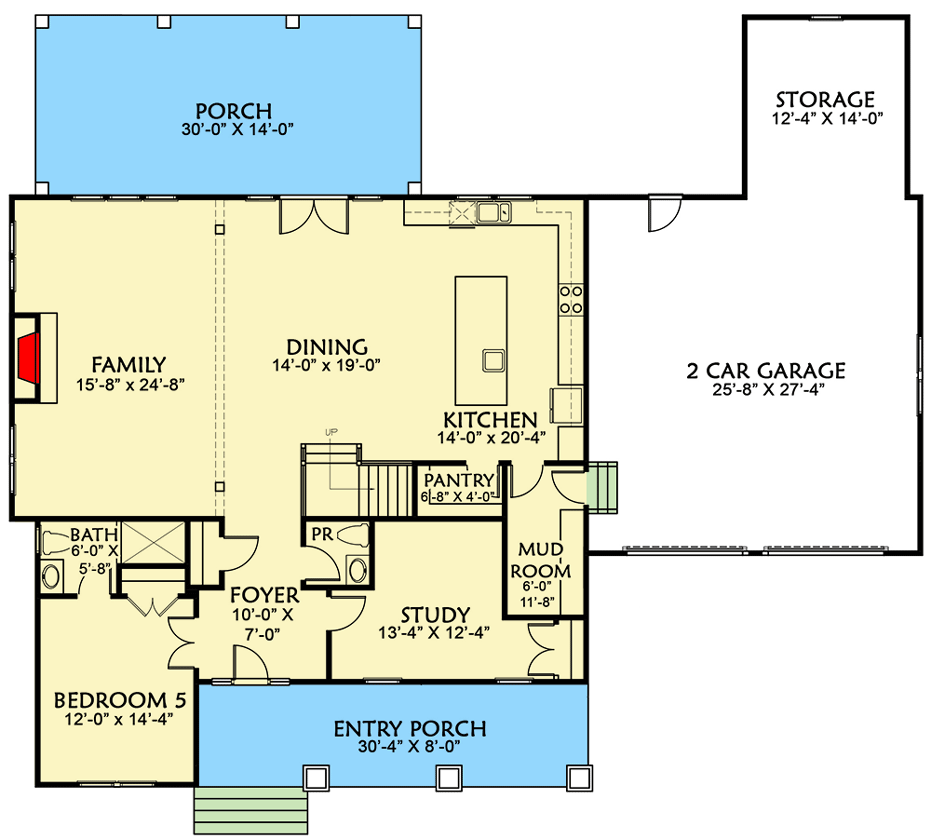

Main Level

Plan 500011VV: 5 Bed Craftsman with Board and Batten Siding and 2 Porches - Floor Plan - Main Level - Country, Craftsman, Farmhouse, New American

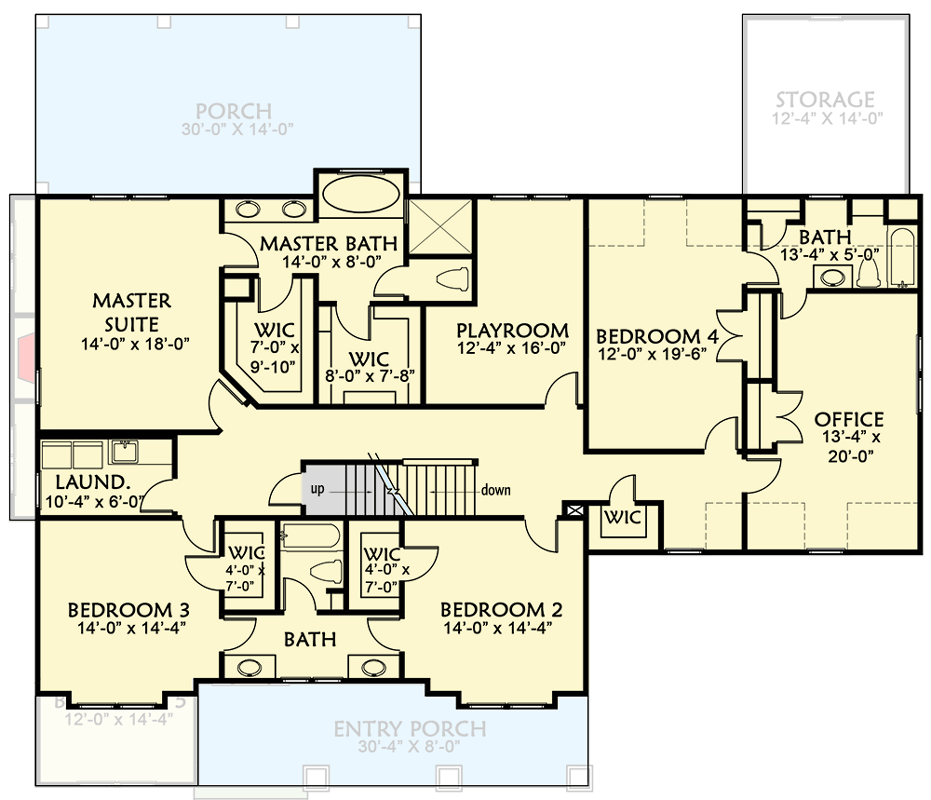

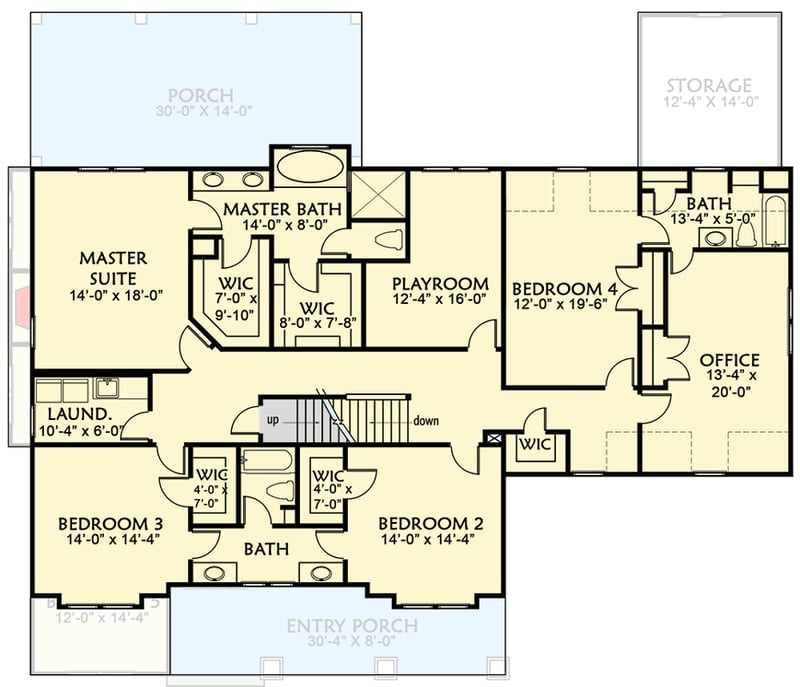

2nd Floor

Plan 500011VV: 5 Bed Craftsman with Board and Batten Siding and 2 Porches - Floor Plan - 2nd Floor - Country, Craftsman, Farmhouse, New American

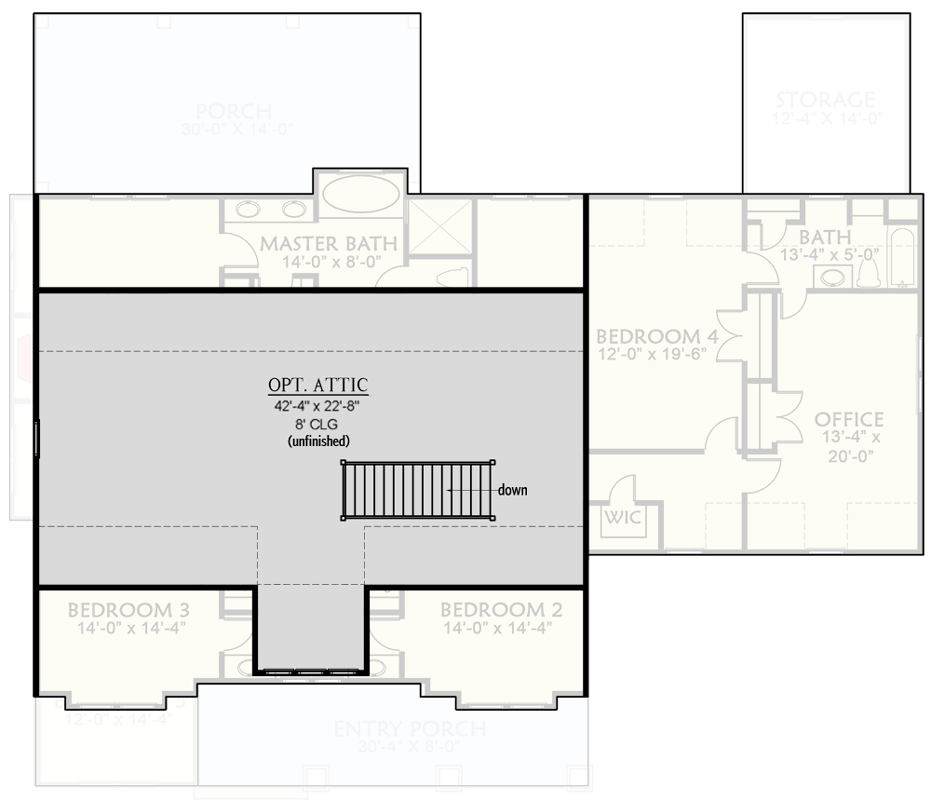

3rd Floor - Walk-up Attic (Unfinished)

Plan 500011VV: 5 Bed Craftsman with Board and Batten Siding and 2 Porches - Floor Plan - 3rd Floor - Walk-up Attic (Unfinished) - Country, Craftsman, Farmhouse, New American

Plan Details

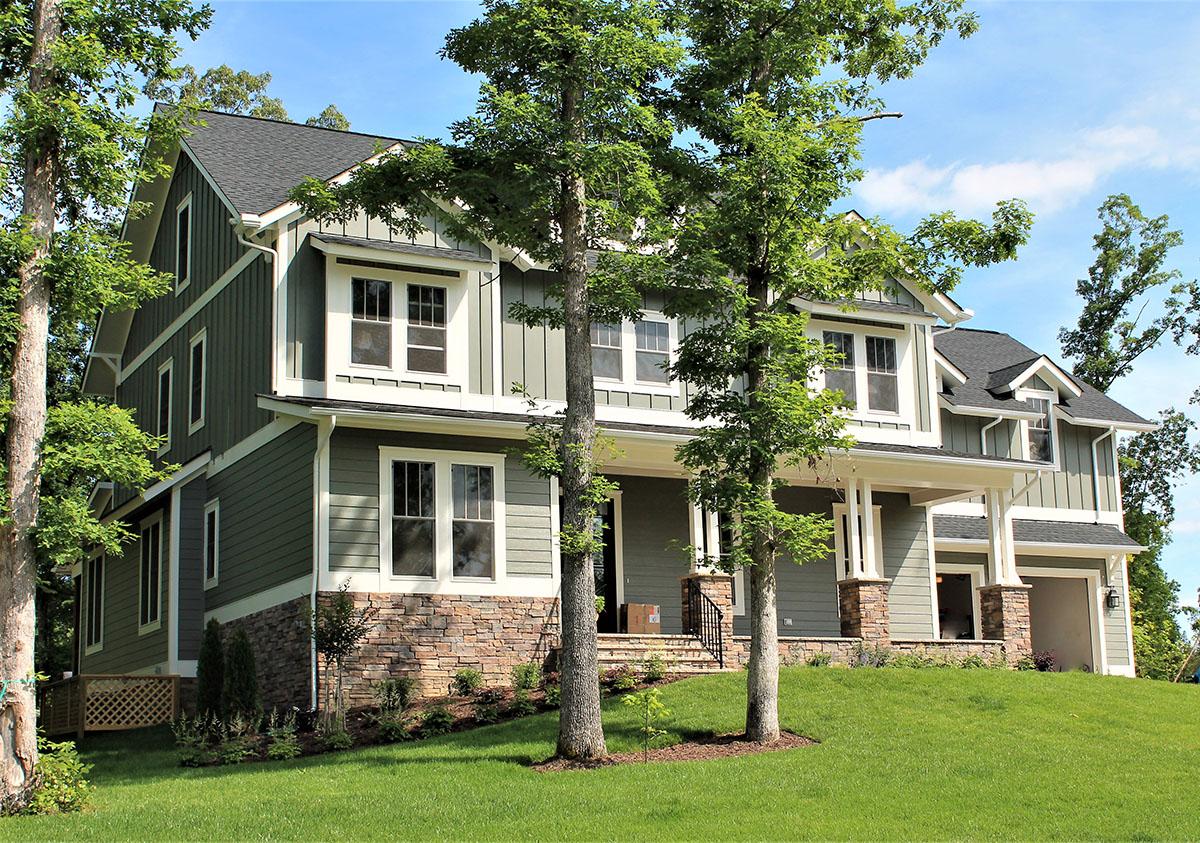

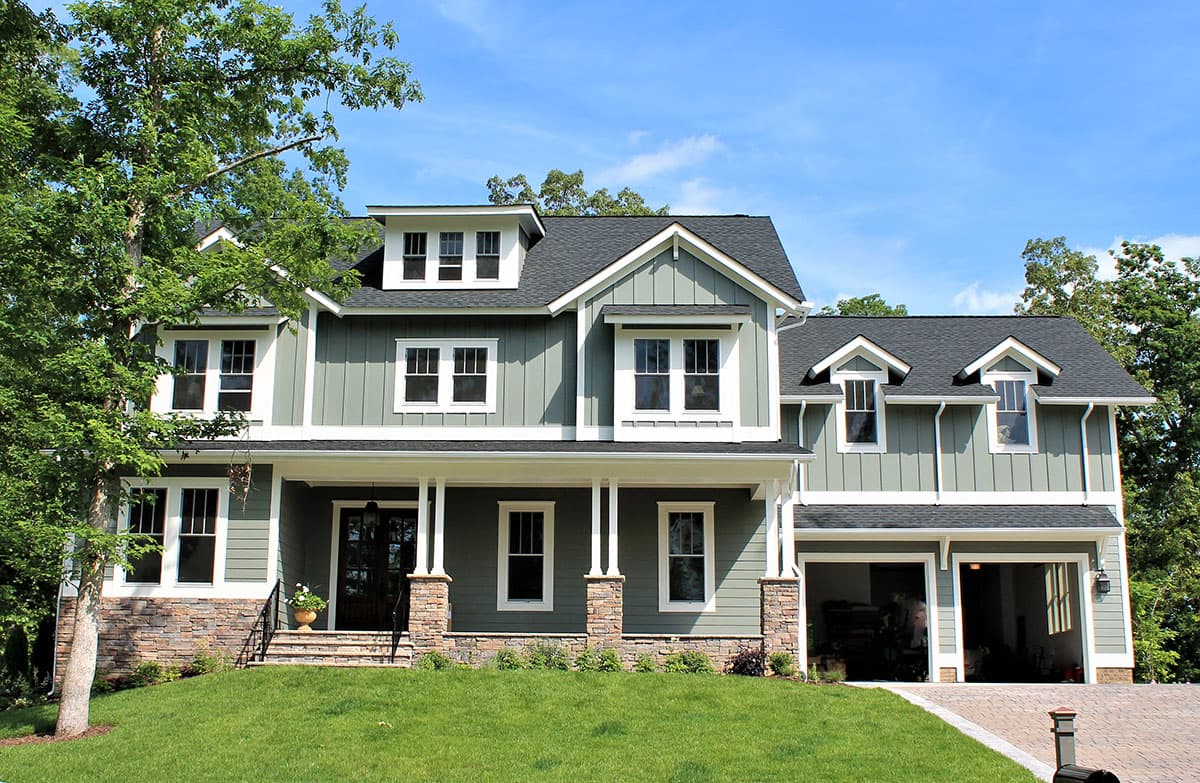

  • An 8'-deep front porch trimmed with stone greets you to this 5 bed Craftsman house plan. A combination of clapboard and board and batten siding and a shed dormer between the two matching gables completes the pretty picture.

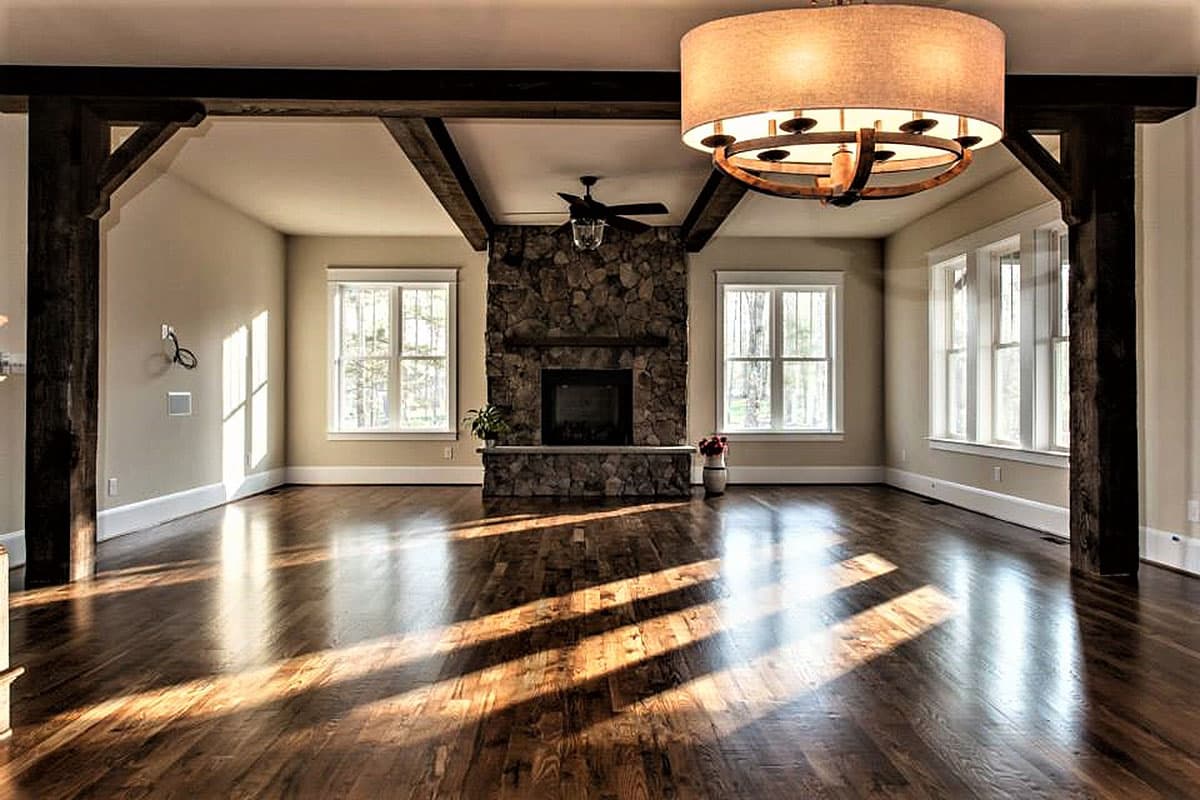

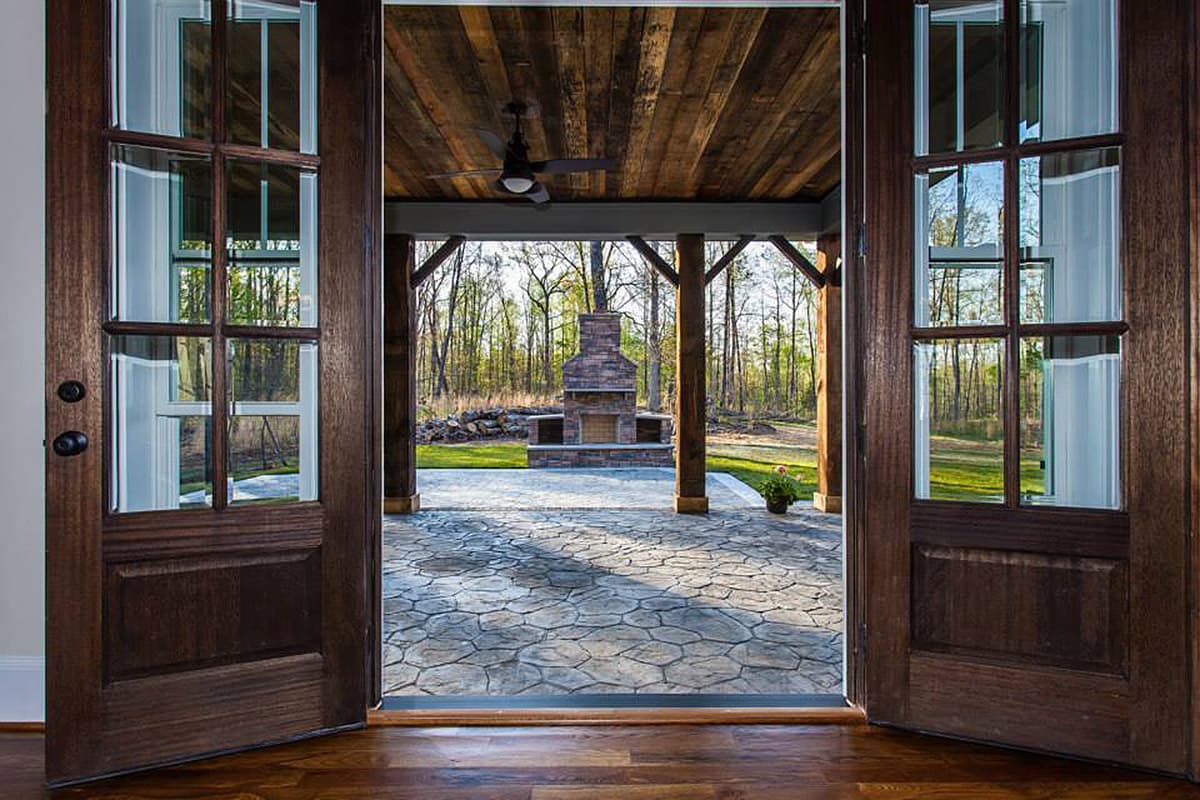

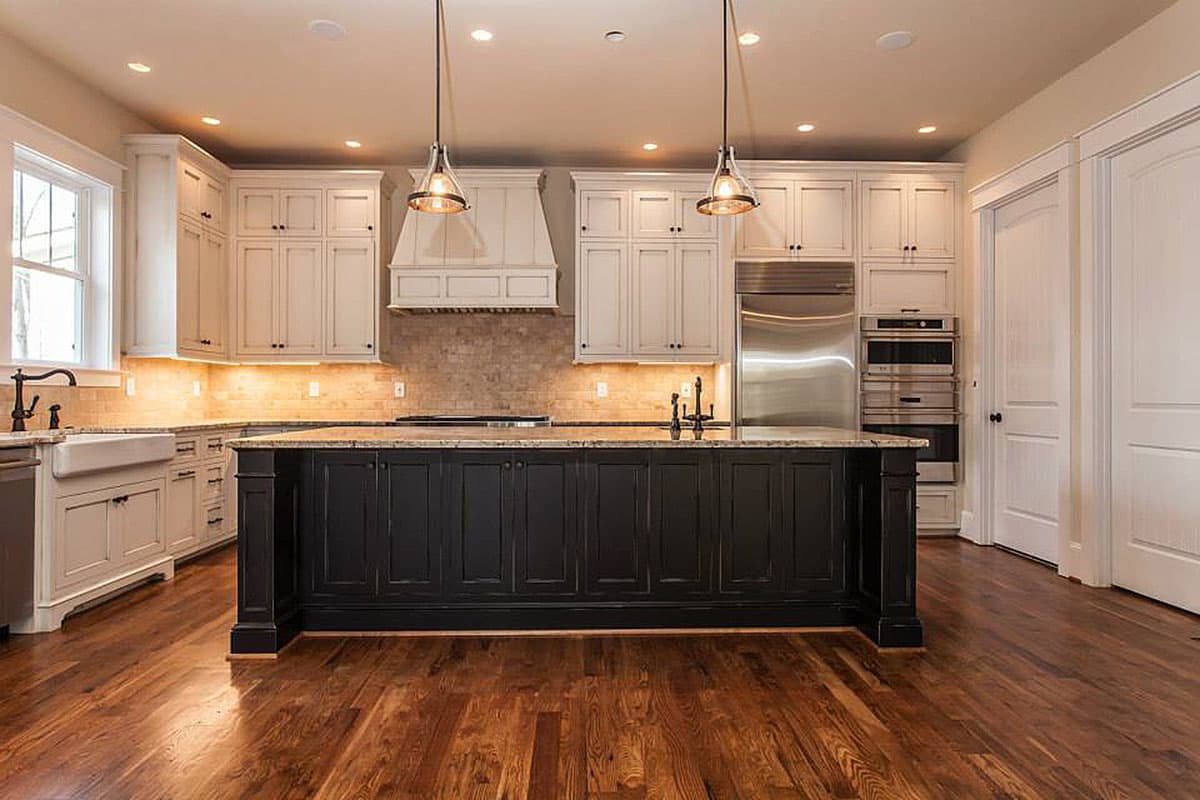

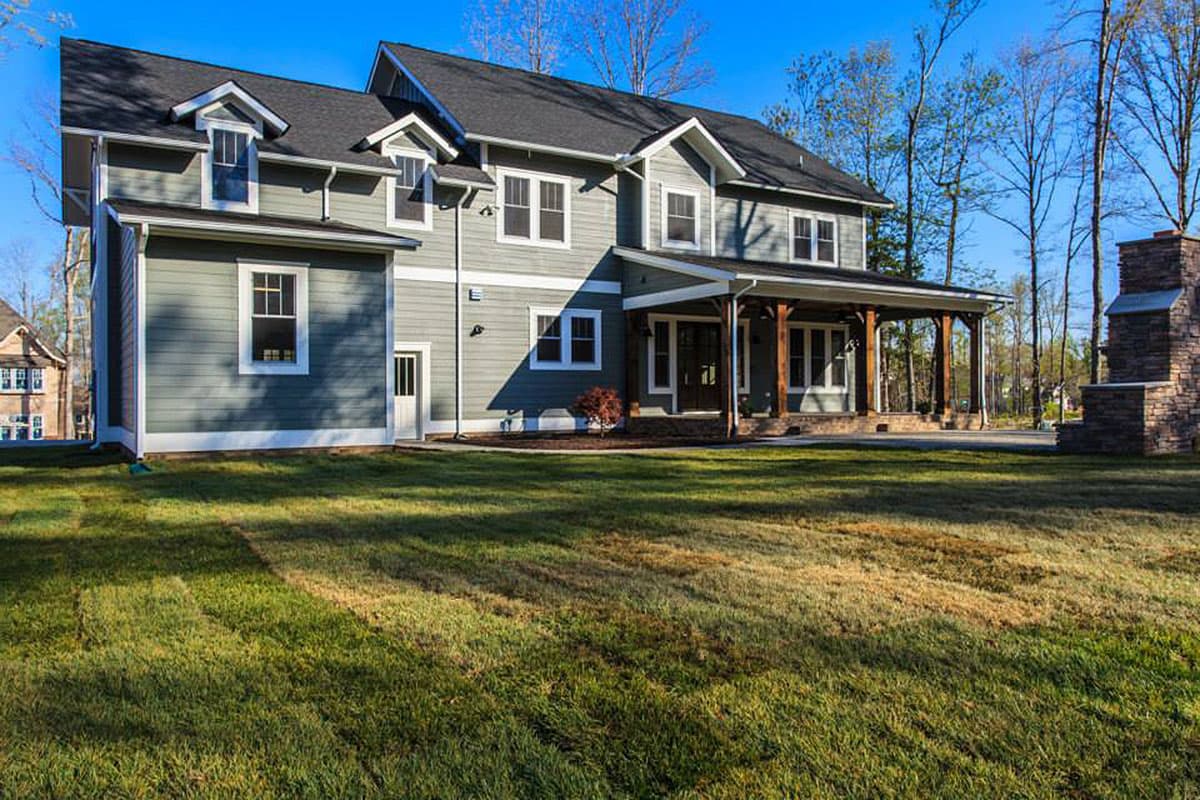

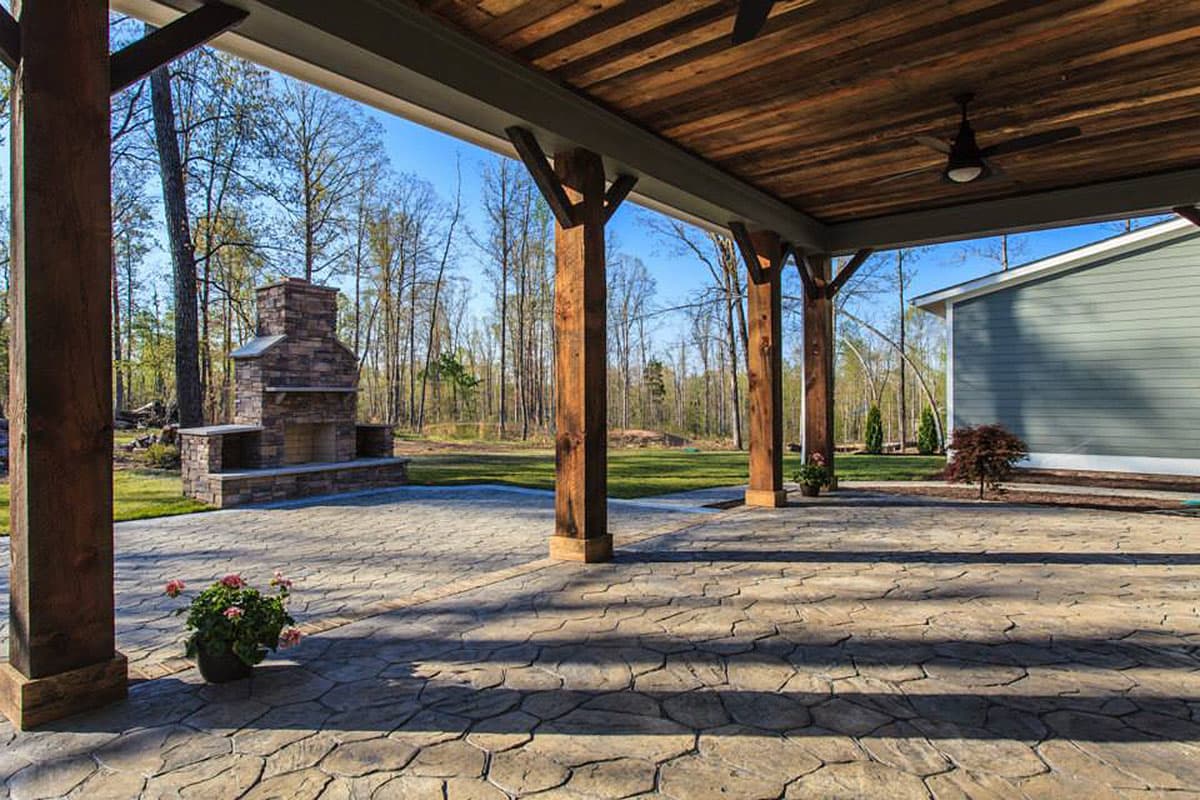

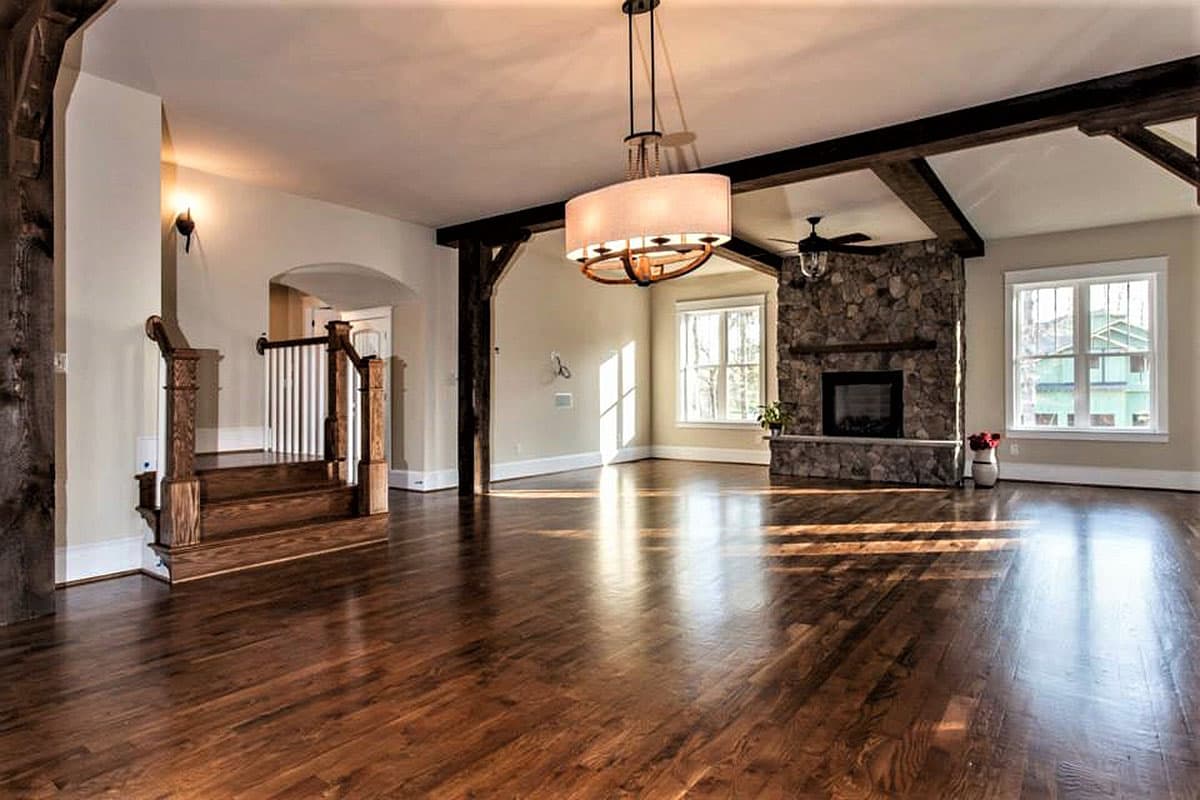

  • The back of the main floor is completely open from the family room with fireplace to the kitchen with large island. French doors open to the rear covered porch. The kitchen has a walk-in pantry and easy access through the mud room to the garage making unloading groceries a breeze.
  • A study and a bedroom complete the main floor.
  • The master suite has two walk-in closets and a five fixture bath. Beds 2 and 3 share a Jack-and-Jill bath. Over the garage, Bed 4 and a home office await. Conveniently, laundry is located upstairs where it is all generated.
  • Related Plan: Downsize with house plan 500046VV (3,638 sq. ft.).
  • NOTE: This plan cannot be built within a 50-mile radius of Richmond, Virginia.

What's Included

  • Cover sheet with notes
  • Foundation
  • Floor plans

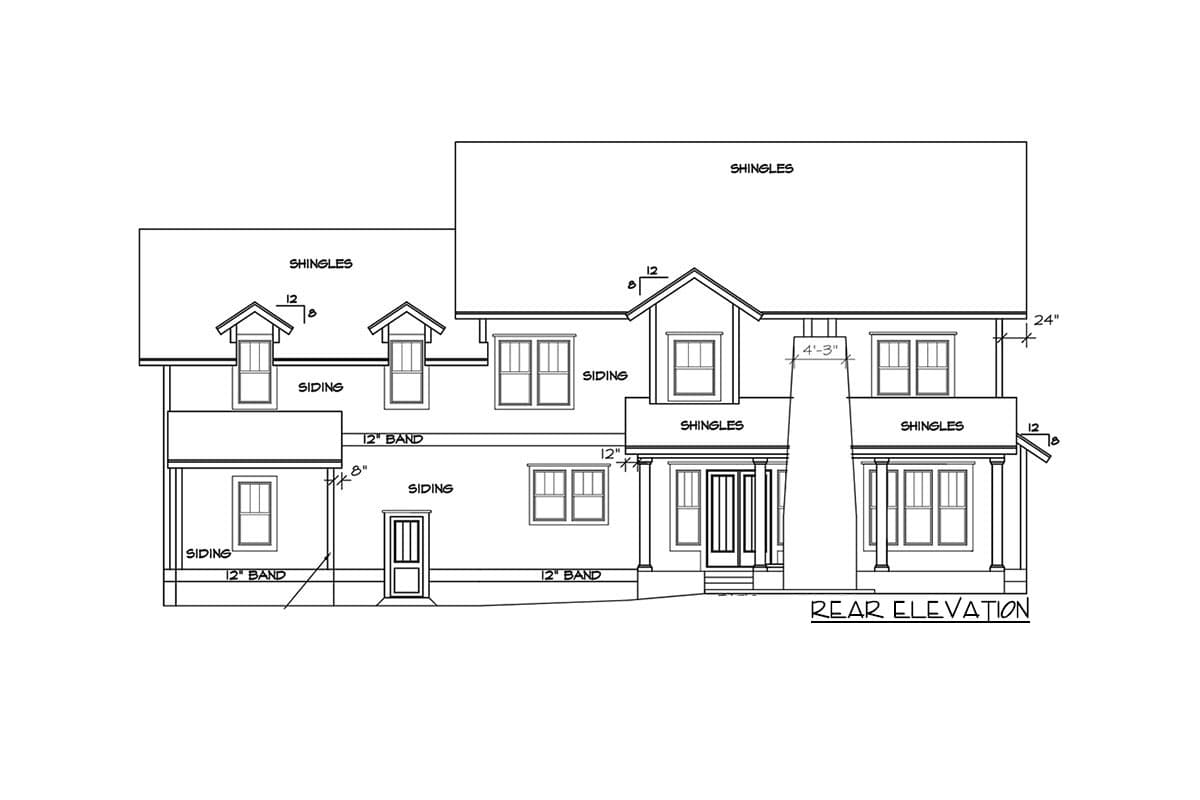

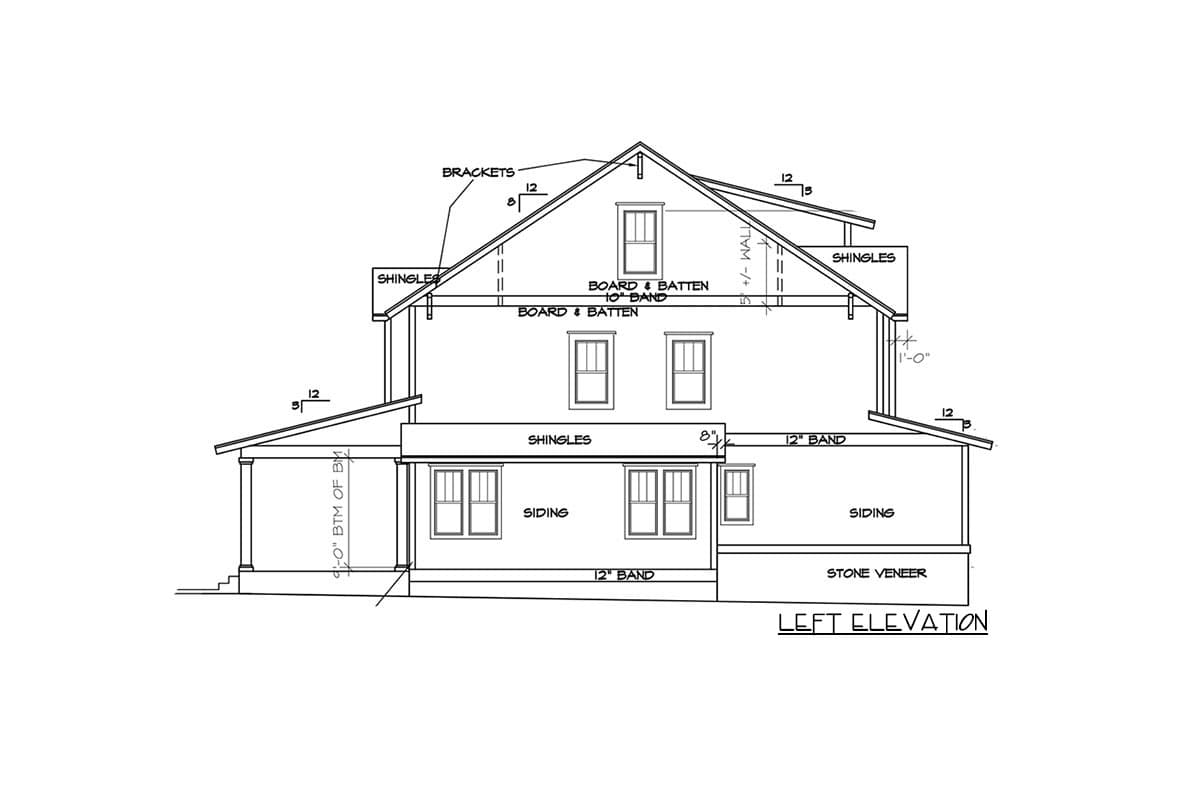

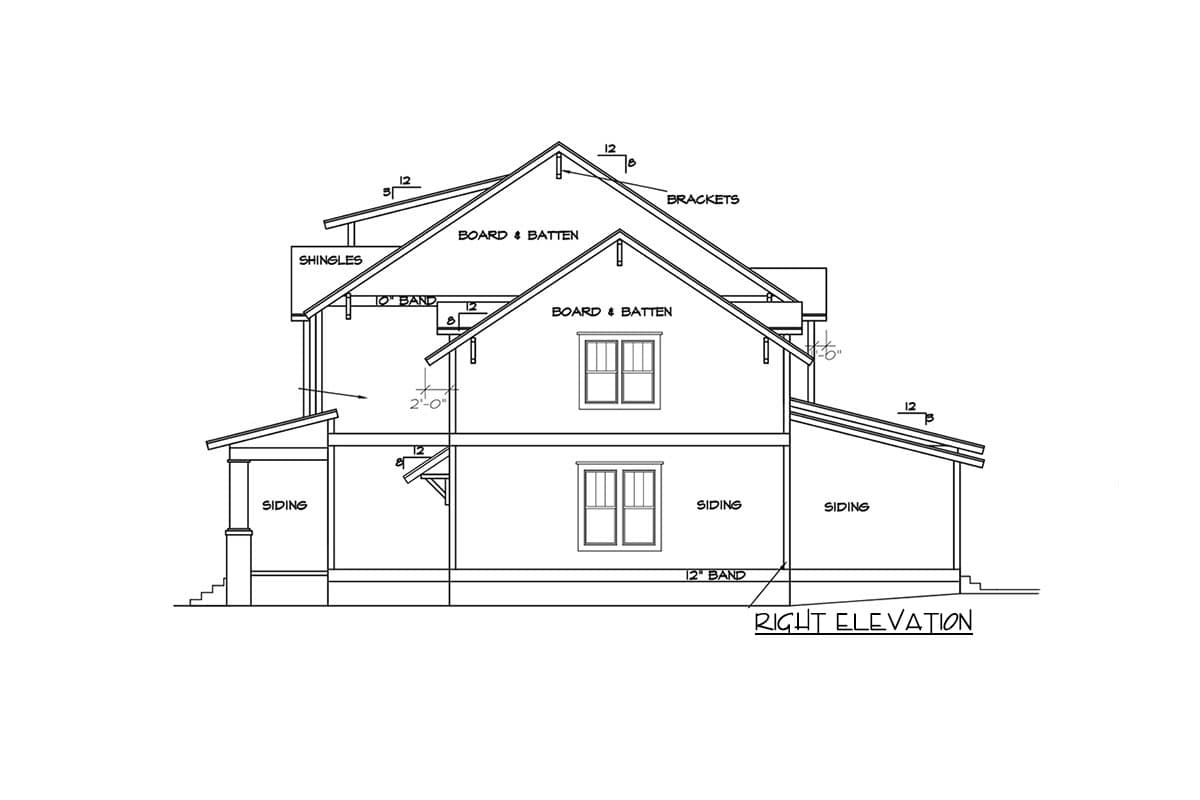

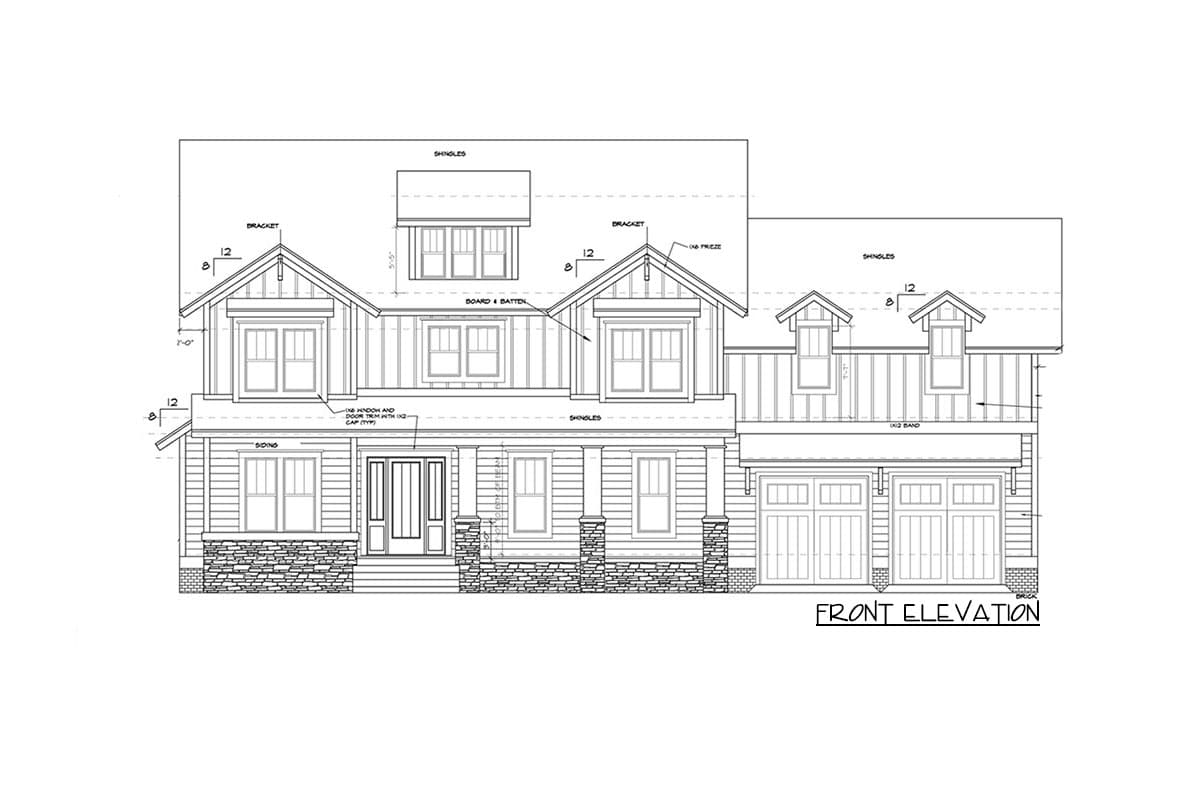

  • Elevations
  • Sections
  • Framing plans
  • Electrical plans

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,164 sq. ft.

1st Floor

1,786 sq. ft.

2nd Floor

2,378 sq. ft.

Porch, Front

243 sq. ft.

Porch, Rear

420 sq. ft.

Attic

1,003 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

71' 0"

Depth

60' 0"

Max Ridge Height

37' 6"

Garage

Type

Attached

Area

910 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Attic

8' 0''

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Farmhouse

New American

Special Features

Home Office

Jack & Jill Bath

Laundry - Upstairs

Library/Study

Master Suite - Upstairs

Mudroom

Optionally Finished Bonus Room

Playroom

Walk-in Pantry

Plan Collections

Exclusive

Home Office

Photo Gallery
