Plan 680063VR
5 Bed House Plan with a Home Office, an Outdoor Kitchen and an Upstairs Game Room
Heated S.F.
4,726
Beds
5
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details
  • This 5-bed, 4.5 bath house plan has a painted brick exterior and gives you 4,726 square feet of heated living and a 3-car side entry garage (815 square feet).

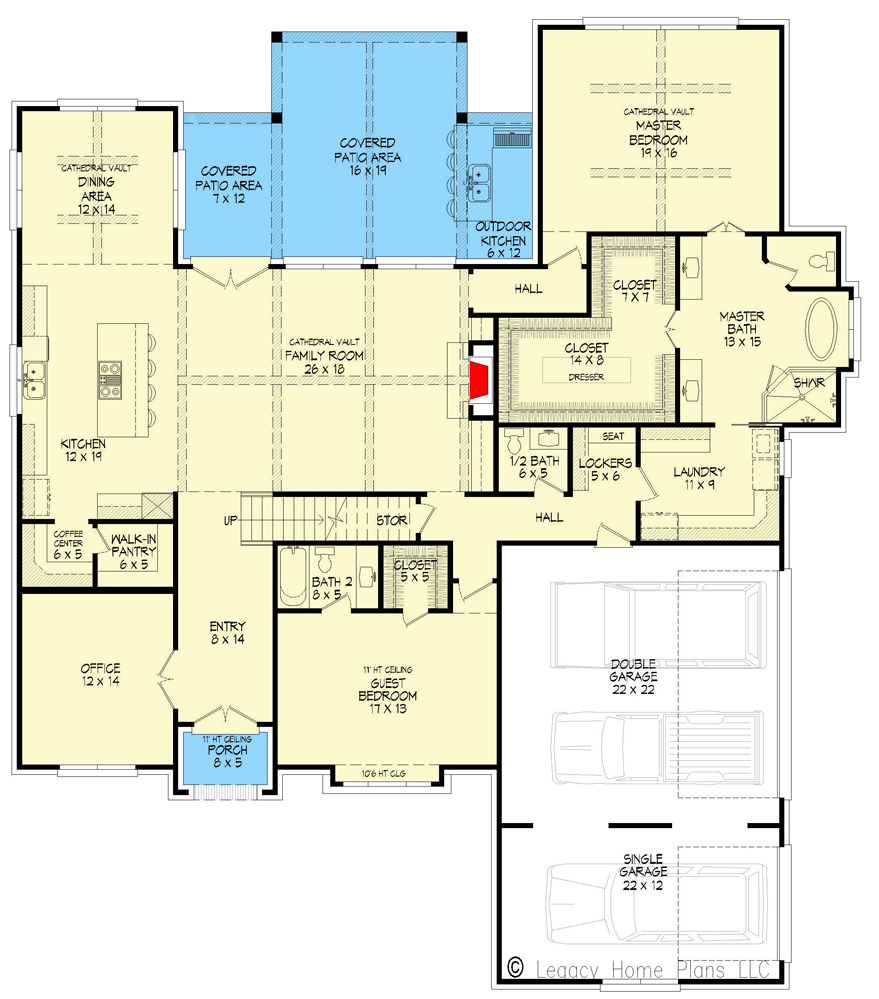

  • A home office sits behind French doors off the foyer which leads to the 2-story family room. A pair of French doors - aligned with the ones in the foyer - take you to the covered patio in back which has an outdoor kitchen.
  • The master suite is on the main floor and has a roomy 2-person walk-in closet and direct access to the laundry room, a great convenience.

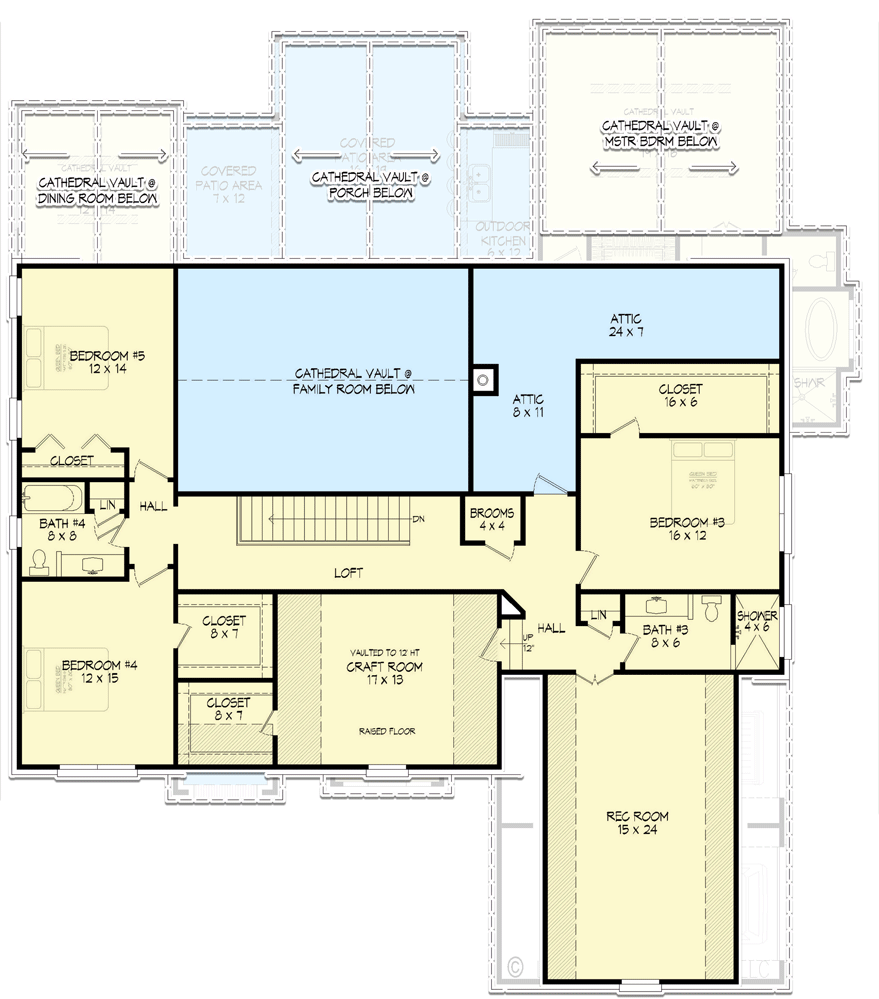

  • Upstairs, three bedrooms share two baths. A large rec room is located above the garage and a craft room can be put to alternate uses.
  • Related Plan: get this plan in reverse orientation with 680182VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

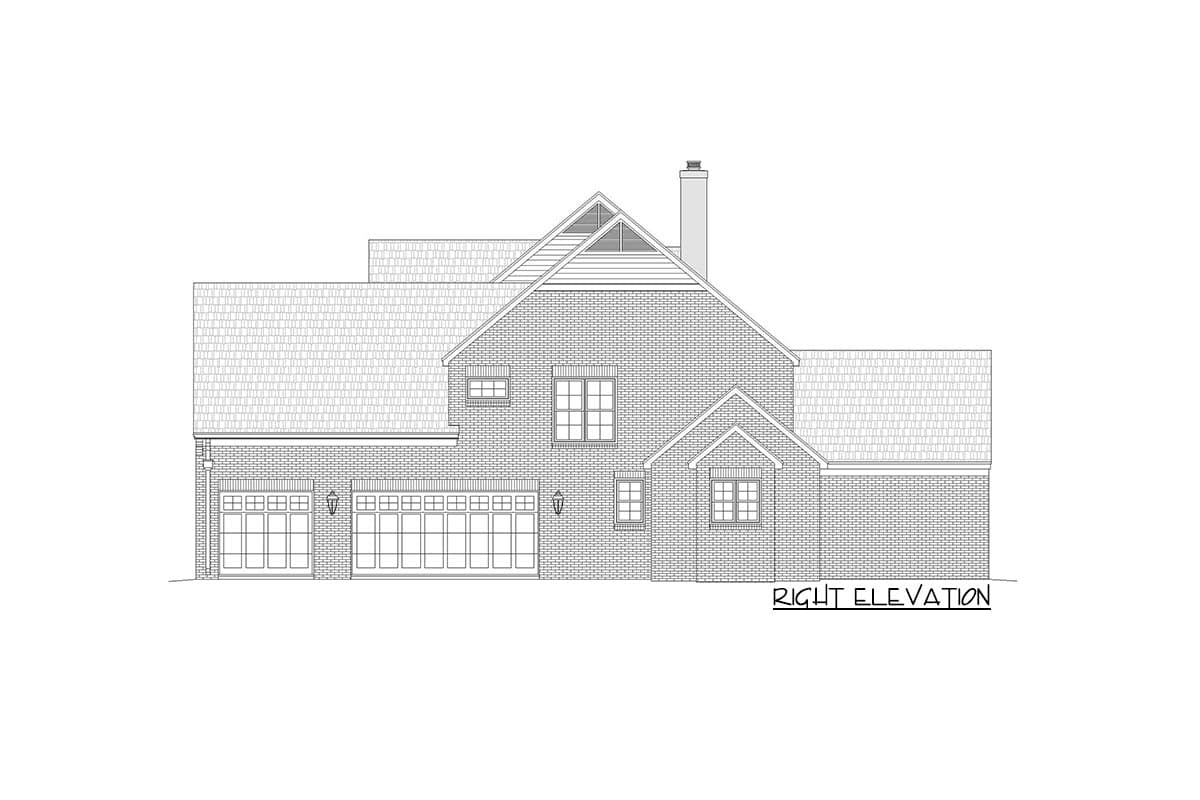

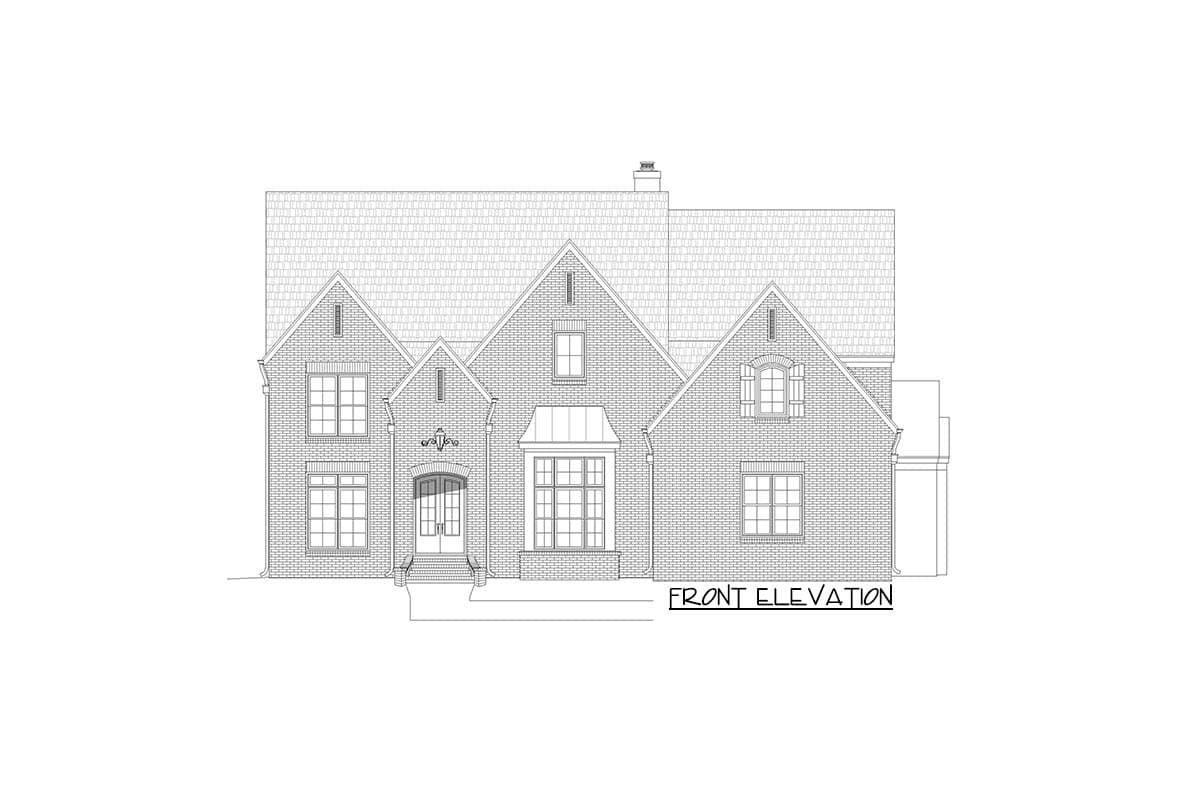

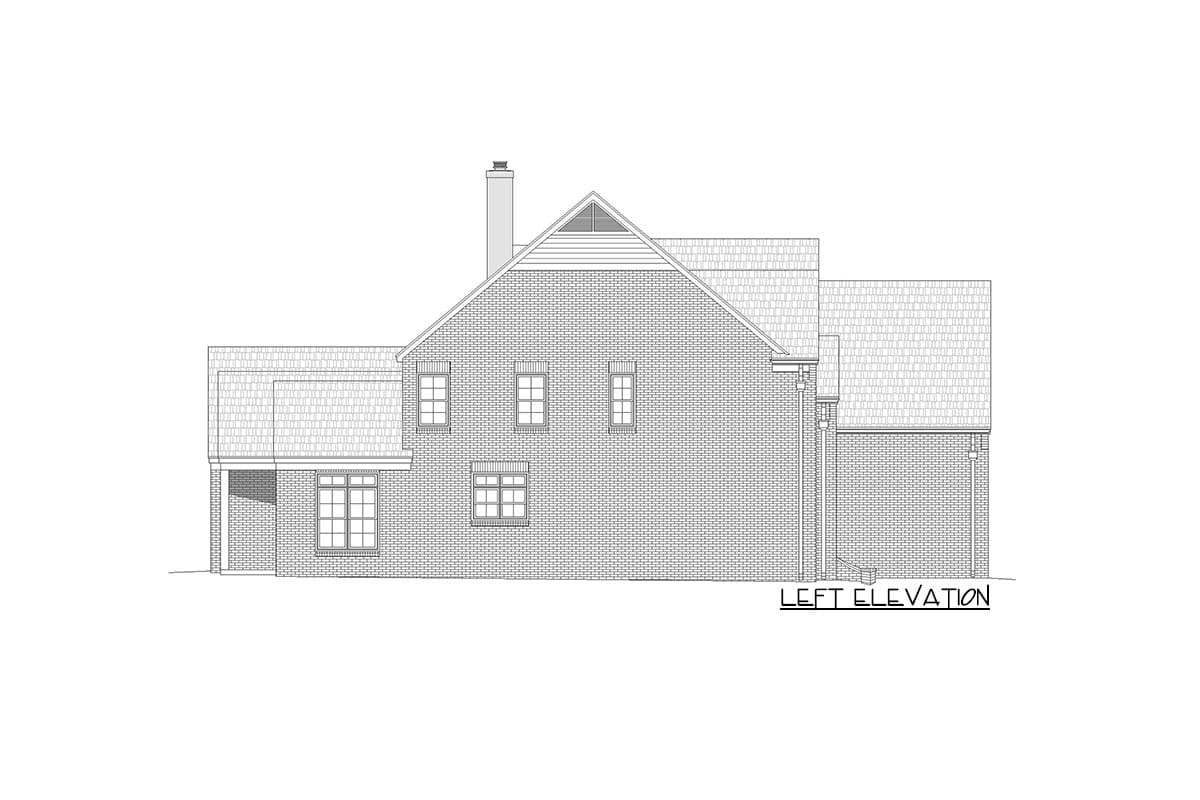

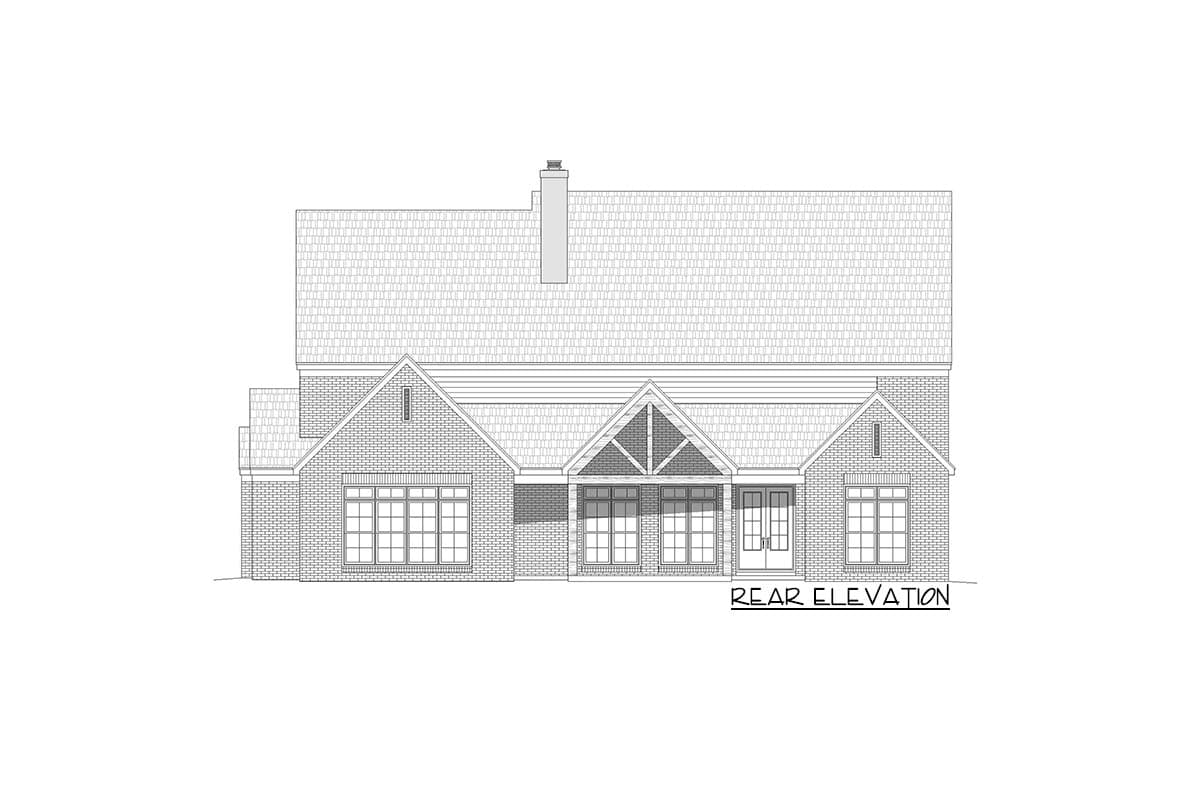

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

5 Bed House Plan with a Home Office, an Outdoor Kitchen and an Upstairs Game Room

  • 4,726

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,726 sq. ft.
  • 1st Floor: 2,725 sq. ft.
  • 2nd Floor: 2,001 sq. ft.

Dimensions

  • Width: 67' 3"
  • Depth: 76' 10"
  • Max ridge height: 36' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 815 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
