5-Bed House Plan with Bowed Rear Wall

Heated S.F.
2,794
Beds
5
Baths
4
Stories
2
Cars
2

Floor Plan

Plan 710349BTZ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 710349BTZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

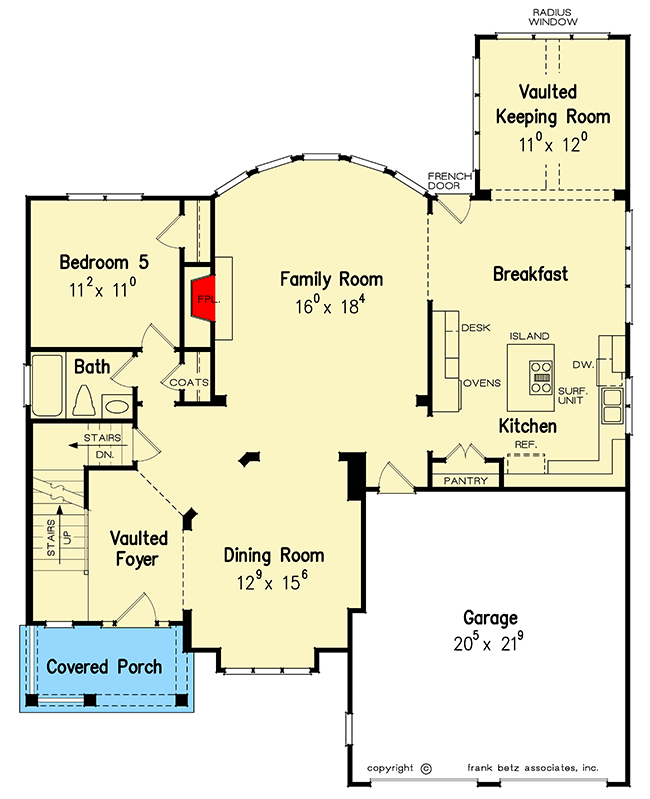

Plan 710349BTZ: 5-Bed House Plan with Bowed Rear Wall - Floor Plan - Main Level - Southern, Traditional

2nd Floor

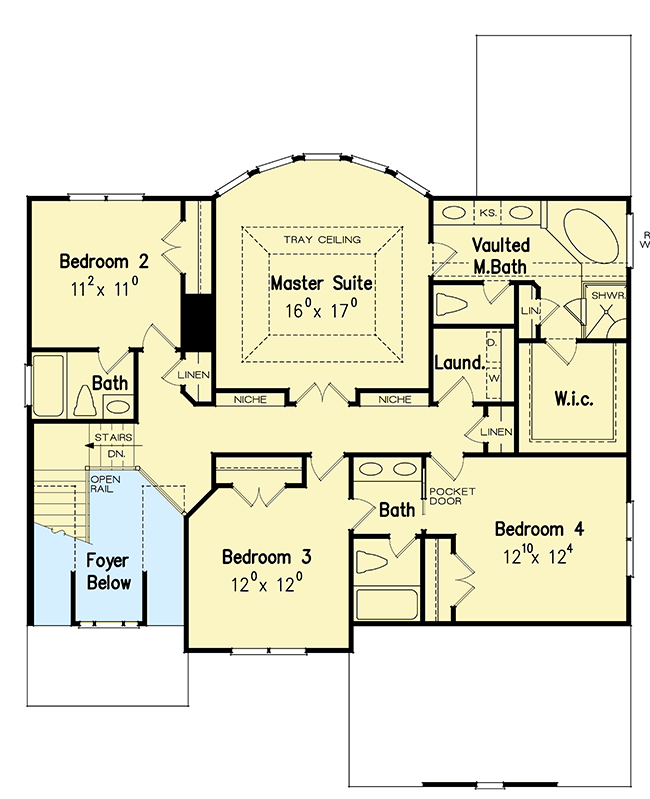

Plan 710349BTZ: 5-Bed House Plan with Bowed Rear Wall - Floor Plan - 2nd Floor - Southern, Traditional

Plan Details

  • Board and batten siding, carriage doors and stone accents create great curb appeal in this 5-bed house plan.
  • Inside, you get a large family room with a bowed back wall and an with a comfortable keeping room with vaulted ceiling extending the kitchen area.
  • Double ovens and a built-in message center add function and practicality to the kitchen.
  • Upstairs, the master suite has a bowed walls of window and a tray ceiling. Art niches line the upstairs hallway, providing wonderful space to get creative with decorating. Two secondary bedrooms share a divided bath, while a third enjoys the privacy of its own bathing area.

What's Included

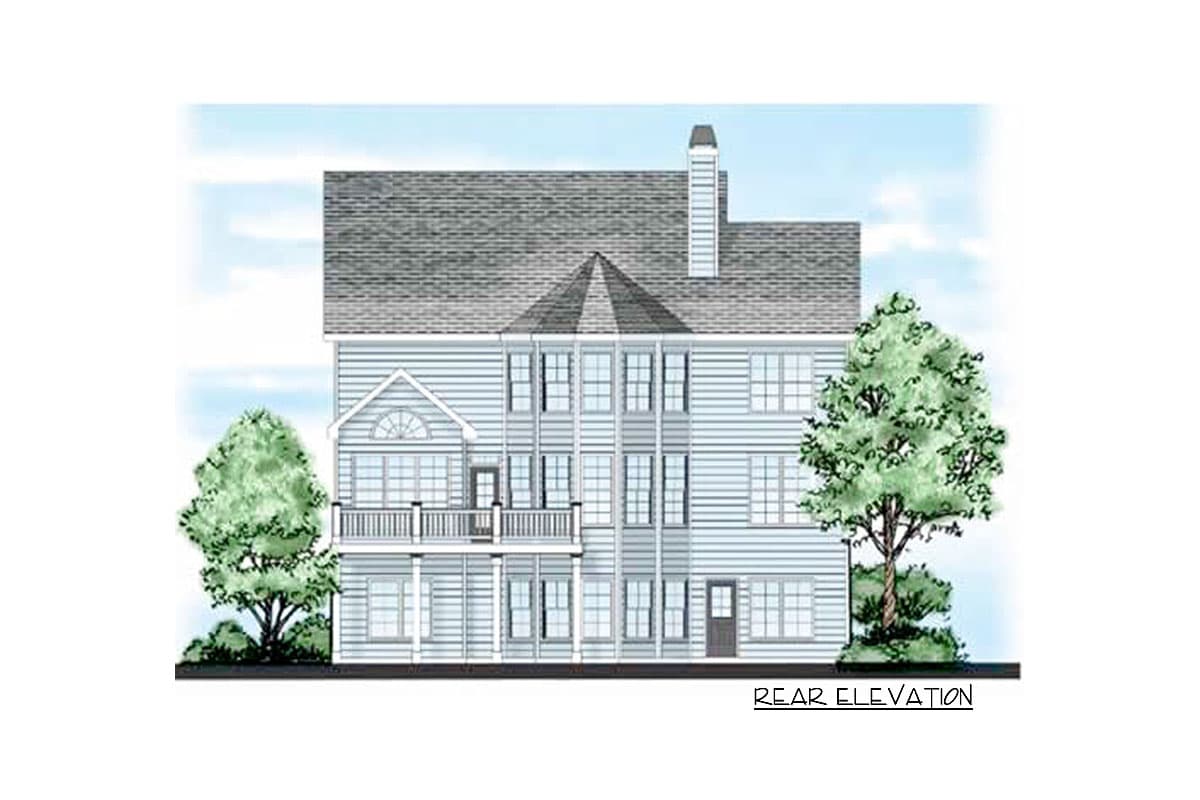

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house. Unless shown otherwise, all foundation options will show walkout basement elevations.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,794 sq. ft.

1st Floor

1,452 sq. ft.

2nd Floor

1,342 sq. ft.

Basement Unfinished

1,452 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

45' 0"

Depth

56' 0"

Max Ridge Height

32' 6"

Garage

Type

Attached

Area

449 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Jack & Jill Bath

Keeping Room

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,794 sq. ft.

1st Floor

1,452 sq. ft.

2nd Floor

1,342 sq. ft.

Basement Unfinished

1,452 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

45' 0"

Depth

56' 0"

Max Ridge Height

32' 6"

Garage

Type

Attached

Area

449 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Jack & Jill Bath

Keeping Room

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Photo Gallery
