Plan 710121BTZ

5-Bed House Plan with Two Fireplaces

Name: Plan 710121BTZ: 5-Bed House Plan with Two Fireplaces
Brand: Architectural Designs
SKU: 710121BTZ
Price: 2515.0 USD
Availability: InStock

Heated S.F.

3,243

Beds

4 - 5

Baths

4.5

Stories

Cars

Floor Plan

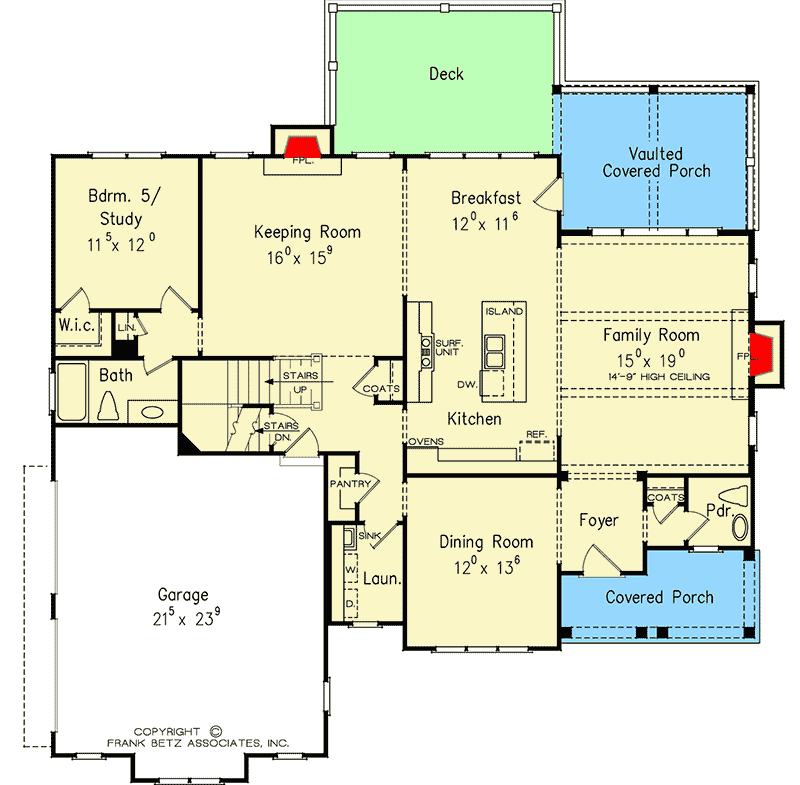

Main Level

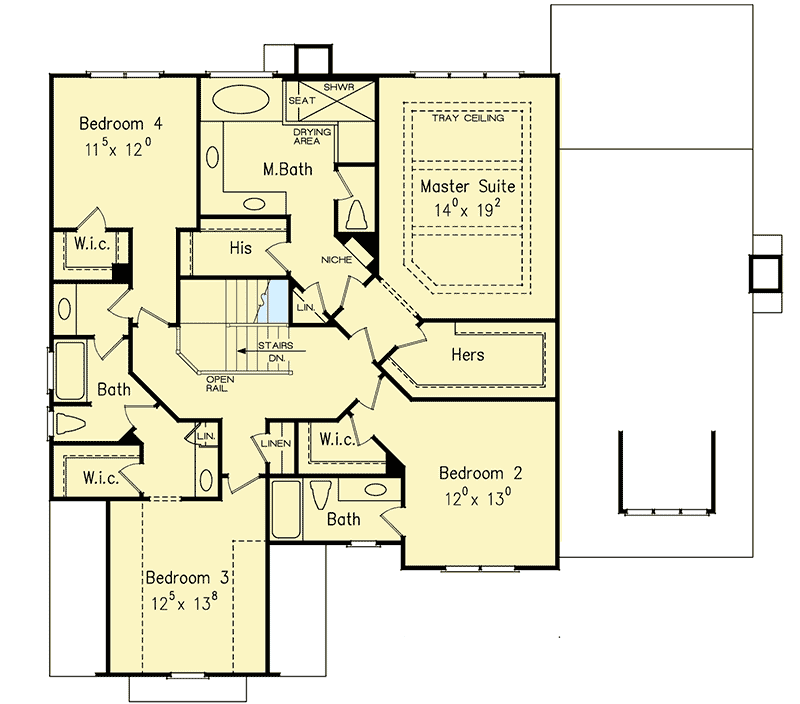

2nd Floor

Plan Details

With elements derived from the distinctive French Country style, this 4 to 5 bed house plan has both exterior and interior appeal.
Vaulted ceilings not only highlight the interior but also extend outdoors to the covered porch.
The kitchen is open to the family room with 14' ceilings and a fireplace as well as to the breakfast room. A second fireplace is located in the keeping room.
Five bedrooms (or four plus a study) offer ample room to grow or the ability to convert existing space to suit new needs. Four of five bedrooms are housed on the second level, which allows the home to be climate controlled.

What's Included

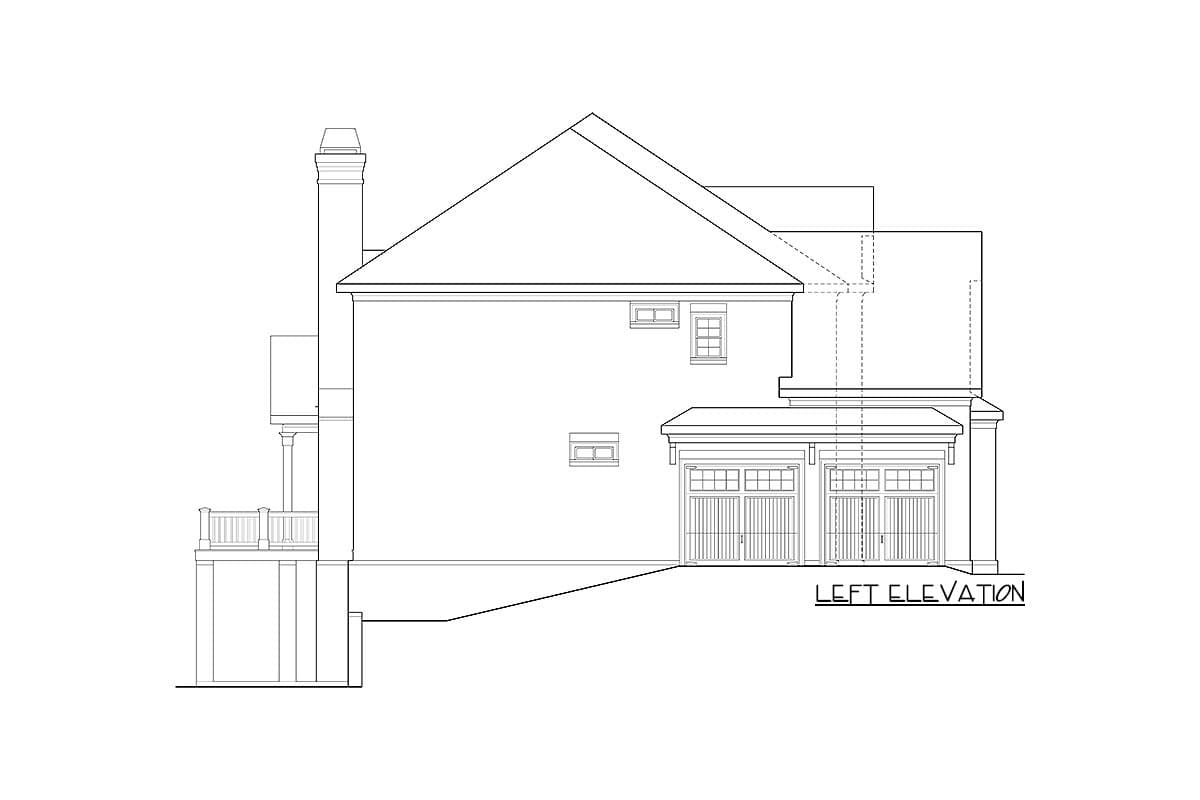

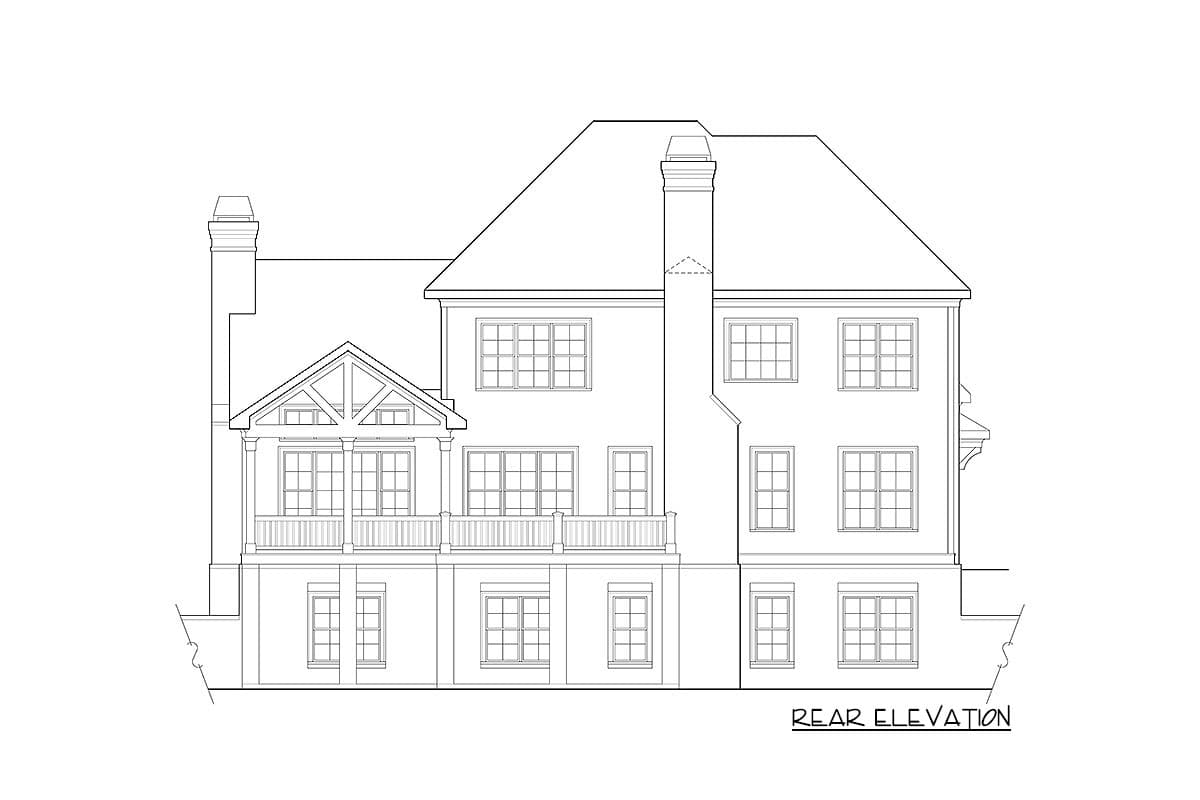

Elevations - at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house. Unless shown otherwise, all foundation options will show walkout basement elevations.
Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, door/window sizes. Crawlspace and/or slab on grade foundations are available for some plans.
Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
Floor framing - if included it shows each floor joist indicating the size, spacing and length. All beams are sized and labeled. Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length. All beams are sized and labeled. All of the joists are counted and coordinated with the material list. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
Details sheets - shows foundation details, typical wall section and other framing details. Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What's Not Included

Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations
Windows and Doors Schedules
