Plan 623322DJ
5 Bed Luxury House Plan with 3 Garages - 4987 Sq Ft
Heated S.F.
4,987
Beds
5
Baths
4.5
Stories
2
Cars
5

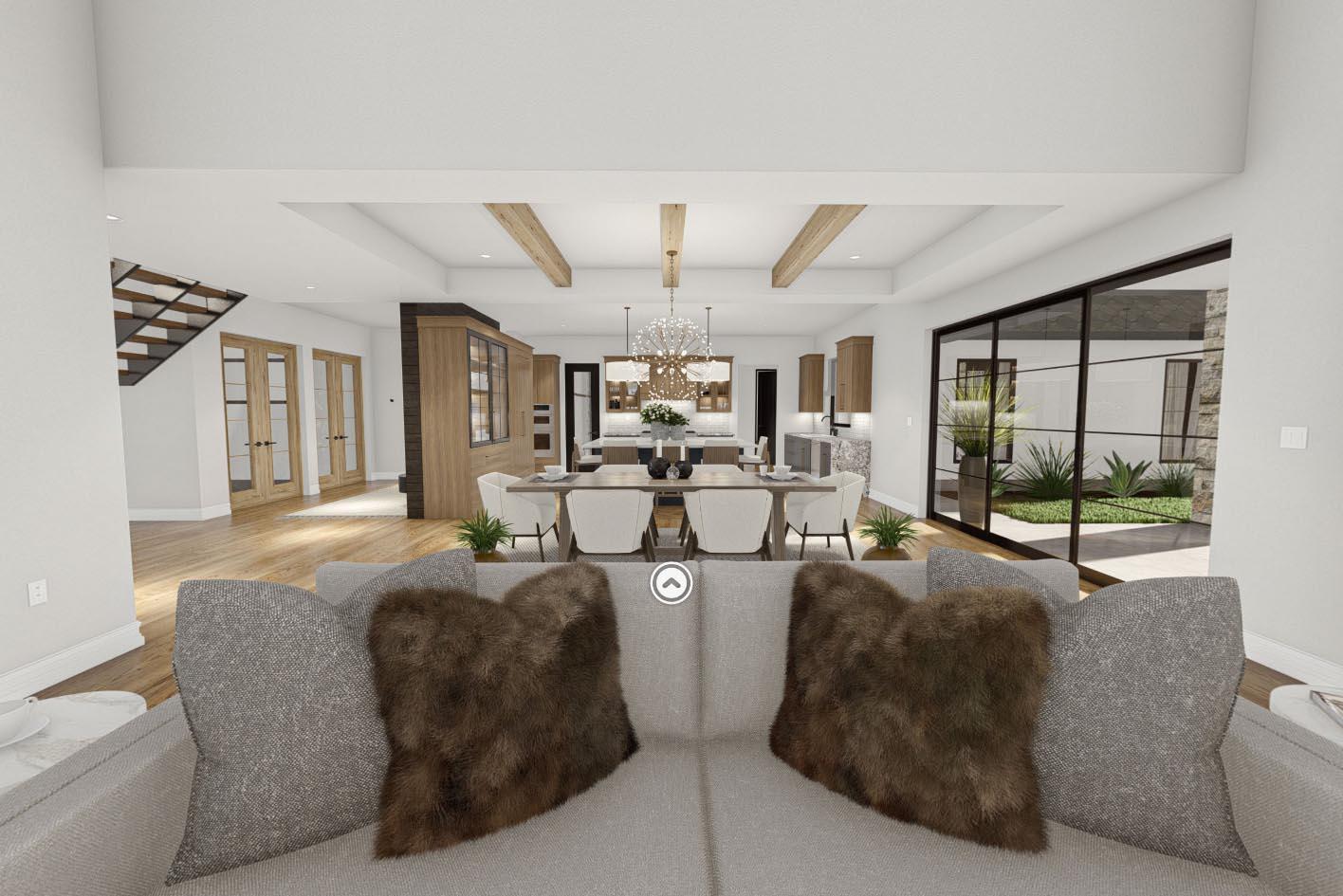

Tour
What's Included
Plan Details
  • This 5 bed, 4.5 bath house plan gives you 4,987 square feet of heated living.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

5 Bed Luxury House Plan with 3 Garages - 4987 Sq Ft

  • 4,987

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 5

    Car garage

Floor Plan

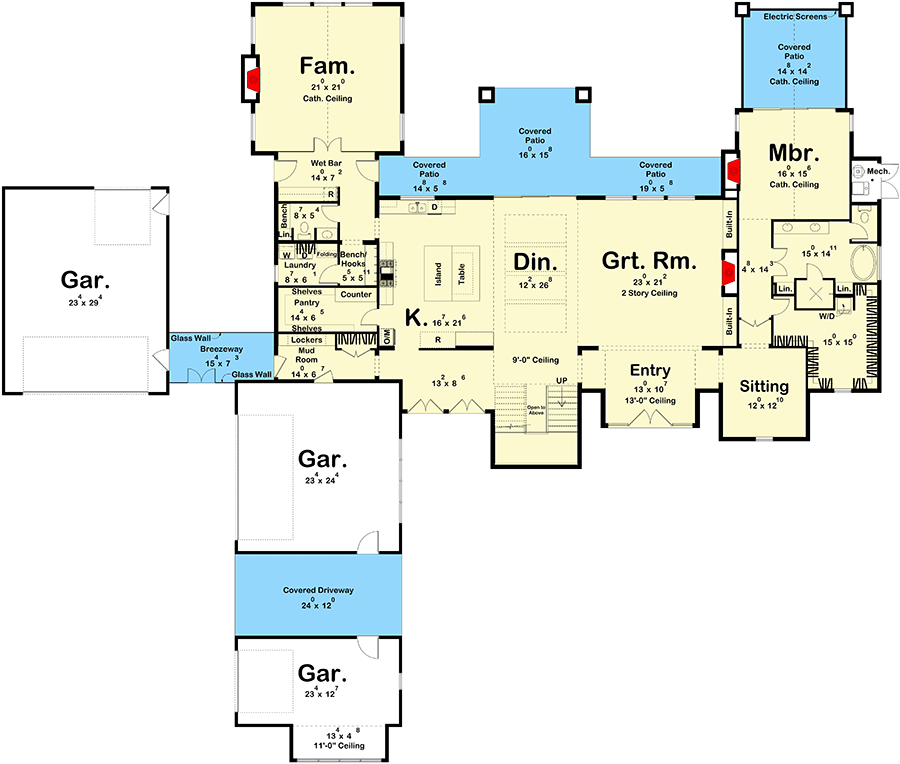

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,987 sq. ft.
  • 1st Floor: 3,600 sq. ft.
  • 2nd Floor: 1,387 sq. ft.

Dimensions

  • Width: 127' 0"
  • Depth: 109' 8"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1694 sq. ft.
  • Count: 5 Cars
  • Entry Location: Courtyard, Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 8 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

5 Bed Luxury House Plan with 3 Garages - 4987 Sq Ft

  • 4,987

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 5

    Car garage

5 Bed Luxury House Plan with 3 Garages - 4987 Sq Ft

  • 4,987

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 5

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 4,987 sq. ft.
  • 1st Floor: 3,600 sq. ft.
  • 2nd Floor: 1,387 sq. ft.

Dimensions

  • Width: 127' 0"
  • Depth: 109' 8"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1694 sq. ft.
  • Count: 5 Cars
  • Entry Location: Courtyard, Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 8 on 12

    Main Level

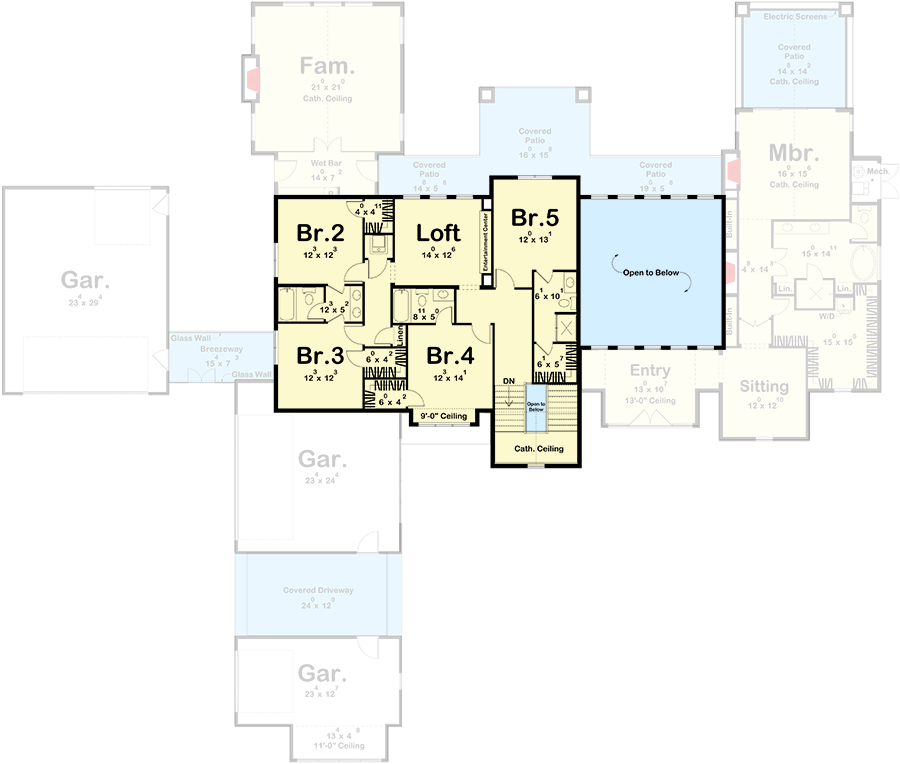

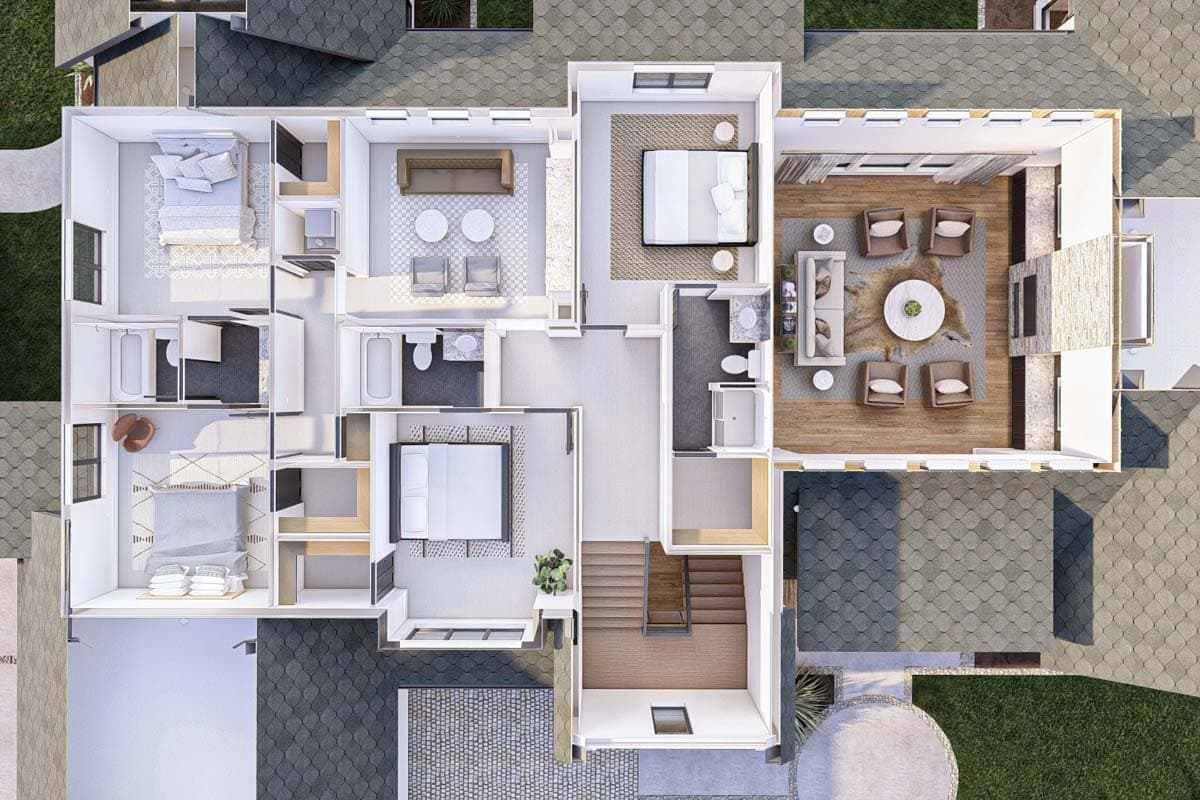

    2nd Floor
