Plan 36410TX

5 Bed Luxury With Dramatic Study

Heated S.F.
5,193
Beds
5
Baths
5
Stories
2
Cars
3

Floor Plan

Plan 36410TX

Main Level
Main Level
2nd Floor
2nd Floor

Plan 36410TX

M-F 9am-5pm EST |

1-203-761-8500

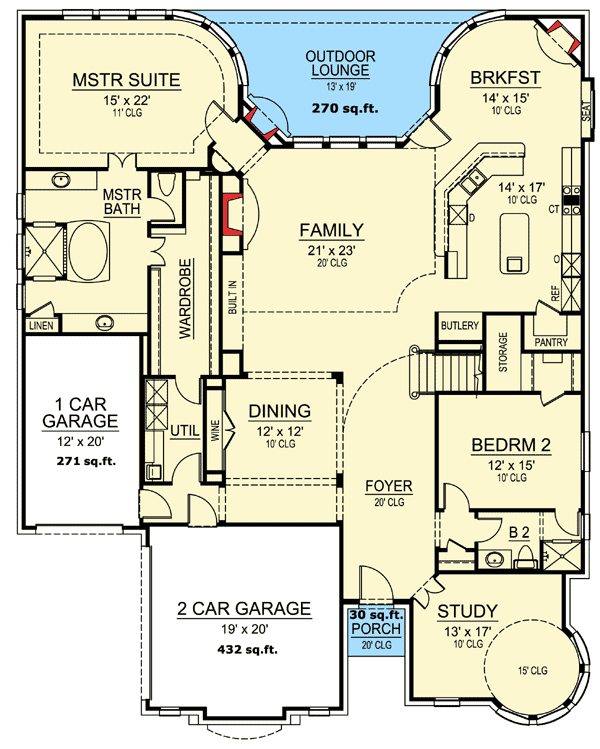

Main Level

Plan 36410TX: 5 Bed Luxury With Dramatic Study - Floor Plan - Main Level - European

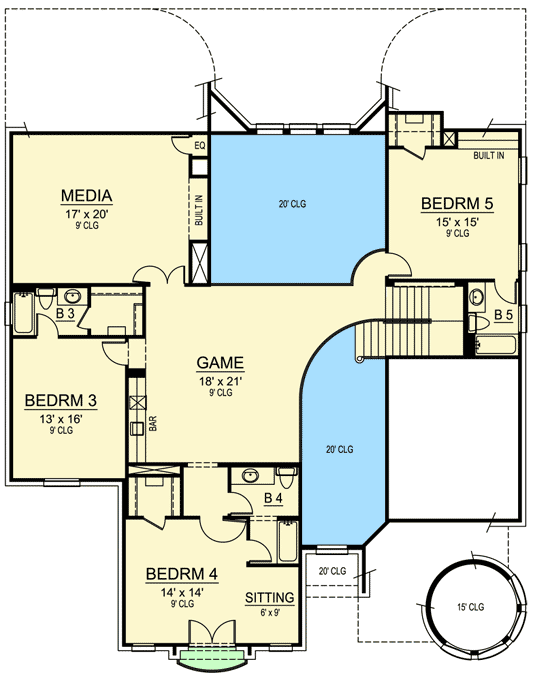

2nd Floor

Plan 36410TX: 5 Bed Luxury With Dramatic Study - Floor Plan - 2nd Floor - European

Plan Details

  • When you enter through this 2-story foyer you are greeted by views that extend directly through to the family room with a 20' ceiling and the dining room with wine annex.
  • The quiet study has a bayed area, next to the large bank of windows up the 15' ceiling.
  • The gathering rooms consist of the kitchen, dining room, and family room are open to one another, separated only by the free standing eating bar in the kitchen.
  • The large bank of windows on the back of this luxury house plan offers views onto the outdoor lounge.
  • The master suite boasts a lavish master bath with separate shower and tub, his and her vanities, a large wardrobe and utility room.
  • Upstairs three family bedrooms with full baths and walk-in closets flank the game room with built-ins and storage space. A media room completes this level of this luxury estate house plan.
  • Access to the one-car garage is easily accessible from the master suite. A 2-car garage completes this level of this luxury estate house plan.
  • Related Plans: Get an alternate exterior with house plans 36415TX and 36416TX.

What's Included

  • Cover sheet
  • Foundation Plan - schematic only
  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
