Plan 430103LY

5-Bed Mediterranean House Plan with Outdoor Kitchen - 5017 Sq Ft

Heated S.F.
5,017
Beds
5
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 430103LY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 430103LY

M-F 9am-5pm EST |

1-203-761-8500

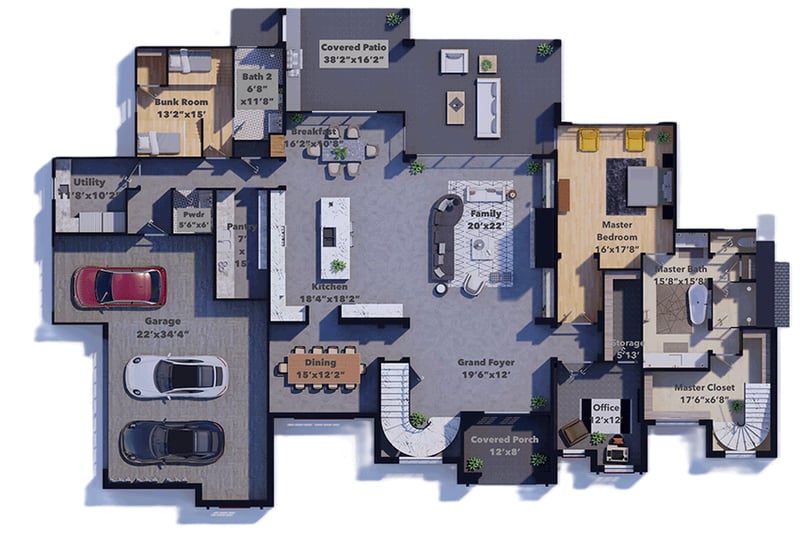

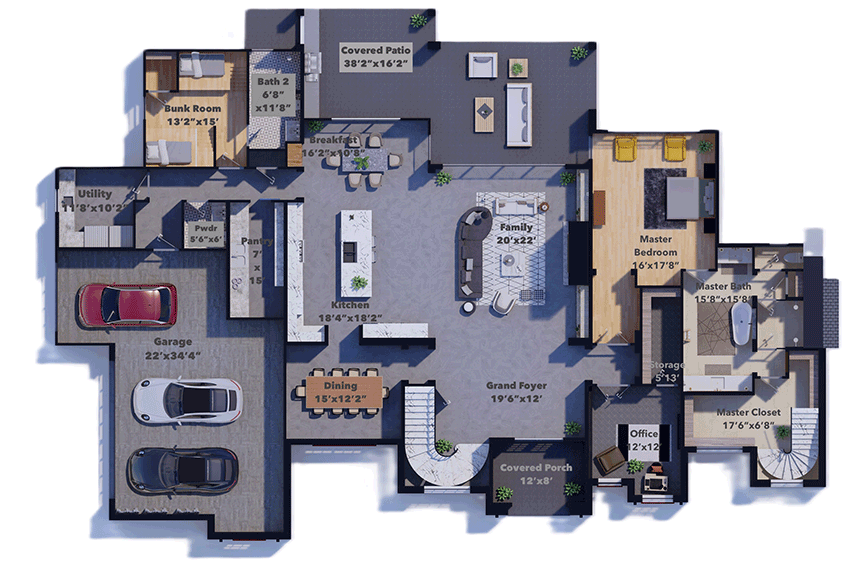

Main Level

Plan 430103LY: 5-Bed Mediterranean House Plan with Outdoor Kitchen - 5017 Sq Ft - Floor Plan - Main Level - Mediterranean, Tuscan

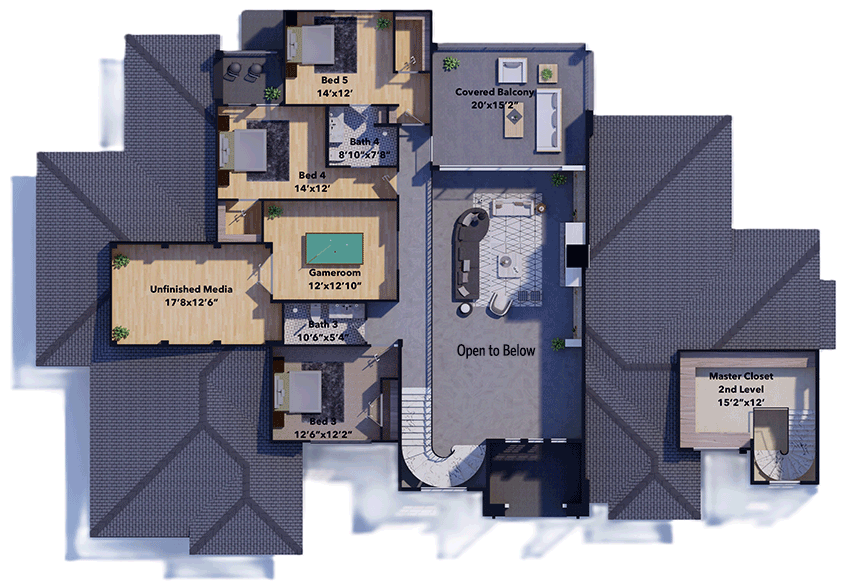

2nd Floor

Plan 430103LY: 5-Bed Mediterranean House Plan with Outdoor Kitchen - 5017 Sq Ft - Floor Plan - 2nd Floor - Mediterranean, Tuscan

Plan Details

  • This Mediterranean house plan offers you 5,017 square feet of heated living space with 5 beds, 4.5 baths and a 857 square foot, 3-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,017 sq. ft.

1st Floor

3,567 sq. ft.

2nd Floor

1,269 sq. ft.

Porch, Front

123 sq. ft.

Balcony / Veranda

394 sq. ft.

Covered Patio

590 sq. ft.

Storage

285 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

102' 0"

Depth

69' 3"

Max Ridge Height

31' 0"

Garage

Type

Attached

Area

857 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Family Room

Coffered

21' 0''

Master Bedroom

Coffered

12' 0''

Study

Raised

12' 0''

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick

Architectural Style

Mediterranean

Tuscan

Special Features

Bedrooms - Split

Breakfast Nook

Flex Room

Formal Dining

Game/Rec Room

Home Office

Home Theater

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Media Room

Mudroom

Multiple Stairs

Outdoor Kitchen

Playroom

Two Story Great Room

Walk-in Pantry

Wet Bar

Plan Collections

Home Office
