Plan 33269ZR

5-Bed Mediterranean House Plan with Vaulted Great Room - 4234 Sq Ft

Heated S.F.
4,234
Beds
5
Baths
4.5+
Stories
1
Cars
3

Floor Plan

Plan 33269ZR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 33269ZR

M-F 9am-5pm EST |

1-203-761-8500

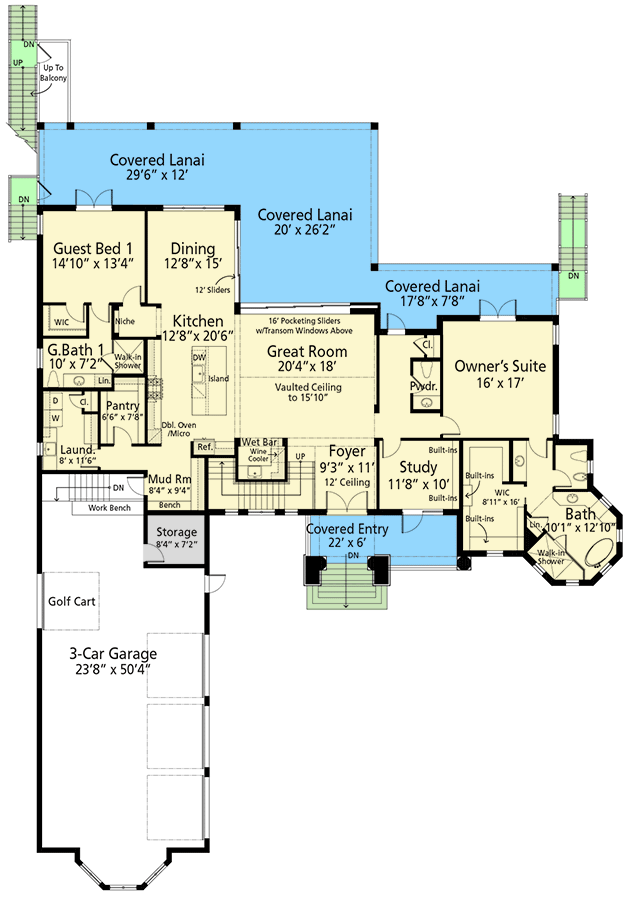

Main Level

Plan 33269ZR: 5-Bed Mediterranean House Plan with Vaulted Great Room - 4234 Sq Ft - Floor Plan - Main Level - Mediterranean

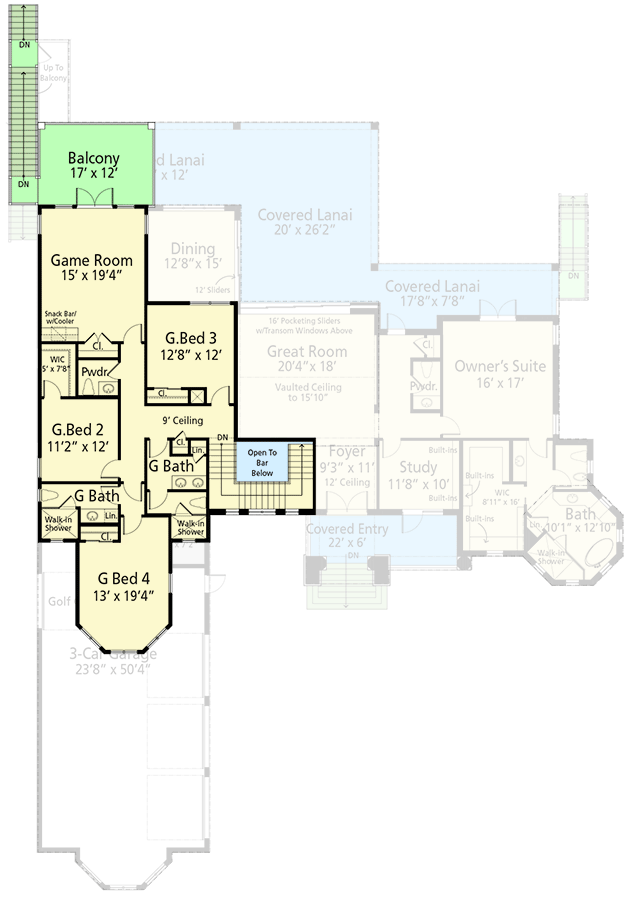

2nd Floor

Plan 33269ZR: 5-Bed Mediterranean House Plan with Vaulted Great Room - 4234 Sq Ft - Floor Plan - 2nd Floor - Mediterranean

Plan Details

  • This 4,234 square foot Mediterranean house plan with its cascading roof line, cast-stone detailing and copious arched windows and doors gives you 5 beds, 2 half baths, 4 full bath and a 1,377 square foot, 3-car garage. A prominent entrance welcomes guests to a foyer flooded with natural light. Views out the back wall of glass opens up to the meandering covered lanai. Stairs to the left wrap around a wet bar that conveniently serves your guests as they arrive.
  • The vaulted great room opens up to the gourmet kitchen and dining areas. This is the perfect setting for entertaining. A powder room is just around the corner and also serves as a pool bath. The large walk-in pantry is just behind the kitchen wall and is just steps away from the mud room and garage entry.
  • The private owner’s suite is just past the study. Double doors open from the bedroom to the covered lanai. The owner’s octagonal bath is an indulgent retreat, and offers repose with a spa tub and generous walk-in shower. Dual vanities, privy with toilet/bidet, and an extra large his and hers walk-in closet fully completes the suite.
  • A main floor guest suite is on the opposite side of the house, with the laundry room just behind it.
  • The second floor offers 3 more guest bedrooms with 2 full baths. A powder bath is convenient to the game room with balcony access. The balcony also has a stairs that connects to the deck below.
  • The expansive 3-car garage offers a golf cart bay, storage room, work bench and plenty of room for more recreational amenities.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • NOTE: Please allow 5 to 7 business days for delivery.

What's Included

  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

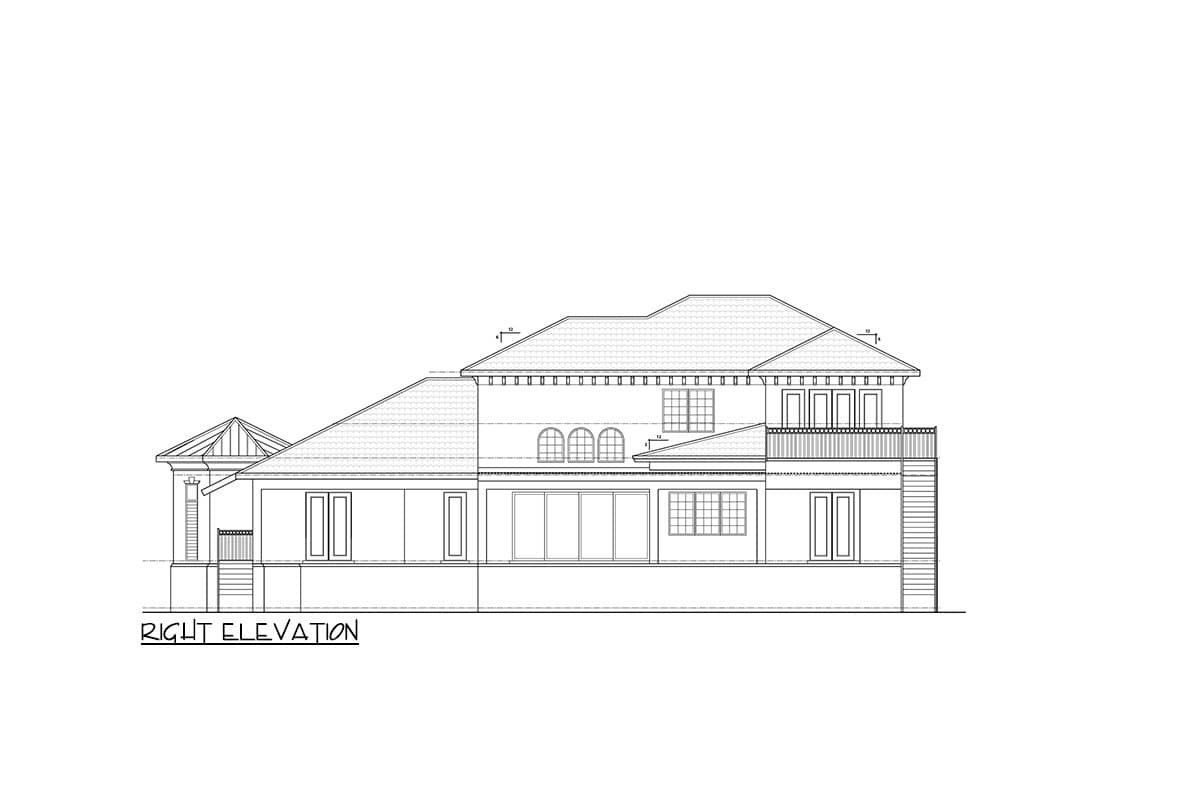

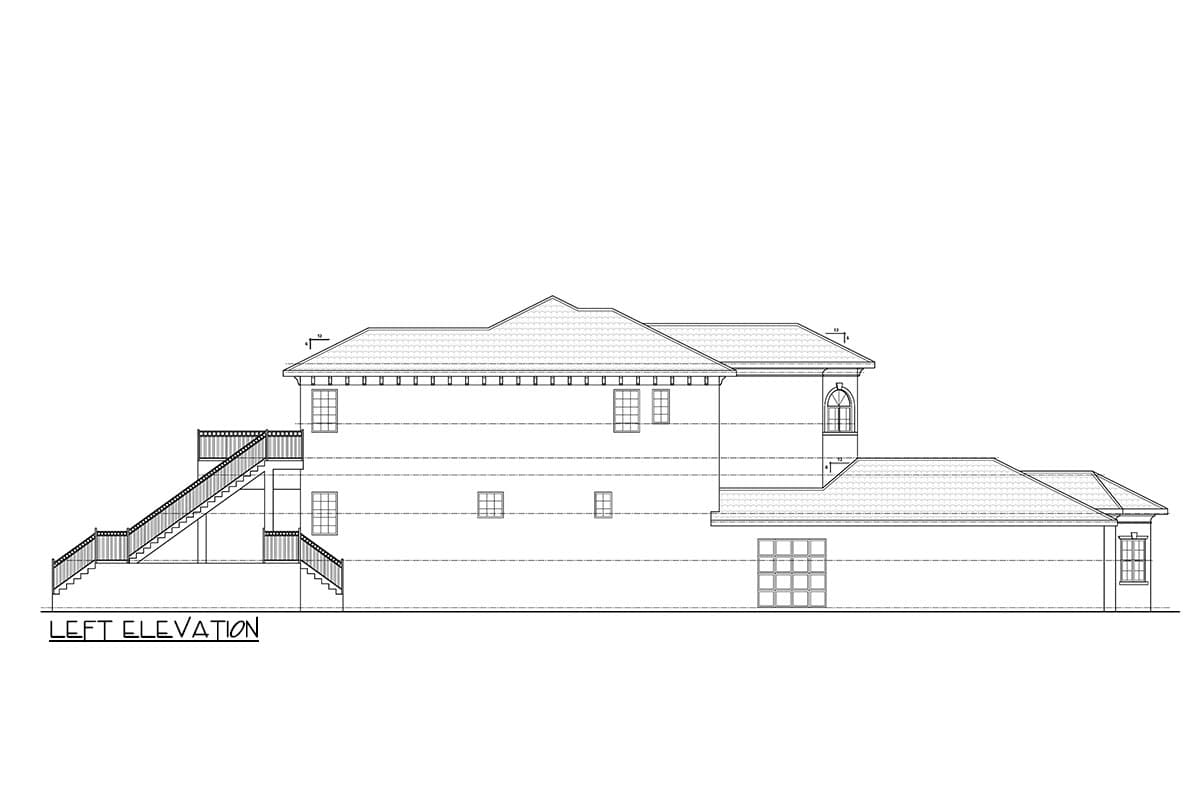

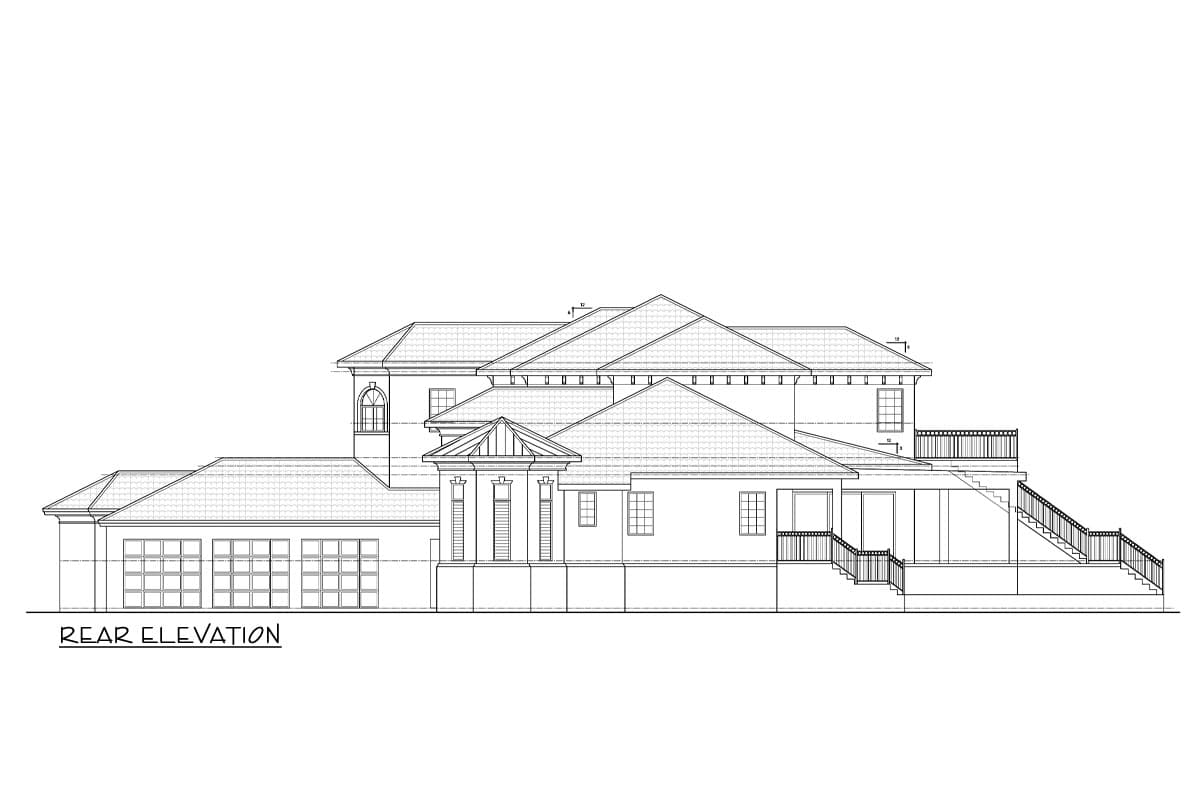

  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,234 sq. ft.

1st Floor

2,847 sq. ft.

2nd Floor

1,387 sq. ft.

Porch, Rear

1,090 sq. ft.

Entry

204 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

ICF

Dimensions

Width

89' 2"

Depth

128' 5"

Max Ridge Height

36' 5"

Garage

Type

Attached

Area

1377 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

15' 10"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Mediterranean

Special Features

Bedrooms - Split

Formal Dining

Game/Rec Room

Home Office

Home Theater

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Two Story Great Room

Walk-in Pantry

Wet Bar

Square Footage Breakdown

Total Heated Area

4,234 sq. ft.

1st Floor

2,847 sq. ft.

2nd Floor

1,387 sq. ft.

Porch, Rear

1,090 sq. ft.

Entry

204 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

ICF

Dimensions

Width

89' 2"

Depth

128' 5"

Max Ridge Height

36' 5"

Garage

Type

Attached

Area

1377 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

15' 10"

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Mediterranean

Special Features

Bedrooms - Split

Formal Dining

Game/Rec Room

Home Office

Home Theater

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Two Story Great Room

Walk-in Pantry

Wet Bar
