Plan 46506LA 5 Bed New American Farmhouse Plan with Garage Workshop and Upstairs Playroom

4,683 5 4.5 2 4
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

5 Bed New American Farmhouse Plan with Garage Workshop and Upstairs Playroom

Plan 46506LA

  • 4,683

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • This 5 bed house plan gives you 4,683 square feet of heated living and two 2-car garages - one with a porte-cochere and the other with a workshop in back - that combine for 1,117 square feet of parking space.
  • The master suite is on the main floor and has sliding door access to the rear covered porch. A second guest bedroom is located to the right of the foyer and can serve as a home office if needed.
  • A large kitchen island has seating for up to six people and a butler's pantry as well as a walk-in one. The kitchen is open to the 2-story family room with fireplace and has a well place sink set below a window looking out back. The formal dining room has a tray ceiling. Serve meals there or al fresco on the back vaulted porch.
  • In addition to a playroom/rec room above the garage and a loft overlooking the family room below, there are three bedrooms - each with walk-in closets - on the second floor.
  • NOTE: Please allow 20 to 25 business days for delivery.

This plan set has the following details:


  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

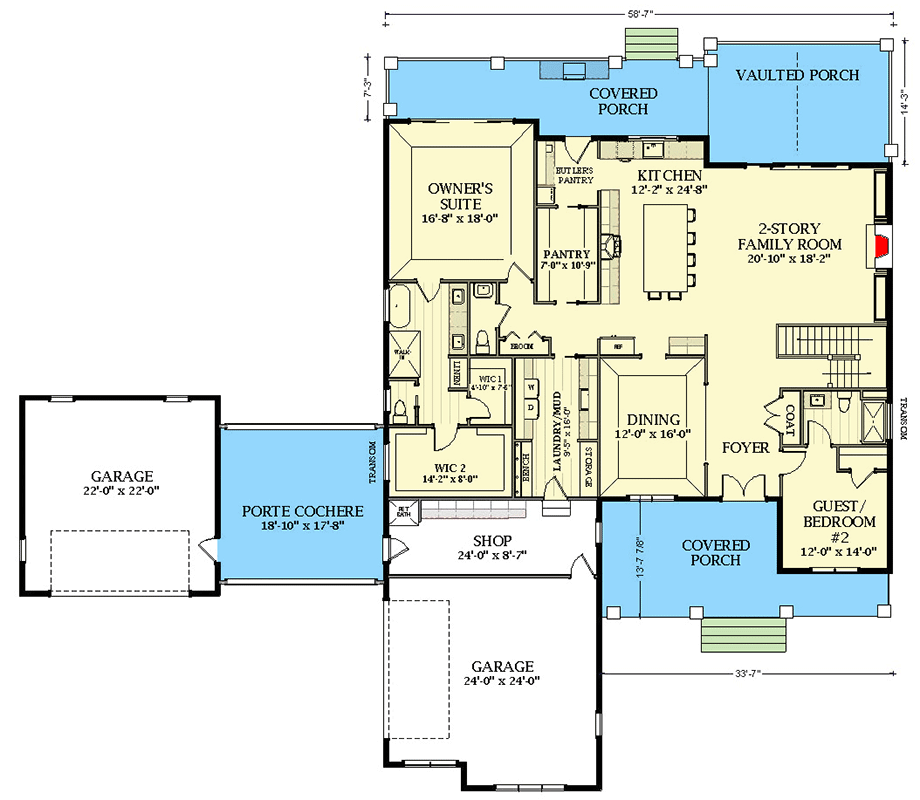

5 Bed New American Farmhouse Plan with Garage Workshop and Upstairs Playroom - 46506LA floor plan - Main Level

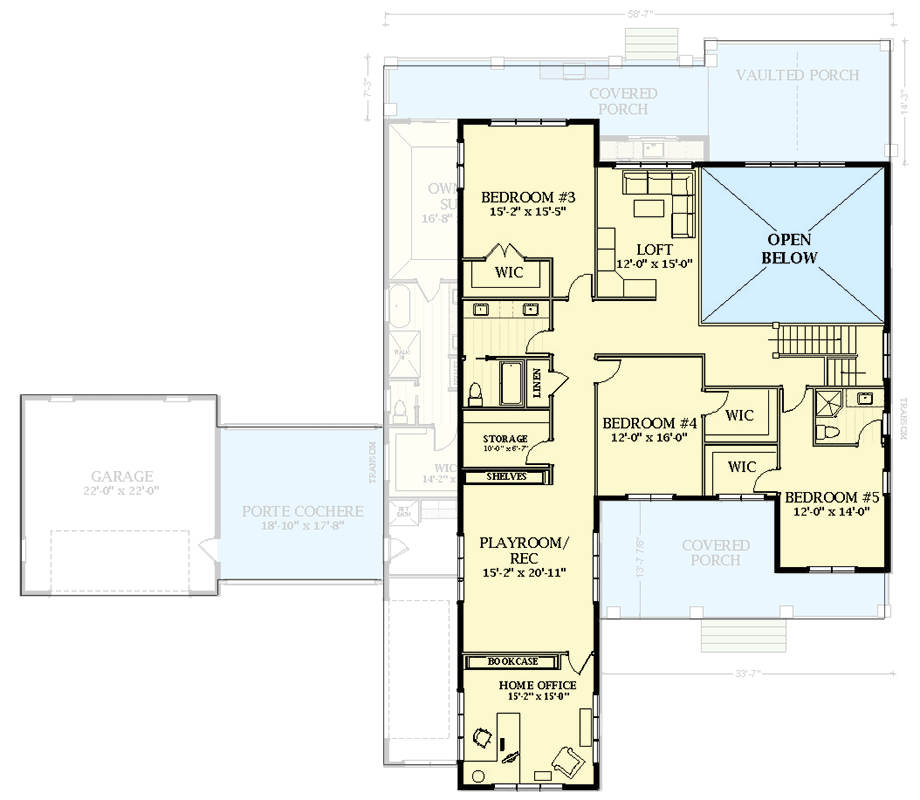

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
5 Bed New American Farmhouse Plan with Garage Workshop and Upstairs Playroom - 46506LA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,683 sq. ft.
  • 1st Floor: 2,749 sq. ft.
  • 2nd Floor: 1,934 sq. ft.
  • Workshop: 222 sq. ft.
  • Porch, Rear: 605 sq. ft.
  • Porch, Front: 345 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Daylight, Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 100' 2"
  • Depth: 86' 3"
  • Max ridge height: 40' 0"

Garage

  • Type: Detached, Attached
  • Area: 1117 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 14 on 12
  • Framing Type: Stick

Architectural Style

Special features

5 Bed New American Farmhouse Plan with Garage Workshop and Upstairs Playroom

  • 4,683

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $1,595
  • 5 Sets $1,795
  • 5 Sets + PDF $1,945
  • CAD + PDF - Single Build $2,595
  • CAD + PDF - Unlimited Build $2,995
  • View all purchase option online

About This Plan

  • This 5 bed house plan gives you 4,683 square feet of heated living and two 2-car garages - one with a porte-cochere and the other with a workshop in back - that combine for 1,117 square feet of parking space.
  • The master suite is on the main floor and has sliding door access to the rear covered porch. A second guest bedroom is located to the right of the foyer and can serve as a home office if needed.
  • A large kitchen island has seating for up to six people and a butler's pantry as well as a walk-in one. The kitchen is open to the 2-story family room with fireplace and has a well place sink set below a window looking out back. The formal dining room has a tray ceiling. Serve meals there or al fresco on the back vaulted porch.
  • In addition to a playroom/rec room above the garage and a loft overlooking the family room below, there are three bedrooms - each with walk-in closets - on the second floor.
  • NOTE: Please allow 20 to 25 business days for delivery.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,683 sq. ft.
  • 1st Floor: 2,749 sq. ft.
  • 2nd Floor: 1,934 sq. ft.
  • Workshop: 222 sq. ft.
  • Porch, Rear: 605 sq. ft.
  • Porch, Front: 345 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Daylight, Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 100' 2"
  • Depth: 86' 3"
  • Max ridge height: 40' 0"

Garage

  • Type: Detached, Attached
  • Area: 1117 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Framing Type: Stick
