5-Bed Painted Brick House Plan Under 5000 Square Feet with a Porte Cochere

Plan 680125VR

  • 4,962

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 5

    Cars

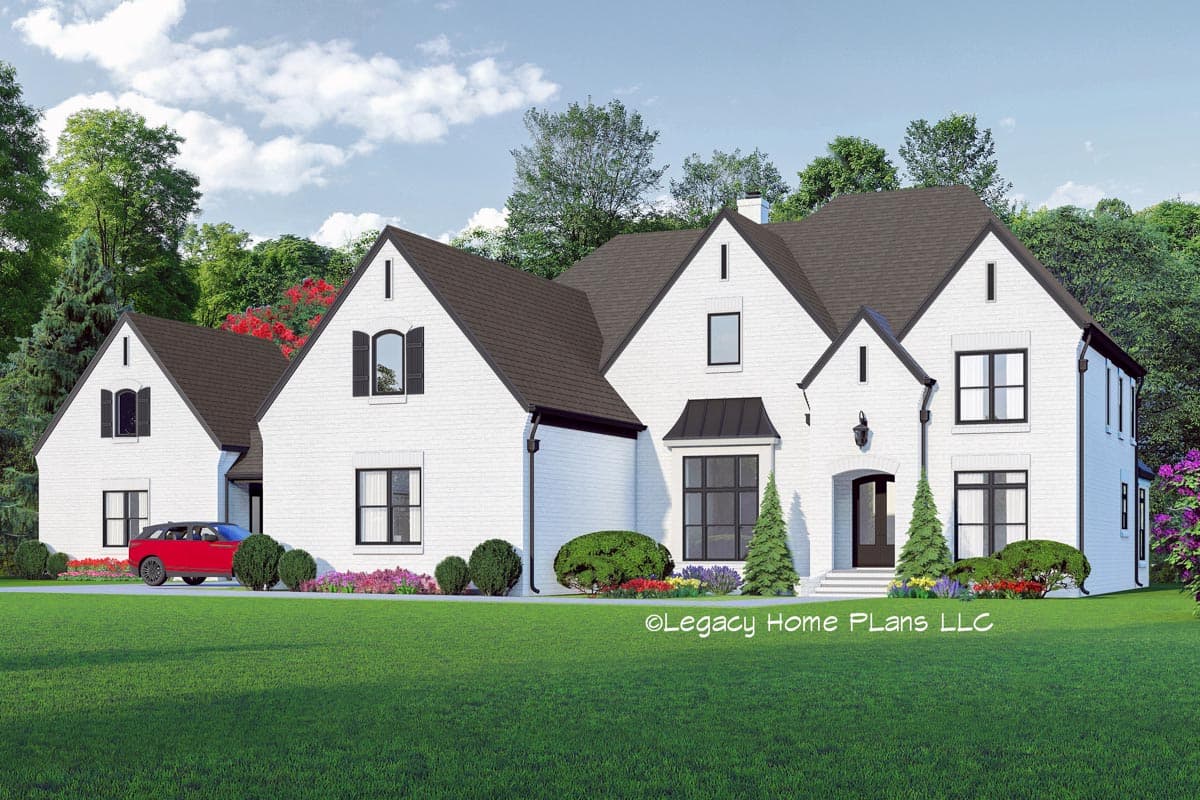

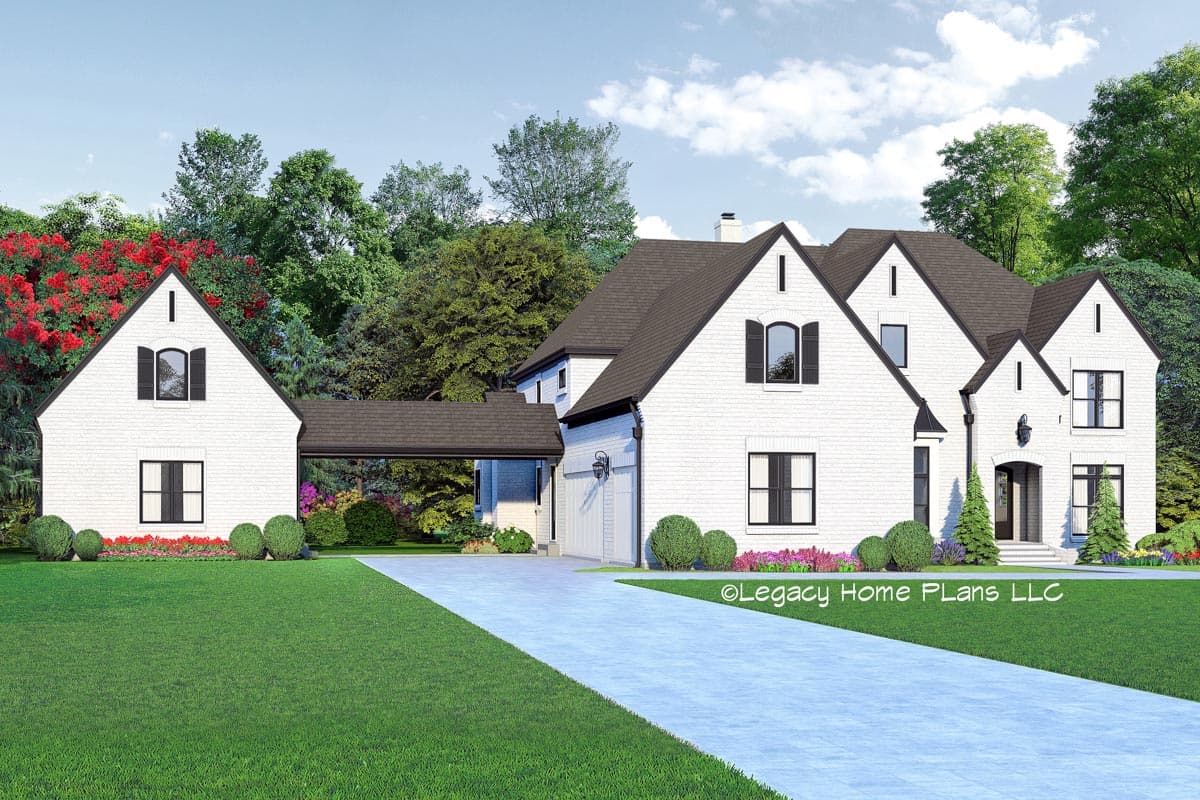

  • This 5-bed, 4.5 bath house plan has a painted brick exterior and gives you 4,962 square feet of heated living and a 3-car side entry garage (815 square feet) plus a 2-car rear entry garage (650 sq. ft.) attached to a port-cochere (272 sq. ft.).
  • A home office sits behind French doors off the foyer which leads to the 2-story family room. A pair of French doors - aligned with the ones in the foyer - take you to the covered patio in back which has an outdoor kitchen.
  • The master suite is on the main floor and has a roomy 2-person walk-in closet and direct access to the laundry room, a great convenience.
  • Upstairs, three bedrooms share two baths. A large rec room is located above the garage and a craft room can be put to alternate uses.
  • Related Plans: Get a more contemporary exterior with house plan 680181VR and remove the detached double garage with house plan 680064VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

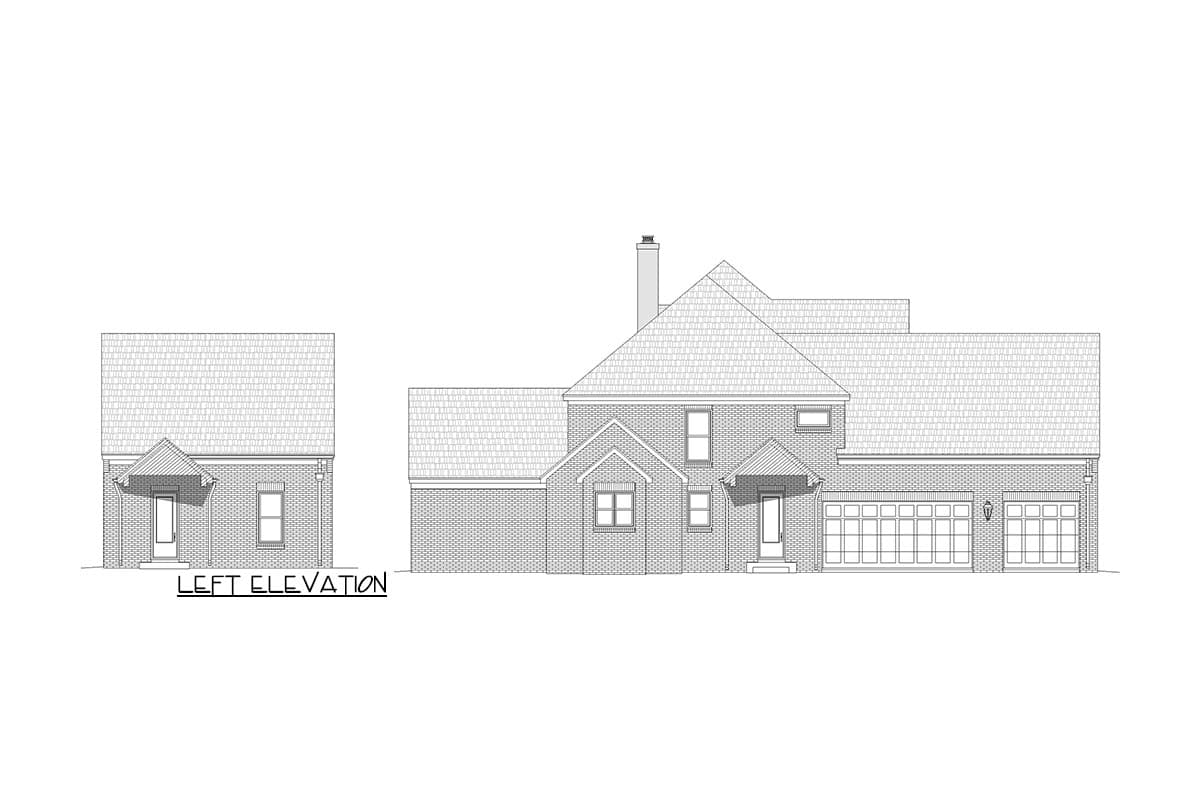

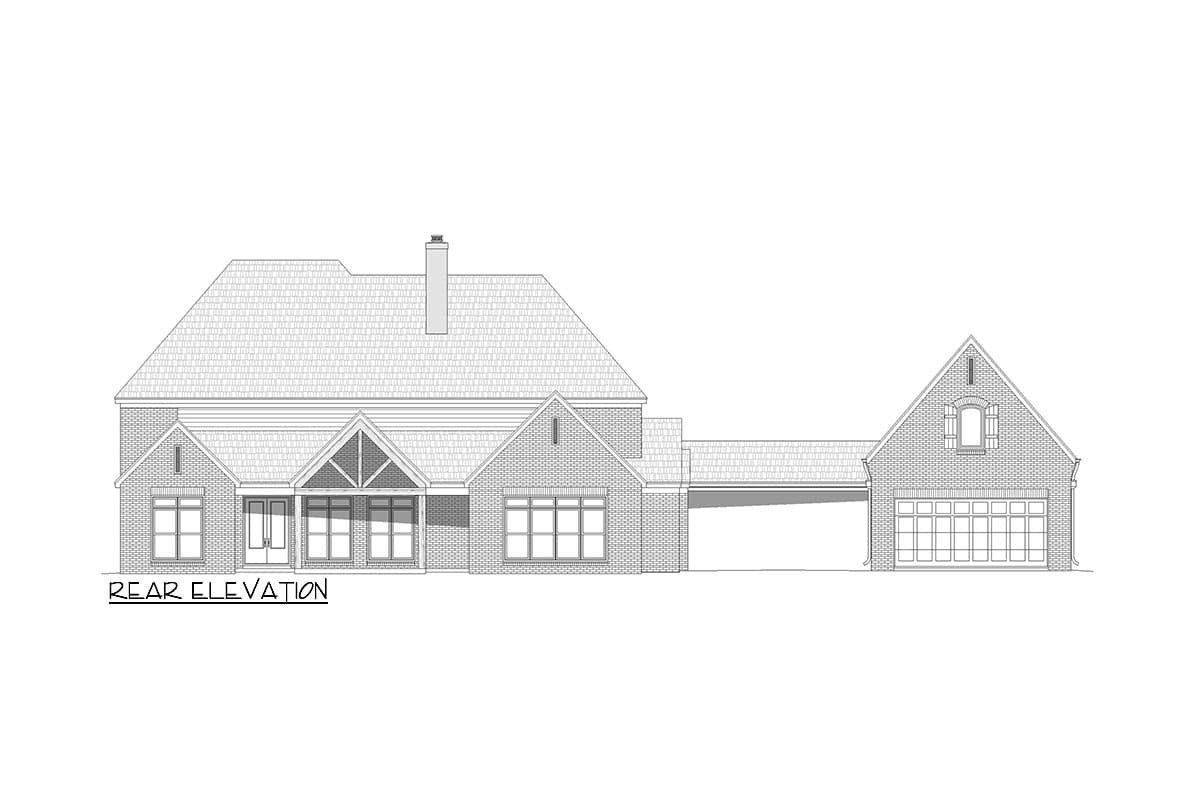

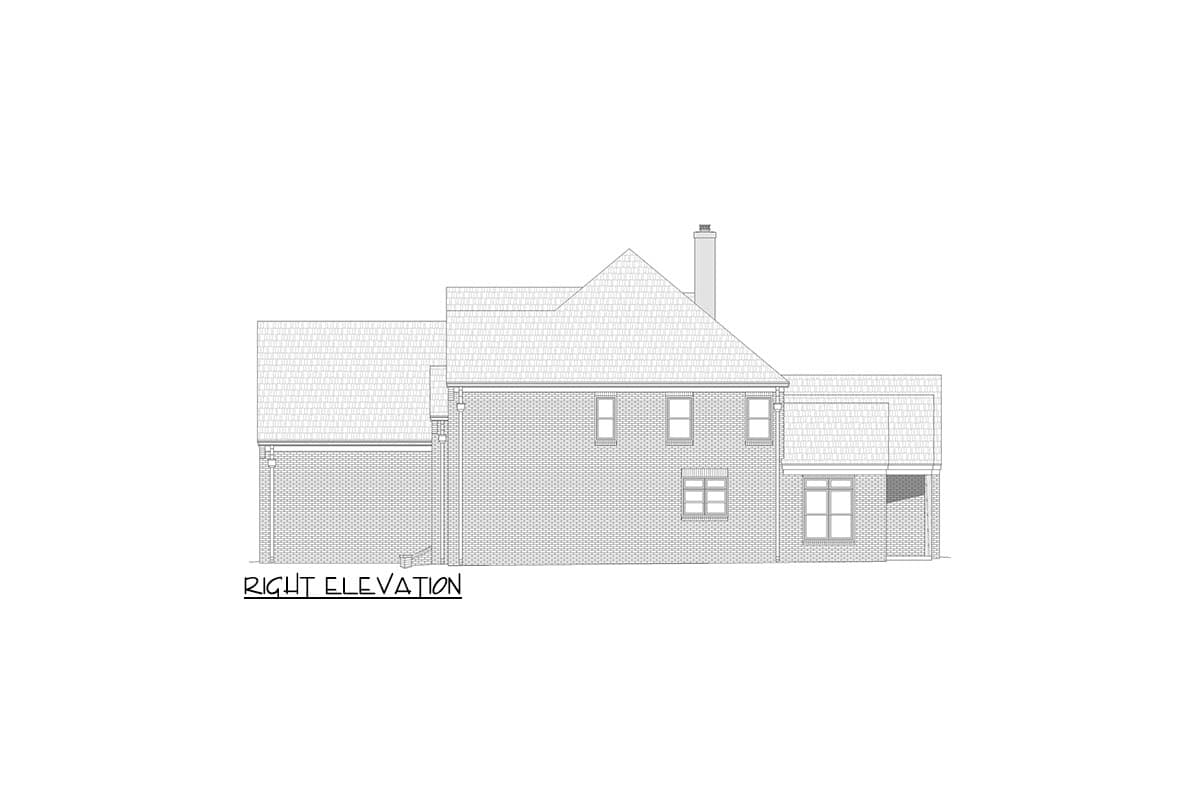

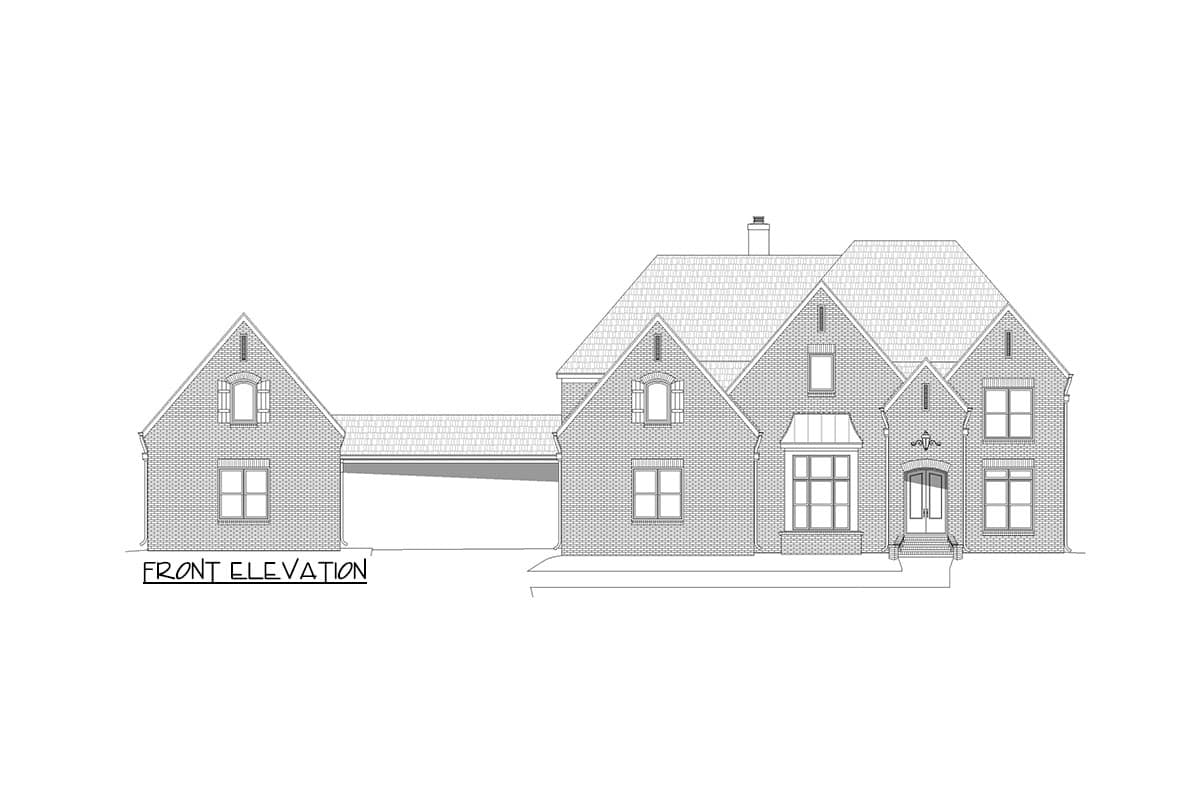

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

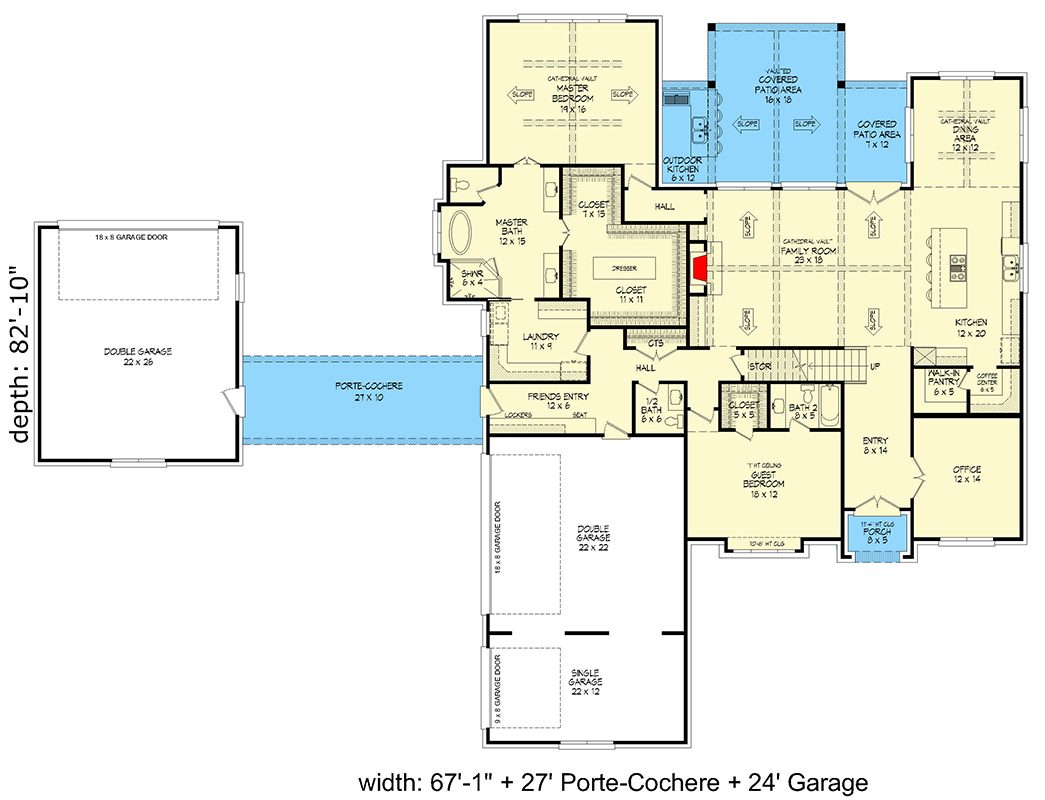

5-Bed Painted Brick House Plan Under 5000 Square Feet with a Porte Cochere - 680125VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

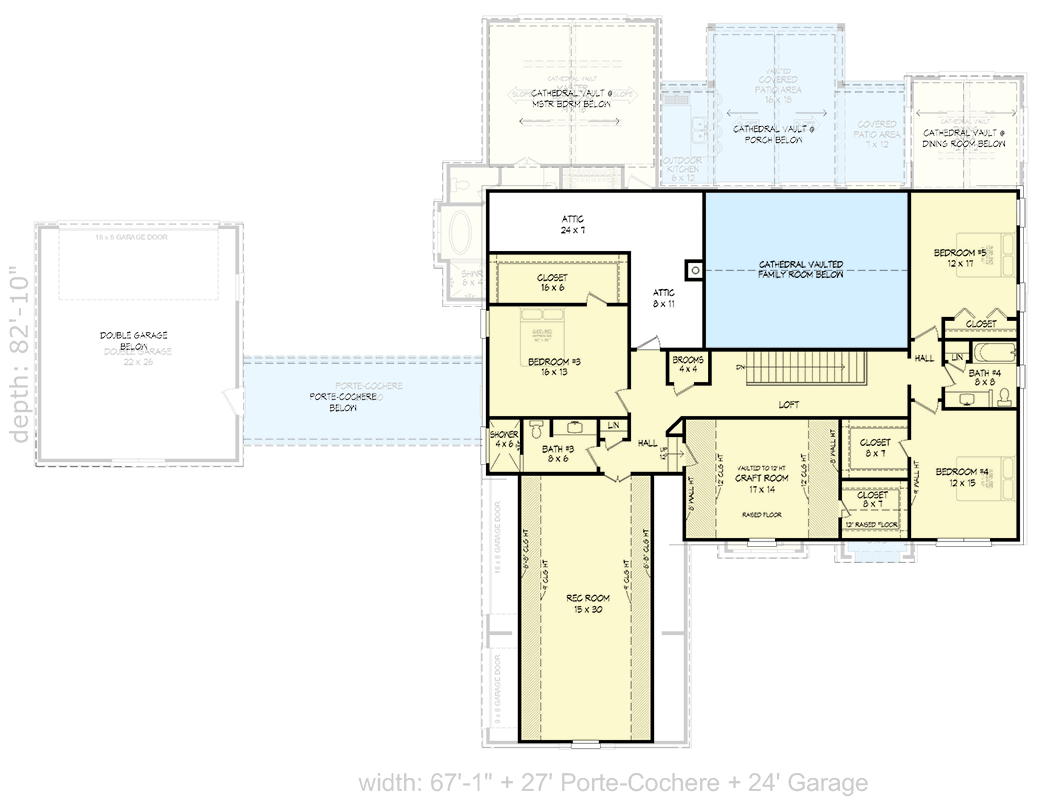

5-Bed Painted Brick House Plan Under 5000 Square Feet with a Porte Cochere - 680125VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,962 sq. ft.
  • 1st Floor: 2,862 sq. ft.
  • 2nd Floor: 2,100 sq. ft.
  • Attic: 279 sq. ft.
  • Porch, Combined: 505 sq. ft.
  • Port Cochere: 272 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 118' 1"
  • Depth: 82' 10"
  • Max ridge height: 35' 0"

Garage

  • Type: Detached, Attached
  • Area: 1465 sq. ft.
  • Count: 5 Cars
  • Entry Location: Rear, Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick

Architectural Style

Special features

5-Bed Painted Brick House Plan Under 5000 Square Feet with a Porte Cochere

  • 4,962

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 5

    Car garage

Buy This Plan
  • PDF - Single-Build $2,495
  • 5 Sets $2,645
  • 5 Sets + PDF $2,848
  • CAD + PDF - Single-Build $3,045
  • View all purchase option online

About This Plan

  • This 5-bed, 4.5 bath house plan has a painted brick exterior and gives you 4,962 square feet of heated living and a 3-car side entry garage (815 square feet) plus a 2-car rear entry garage (650 sq. ft.) attached to a port-cochere (272 sq. ft.).
  • A home office sits behind French doors off the foyer which leads to the 2-story family room. A pair of French doors - aligned with the ones in the foyer - take you to the covered patio in back which has an outdoor kitchen.
  • The master suite is on the main floor and has a roomy 2-person walk-in closet and direct access to the laundry room, a great convenience.
  • Upstairs, three bedrooms share two baths. A large rec room is located above the garage and a craft room can be put to alternate uses.
  • Related Plans: Get a more contemporary exterior with house plan 680181VR and remove the detached double garage with house plan 680064VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,962 sq. ft.
  • 1st Floor: 2,862 sq. ft.
  • 2nd Floor: 2,100 sq. ft.
  • Attic: 279 sq. ft.
  • Porch, Combined: 505 sq. ft.
  • Port Cochere: 272 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 118' 1"
  • Depth: 82' 10"
  • Max ridge height: 35' 0"

Garage

  • Type: Detached, Attached
  • Area: 1465 sq. ft.
  • Count: 5 Cars
  • Entry Location: Rear, Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick
Plan 680125VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/680125VR
|
