5 Bed Southern Traditional House Plan - 4413 Sq Ft - Architectural Designs

Plan 46509LA

  • 4,413

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 5 bed, 3.5 bath Southern Traditional house plan gives you 4413 square feet of heated living spread and a 3-car, 774 square foot garage.
  • A 2-story living room is at the center of the home. It has a fireplace and access sliding door access tot he covered porch in back to either side. The living room is open to the kitchen with seating for 5 at the island and a hidden pantry across from the butler's pantry. A bayed breakfast nook looks out back and a formal dining room with tray ceiling is available for more formal meals.
  • The vaulted master suite has a huge walk-in closet and a five-fixture bath. Beds 2 and 3 are located nearby. Across the home a study gives you a great work-from-home space.
  • Upstairs, two more bedrooms - each with walk-in closets - share a bath. A loft/media space looks out over the living room below and there is expansion space above the garage should you need more room.

This plan set has the following details:


  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

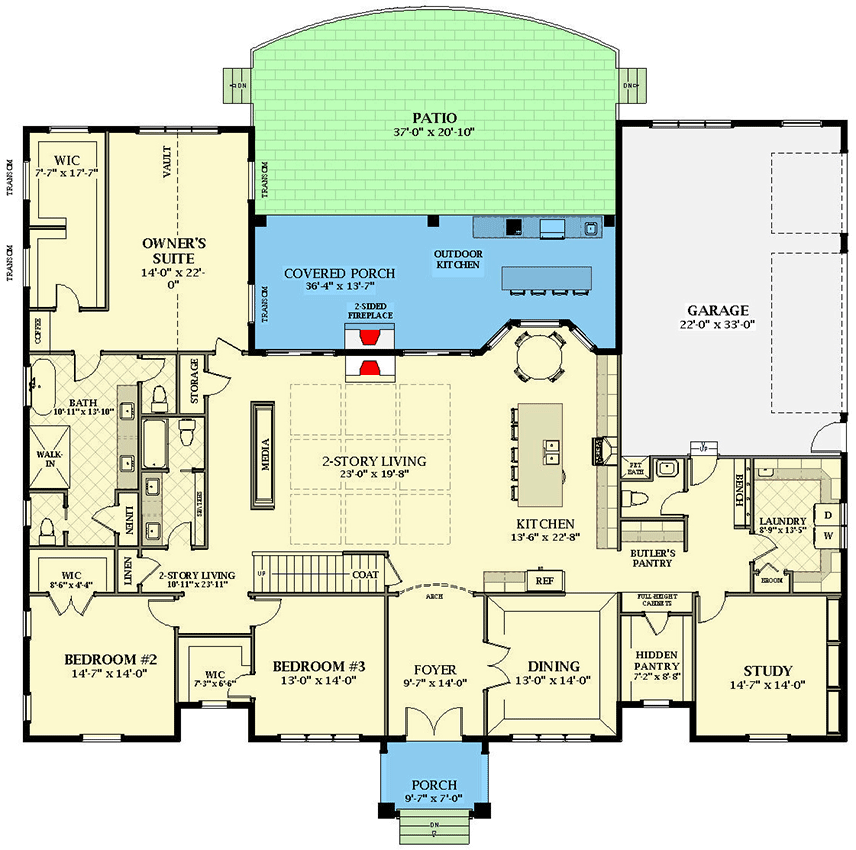

5 Bed Southern Traditional House Plan - 4413 Sq Ft - Architectural Designs - 46509LA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

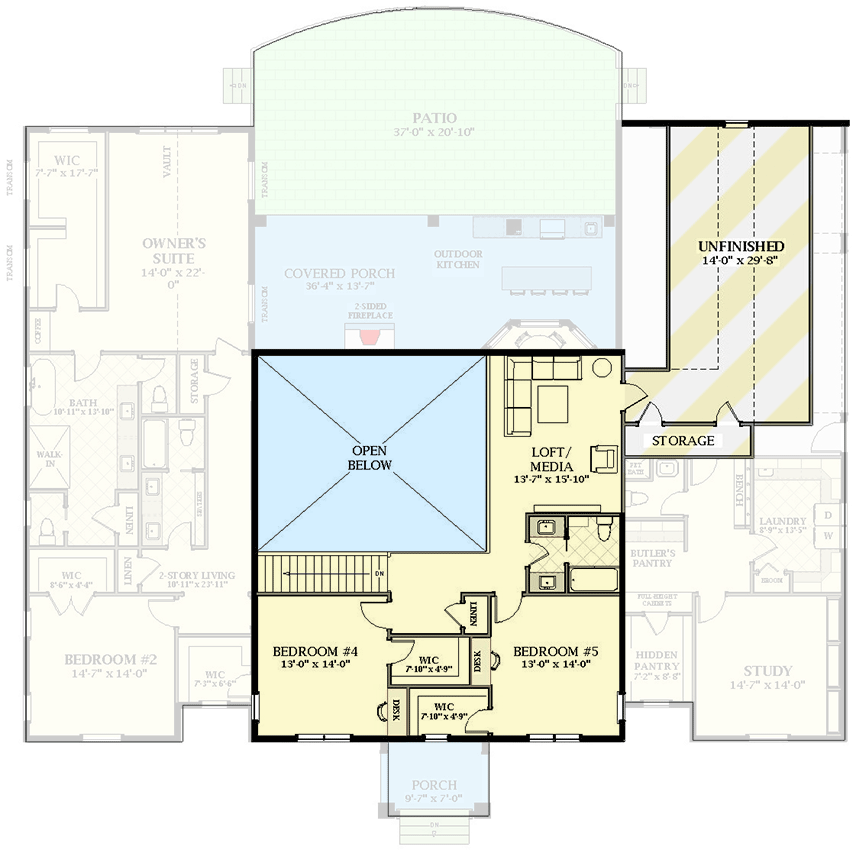

5 Bed Southern Traditional House Plan - 4413 Sq Ft - Architectural Designs - 46509LA floor plan - 2nd Floor

5 Bed Southern Traditional House Plan - 4413 Sq Ft - Architectural Designs

  • 4,413

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,413 sq. ft.
  • 1st Floor: 3,481 sq. ft.
  • 2nd Floor: 932 sq. ft.

Dimensions

  • Width: 83' 0"
  • Depth: 82' 0"
  • Max ridge height: 34' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 774 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Daylight, Slab, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
