Plan 46516LA

5-Bed Southern Transitional Home Plan with Coffered Celling and Outdoor Kitchen - 4027 Sq Ft

Heated S.F.
4,027
Beds
5
Baths
4.5
Stories
1
Cars
3

Floor Plan

Plan 46516LA

Main Level
Main Level

Plan 46516LA

M-F 9am-5pm EST |

1-203-761-8500

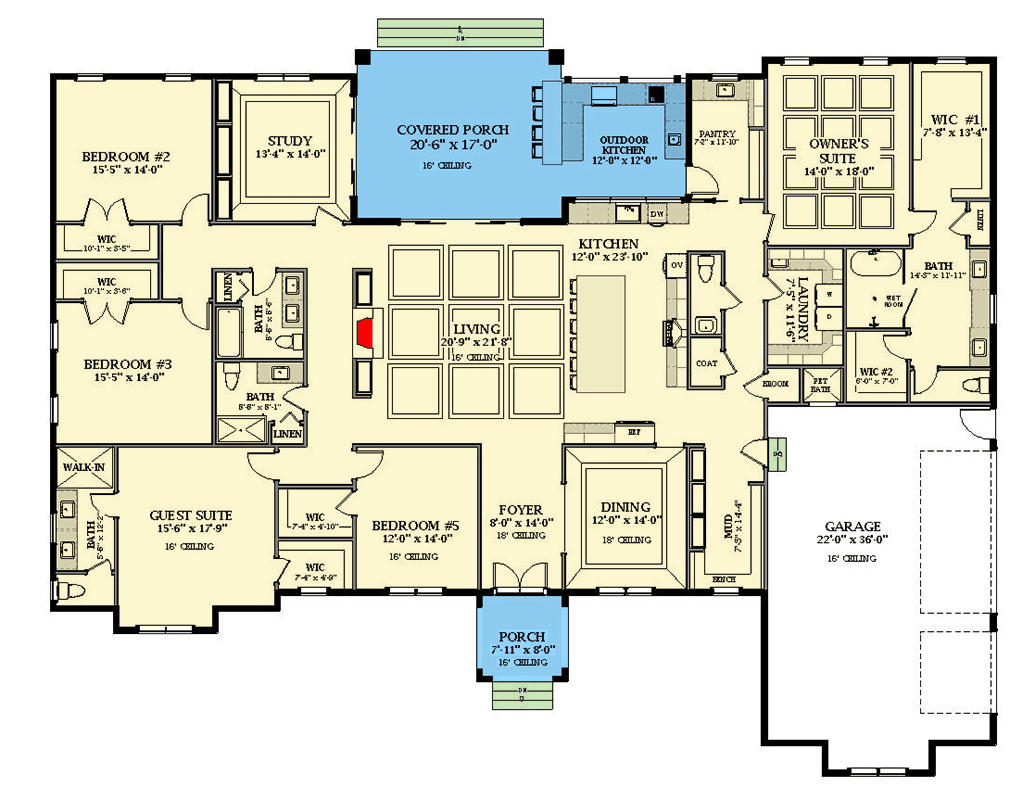

Main Level

Plan 46516LA: 5-Bed Southern Transitional Home Plan with Coffered Celling and Outdoor Kitchen - 4027 Sq Ft - Floor Plan - Main Level - Contemporary, Southern, Transitional

Plan Details

  • This 5 bed, 4.5 bath southern transitional house plan gives you 4,027 square feet of heated living and has a 3-car side load garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Floor plans with window and door schedules
  • Roof plan
  • Elevations
  • Front and rear perspectives on some (but not all) plans
  • Building section, eave detail and typical stair detail
  • Interior perspectives and elevations
  • Electrical plans
  • Foundation plan
  • Floor framing plans
  • Ceiling framing plans
  • Roof framing plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,027 sq. ft.

1st Floor

4,027 sq. ft.

Porch, Front

71 sq. ft.

Porch, Rear

501 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

93' 8"

Depth

71' 8"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

804 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Southern

Transitional

Special Features

Bedrooms - Split

Den

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Two Master Suites

Walk-in Pantry

Plan Collections

Home Office

Two Master Suites

Square Footage Breakdown

Total Heated Area

4,027 sq. ft.

1st Floor

4,027 sq. ft.

Porch, Front

71 sq. ft.

Porch, Rear

501 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

93' 8"

Depth

71' 8"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

804 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Contemporary

Southern

Transitional

Special Features

Bedrooms - Split

Den

Formal Dining

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Two Master Suites

Walk-in Pantry

Plan Collections

Home Office

Two Master Suites
