Plan 185010PHD
EXCLUSIVE
5 Bed Transitional House Plan with Outdoor Fireplace and Kitchen - 2727 Sq Ft
Heated S.F.
2,727
Beds
5
Baths
3.5
Stories
2
Cars
2
What's Included
Plan Details

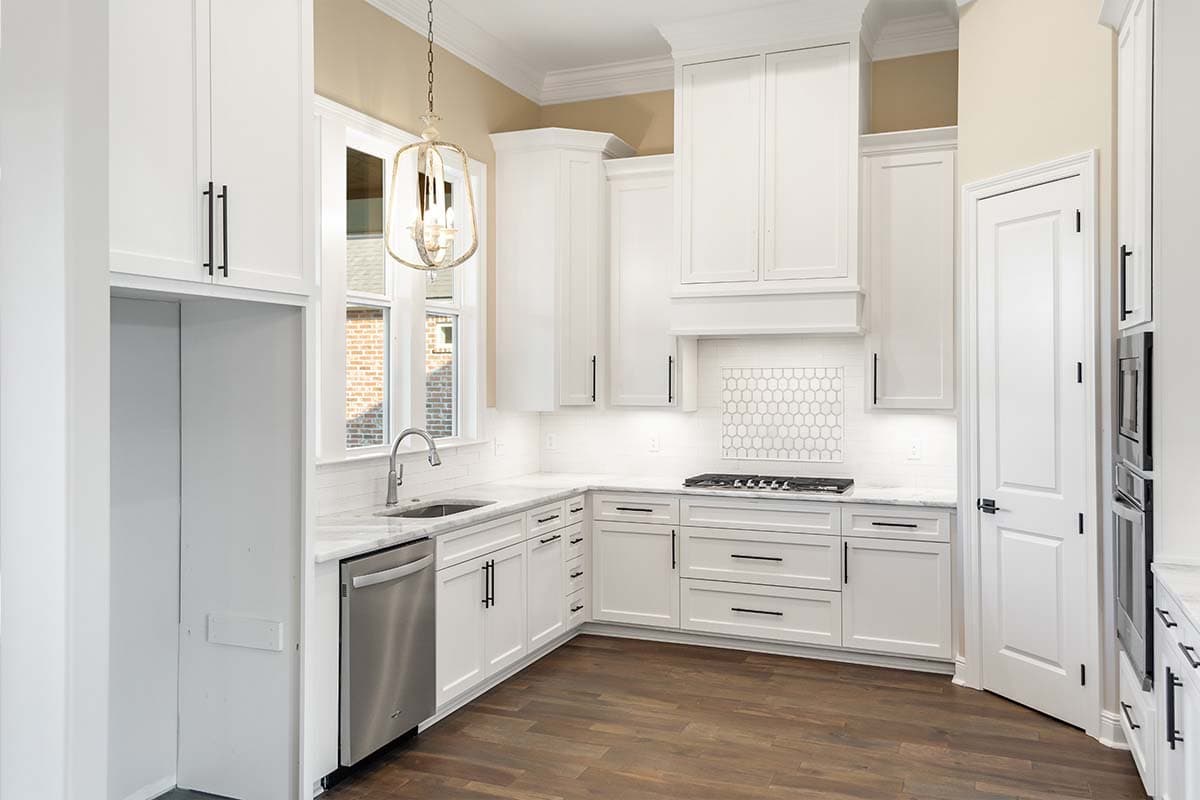

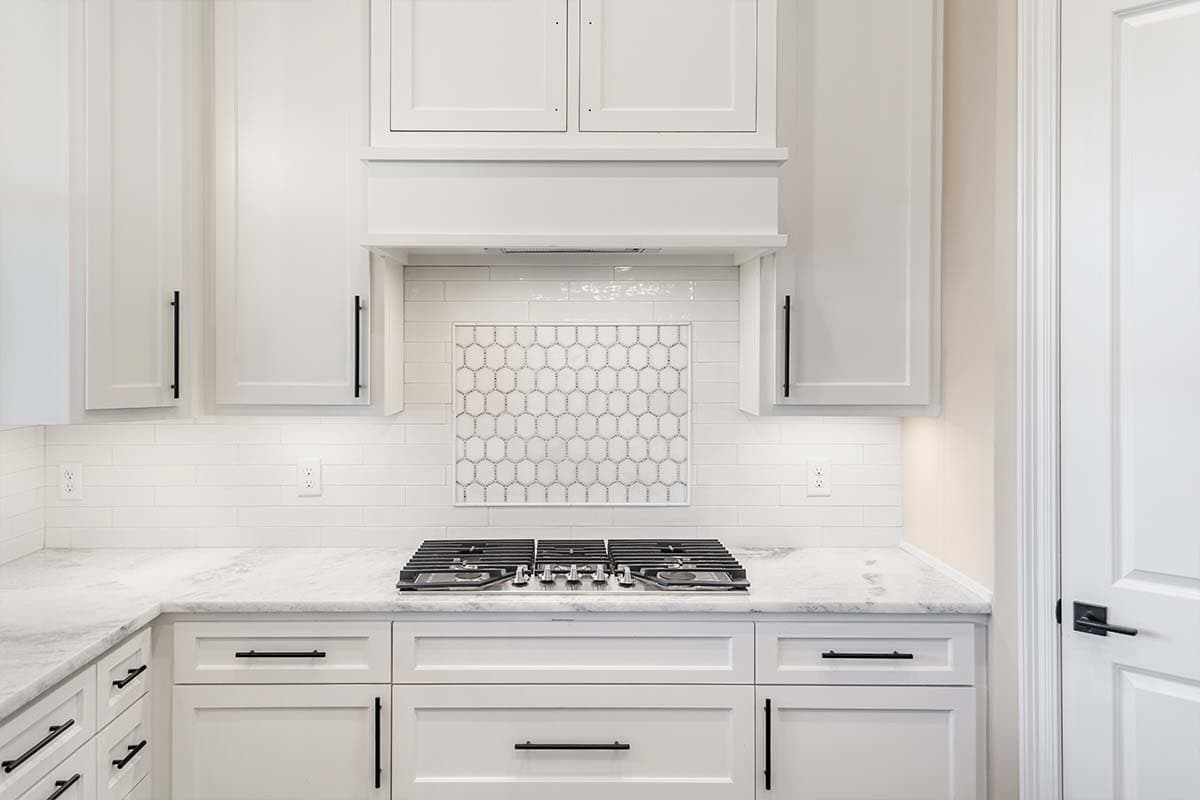

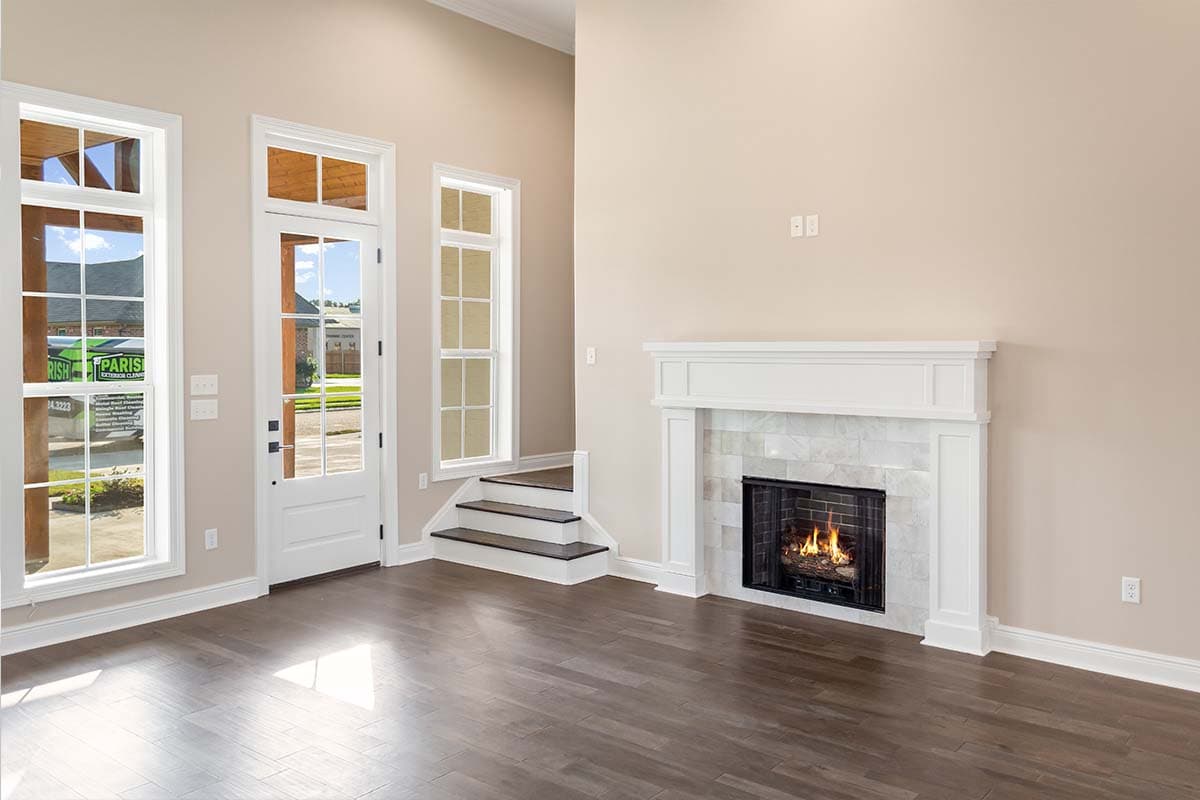

  • This Transitional house plan gives you 2,727 square feet of heated living and has a beautiful timber structure entry on the front porch. The living room offers a coffered ceiling, fireplace, and large windows that allow natural light in. The kitchen is a chef’s delight with a gas cooktop, wall oven, tray ceiling, and pantry.
  • The primary suite is on the main floor along with two bedrooms. The primary bathroom boasts a stand-alone tub, a separate shower, dual sinks, water closet, and a large walk-in closet with built-ins that lead into the utility room. Upstairs, two bedrooms share a bathroom.
  • The back patio is large and a great space to relax or entertain, as it has a brick fireplace, mini refrigerator, gas grill, and sink. The half bath can be accessed from inside the house or from the back patio for your convenience
What's Included
  • Cover Sheet with general notes, rendering perspectives, sheet index
  • Detailed floor plan (includes window and door schedule, plumbing fixture locations, trim notes, floor notes etc.)
  • Roof plan (birds eye view of roof) with wall and foundation details
  • Foundation plan with details

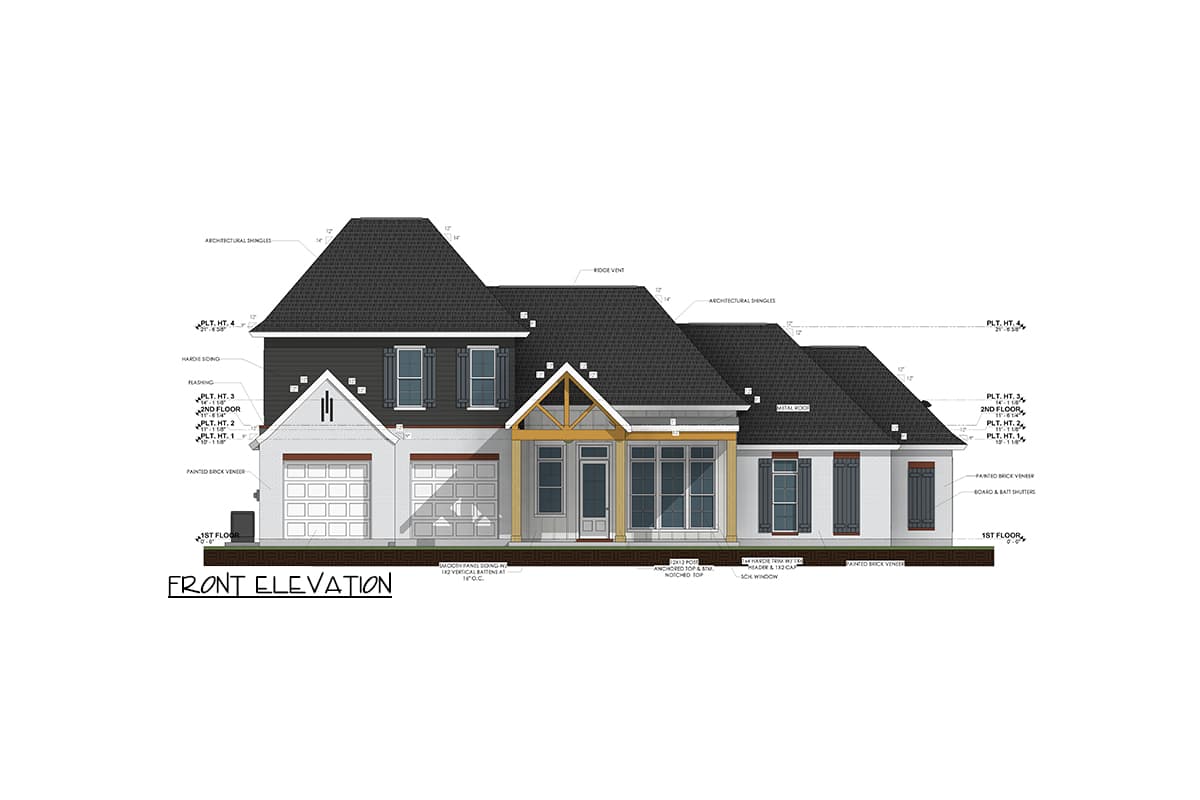

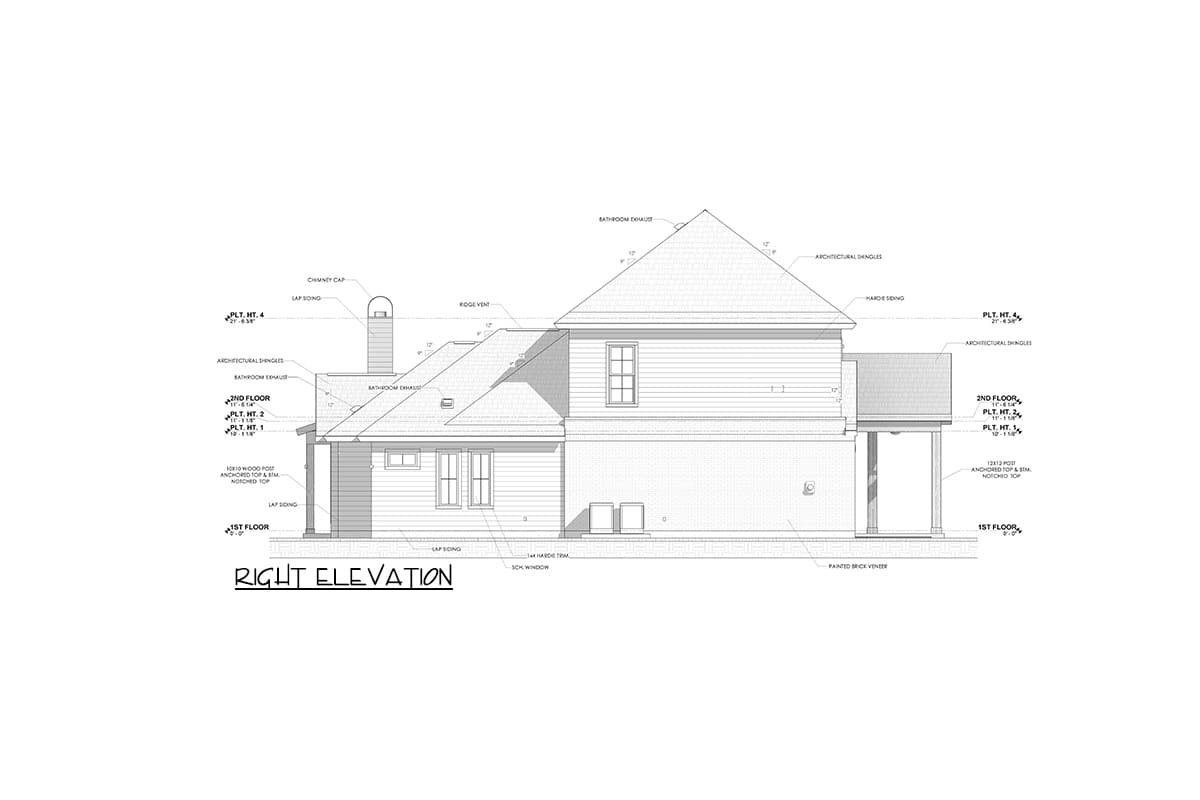

  • Four exterior views (front, rear, right, left)
  • Electrical layout plan included with some plans. Contact us for details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

5 Bed Transitional House Plan with Outdoor Fireplace and Kitchen - 2727 Sq Ft

  • 2,727

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

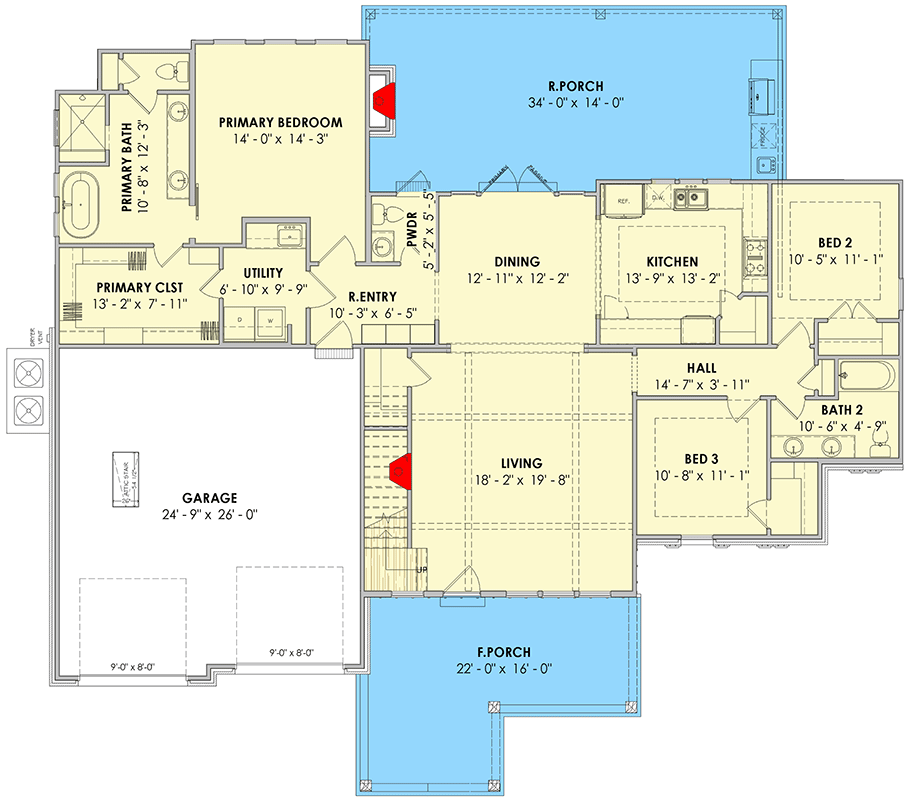

  • Main Level

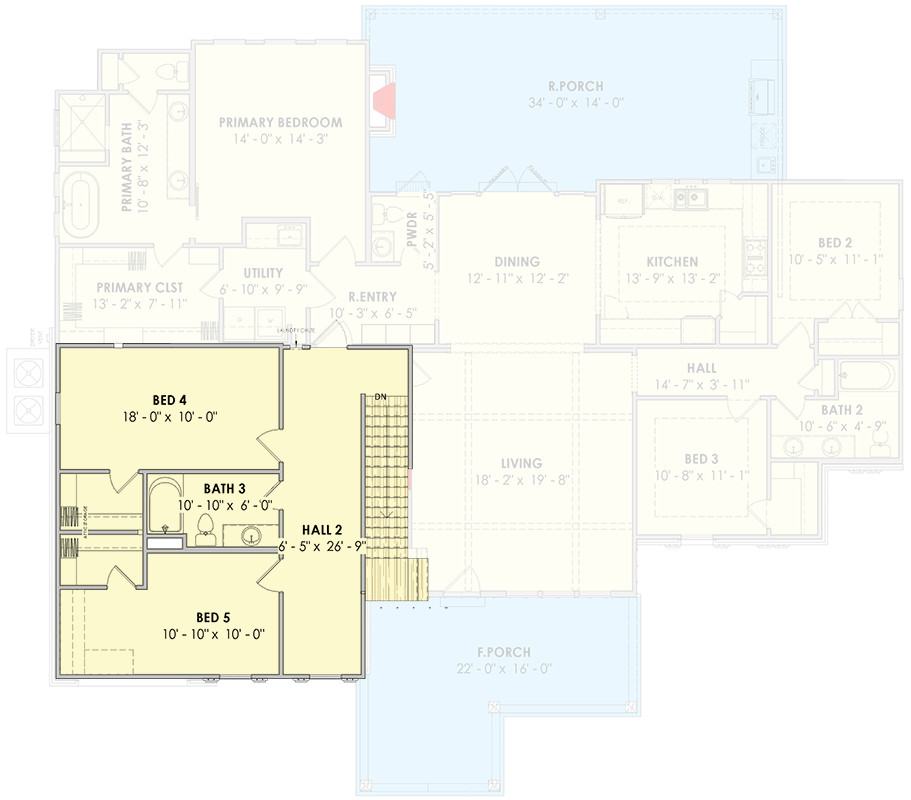

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,727 sq. ft.
  • 1st Floor: 2,013 sq. ft.
  • 2nd Floor: 713 sq. ft.

Dimensions

  • Width: 70' 4"
  • Depth: 64' 5"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 705 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 11' 0" Second Floor / 11' 0" Living 14' 0"
